Name: OEM Pressure Transmitter Sensor For Air Compressors And Refrigeration Equipment
Brand: Baoji Hengtong Electronics Co., LTD
SKU: BP156
Price: 25.00 USD
Availability: InStock

Detail Information

Model NO.:	BP156	Housing Material:	304S.S Or 316L
Pressure Type:	Gauge Pressure, Absolute , Sealed Pressure	Trademark:	HTsensor
Origin:	Baoji China	OEM:	Yes
Measuring Medium:	Liquid,Gas,Oil	Accuracy Grade:	≤0.5%F.S
Pressure Range:	0kpa~10kpa...20MPa	Output:	4-20mA /0.5-4.5Vdc And So On
Highlight:	Refrigeration Equipment Pressure Transmitter Sensor , Air Compressors Pressure Transmitter Sensor , OEM Pressure Transmitter Sensor

Product Description

OEM Pressure Transmitter Sensor For Air Compressors And Refrigeration Equipment

BP156 Pressure Transmitter

Introduction of pressure transmitter sensor:

BP156 pressure transmitter sensor is a cost-effective product specially developed for air compressors and refrigeration equipment. It integrates the latest technology and is equipped with high-performance PCB circuits developed by our company.Each product strict aging and testing, and has the independent surveyor's report, has been widely used in other areas.

Product Features of pressure transmitter sensor:

1. Wide measuring range, stainless steel structure, diverse pressure interface forms
2. Compact and lightweight design

Applications of pressure transmitter sensor:

1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel.
2. Applied in the marine and aviation industries.

Performance Parameters of pressure transmitter sensor:
Measurement Range	0kPa ~ 10kPa…20MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability& Hysteresis	0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability	±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70ºC(≤10mpa,customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex ia IIC T6 Ga
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.25kg

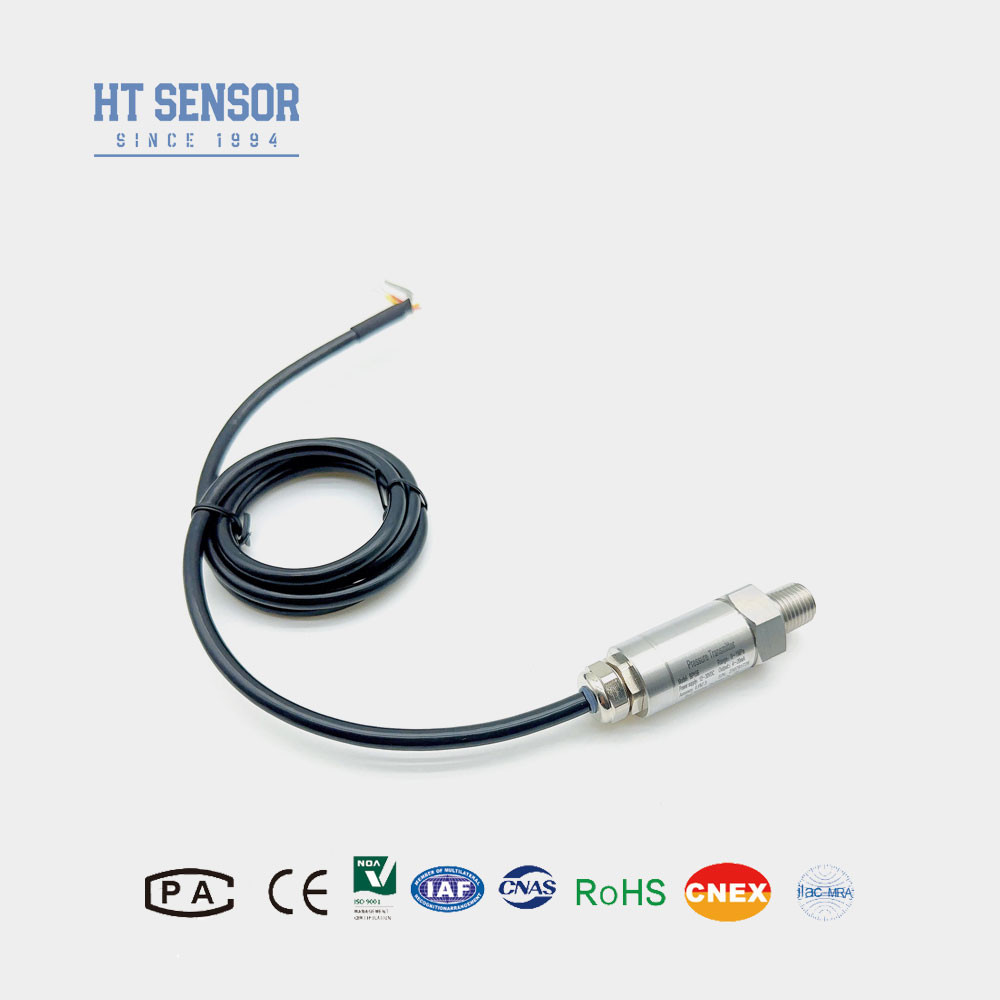

OEM Pressure Transmitter Sensor For Air Compressors And Refrigeration Equipment 0

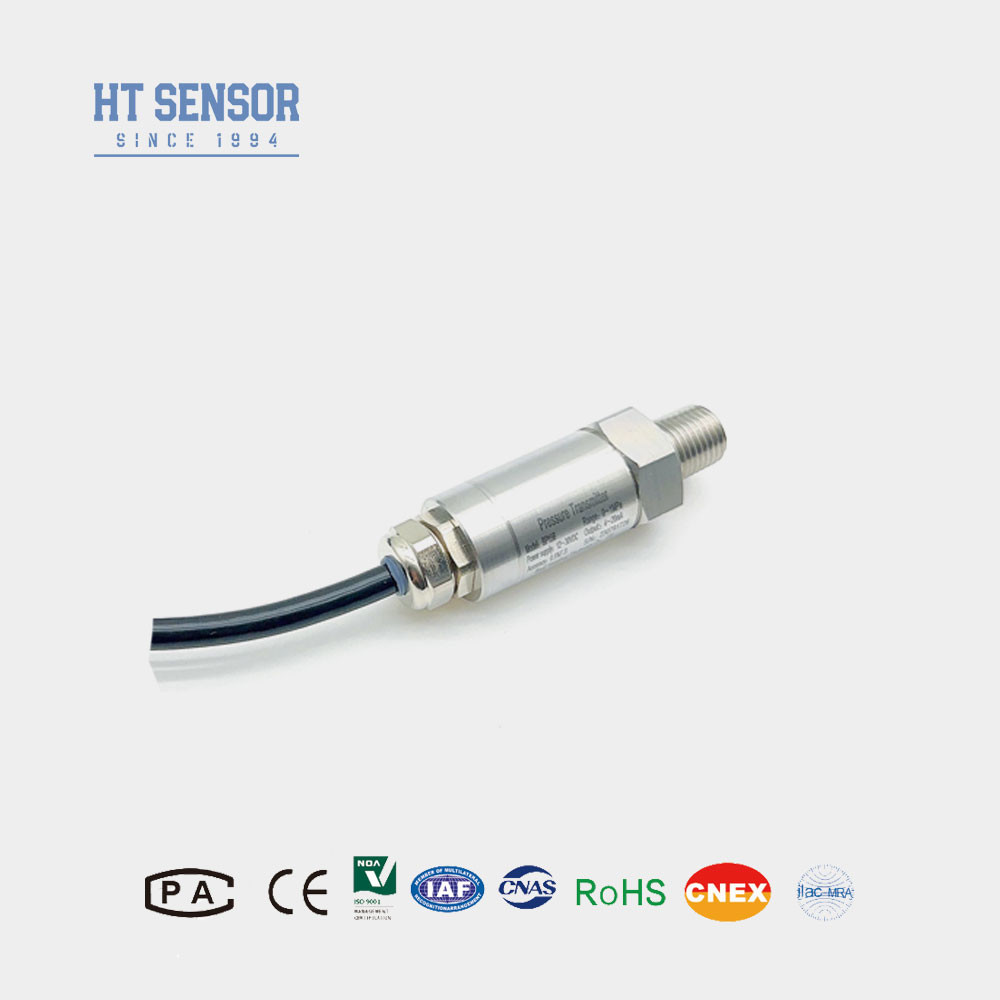

OEM Pressure Transmitter Sensor For Air Compressors And Refrigeration Equipment 1

OEM High Accuracy Bp156 Pressure Transmitter for Air Compressors and Refrigeration Equipment

Selection Examples

Ordering tips

1. When selecting the product, please ensure that the tested medium is compatible with the contact part of the product.
2. When placing an order, please note that explosion-proof products do not include digital display heads.
3. To ensure the reliable operation of the product, you are advised to install lightning protection devices on site and ensure that the product and power supply are grounded reliably.
4. The pressure transmitter cable is polyvinyl chloride, the default length of the liquid level cable is 1.5m, and there are three materials to choose from. If there are no special instructions, polyethylene cable materials can be used. If you need a different cable material, please specify it in the order form.
5. In case of special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or RF interference, please inform us and indicate in the order.

Order Guide of pressure transmitter sensor
BP15X	Analog Pressure Transmitter
	Code	Outline Construction
	5	Packard plug				6	Sealed Direct Output Cable 1.5 meters
	7	Mini Hirschmann Connector				8	Large Hirschmann Connector
		Measurement Range	0kPa ~ 10kPa…5MPa
		(0-X)Kpa or MPa	X: Indicates the Actual Measuring Range
			Code	Power Supply
			D1	24VDC
			D2	5VDC
			D3	Other
				Code	Output Signal
				S1	4~20mADC		S5	0~20mADC
				S2	1~5VDC		S6	0~10VDC
				S3	0~5VDC		S7	0.5~4.5VDC
				S4	0~10mADC
					Code		Pressure Connection
					J1		M20×1.5
					J2		G1/2
					J3		G1/4
					J4		7/16-20UNF
					J5		Others(¢50.4 Flange)
							Code	Electrical Connection
							B1	Hirschmann
							B2	PG7
							B3	Cable Sealed Outlet 1.5 meters
							B4	Other
								Code	Pressure Type
								G	Gauge Pressure
								A	Absolute Pressure
								S	Sealed Reference Pressure

Tag:

Place of Origin:	Baoji，China
Brand Name:	HT SENSOR
Certification:	ISO9001
Model Number:	BP156

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Package
Delivery Time:	5-8 work days
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	5000PCS/Month
