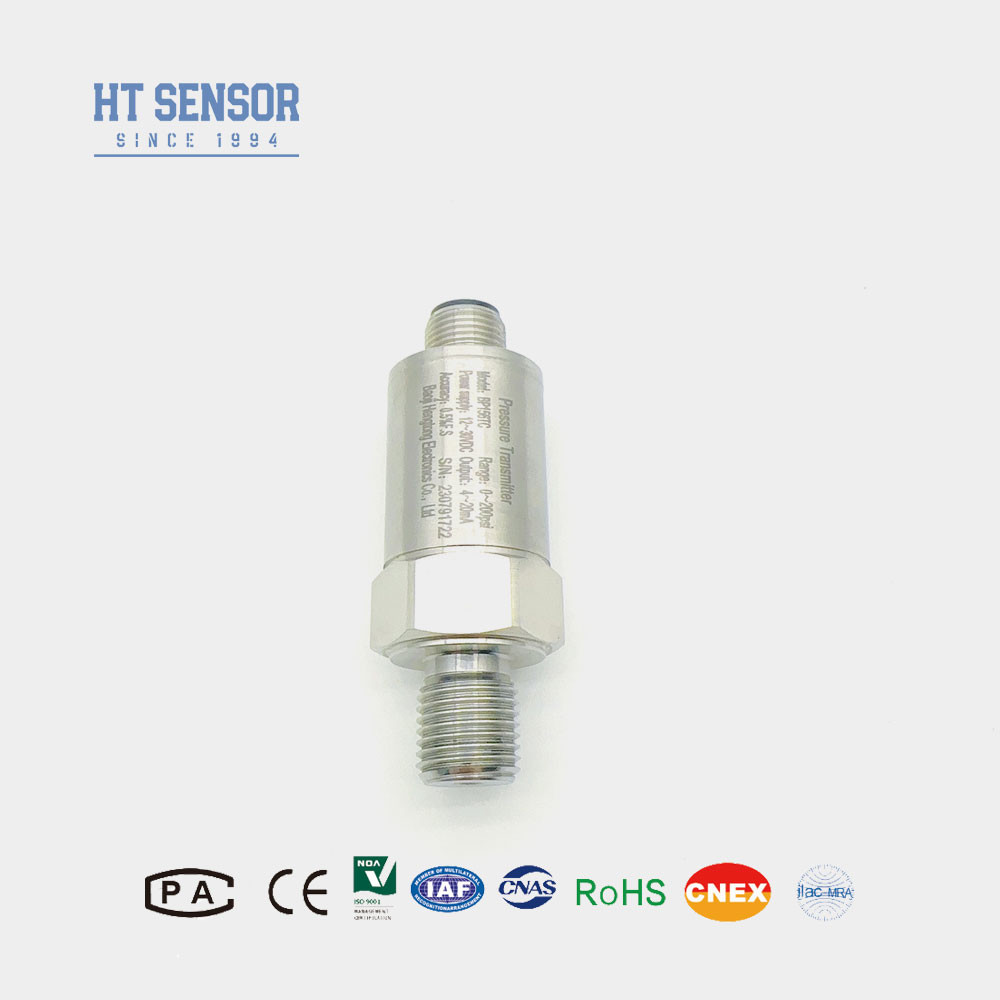

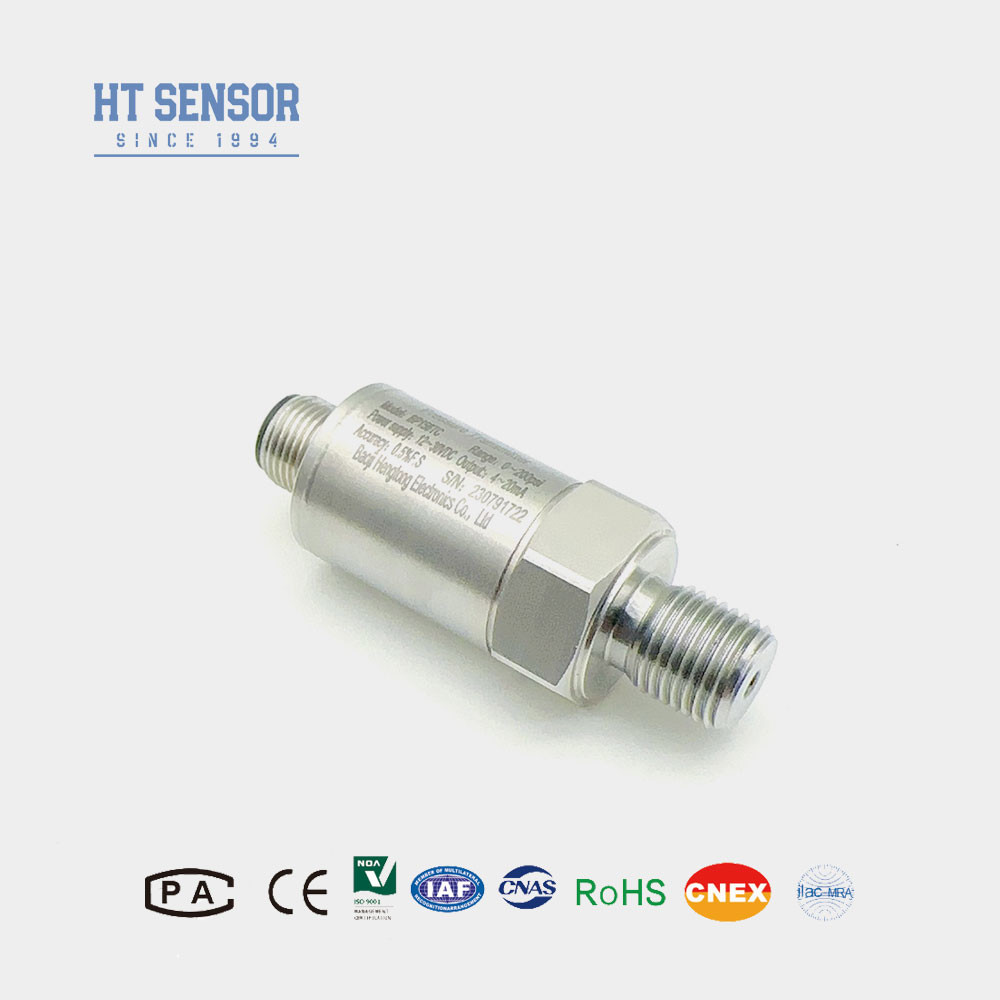

M12*1 Connector Pressure Transmitter Sensor For Water And Oil Pressure Test G1/4
Product Details
| Model NO.: | BP156-M | Housing Material: | 316LS.S. Or 304S.S. |
|---|---|---|---|
| Pressure Type: | Gauge /Absolute/Sealed Pressure | Trademark: | HTsensor |
| Structure Type: | Diffused Silicon Pressure Sensor | Measuring Medium: | Liquid And Air |
| Pressure Range: | 0kpa~10kpa...20MPa | Output: | 4-20mA /0.5-4.5Vdc |
| Customization: | OEM And ODM | Connector: | M12*1 |
| Highlight |
M12*1 Pressure Transmitter Sensor,Water Pressure Transmitter Sensor,Oil Pressure Transmitter Sensor |
||
Product Description
M12*1 Connector Pressure Transmitter Sensor for Water and Oil Pressure Test G1/4
BP156-M Pressure Transmitter Sensor
Introduction of mini pressure transmitter sensor:
The BP156-M miniature pressure transmitter sensor utilizes a piezoresistive pressure sensor with an isolated stainless steel diaphragm as the signal sensing element. After undergoing automatic testing and laser fine tuning compensation, the amplifier circuit housed in stainless steel converts the sensor signal into a standard output signal. The transmitter is characterized by its stability, reliability, excellent flexibility, sensitivity, and diversity. These products find wide applications in industries such as petroleum, chemical industry, metallurgy, power station, hydrology for pressure measurement and control.
Product Features of mini pressure transmitter sensor:
1. Temperature range: -20 to 85ºC;
2. Wide operating temperature range of -40~125ºC;
3. High-performance pressure sensor;
4. Various output options available: 4~20mA/0.5~4.5V/1~5V/0~5V;
5. Compact dimensions with customizable sizing available;
6. M12 Connector included;
7. OEM, ODM, and customization services offered.
Applications of mini pressure transmitter sensor:
1. Pressure measurement of non-corrosive gases and liquids using 316L stainless steel.
2. Applied in the marine and aviation industries.
3. Utilized in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology.
4. Employed in hydraulic and pneumatic control systems.
| Performance Parameters of mini pressure transmitter sensor: | |
|---|---|
| Measurement Range | 0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.05kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Selection Examples |
| Ordering tips |
1. When selecting a product, please ensure that the medium under test is compatible with the contact part of the product.
2. When placing an order, please note that explosion-proof products do not include a digital display.
3. To ensure the reliable operation of the product, you are advised to install lightning protection devices on site and ensure that the product and power supply are grounded reliably.
4. Cable Without cable by default. Three materials are available if required. If there are no special instructions, polyethylene cable materials can be used. If you need a different cable material, please specify it in the order form.
5. In case of special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or RF interference, please inform us and indicate in the order.
