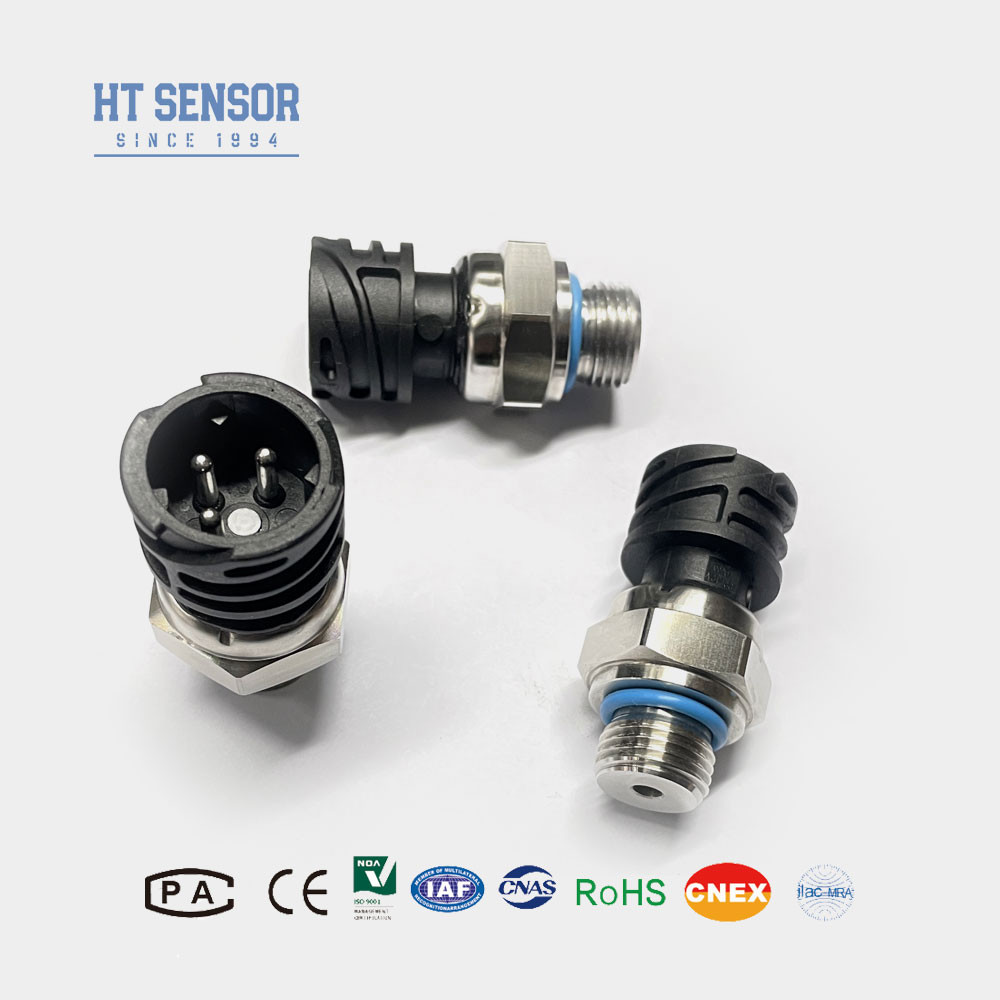

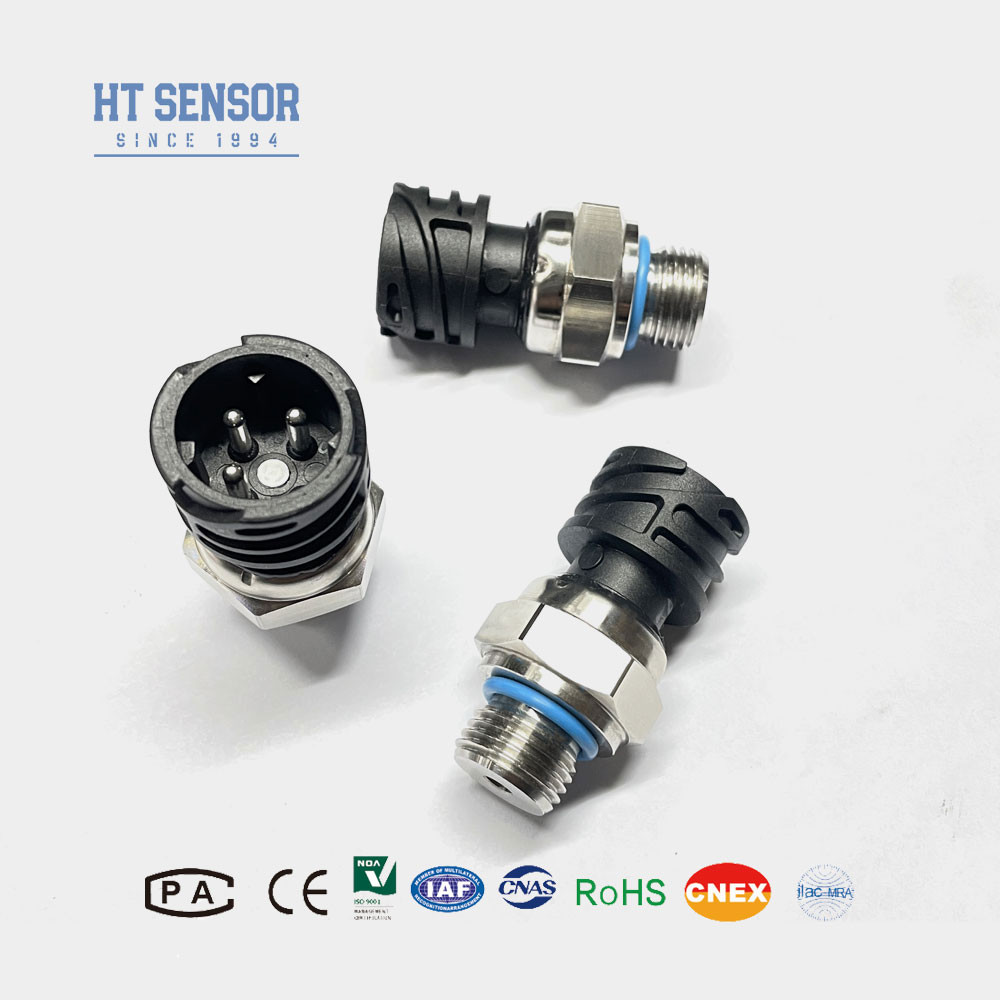

High Accuracy Grade Ceramic Sensor Pressure Transducer M16*1.5 for OEM Car Control Systems
Product Details
| Model NO.: | BP155 | Thread: | M16*1.5 OR Customized |
|---|---|---|---|
| Housing Material: | 316LS.S. Or 304S.S. | Trademark: | HTsensor |
| Origin: | China | HS Code: | 9026201090 |
| Type: | Ceramic Sensor | Output: | 0.5-4.5V |
| Accuracy Grade: | ≤0.5%F.S | Pressure Range: | 0kpa~200kpa...5MPa |
| Highlight |
OEM Car Control Systems Pressure Transducer,M16*1.5 Pressure Transducer,High Accuracy Grade Pressure Transducer |
||
Product Description
OEM Car Control Systems Pressure Transducer Sensor M16*1.5 Industries Pressure Sensor
BP155 Pressure Transmitter Sensor
Introduction of pressure transmitter sensor:
BP155 pressure transmitter sensor is used to control the oil pressure of the brake system with the oil pressure booster. It detects the pressure of the reservoir, the closing or disconnecting signal of the output oil pump, and the abnormal oil pressure alarm. The change of pressure is detected by the ceramic diaphragm and converted into an electrical signal for external output.
Applications of pressure transmitter sensor:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel.
2. Applied in the marine and aviation industries.
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology.
4. Utilized in hydraulic and pneumatic control systems.
| Performance Parameters of pressure transmitter sensor: | |
|---|---|
| Measurement Range | 0kPa ~ 200kPa…5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Output Signal | Supply Voltage | Output Type |
| 0.5~4.5V | 5VDC | 3 wire |
| Selection Examples |
| Ordering tips |
1. When selecting the product, please ensure that the tested medium is compatible with the contact part of the product.
2. When placing an order, please note that explosion-proof products do not include digital display heads.
3. To ensure reliable operation of the product, you are advised to install lightning protection devices onsite and ensure that the product and power supply are grounded reliably.
4. By default, there is no cable and the other end of the plug-in, if necessary, there are three materials to choose from. Unless otherwise specified, polyethylene cable material can be used. If you need a different cable material, please specify it in the order form.
5. In case of special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or RF interference, please inform and indicate in the order.
1.Q: How long is the delivery?
-- Mostly within 3-10days
-- Sure, contact our sales please
-- 1pcs
-- 12-18months
-- Yes we are manufacture for nearly 30years for pressure sensor and transmitter.
-- We have EPR system .we control from parts, process, testing, packing ,retesting.
