Hydraulic And Pneumatic Control System Industrial Pressure Sensor Transmitter Pipe Digital Water Level Sensor
Product Details
| Model NO.: | BP93420-III | Range: | -100kpa-10kpa~60mpa |
|---|---|---|---|
| Output: | 4-20mA | Power: | 12-36VDC |
| ACC: | ±0.5%F.S, ±0.25%F.S | Thread: | G1/2 Or OEM |
| HS Code: | 9026201090 | Measuring Medium: | Liquid And Gas |
| IP Rating: | IP65 | Customization: | Available OEM And ODM |
| Highlight |
Industrial Pressure Sensor Pipe,Digital Water Level Sensor,Industrial Pressure Sensor Transmitter |
||
Product Description
Hydraulic and Pneumatic Control System Industrial Pressure Sensor Transmitter Pipe Digital Water Level Sensor

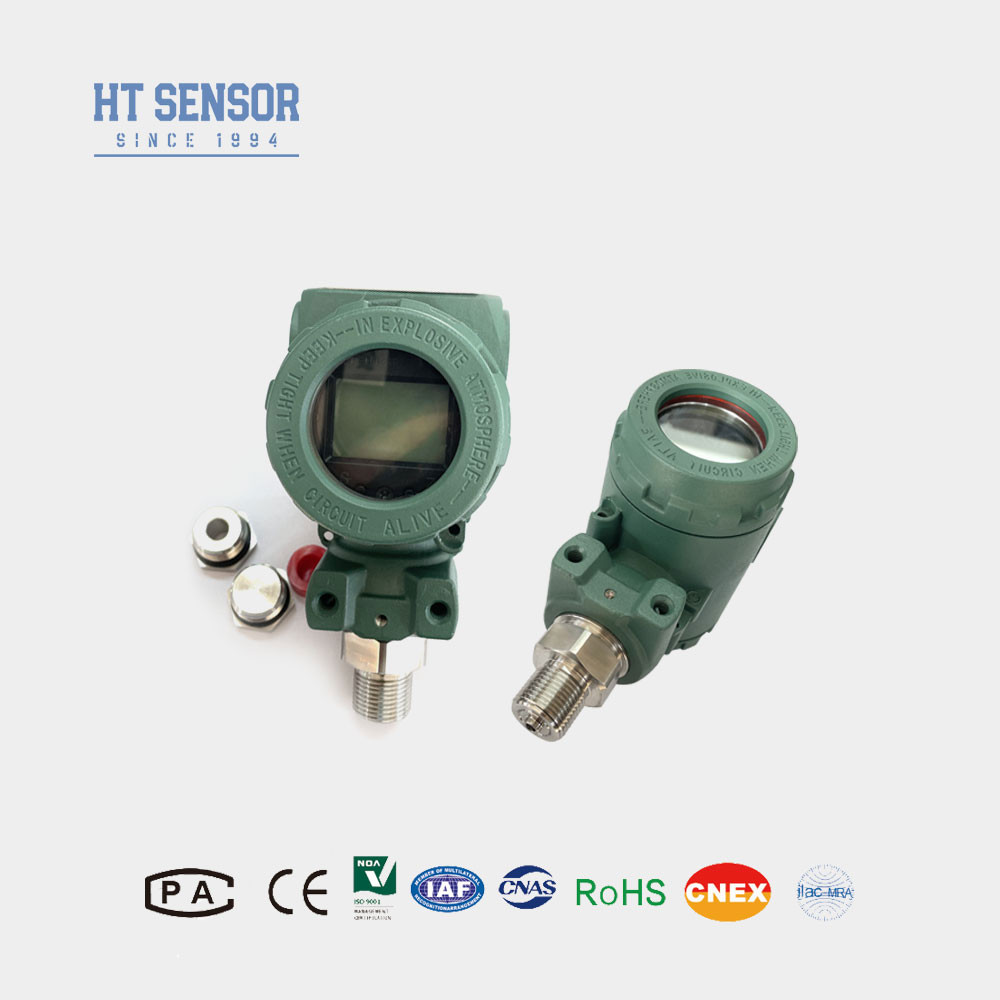

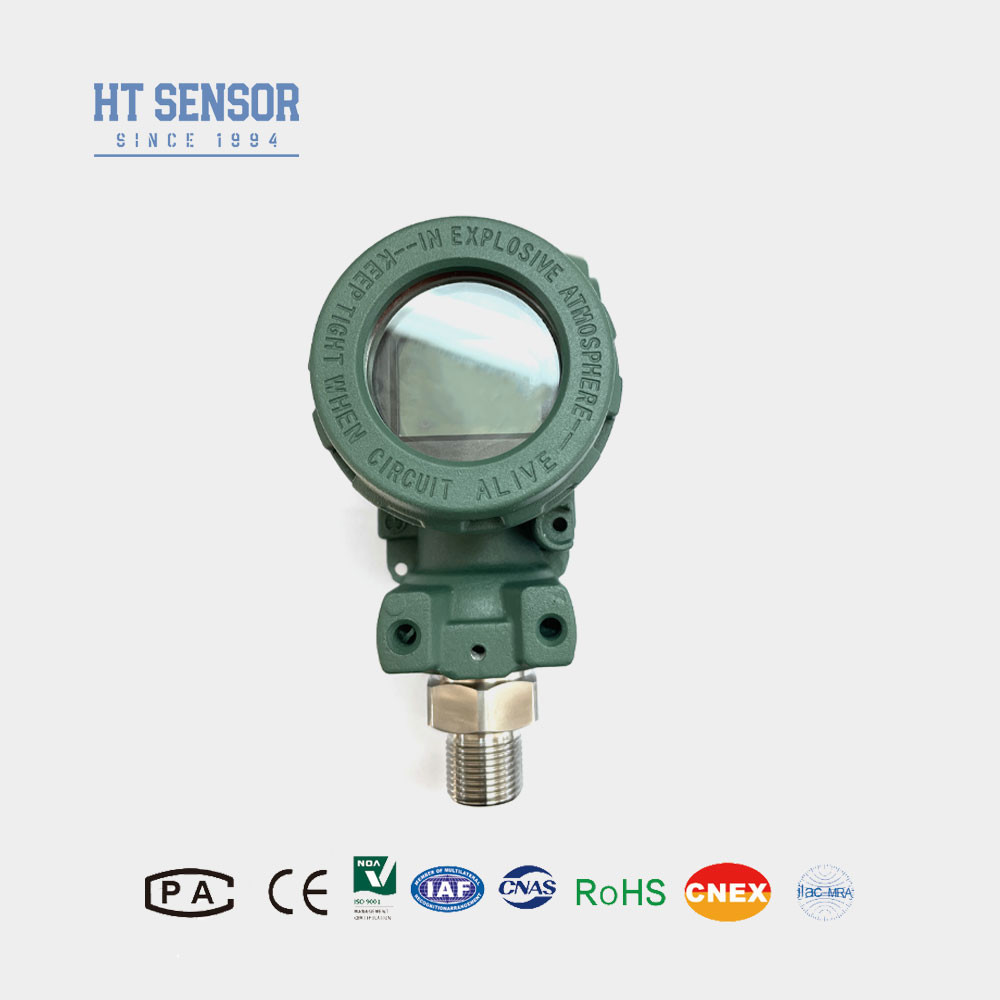

BP93420-III Pressure Transmitter
Introduction of industrial pressure sensor transmitter:
BP93420-III Industrial pressure sensor transmitter adopts diffused silicon pressurized oil core as the sensitive element, and the signal processing circuit uses the pressure transmitter to convert the pressure signal into the standard output signal.Product parts, semi-finished products, finished products of strict testing and aging screening, stable and reliable performance, strong anti-interference ability. The pressure interface of the pressure transmitter comes in many forms. The product is easy to install and has high anti-vibration and anti-impact performance.Widely used in process control, petroleum, chemical, electric power, hydrology, aviation, aerospace, automobile and other industries.
Product Features of industrial pressure sensor transmitter:
1. Wide measuring range, diverse pressure interface forms.
2. IP65 protection level.
3. Various output signal forms.
Applications of industrial pressure sensor transmitter:
1. Suitable for measuring the pressure of non-corrosive gases and liquids in 316L stainless steel.
2. Petroleum, chemical, metallurgy, power, and hydrology
3. Pressure measurement and control in harsh outdoor industrial environments.
4. Used in hydraulic and pneumatic control systems.
| Performance Parameters of 2088 pressure transmitter sensor | |
| Measurement Range | -100kPa…0kPa ~10kPa…60MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ≤±0.1%FS |
| Hysteresis | ≤±0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | Cast aluminum |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1kg |
| Ordering tips |
1. When selecting the product, please ensure that the tested medium is compatible with the contact part of the product.
2. To ensure reliable operation of the product, you are advised to install lightning protection devices onsite and ensure that the product and power supply are grounded reliably.
4. The default cable does not have cable, if necessary, please communicate with the salesman in advance.
6. In case of special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or RF interference, please inform and indicate in the order.
FAQ:
Q1:Are you manufactrade company?
A1:We are manufactrader with more than 29 years of experience.
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
