Marine and Aviation Industry BP170 Industrial Pressure Sensor For Water Oil Pressure Transducer
Product Details
| Model NO.: | BP170 | Power: | 5VDC 24VDC |
|---|---|---|---|
| Out Put: | 0.5-4.5V 4-20mA And So On | Housing Material: | Stainless Steel |
| Pressure Type: | Gauge/Absolute/Sealed | Origin: | Baoji China |
| Type: | BP170 Industrial Pressure Sensor | Pressure Range: | 0~10kpa.---60MPa |
| OEM: | OEM And ODM | Thread: | G1/4 M20*1.5 Or OEM |
| Highlight |
Marine Industrial Pressure Sensor,Water Oil Pressure Transducer,Aviation Industrial Pressure Sensor |
||
Product Description
Marine and Aviation Industry BP170 Industrial Pressure Sensor For Water Oil Pressure Transducer

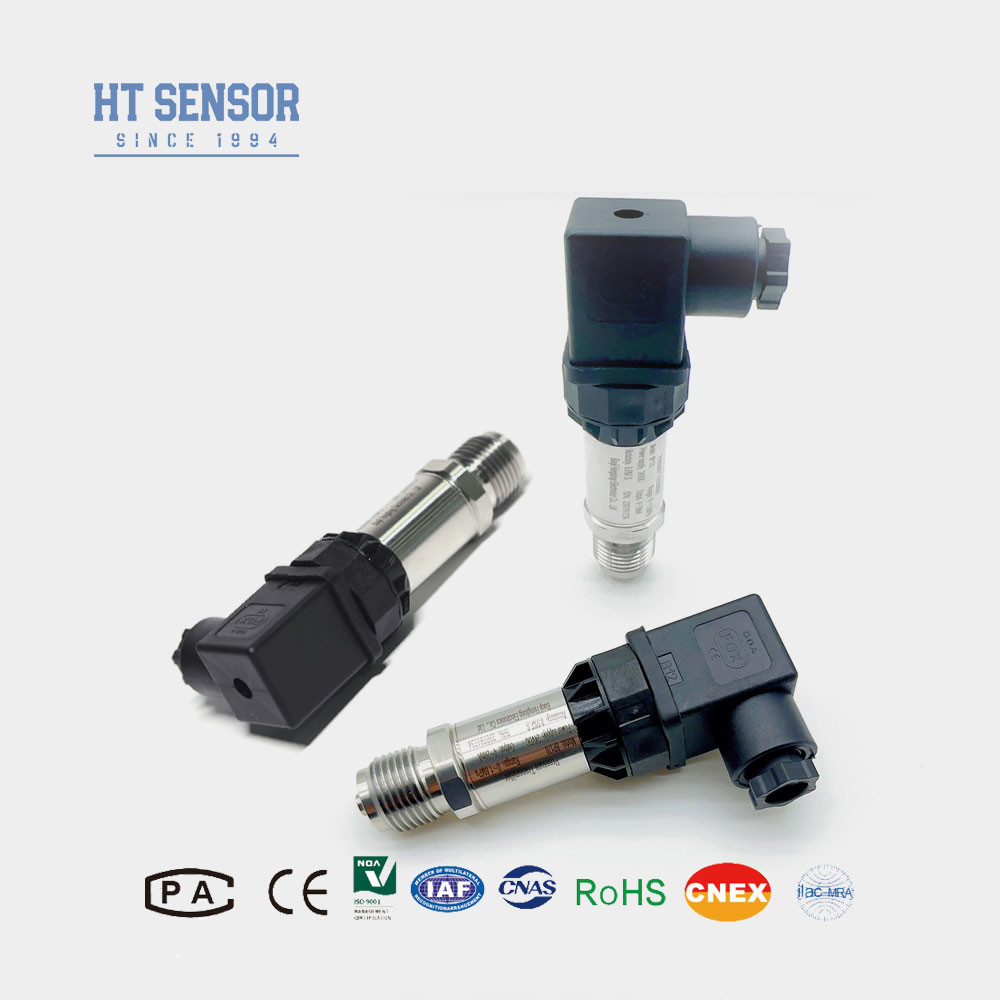

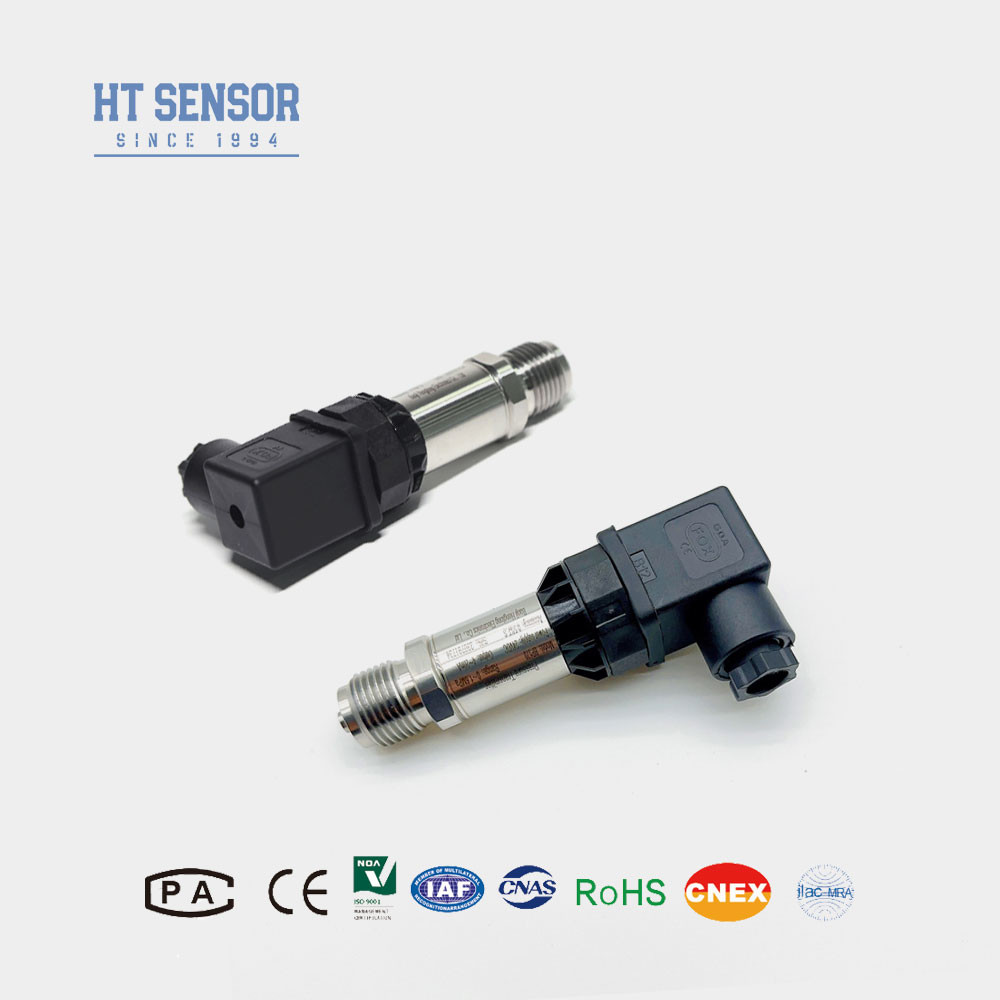

BP170 Pressure Transmitter
Introduction of Industrial pressure sensor transmitter :
BP170 industrial pressure sensor transmitter adopts HT series silicon insulated oil-filled sensor core as signal measurement element. Special Hersman (DIN) connectors convert the sensor signal into the standard output signal required by the customer using our own high precision PCB. Widely used in various industries.
Product Features of Industrial pressure sensor transmitter:
- 1. Wide measuring range, stainless steel structure, diverse pressure interface forms.
- 2. Compact and lightweight design.
- 3. High precision, all stainless steel structure.
| Performance Parameters of Industrial pressure sensor transmitter | |
|---|---|
| Measurement Range | 0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Selection Examples of pressure transmitter sensor |
| Ordering tips |
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
FAQ:
Q1:Areyou manufactrade company?
A1:We are manufactrader with more than 29 years of experience.
Q2:Customized Product.
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee.
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing.
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US.
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
