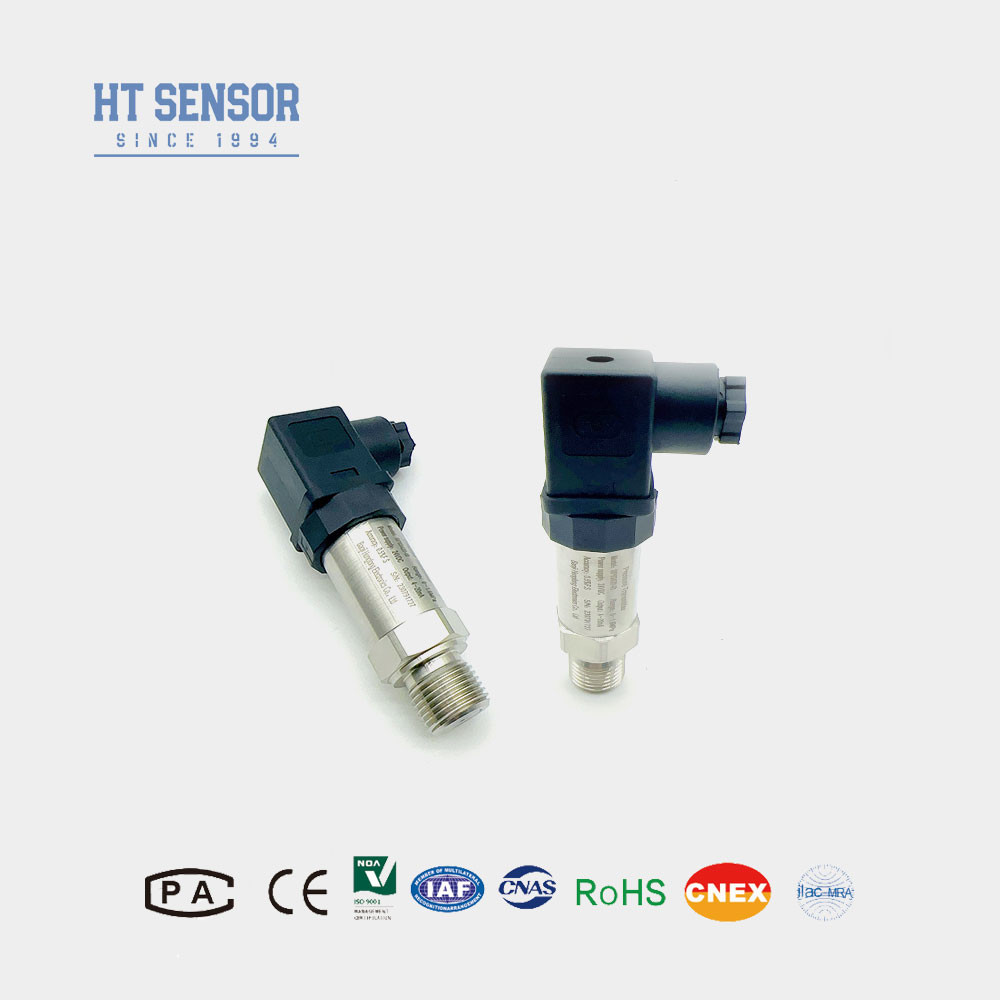

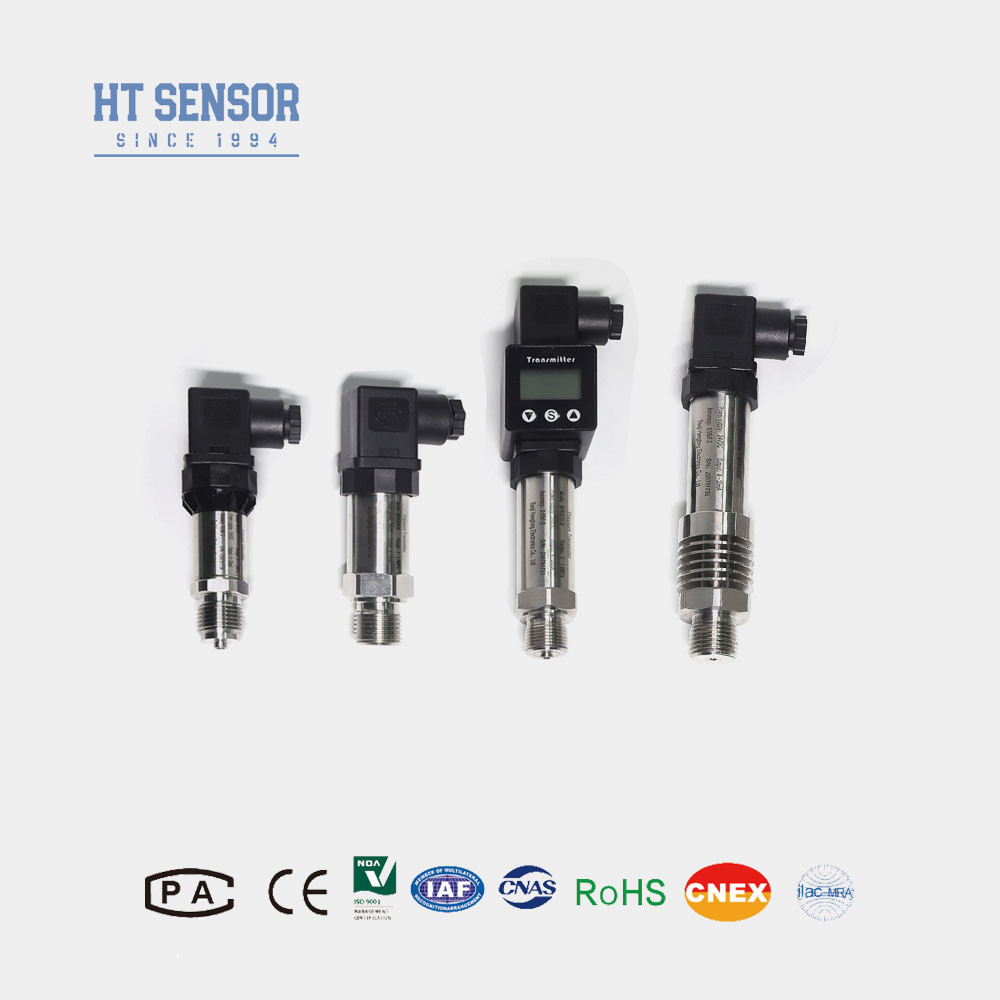

BP93420IB Industrial Pressure Sensor Transmitter For Accurate Pressure Measurement Transducer
Product Details
| Model: | BP93420-IB | Supply: | 10-36VDC/5VDC |
|---|---|---|---|
| Output: | 4-20mA /0.5-4.5Vdc | Thread: | G1/2 G1/4 Or Customized |
| Compensation Temperature: | 0-70℃ | Range: | -100~0~10kpa~10Mpa |
| Housing Material: | 304S.S 316L S.S | Accuracy: | 0.25%F.S. 0.5%F.S |
| Media Compatibility: | Air, Water And Oil | Media Temperature: | -20℃~85℃ |
| Highlight |
BP93420IB Industrial Pressure Sensor,Accurate Pressure Measurement Transducer,Industrial Pressure Sensor Transmitter |
||
Product Description
BP93420IB Industrial Pressure Sensor Transmitter for Accurate Pressure Measurement Transducer
BP93420IB Pressure Transmitter
Introduction of industrial pressure sensor transmitter:
The BP93420-IB Diffused Silicon Industrial pressure sensor is a versatile instrument known for its accuracy and reliability. Standard signals are used to make people act out abstract stress. In particular, the constant water pressure supply system, which tests the pressure of the liquid in the pipeline, has been widely used in industry because of its advanced technology to ensure the accuracy of pressure measurement.
Applications of industrial pressure sensor transmitter:
1. Non-corrosive gas and liquid pressure measurement compatible stainless steel, diaphragm is made of 316L stainless steel.
2. Applications in Marine and aviation industries.
3. Used in industrial field processes such as petroleum, chemical, metallurgy, power generation and hydrology.
4. Used in hydraulic and pneumatic control system.
| Performance Parameters : | |
| Measurement Range | -100kPa…0kPa ~ 10kPa…100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.25kg |
Note:
1. When selecting a product, please ensure that the medium under test is compatible with the contact part of the product (stainless steel 304 or 316L).
2. When placing an order, please pay attention to the explosion-proof products do not include digital display head.
3. When ordering a transmitter with LCD or LED display head, the power supply of the transmitter should not be lower than 15VDC.
4. In order to ensure the reliable operation of the product, it is recommended to install lightning protection device on site and ensure the reliable grounding of the product and the power supply.
5. Cables are not included by default. Cable please indicate in the contract, if not specified, polyethylene cable material can be used.If you require different cable materials, please indicate in the order form.
6. In case of strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference and other special requirements, please inform and indicate in the order.
Q&A
Q1:Are you a manufacturing and trading company?
A1:We are a manufacturer with more than 29 years of experience.
Q2: Customized products?
A2We offer OEM and custom design services.
Q3: Quality assurance?
A2Our products come with a 12 to 18 month warranty from the time of shipment to the original purchaser. Hengtong will replace or repair defective products free of charge. This warranty does not apply to any device that has been modified, misused or neglected.
Q4Fourth quarter: Shipping packaging?
A4: Products are generally shipped by international express, including UPS,FedEx,DHL and INT freight prepaid, can also be collected using your shipping account, standard export packaging, including inspection certificate.
Q5: Contact us?
A5We have an active and experienced sales team to solve your technical and business problems. Please leave us a message or click online services.
