BP93420IC Industrial Pressure Sensor
Introduction of Industrial pressure sensor:

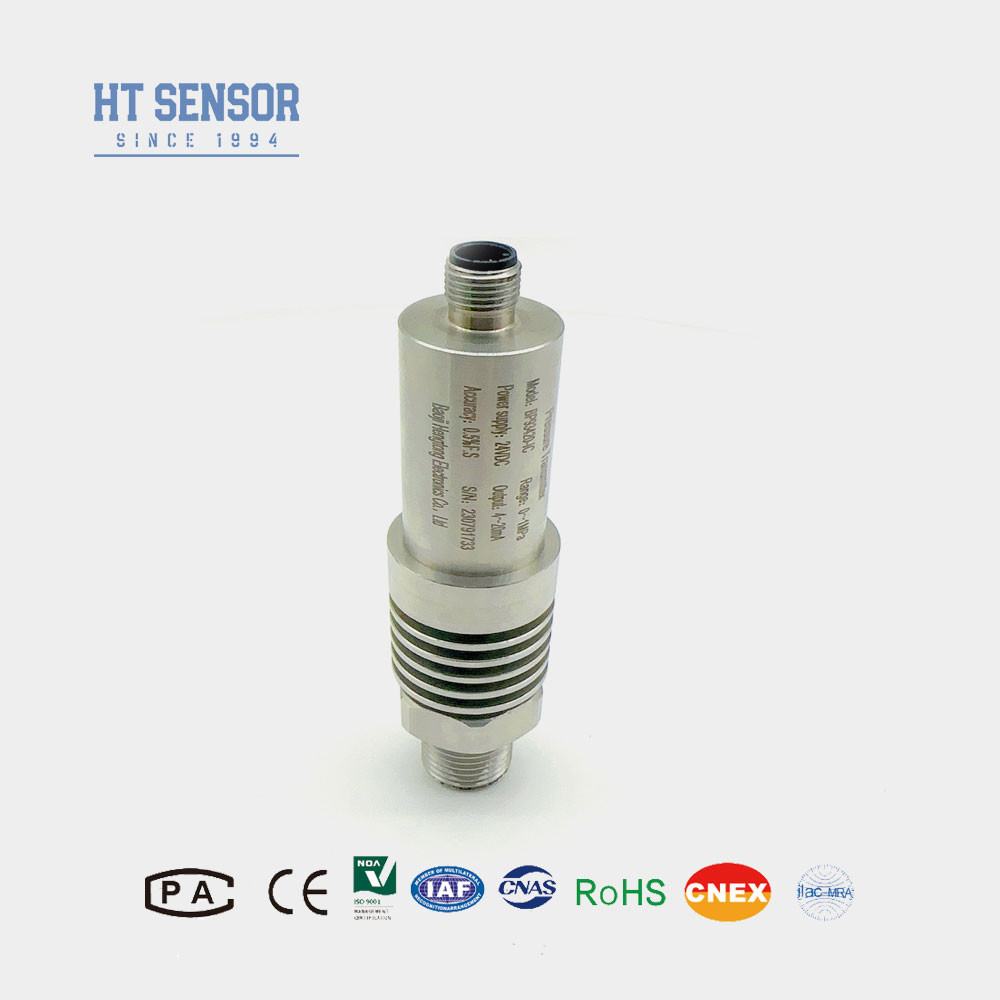

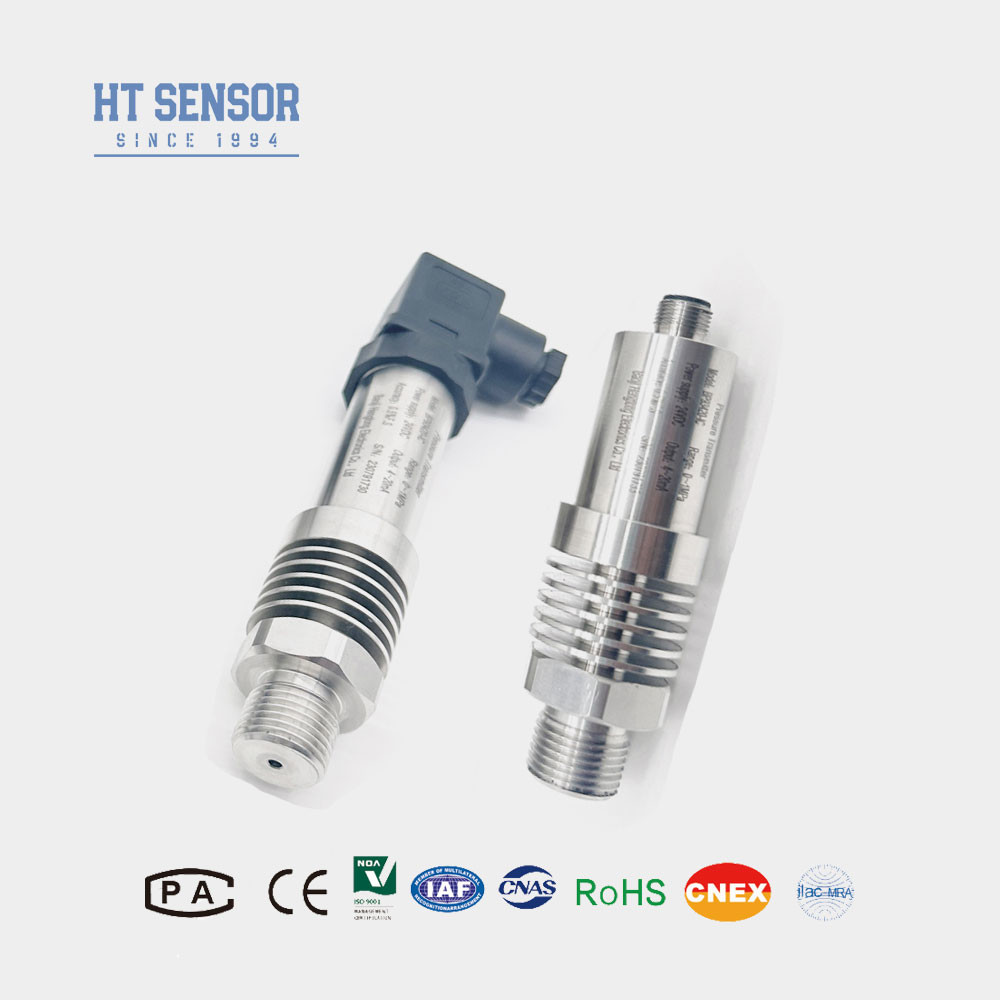

BP93420-IC is a high temperature industrial pressure sensor transmitter, using Hengtong silicon pressure isolation oil-filled core produced by our company as the core measurement element.The sensor effectively captures the pressure of the measured medium by means of a dedicated heat dissipation structure integrated into the transmitter. Reduce the impact of high temperature on product pressure.This special design makes it well suited for high temperature demanding environments, making it ideal for applications involving temperature fluctuations or operating in higher conditions.It is widely used in industrial processes and systems where accurate and reliable pressure measurements are required even in challenging high temperature environments.
Applications of Industrial pressure sensor:
- 1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
- 2. Applied in the marine and aviation industries
- 3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
- 4. Utilized in hydraulic and pneumatic control systems
| Performance Parameters of Industrial pressure transmitter sensor |
| Measurement Range |
-100kPa…0kPa ~ 10kPa…60MPa |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload |
≤ 1.5 times of the rated range |
| Accuracy @ 25ºC |
±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability |
0.1%FS |
| Hysteresis |
0.1%FS |
| Long-Term Stability |
±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response |
2.4Khz |
| Compensation Temperature |
0-70ºC(≤10mpa,customizable) |
| Operating Temperature |
-20ºC~150ºC |
| Storage Temperature |
-40ºC~120ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Housing Material |
304,316L |
| Diaphragm Material |
316L |
| Explosion-proof Rating |
Ex ia IIC T6 Ga |
| Protection Rating |
IP65 |
| O-Ring Seal |
Fluoro rubber |
| Weight |
~0.4kg |
| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA |
12~30VDC |
2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V |
5VDC |
| RS485 Communication Protocol |
3.6~30V / Battery |
4 wire |
1. When selecting a product, please ensure that the medium under test is compatible with the contact part of the product.
2. When placing an order, please note that explosion-proof products do not include a digital display.
3. When ordering a transmitter with an LCD or LED display head, the power supply of the transmitter should not be lower than 20VDC.
4. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on the site and ensure that the product and the power supply are reliably grounded.
5. The cable does not have cable by default. If you need to have cable, there are three materials to choose from. If there are no special instructions, polyethylene cable materials can be used.If you require different cable materials, please indicate in the order form.
7. In case of special requirements such as strong vibration, instantaneous impact, strong electromagnetic or radio frequency interference, please inform us and indicate in the order.
FAQ:
1. Q: What are the features of your pressure sensor transmitter?
A: High precision, durable, excellent performance. Customization is available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can customize products to meet specific needs. We offer OEM and ODM services.
3. Q:What is your production capacity?
A: Our production facilities can produce up to 30,000 pressure sensor transmitters per month, so we are well positioned to meet large orders. However, it is recommended that you contact our sales team in advance to ensure a smooth production and delivery schedule.
4. Q: What is the general lead time?
A: 5~8 working days for standard model. Custom products may vary.
5. Q: How is the product priced? Are there any discounts?
A: Competitive prices with discounts for bulk orders or long-term partners.
6. Q: What is the warranty period of your product? What about after-sales service?
A: Our warranty period is 24 months after delivery. We will reply to your questions within 24 hours after sale, and guide you remotely through PC network at any time.
