Stainless Steel Industrial Pressure Sensor Transmitter For Accurate Pressure Measurement
Product Details
| Model: | BP93420-I | Supply: | 12-32VDC |
|---|---|---|---|
| Output: | 4-20mA And So On | Thread: | G1/4 Or Customized |
| Compensation Temperature: | 0-70℃ | Range: | -100kpa-0-10kpa~40Mpa |
| Housing Material: | 304S.S 316L S.S | Accuracy: | 0.25%F.S 0.5%F.S |
| Media Compatibility: | Air, Water, Oil | Media Temperature: | -20℃~85℃ |
| Highlight |
Stainless Steel Industrial Pressure Sensor,Accurate Pressure Measurement Industrial Pressure Sensor,Industrial Pressure Sensor Transmitter |
||
Product Description

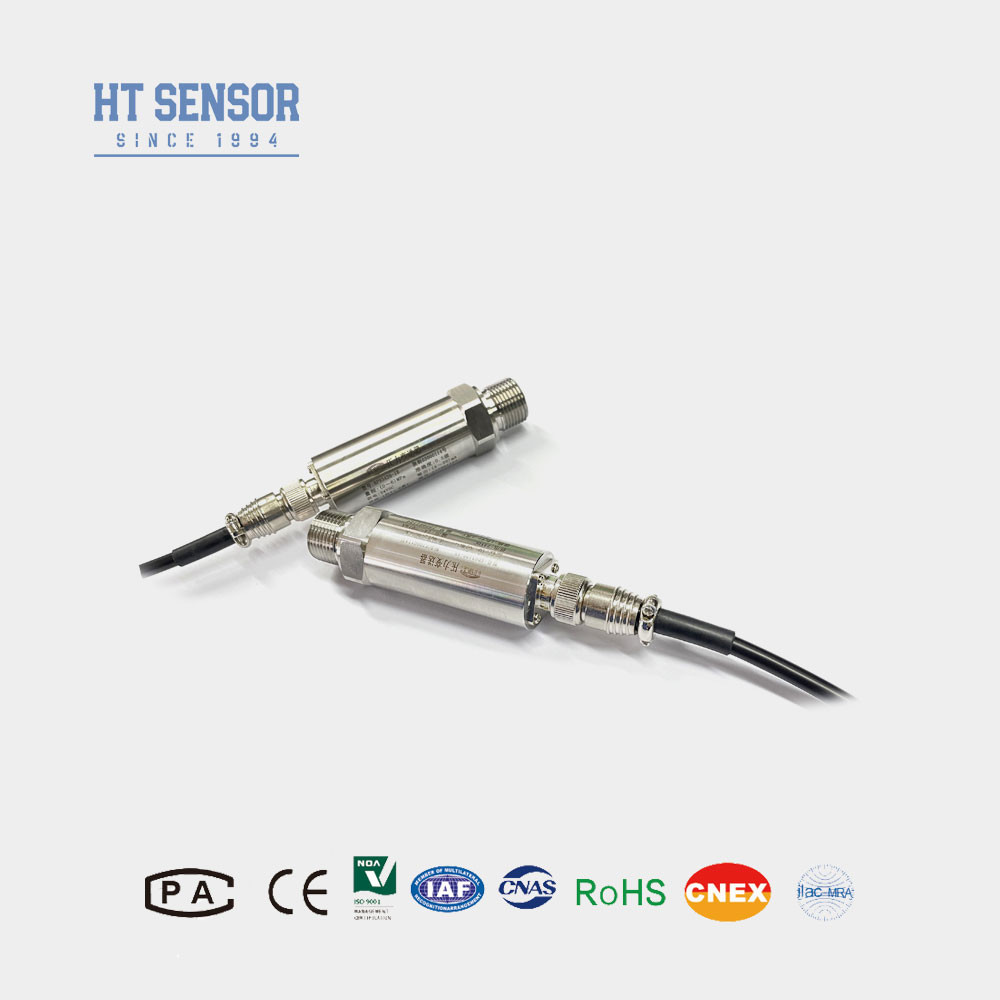

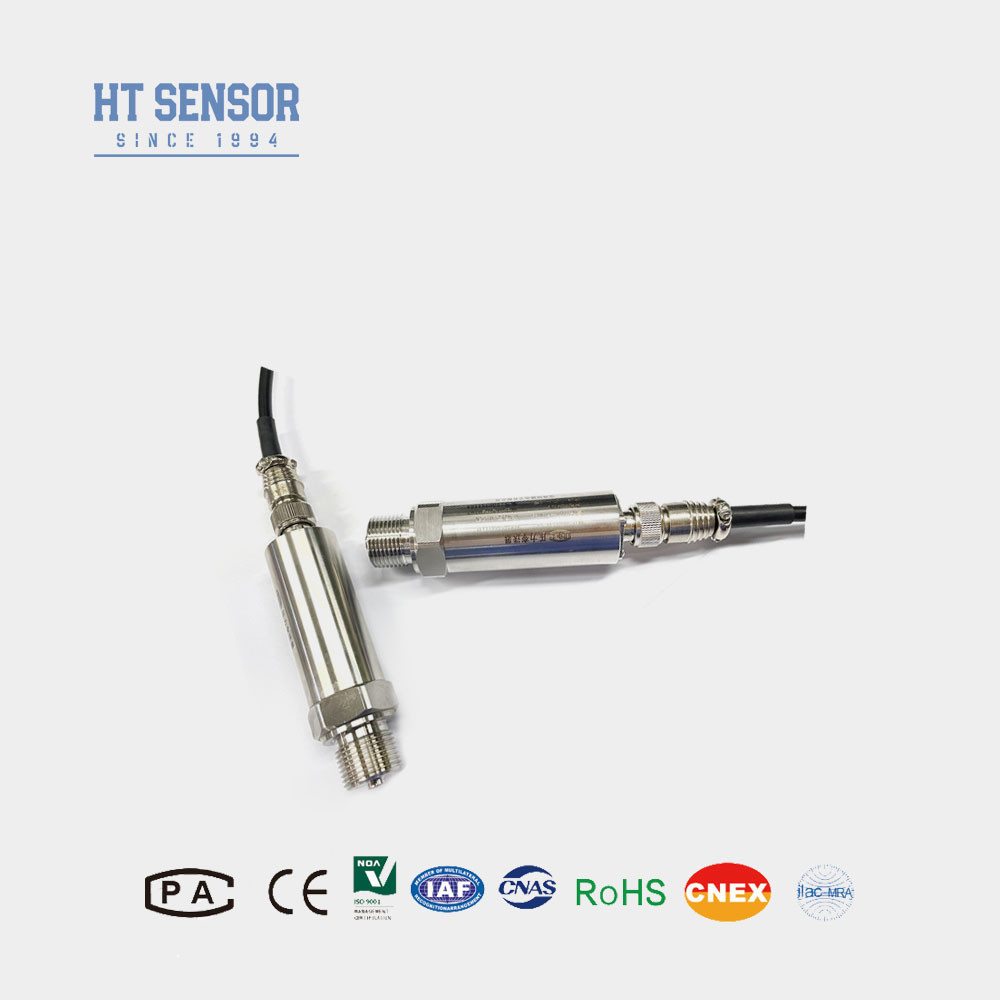

Stainless Steel Industrial Pressure Sensor Transmitter for Accurate Pressure Measurement
BP93420IB Pressure Transmitter
Introduction of industrial pressure sensor transmitter:
The BP93420-I Diffused industrial Silicon Pressure Sensor transmitter is a versatile instrument known for its accuracy and reliability. Its advanced technology ensures accurate pressure measurement. The sensor has a wide measurement range and can be used in a variety of applications with different pressure levels.
Applications of industrial pressure sensor transmitter:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel.
2. Applied in the marine and aviation industries.
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology.
4. Utilized in hydraulic and pneumatic control systems.
| Performance Parameters : | |
| Measurement Range | -100kPa…0kPa ~ 10kPa…60MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA /RS485 /HART | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
Odering Tips
1. When selecting the product, please ensure that the tested medium is compatible with the contact part of the product.
2. To ensure the reliable operation of the product, you are advised to install lightning protection devices on site and ensure that the product and power supply are grounded reliably.
3. The rated operating temperature range of fluorine rubber O-ring is -20℃~ 250℃. When the operating temperature of the product is lower than -20 ° C, EPDM O-type sealing ring should be selected.
4. The cable does not have cable by default, and there are three kinds of materials to choose from if necessary. If there are no special instructions, polyethylene cable materials can be used. If you need a different cable material, please specify it in the order form.
5. In case of strong vibration, instantaneous wallop, strong electromagnetic or radio frequency interference and other special requirements, please let us know our company and indicate in the order.
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
