The BP156 Industrial Pressure Sensor Transmitter For Accurate Pressure Measurement Sensor
Product Details
| Model NO.: | BP156 | Range: | 0~10kpa~20Mpa |
|---|---|---|---|
| Output: | 4-20mA /0.5-4.5Vdc/0.2-2.2VDC | Housing Material: | Stainless Steel |
| Type: | Industrial Pressure Sensor | Sensor: | Diffused Silicon Oil-filled Pressure Sensor |
| Power: | 12-32VDC/5VDC /3.3V | Accuracy Grade: | 0.5% |
| Connector: | M12*1 Connector | Thread: | G1/4 Or OEM |
| Highlight |
BP156 Industrial Pressure Sensor,Accurate Pressure Measurement Sensor,Industrial Pressure Sensor Transmitter |
||
Product Description

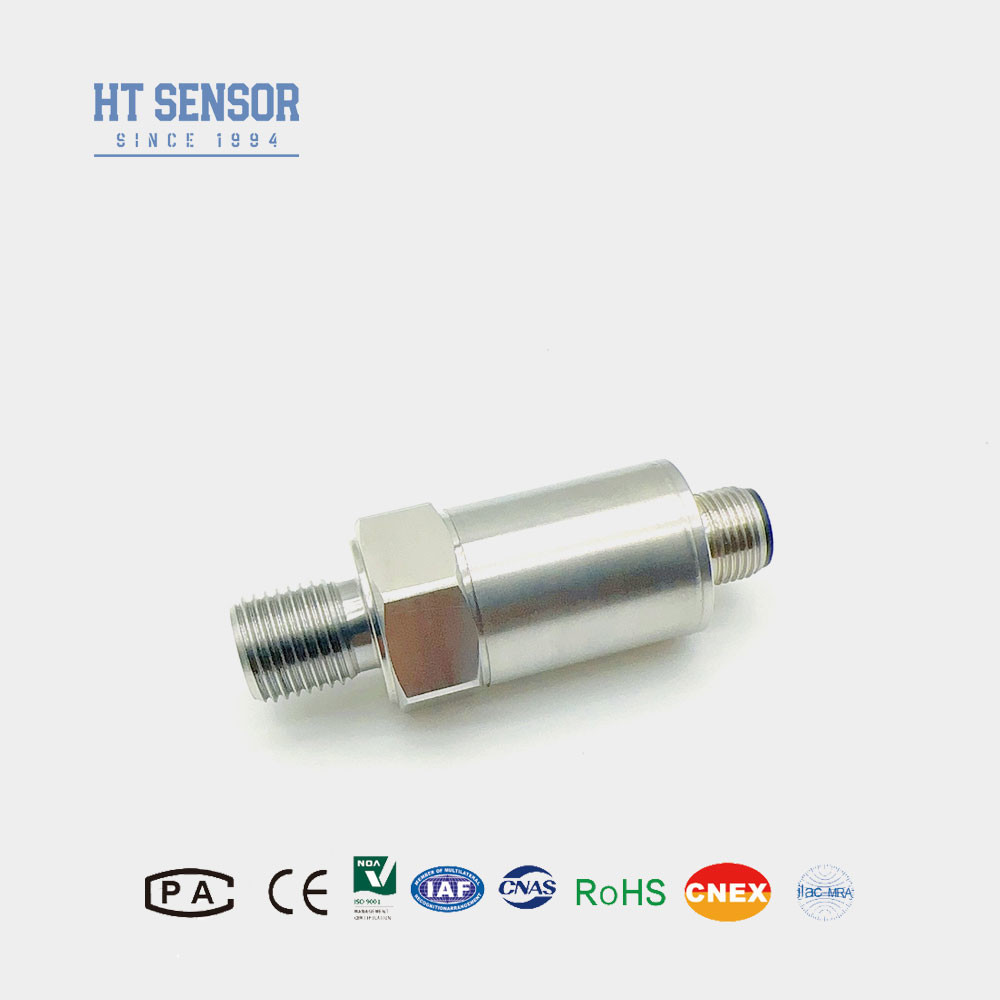

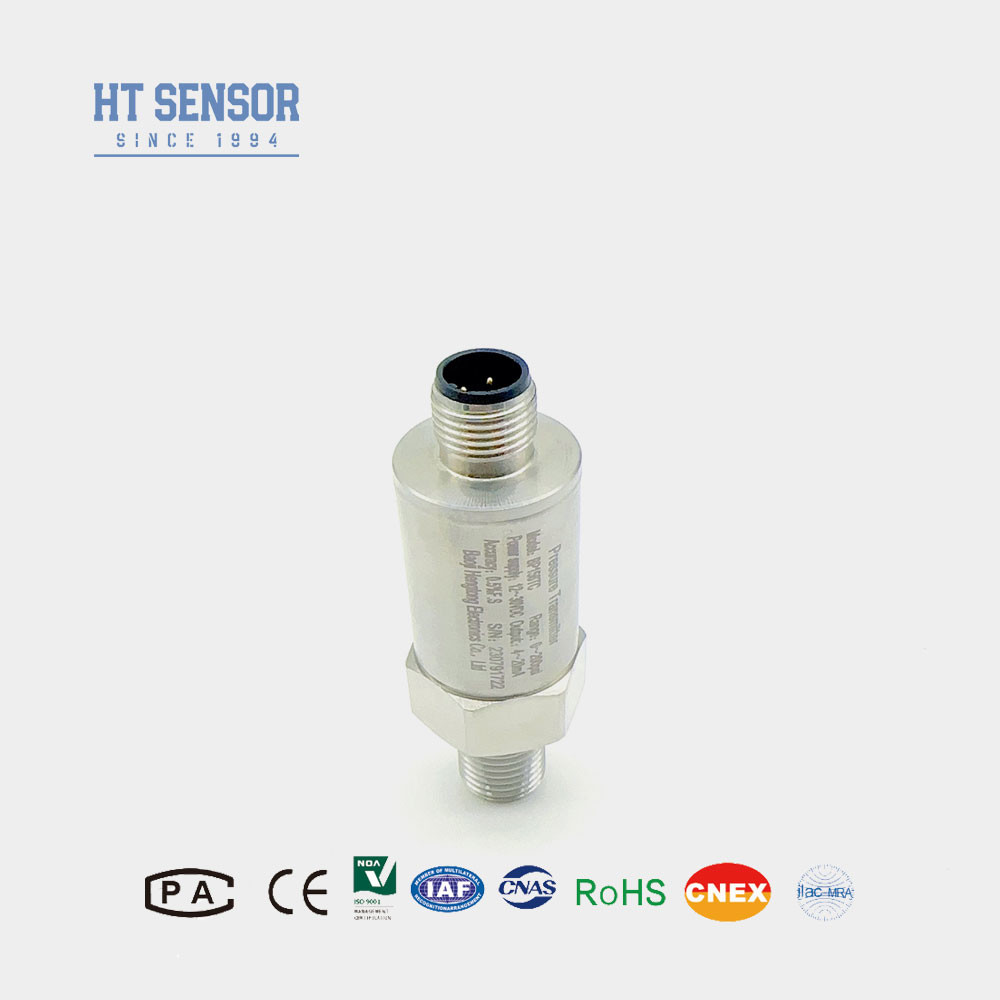

The BP156 Industrial Pressure Sensor Transmitter for Accurate Pressure Measurement Sensor
BP156 industrial Pressure sensor Transmitter
Introduction of mini Industrial pressure sensor transmitter :
The BP156 mini Industrial pressure sensor transmitter is a compact rod-shaped pressure transmitter. It utilizes a high-reliability silicon piezoresistive pressure sensor as its sensitive core, and undergoes temperature compensation, digital circuit correction, and signal conditioning to output standard industrial applications and network signals. Each product has undergone meticulous design, parts screening, process verification and curing, cyclic loading stress relief, aging, environmental simulation testing to ensure stability and reliability.
Applications of mini Industrial pressure sensor transmitter:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel.
2. Applied in the marine and aviation industries.
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology.
4. Utilized in hydraulic and pneumatic control systems.
| Performance Parameters of mini Industrial pressure sensor transmitter: | |
| Measurement Range | 0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| Selection Examples of mini DIN pressure transmitter sensor |
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
