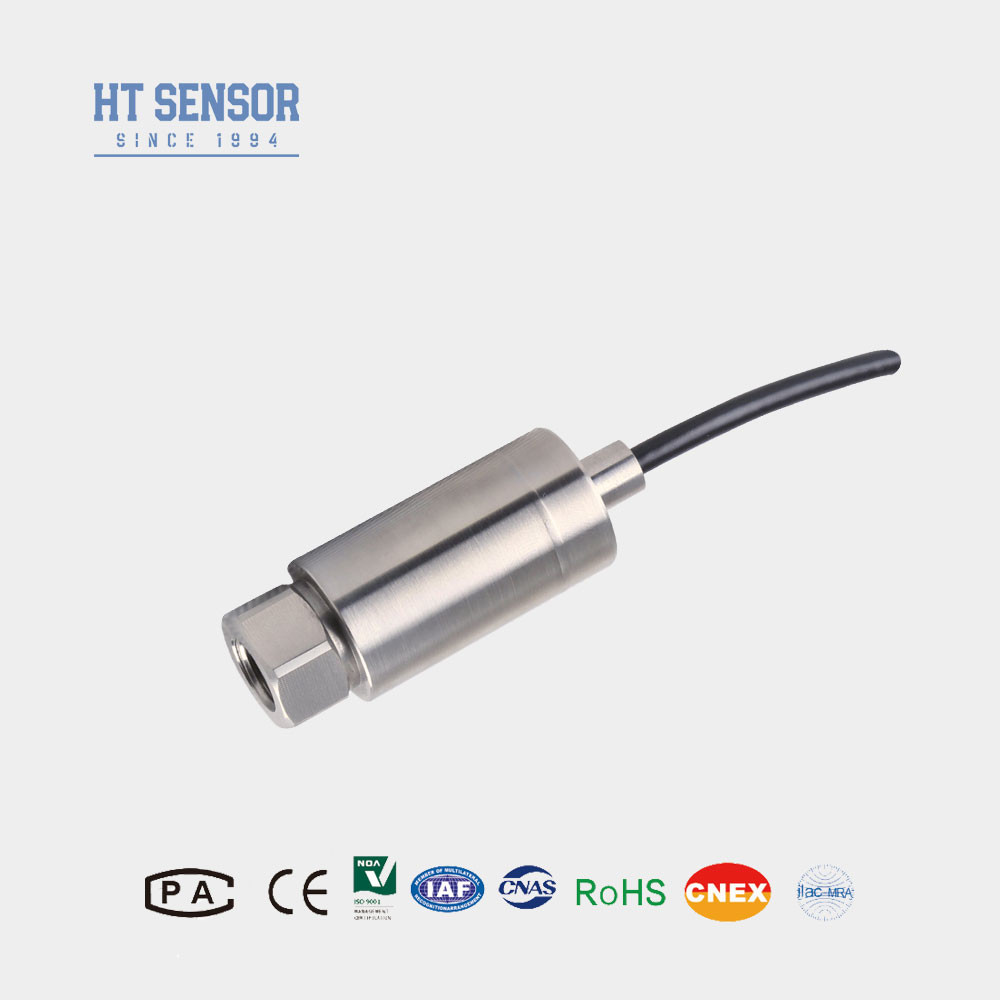

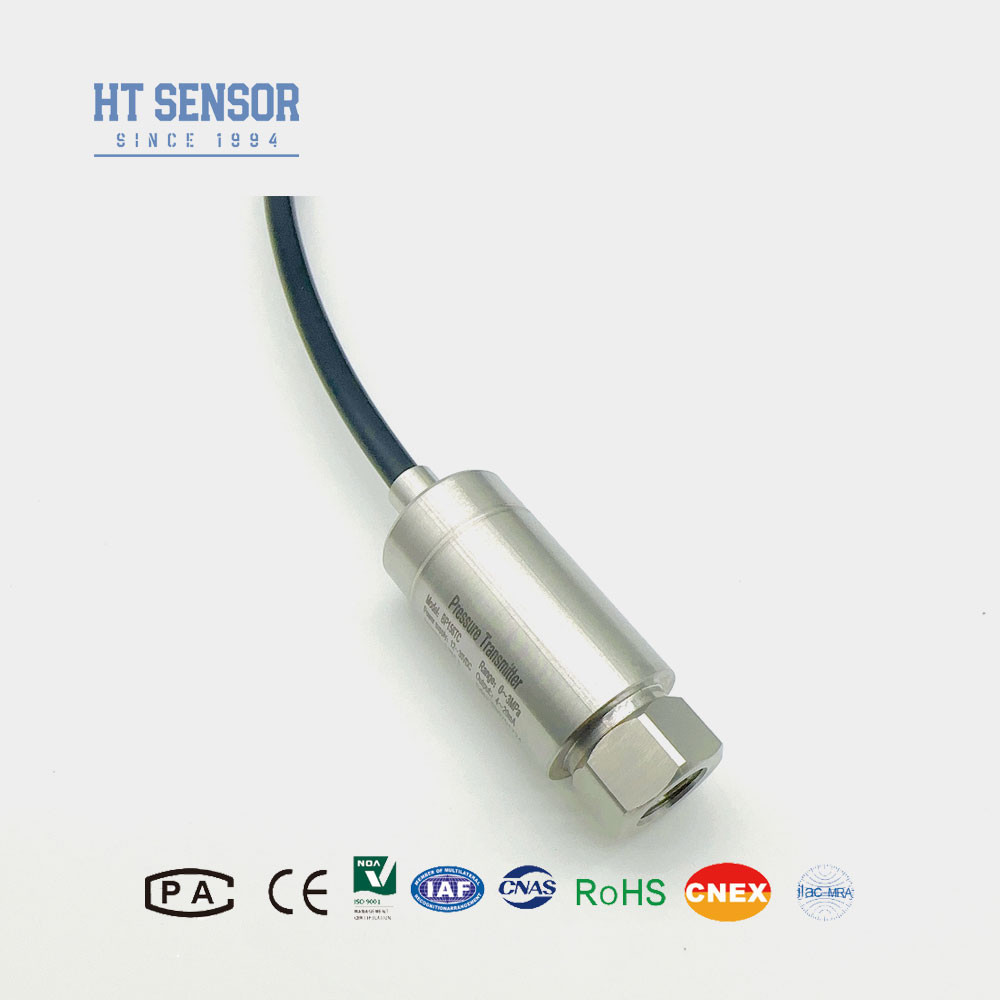

Industrial Pressure Sensor Transmitter With Flat Film Structure Sensor Transducer
Product Details
| Model NO.: | BP155 | Housing Material: | 304S.S Or 316L |
|---|---|---|---|
| Pressure Type: | Gauge , Absolute , Sealed Pressure | Sensor: | Silicon Pressure Sensor / Ceramic Sensor |
| Trademark: | HTsensor | Type: | Pressure Sensor Transmitter |
| Measuring Medium: | Gas And Liquid | Accuracy Grade: | 0.5%F.S 0.25%F.S |
| Pressure Range: | 0kpa~10kpa...20MPa | Customization: | OEM And ODM |
| Highlight |
Flat Film Structure Pressure Sensor Transmitter,Industrial Pressure Sensor,Industrial Pressure Sensor Transmitter |
||
Product Description
Industrial Pressure Sensor Transmitter With Flat Film Structure Sensor Transducer
BP155 Pressure SensorTransmitter
Introduction of Industrial pressure sensor transmitter :
BP155 small size industrial pressure sensor transmitter is a cost-effective pressure transmitter launched by our company, using a flat film structure sensor core and specially customized amplifier circuit, linear correction and temperature compensation, can meet the pressure measurement and control needs under a variety of environmental conditions. Mass production by automatic production line, all parameters are strictly controlled. The whole product has gone through the strict testing and aging screening of components, semi-finished products and finished products, and the product has good consistency, anti-interference, anti-overload ability and high stability.
Applications of Industrial pressure sensor transmitter:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel.
2. Applied in the marine and aviation industries.
3. Utilized in hydraulic and pneumatic control systems.
| Performance Parameters of Industrial pressure sensor transmitter: | |
| Measurement Range | 0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Selection Examples |
| Ordering tips |
1. When selecting a product, ensure that the media is compatible with the process fluid in contact with the product under test.
2. When placing an order, please note that explosion-proof products do not come with digital displays.
3. When ordering a transmitter with an LCD or LED display head, ensure that the power supply of the transmitter is at least 20VDC.
4. To ensure reliable operation of the product, it is recommended to install lightning protection devices on site and ensure proper grounding of the product with the power supply.
5. The rated operating temperature range of fluorine rubber O-rings is -20℃~ 250℃. If the operating temperature of the product is below -20℃, EPDM O-rings should be selected instead.
6.In case of special requirements such as strong vibration, sudden shock or intense electromagnetic or RF interference,please inform us and indicate in your order form.
FAQ:
Q1:Are you manufactrade company?
A1:We are manufactrader with more than 29 years of experience.
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
