IP65 Rated Stainless Steel Industrial Pressure Sensor For High Temperature Environments
Product Details
| Model NO.: | BP93420-IC | Pressure Range: | -100KPA-0-10kpa-60Mpa |
|---|---|---|---|
| Output: | 4-20mA / 0.5-4.5VDC And So On | Power: | 12-32VDC / 5VDC |
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure | Structure Type: | Industrial Pressure Sensor Transmitter |
| Measuring Medium: | Liquid,gas , And So On | Accuracy Grade: | 0.5% |
| Thread: | G1/2 And OEM | Customization: | OEM And ODM |
| Highlight |
High Temperature Industrial Pressure Sensor,Stainless Steel Industrial Pressure Sensor,IP65 Industrial Pressure Sensor |
||
Product Description

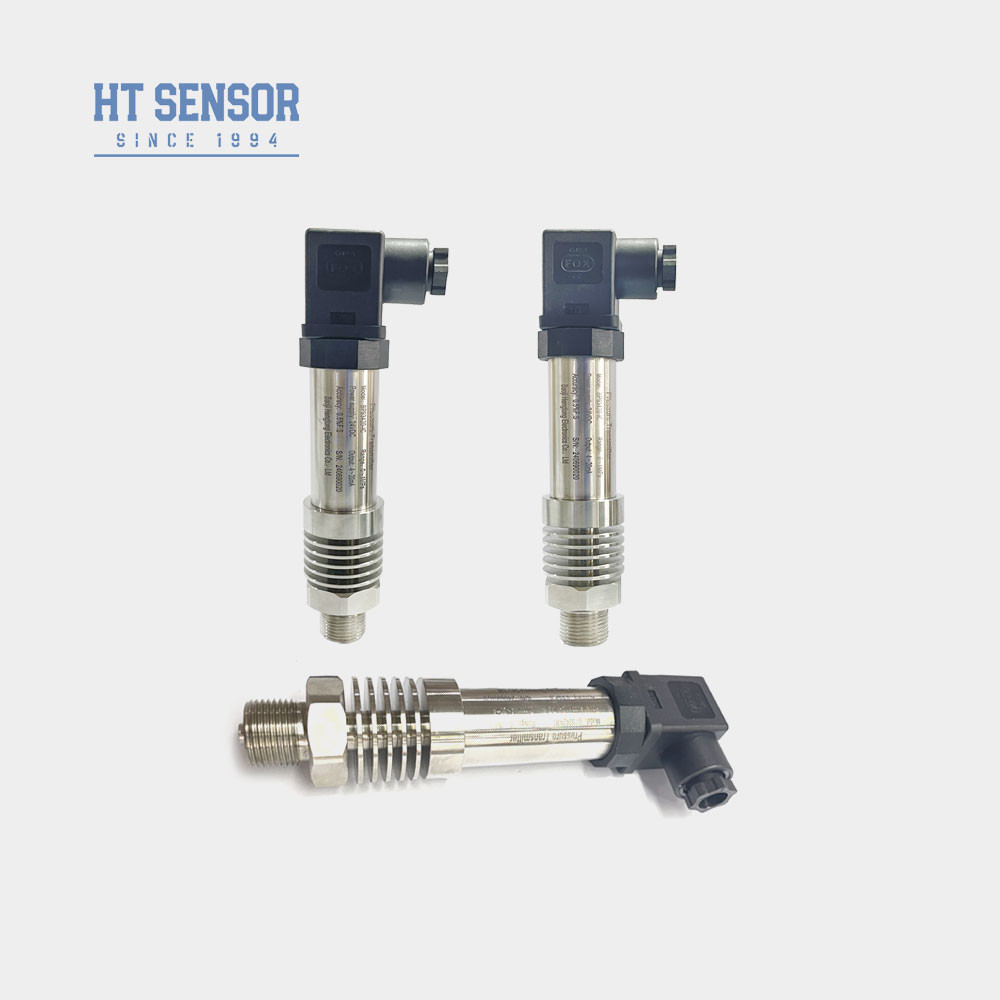

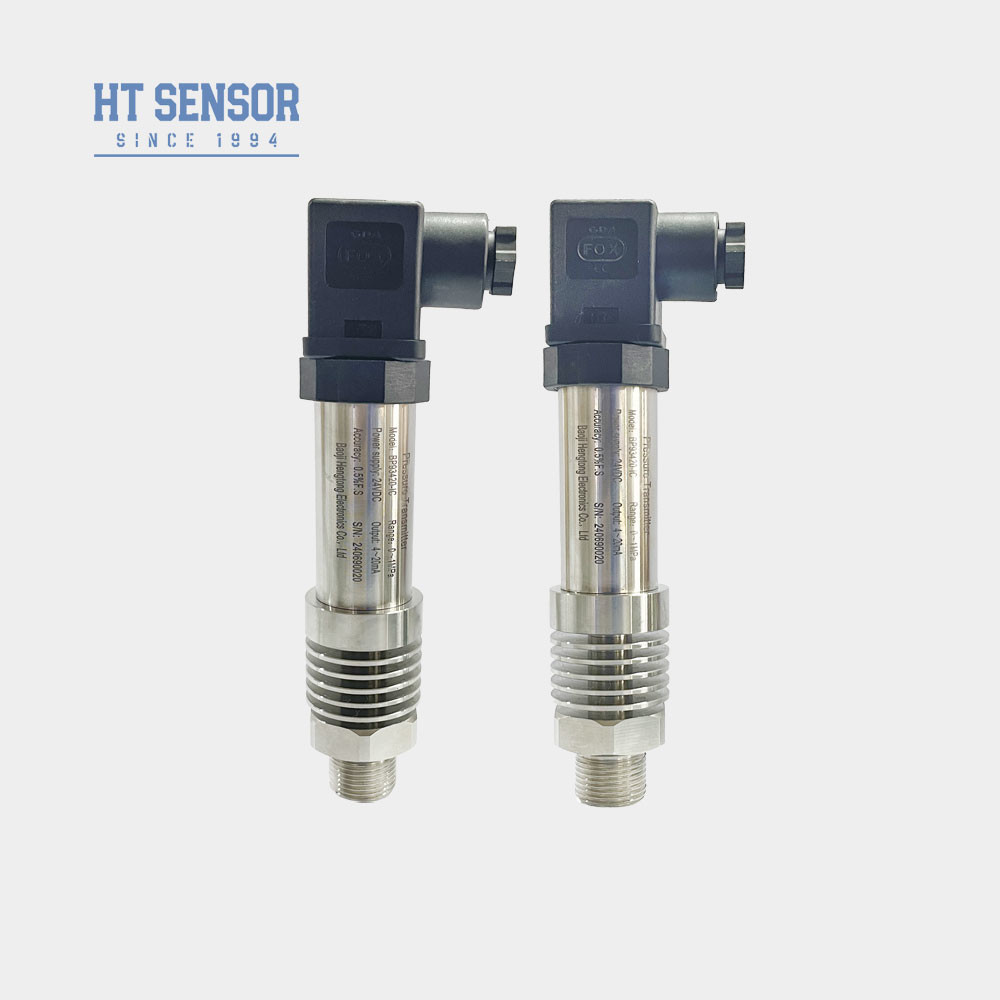

IP65 Rated Stainless Steel Industrial Pressure Sensor for High Temperature Environments
BP93420IC Industrial Pressure Sensor
Introduction of Industrial pressure sensor:
BP93420-IC is a high temperature industrial pressure sensor transmitter, utilizing the our HT19 series silicon pressure isolation oil-filled core as the primary measurement element. The sensor effectively captures the pressure of the measured medium through a dedicated heat dissipation structure integrated into the transmitter, mitigating the impact of high temperatures on product pressure. This specialized design makes it well-suited for demanding high temperature environments, making it ideal for applications involving temperature fluctuations or operation in elevated conditions. It is widely utilized in industrial processes and systems where precise and reliable pressure measurements are necessary even in challenging high temperature environments.
Product Features of Industrial pressure sensor:
- 1. Wide measuring range, stainless steel structure, diverse pressure interface forms.
- 2. IP65 protection rating stainless steel structure.
- 3. High precision, all stainless steel structure.
- 4.Human measurement of liquids in high temperature environments.
| Performance Parameters of Industrial pressure transmitter sensor | |
| Measurement Range | -100kPa…0kPa ~ 10kPa…60MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Max) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Max) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~150ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304 or 316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| Weight | ~0.4kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 | 3.6~30V | 4 wire |
| Ordering tips |
1. When selecting a product, please ensure that the medium under test is compatible with the contact part of the product.
2. When placing an order, please note that explosion-proof products do not include a digital display.
3. When ordering a transmitter with an LCD or LED display head, the power supply of the transmitter should not be lower than 20VDC.
4. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on the site and ensure that the product and the power supply are reliably grounded.
5. Fluorine rubber o-rings rated operating temperature range for - 20 ℃ ~ 250 ℃. When operating temperatures fall below -20 ° C, EPDM O-type sealing rings should be selected.
6. The cable does not come with default cable attached. If you require cable, there are three materials to choose from. If no specific instructions are given, polyethylene cable materials will be used by default.If different cable materials are required, please indicate in your order form.
7.In case of special requirements such as strong vibration, instantaneous impact,strong electromagnetic or radio frequency interference ,please inform us and indicate in your order.
FAQ:
Q1:Are you manufactrade company?
A1:We are manufactrader with more than 29 years of experience.
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
