Customizable Output Signal BH93420-I Water Level Transmitter For Versatility
Product Details
| Model NO.: | BH93420-I | Output Form: | 4-20mA Or RS485 Or HART |
|---|---|---|---|
| Accuracy: | 0.25%, 0.5% | Diaphragm Material: | 316L Stainess Steel |
| Net Weignt: | 0.3kg | Transport Package: | Carton |
| Origin: | Shaan Xi | HS Code: | 90261000 |
| Contact: | Put Into The Water | Customization: | OEM And ODM | Customized Request |
| Highlight |
Versatility Water Level Transmitter,Customizable Output Signal Water Level Transmitter,BH93420-I Water Level Transmitter |
||
Product Description

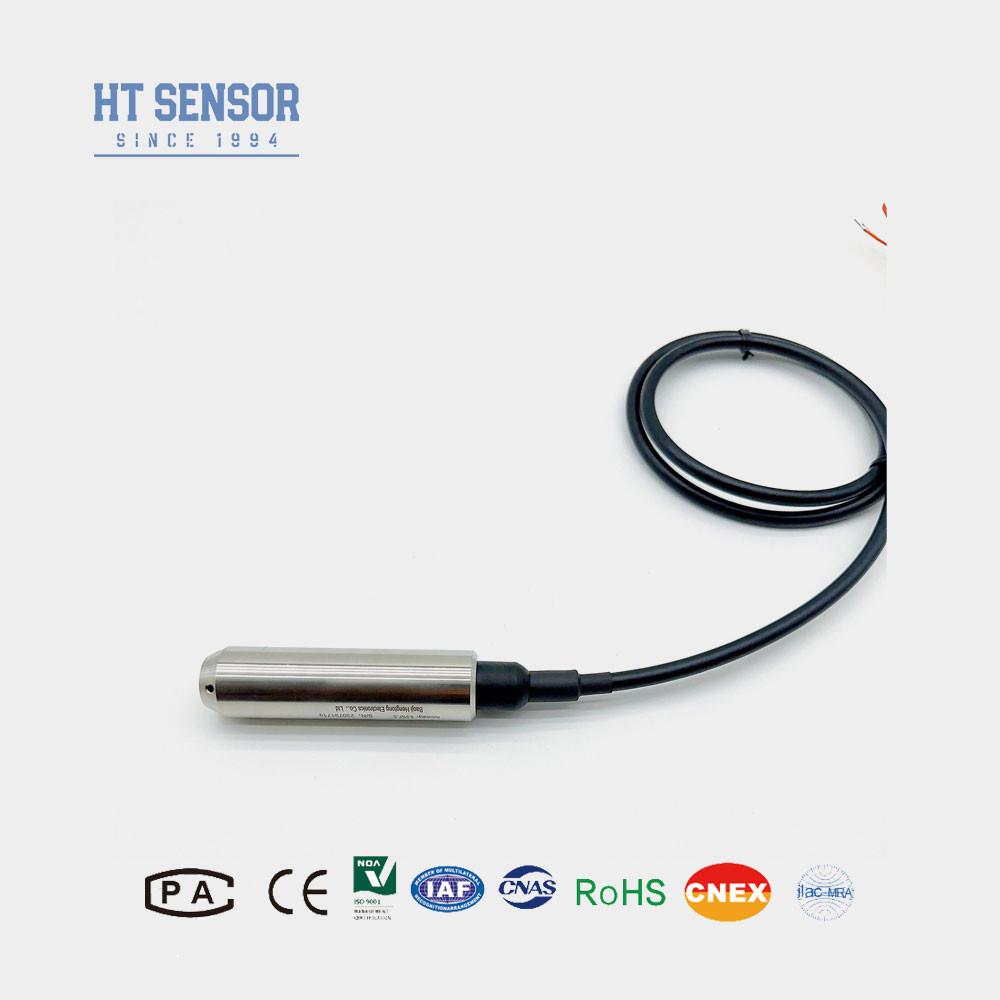

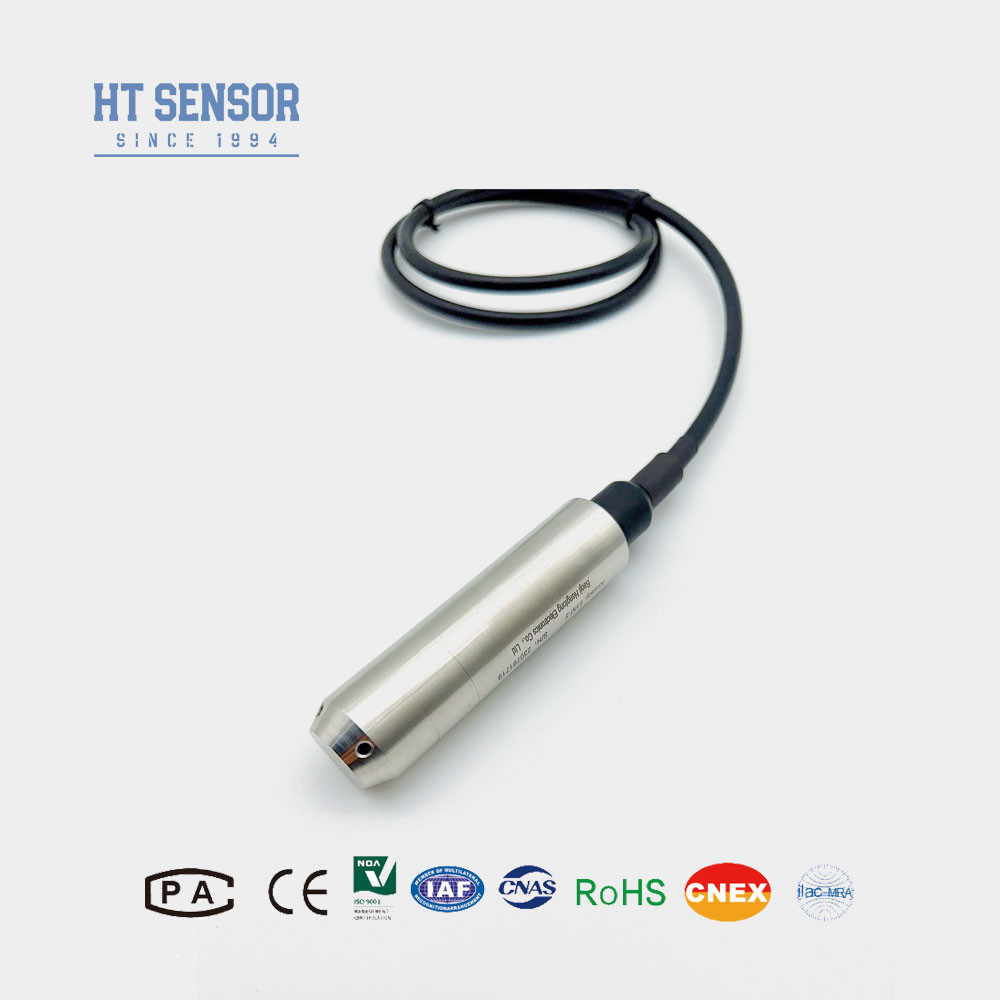

Customizable Output Signal BH93420-I Water Level Transmitter for Versatility
Introduction of water level transmitter:
BH93420-I water level sensor that uses HT series diffused silicon isolation oil-filled core as its signal measuring element. It is designed with a full stainless steel housing and a compact one-piece structure. The sensing part of the transmitter that is immersed in the water is completely sealed with stainless steel, ensuring excellent waterproof performance. The product has undergone rigorous high and low-temperature compensation and aging tests, resulting in high reliability and excellent stability.
Product Features of water level transmitter:
1. Full stainless steel housing, suitable for various testing environments
2. Immersion-type probe measurement, easy installation
3. Diverse output signal options
4. Explosion-proof marking: ExiaIICT6
5. High protection rate: IP68
6. PE or PU cable
| Performance Parameters of water level transmitter | |
|---|---|
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m ); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
Q&A
Q1:Areyou manufactrade company?
A1:We are manufactrader with more than 29 years of experience.
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
