BH93420-I Signal Outout Submersible Pressure Transmitter For Level Measurement
Product Details
| Model NO.: | BH93420-I | Output Form: | 4-20mA Or RS485 |
|---|---|---|---|
| IP Rating: | IP68 | Accuracy: | ≤±0.5%F.S |
| Diaphragm Material: | 316L Stainess Steel | Net Weignt: | 0.3kg Without Cable |
| Transport Package: | Carton | Origin: | Shaan Xi |
| HS Code: | 90261000 | Supply Ability: | 1000-3000 |
| Installation Type: | Submersible Type | Production Process: | Diffused Silicon Sensor |
| Probe Type: | Probe Type | ||
| Highlight |
Signal Outout Pressure Transmitter,Submersible Pressure Transmitter,Level Measurement Pressure Transmitter |
||
Product Description

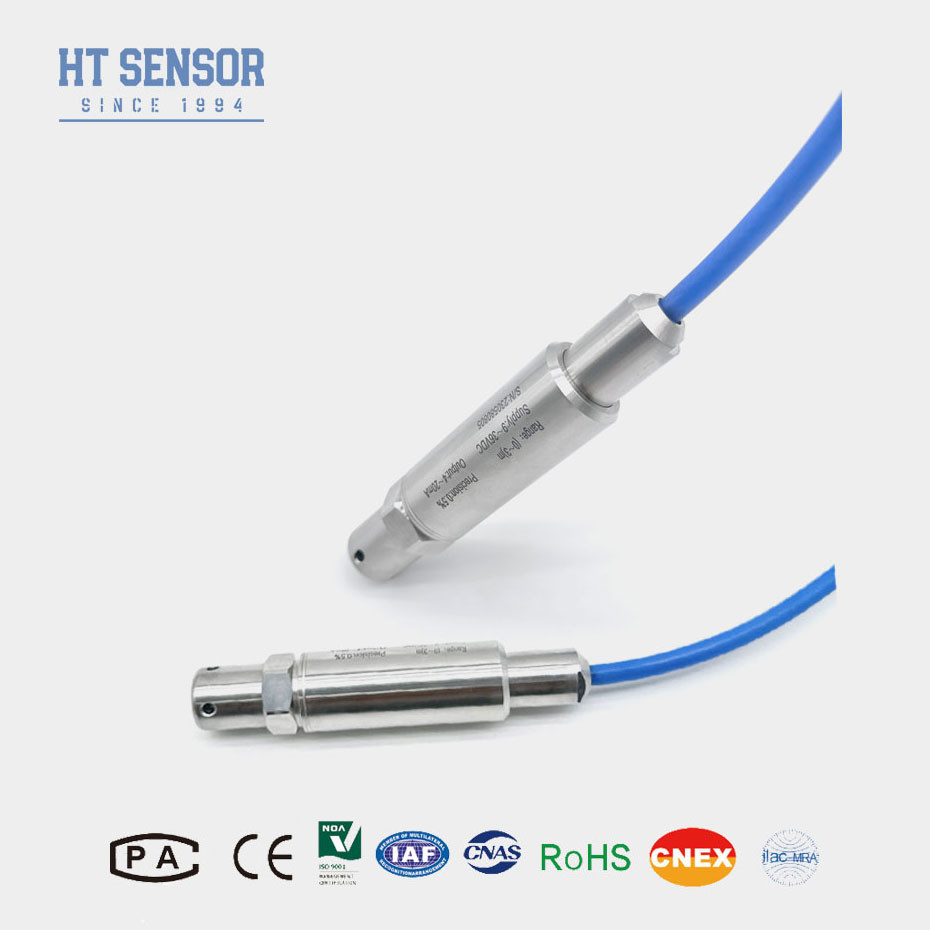

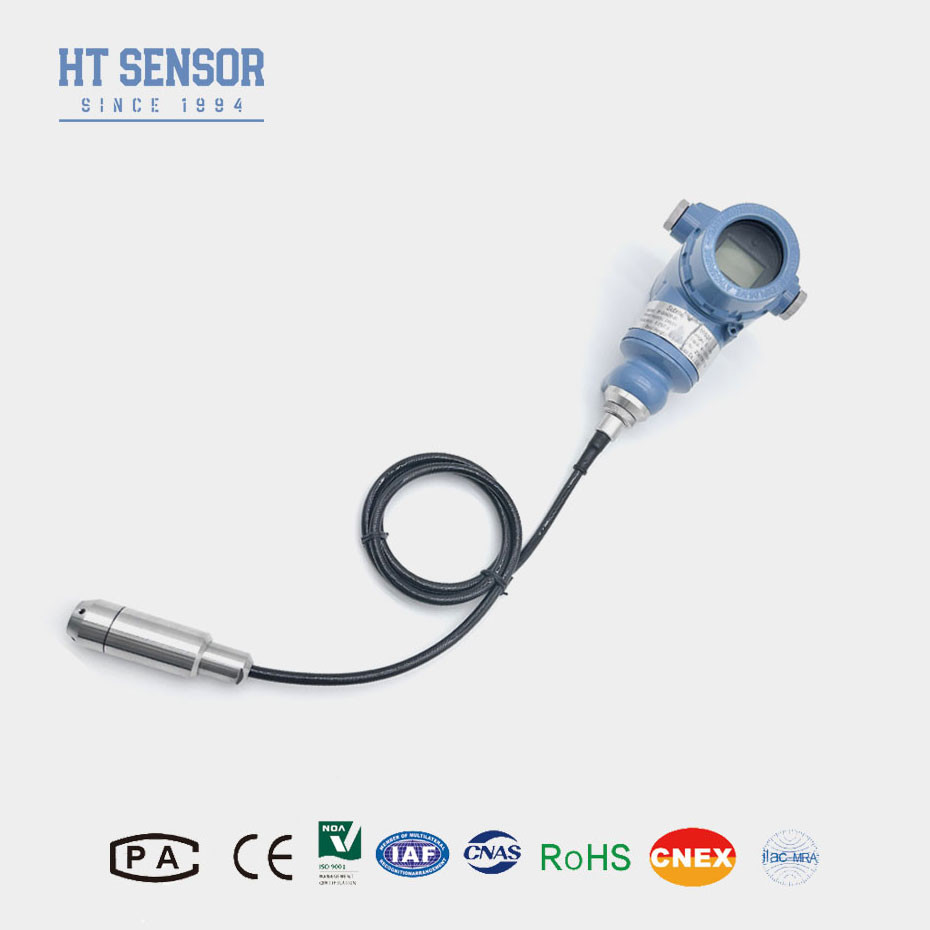

BH93420-I Signal Outout Submersible Pressure Transmitter For Level Measurement
BH93420 II Diffued Silicon Water level transmitter
Introduction of water level transmitter:
BH93420-I diffused silicon water level transmitter that uses HT series diffused silicon isolation oil-filled core as its signal measuring element. It is designed with a full stainless steel housing and a compact one-piece structure. The sensing part of the transmitter that is immersed in the water is completely sealed with stainless steel, ensuring excellent waterproof performance. The product has undergone rigorous high and low-temperature compensation and aging tests, resulting in high reliability and excellent stability.
Water level transmitter's outstanding quality & performance. The product has a waterproof cable with vent hose which is designed for submersible applications.
Product Features of water level transmitter:
1. Full stainless steel housing, suitable for various testing environments
2. Immersion-type probe measurement, easy installation
3. Diverse output signal options
4. Explosion-proof marking: ExiaIICT6
5. High protection rate: IP68
6. PE or PU cable
Applications of water level transmitter:
1. Compatible with 316LSS,noncorrosive liquids
2. Monitoring water levels in various applications such as sewage, industrial and municipal water, water tanks, wells, rivers, seawater, lakes, etc
3. Measuring fuel levels in diesel and fuel tanks
|
Performance Parameters:
|
|
| Measurement Range | 0~10m…400m |
| Overload | ≤ 2 X of rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Point Temperature Drift | ±1.5%F.S(Typ.) ±2%F.S (Max.) |
| Full Scale Temperature Drift | ±1.5%F.Sr(Typ.) ±2%F.S (Max.) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m ); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
Ordering tips:
1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.
| Order Guide: | ||||||||
| BH93420 | Code | Outline Construction | ||||||
| I | Pressure Transmitter | |||||||
| Measurement Range | 0~10m…400m | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | S8 | RS485 | |||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
| Code | Material | |||||||
| 01 | 304 Stainless Steel | |||||||
| 02 | 316L Stainless Steel | |||||||
| Code | Cable Material | |||||||
| C1 | PE | |||||||
| C2 | PU | |||||||
