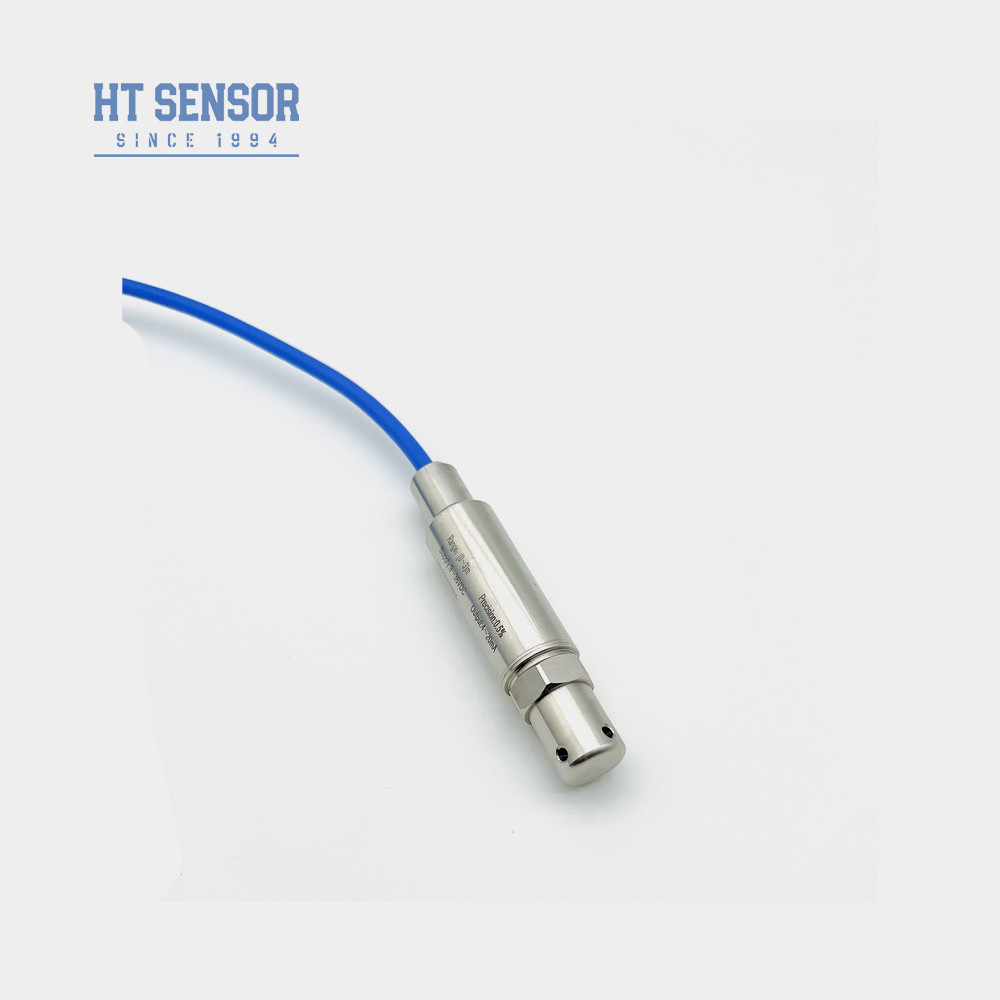

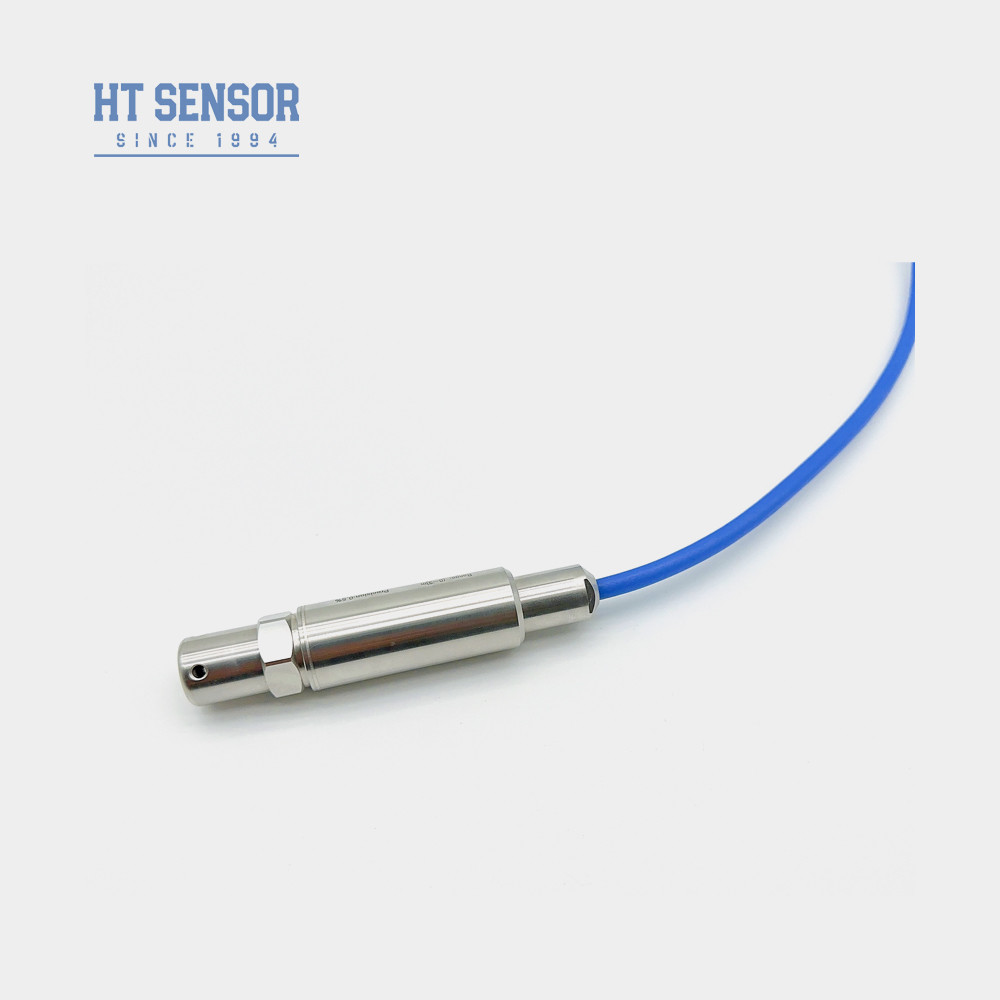

BH93420 IT Sumersible liquid level transmitter
Introduction of liquid level Transmiter:
BH93420-IT portable liquid level transmitter adopts polytetrafluoroethylene cable, special technology, customized steam and diesel level measurement. The input level transmitter is directly put into the measured medium and is very convenient to install and use. Solid state construction, no moving parts, high reliability, long service life from water, oil to viscous paste can be measured with high precision, not affected by the foaming, deposition, electrical characteristics of the measured medium wide range of temperature compensation.
Product Features of liquid level Transmiter:
- 1. Full stainless steel housing, suitable for various test environments
- 2. Submersible probe measurement, easy installation
- 3. A variety of output signal options
- 4. Explosion-proof mark :ExiaIICT6
- 5. High protection level :IP68
- 6. Teflon cable
| Performance Parameters of liquid level Transmiter |
| Measurement Range |
0~10m…400m |
| Overload |
≤ 2 X of rated range |
| Accuracy @ 25ºC |
±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability |
±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis |
±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability |
±0.2%F.S/year (Max.) |
| Zero Point Temperature Drift |
±1.5%F.S(Typ.) ±2%F.S (Max.) |
| Full Scale Temperature Drift |
±1.5%F.Sr(Typ.) ±2%F.S (Max.) |
| Compensation Temperature |
0-50ºC (0-1m. 0-2m ); 0-70ºC |
| Operating Temperature |
-20~80ºC |
| Storage Temperature |
-30~100ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Housing Material |
1Cr18Ni9Ti |
| Diaphragm Material |
316L Stainless Steel |
| Insulation Resistance |
>=100MΩ@100VDC |
| Explosion-proof Rating |
ExiaIICT6 |
| Protection Rating |
IP67, IP68 |
| O-Ring Seal |
Fluoro rubber |
| Weight |
~0.3Kg (without cable) |
| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA |
12~30VDC |
2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V |
5VDC |
| RS485 Communication Protocol |
| Order Guide of liquid level Transmiter |
| BH93420 |
Code |
Outline Construction |
| |
I |
Pressure Transmitter |
| |
Measurement Range |
0~10m…400m |
| |
Code |
Power Supply |
| D1 |
24VDC |
| D2 |
5VDC |
| D3 |
Other |
| |
Code |
Output Signal |
| S1 |
4~20mADC |
S5 |
0~20mADC |
| S2 |
1~5VDC |
S6 |
0~10VDC |
| S3 |
0~5VDC |
S7 |
0.5~4.5VDC |
| S4 |
0~10mADC |
S8 |
RS485 |
| |
Code |
Pressure Type |
| G |
Gauge Pressure |
| A |
Absolute Pressure |
| S |
Sealed Reference Pressure |
| |
Code |
Material |
| 01 |
304 Stainless Steel |
| 02 |
316L Stainless Steel |
| |
Code |
Cable Material |
| C1 |
PE |
| C2 |
PU |
FAQ:
1. Q: What are the characteristics of your pressure sensor transmitters?
A: high accuracy, durability and performance. Customization is available.
2. Q: Can I customize special specifications?
A: yes, our engineers can customize products to meet specific needs. We offer OEM and ODM services.
3. What is your production capacity?
A: Our production facilities can produce up to 30,000 pressure sensor transmitters per month, so we are well positioned to meet large orders. However, it is recommended that you contact our sales team in advance to ensure a smooth production and delivery schedule.
4. Q: What is the general lead time?
A: Standard model 5~8 working days. Custom products may vary.
5. Q: How is the product priced? Are there any discounts?
A: Competitive prices, discounts for bulk orders or long-term partners.
6. Q: What is the warranty period of your product? What about after-sales service?
A: Our warranty period is 24 months after delivery. We will reply to your questions within 24 hours after sale, and guide you remotely through PC network at any time.
