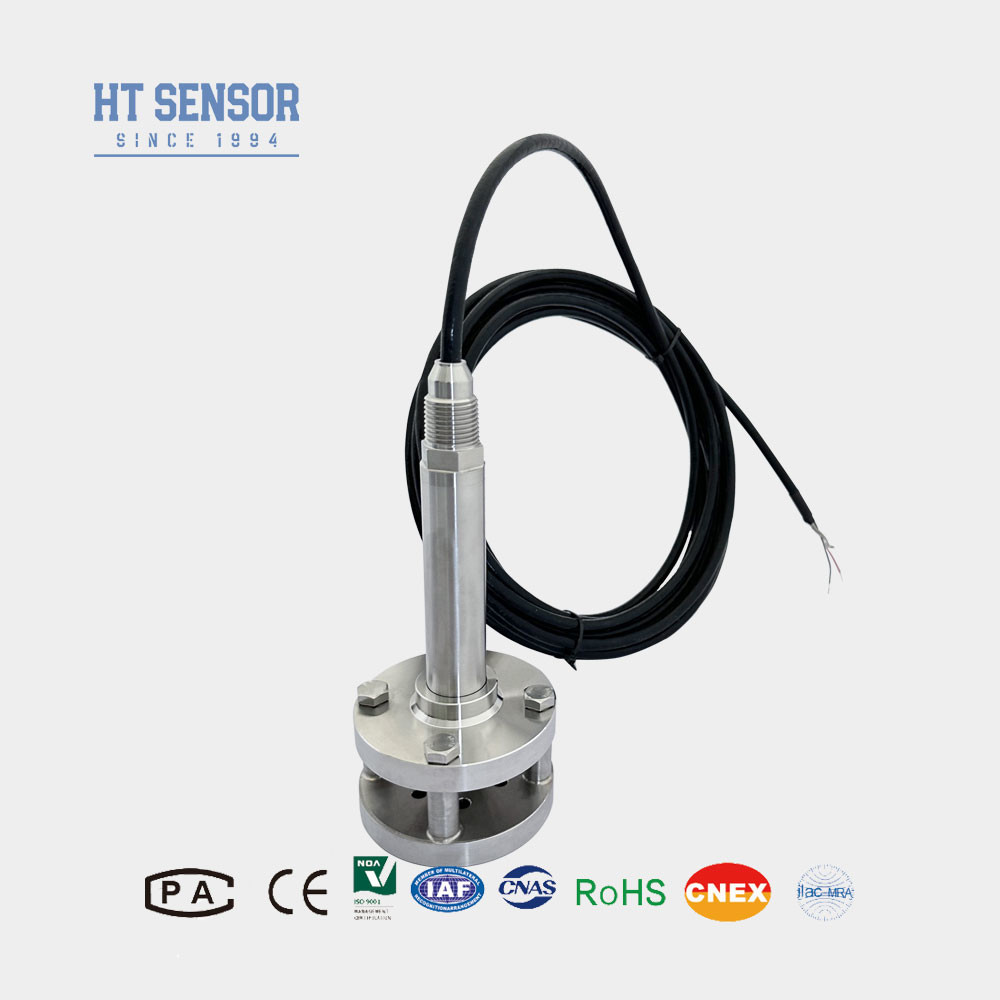

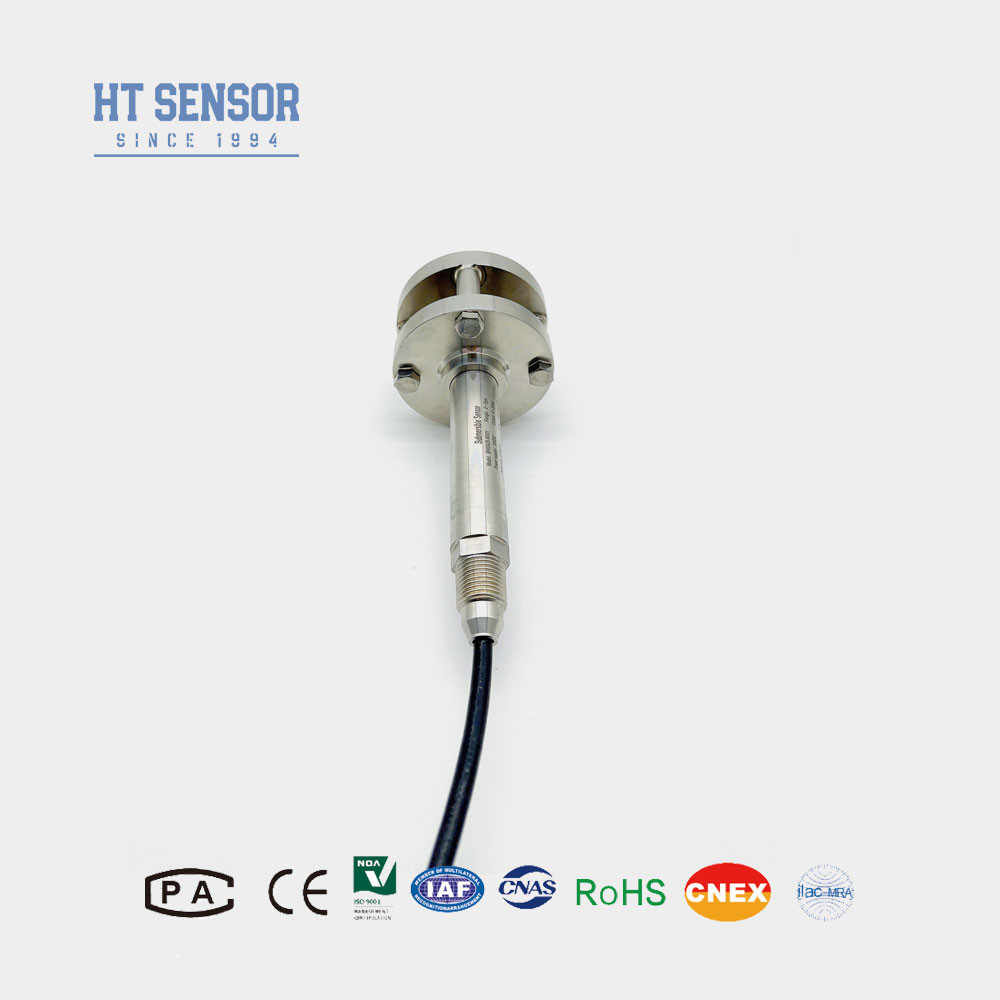

BH93420-WS Sewage Level Sensor
Introduction of water level transmitter:
BH93420-WS sewage level sensor can convert the physical pressure parameters such as gas and liquid sensed by the pressure measuring element sensor into standard electrical signals, and provide secondary instruments such as alarm, recorder and regulator for measurement, indication and process adjustment. To ensure that the product long-term work without leakage, high stability. The input liquid level transmitter is used in petroleum, metallurgy, water conservancy, urban water supply, hydrologic exploration and other liquid level measurement.
Product Features of water level transmitter:
- Specially designed for harsh environments
- Explosion-proof marking : ExiaIICT6
- High protection : IP68
- Full 316L stainless steel structure with excellent corrosion resistance
- High precision and good stability
| Performance Parameters of sewage level sensor transmitter |
| Measurement Range |
0~10m…400m |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload |
≤ 2X rated range |
| Accuracy @ 25ºC |
±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability |
±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis |
±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability |
±0.2%F.S/year (Max.) |
| Zero Temperature Drift |
±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift |
±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature |
-10-80ºC |
| Operating Temperature |
-20~100ºC |
| Storage Temperature |
-30~100ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Housing Material |
316L Stainless Steel |
| Diaphragm Material |
316L Stainless Steel |
| Insulation Resistance |
>=100MΩ@100VDC |
| Explosion-proof Rating |
ExiaIICT6 |
| Protection Rating |
IP67, IP68 |
| O-Ring Seal |
Fluoro rubber |
| Weight |
~2.1Kg (without cable) |
| Cable Material |
Polyethylene, Polyurethane,PTFE |

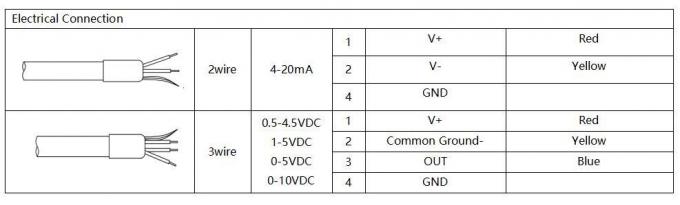

| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA |
12~30VDC |
2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V |
5VDC |

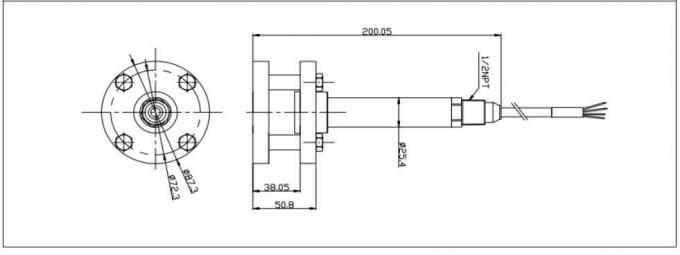

| Outline Construction of sewage level sensor transmitter |
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
