BT93420 Temperature Indicator Transmitter For Accurate Oil Temperature Measurement PT100
Product Details
| Model NO.: | BT93420-I | Measuring Medium: | Temperature |
|---|---|---|---|
| Customized: | OEM And ODM | Trademark: | HT Sensor |
| Origin: | Shaanxi China | Installation Type: | Junction Box |
| Sensing Type: | PT100 PT1000 Or 4-20mA | Material: | Stainless Steel |
| Highlight |
PT100 Temperature Indicator Transmitter,Accurate Oil Temperature Indicator Transmitter,BT93420 Temperature Indicator Transmitter |
||
Product Description
Product Description

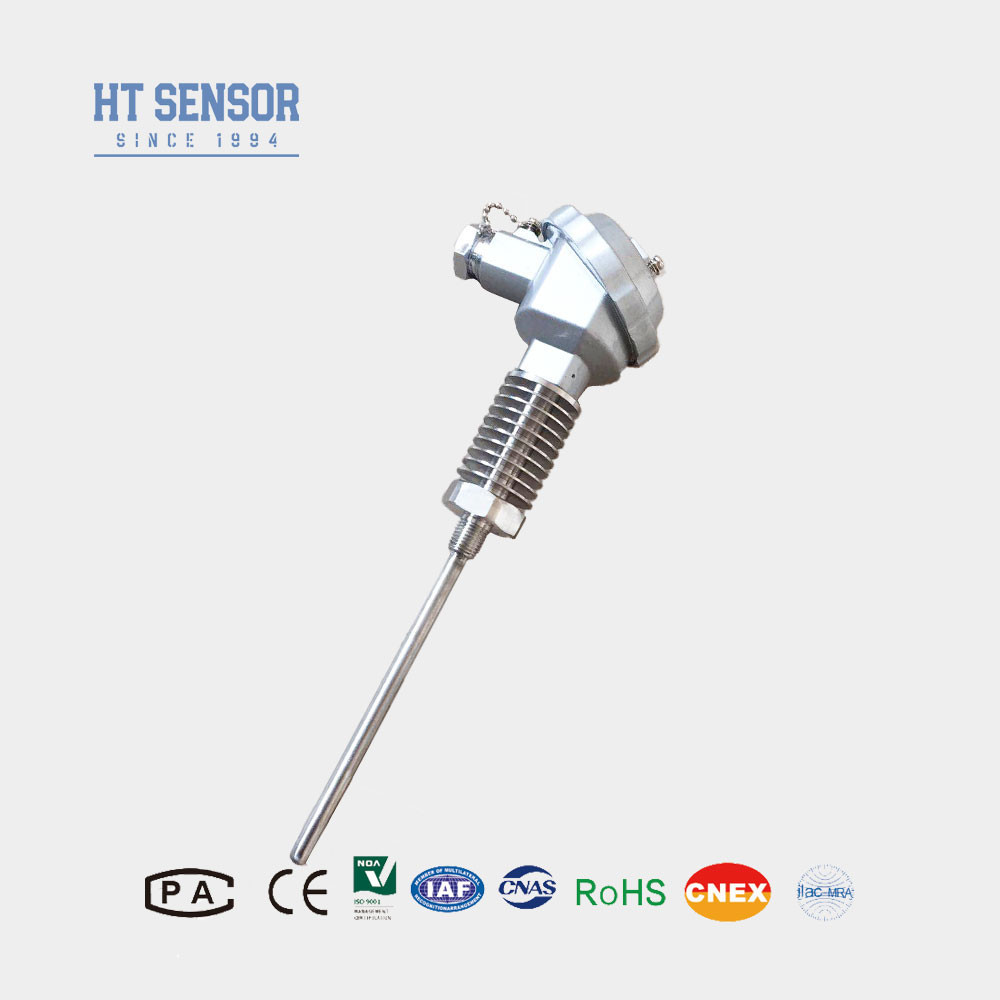

BT93420 Temperature Indicator Transmitter for Accurate Oil Temperature Measurement PT100
BT93420 Temperature Indicator Transmitter
Introduction of temperature induicator transmitter:
BT93420-I temperature indicating transmitter adopts a special temperature module or PCB, which can perform linear correction for various thermocouples and resistance temperature detector (rtd), with high accuracy, good stability, strong anti-interference ability, waterproof, explosion-proof design, high temperature resistance, impact resistance and other characteristics. It can be integrated with the control system to realize automatic temperature control and monitoring. The temperature transmitter module is a 24V power supply, two-wire integrated transmitter. Temperature transmitter products use imported integrated circuits to amplify thermistor or thermocouple signals and convert them into 4-20mA or 0-10mA output current, or 0 ~ 5V output voltage. Armored transmitters can directly measure the temperature of gas or liquid, especially for low temperature range measurement, to overcome the effect of condensation water on temperature measurement.
Product Features of temperature induicator transmitter:
- Full stainless steel structure, good corrosion resistance
- Analog output and digital output are both available for selection
- Terminal box, 2088 LCD, or LED display are available for selection
- Monitor the temperature of generators, transformers, cables, and other critical equipment.
- Industrial Automation.
- Temperature measurement of various gases or liquids in pipelines in industries such as petroleum, chemical, power, and hydrology.
| Performance Parameters of temperature induicator transmitter | |
| Measurement Range | -55~1200ºC |
| Accuracy @ 25ºC | ±0.5% (Typ.) ±1% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -30~80ºC |
| Storage Temperature | -40~100ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Maximum temperature | 120% of the rated temperature range |
| Protection Rating | IP65 |
| Weight | ~0.5Kg |
| Outline Construction of temperature induicator transmitter | |

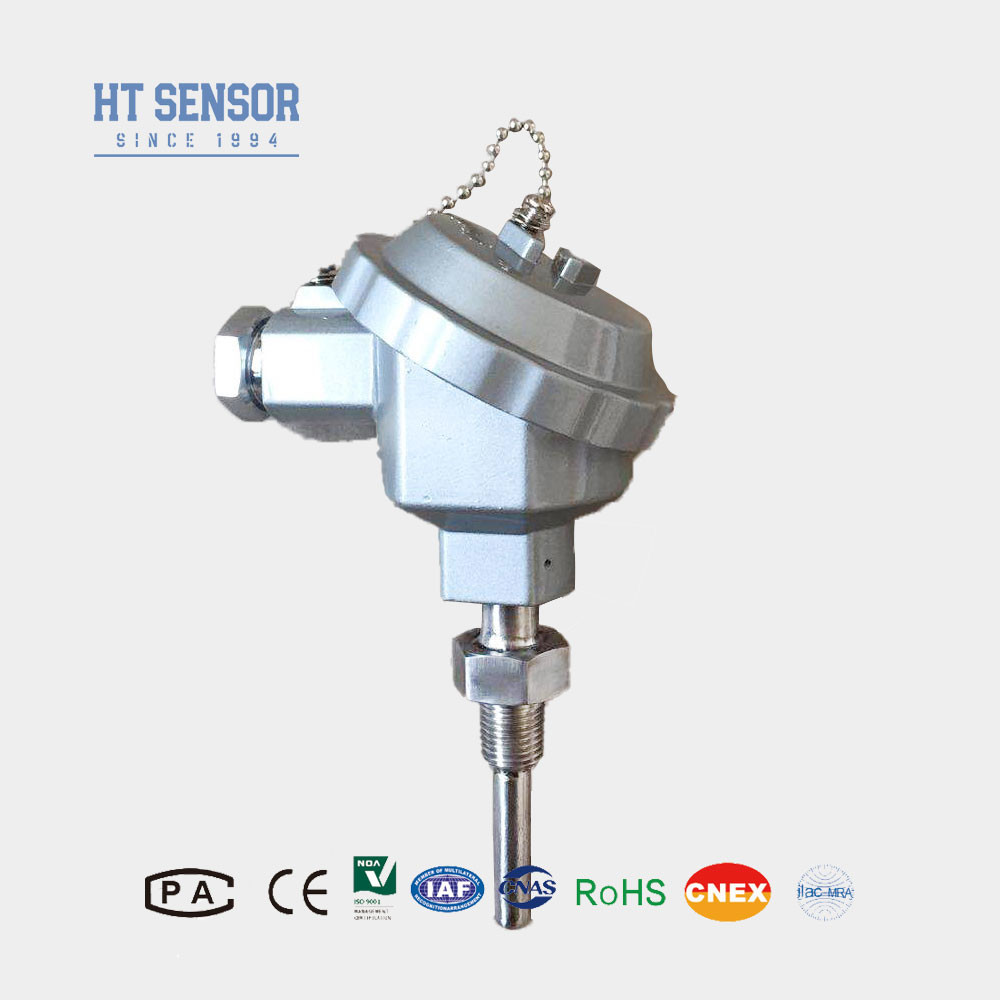

| Terminal Box | |
| Order Guide | |||||||
| BT93420 | Temperature Indicator Transmitter | ||||||
| Code | Outline Construction | ||||||
| I | Blue Terminal Box | ||||||
| II | 2088 housing | ||||||
| III | 2088+LED | ||||||
| IIIA | 3051+LED | ||||||
| Measurement Range | -55~1200ºC | ||||||
| Code | Power Supply | ||||||
| D1 | 24VDC | ||||||
| D2 | Other | ||||||
| Code | Output Signal | ||||||
| S1 | 4~20mADC | S4 | 0~10mADC | ||||
| S2 | 1~5VDC | S5 | 0~20mADC | ||||
| S3 | 0~5VDC | S6 | 0~10VDC | ||||
| Code | Pressure Connection | ||||||
| J1 | M27X2 Male | ||||||
| J2 | Other | ||||||
| Code | Insertion depth | ||||||
| L | Actual insertion depth | ||||||
