BP93420-IQT Pressure Transmitter
Introduction of flush Diaphragm pressure sensor:

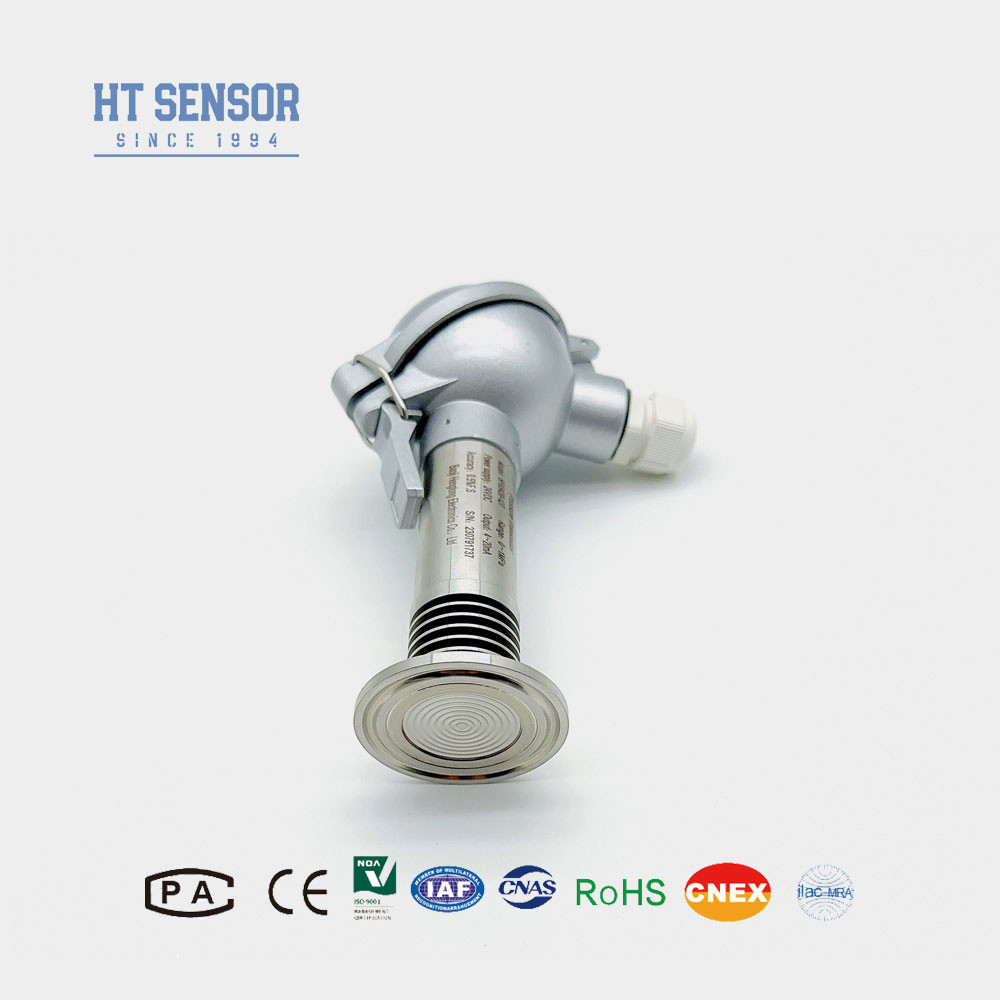

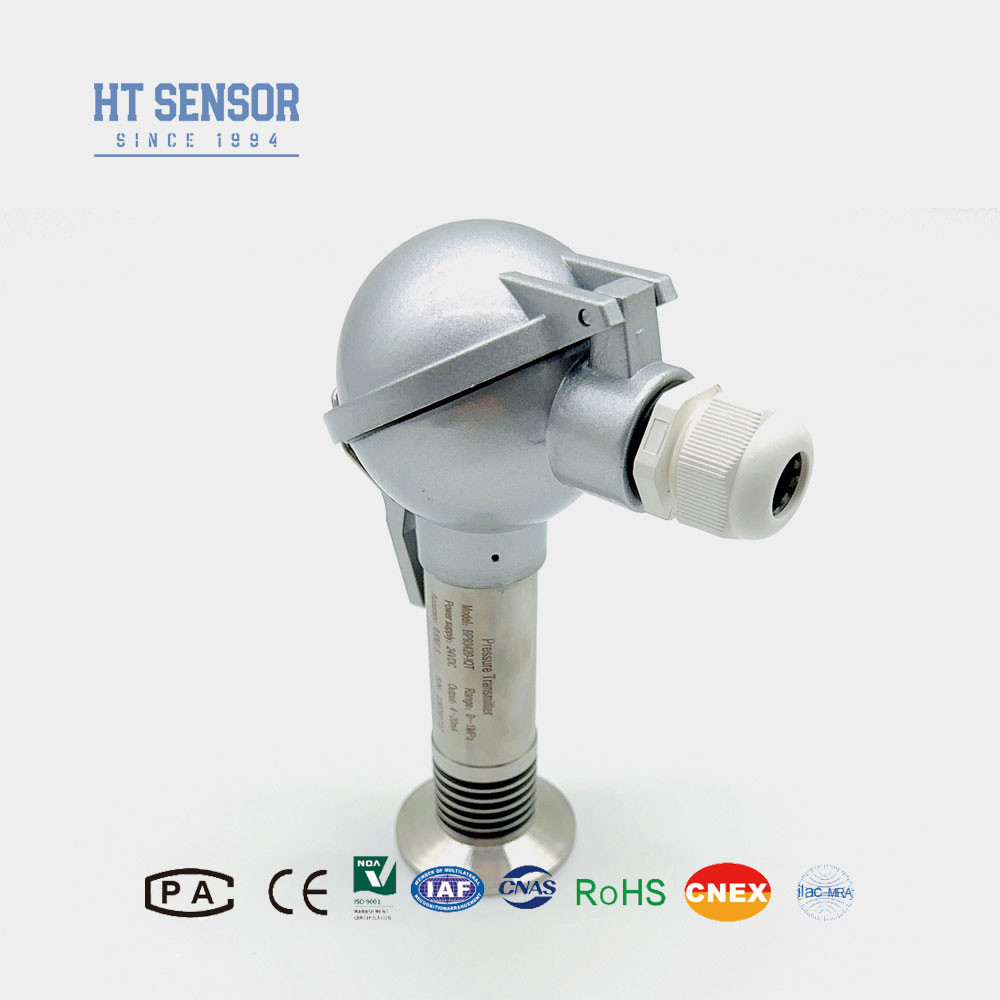

BP93420-IQT compact flush diaphragm pressure sensor transmitter, the whole product through the strict test of various projects, stable and reliable performance, exposed large diaphragm can effectively prevent the pressure hole blockage caused by the crystallization of the medium. Clean and hygienic, widely used in food and other health care industry.The flat membrane pressure sensor elastomer adopts imported materials, diaphragm isolation technology, and the test head has no pressure sensing hole.Non-viscous medium blockage during measurement.The integrated structure design is suitable for pressure measurement and control of chemical coatings, paint, mud, asphalt, crude oil and other viscous media.
| Performance Parameters of flush Diaphragm pressure sensor: |
| Measurement Range |
-100kPa…0kPa ~ 35kPa…3.5MPa |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload |
≤ 1.5 times of the rated range |
| Accuracy @ 25ºC |
±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability |
≤0.1%FS |
| Hysteresis |
≤0.1%FS |
| Long-Term Stability |
±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response |
2.4Khz |
| Compensation Temperature |
0-70ºC(customizable) |
| Operating Temperature |
-20ºC~80ºC |
| Storage Temperature |
-40ºC~120ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Housing Material |
304,316L |
| Diaphragm Material |
316L |
| Insulation Resistance |
100MΩ 100VDC |
| Explosion-proof Rating |
Ex ia IIC T6 Ga |
| Protection Rating |
IP65 |
| O-Ring Seal |
Fluoro rubber |
| Weight |
~0.3kg |
Product Features of flush Diaphragm pressure sensor:
1. Wide measurement range,Various pressure interface options
2. Diverse output signal options
3. Adjustable zero and full-scale
4. High accuracy,multiple sterile process connections
| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA |
12~30VDC |
2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V |
5VDC |
| RS485 Communication Protocol |
3.6~30V / Battery |
4 wire |
1. When selecting a product, ensure that the media is compatible with the contact part of the product under test.
2. When placing an order, please note that explosion-proof products do not include digital displays.
3. To ensure reliable operation of the product, you are advised to install lightning protection devices onsite and ensure that the product and power supply are grounded reliably.
4. No cable by default, if necessary, there are three materials to choose from. Unless otherwise specified, polyethylene cable material can be used. If you need a different cable material, please specify it in the order form.
5. In case of special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or RF interference, please inform us and indicate in the order.
