BP158TC DIN Industrial Pressure Sensor With International Electrical Connector Transmitter
Product Details
| Model NO.: | BP157TC | Range: | 0~5bar ~50bar |
|---|---|---|---|
| Output: | 4-20mA /0.5-4.5Vdc/0-10VDC | Long-Term Stability: | +-0.2%F.S/Year(Typ.) |
| Housing Material: | 304 Stainess Steel | Sensor: | Ceramic Sensor |
| Measuring Medium: | Gas .liquid | Accuracy Grade: | 0.5% |
| Connector: | Mini DIN | Customization: | OEM And ODM Customized Request |
| Highlight |
BP158TC Pressure Sensor,DIN Industrial Pressure Sensor,International Electrical Connector Pressure Sensor |
||
Product Description

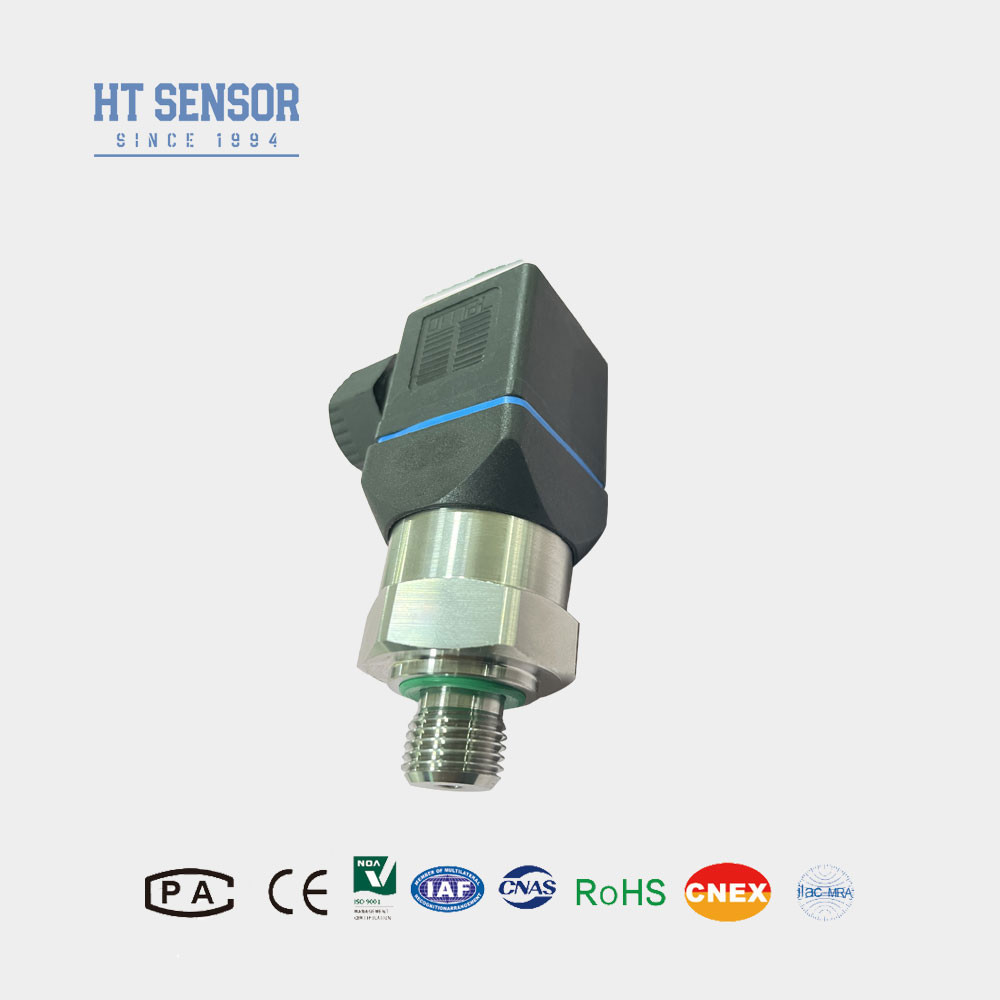

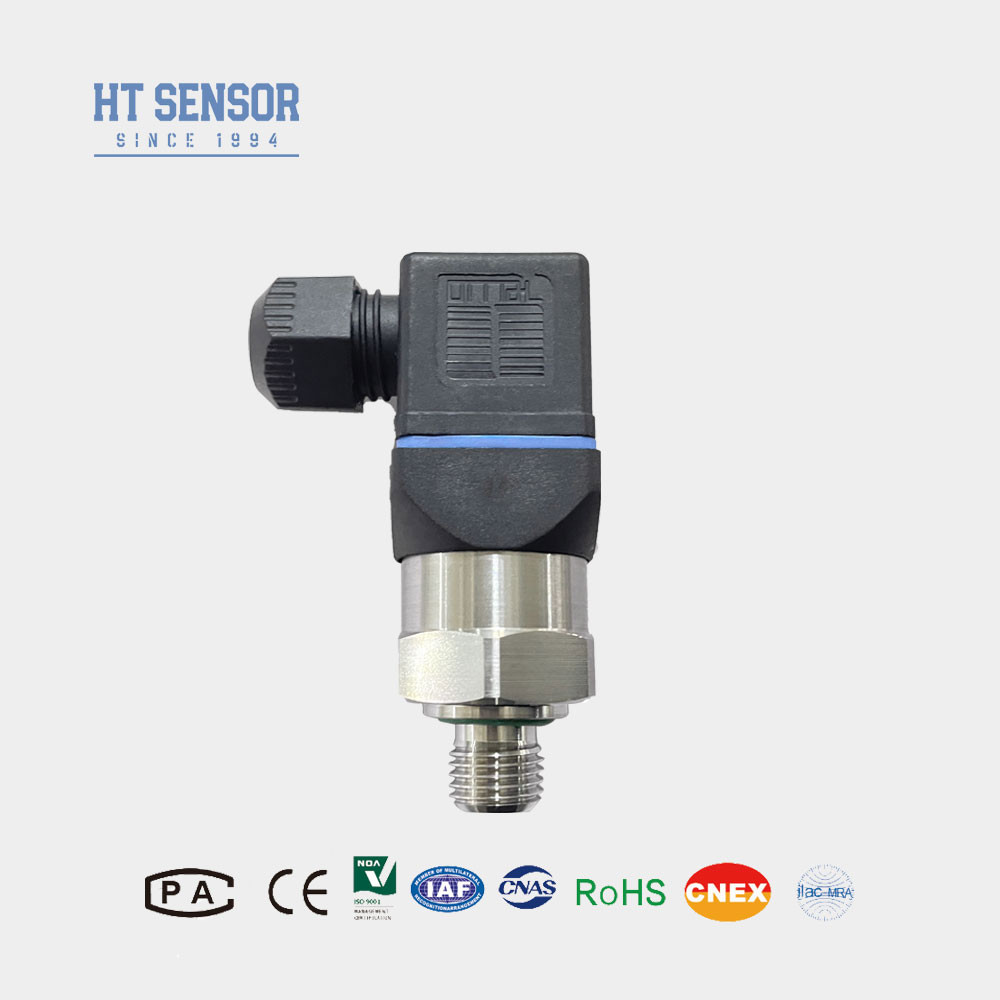

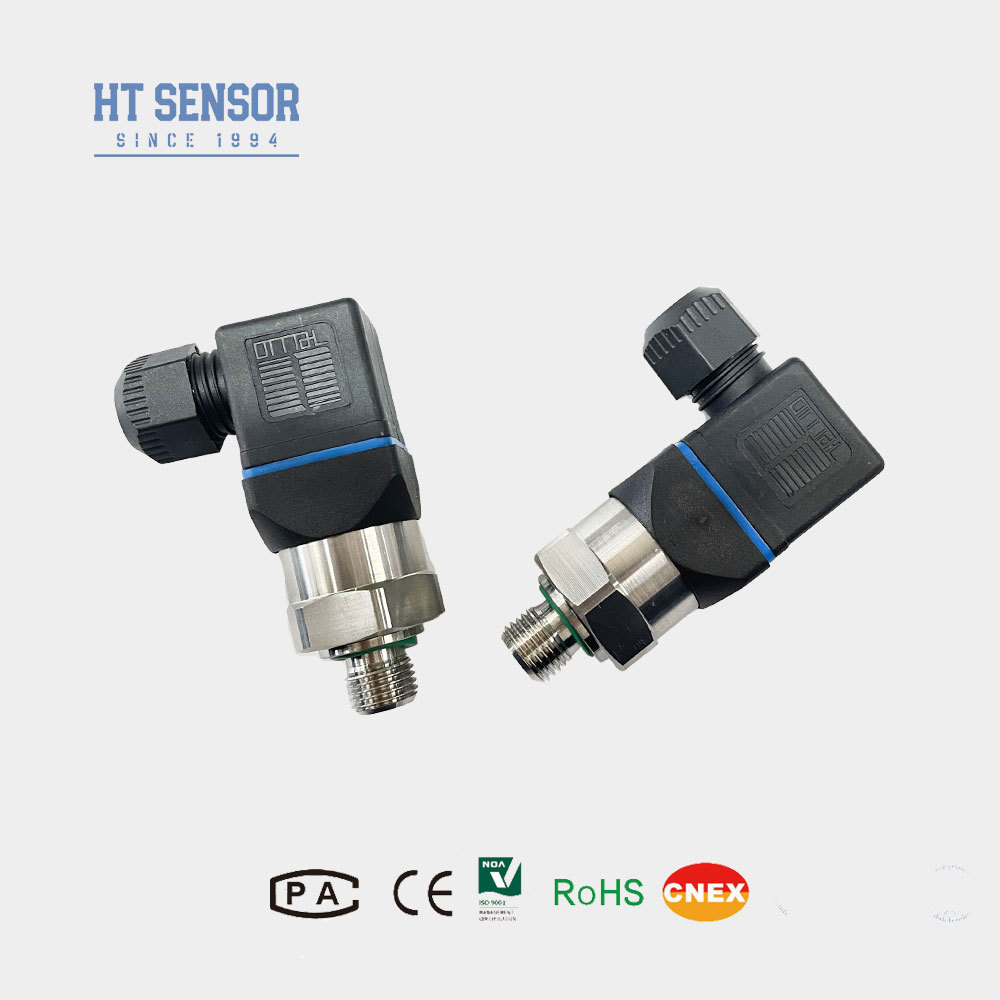

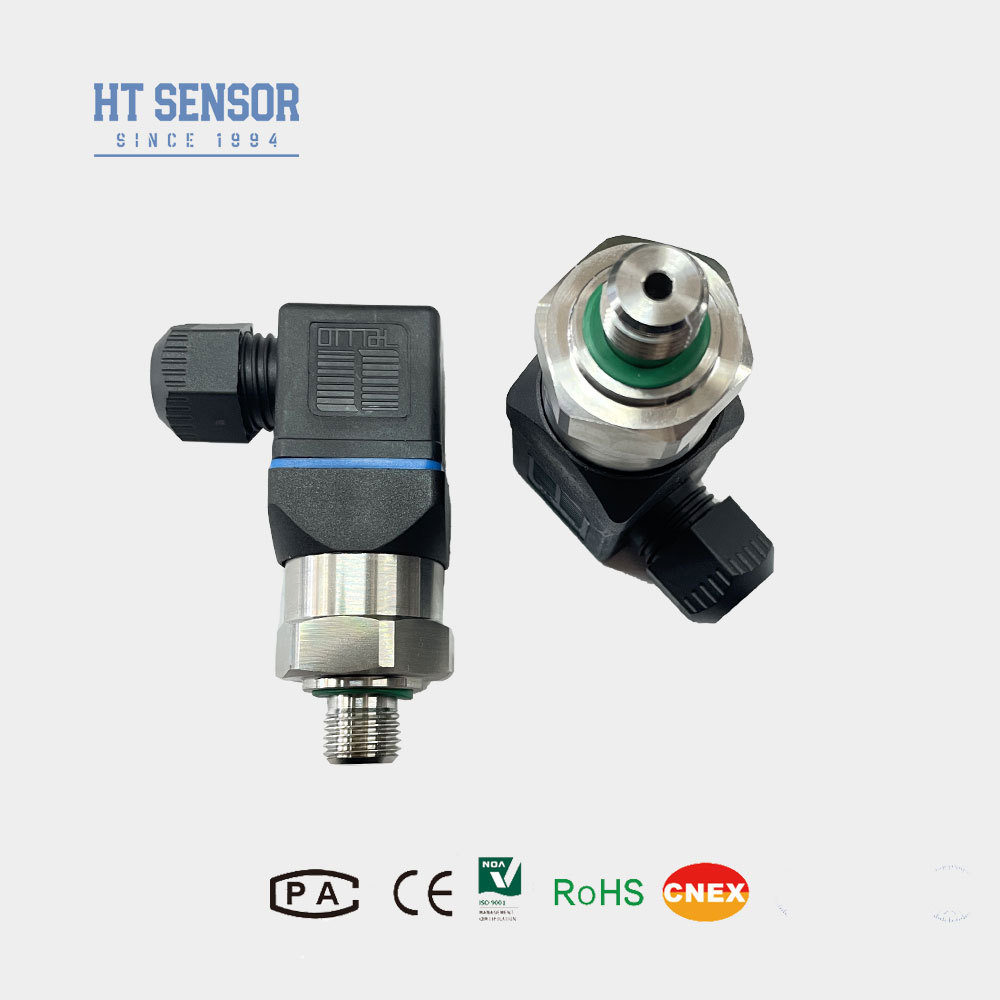

BP158TC DIN Industrial Pressure Sensor with International Electrical Connector Transmitter
BP158TC Pressure Transmitter
Introduction of mini DIN industrial pressure sensor:
The BP158TC Mini DIN Industrial Pressure Sensor transmitter employs a ceramic sensor as the signal-measuring element. The signal processing circuit is situated within the stainless steel housing and converts the sensor signal into the standard output signal. Special DIN industrial pressure sensor transmitters with welded construction are extensively utilized in air conditioning, refrigeration, heat pumps, and other systems. Industry-standard 4~20mA or 0.5~4.5V signal output, and international electrical connector standard pressure port. The product enables control and guarantees that the system operates in safe and stable conditions.
Product Features of mini DIN industrial pressure sensor:
1. Wide measuring range, stainless steel structure.
2. Compact and lightweight design
3. High precision, all stainless steel structure.
| Performance Parameters of mini DIN industrial pressure sensor: | |
| Measurement Range | 0kPa ~ 500kPa…5MPa |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Selection Examples of mini DIN pressure transmitter sensor |
| Ordering tips |
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
