Name: Compact And Durable BP157 Industrial Pressure Sensor For Precise Measurement
Brand: Baoji Hengtong Electronics Co., LTD
SKU: BP157
Price: 25.00 USD
Availability: InStock

Detail Information

Material:	Stainless Steel	Output Signal:	4-20 MA Or 0.5-4.5VDC
Supply Power:	24 VDC Or 5 VDC	Electronic Connection:	Mini Din
Measurement Range:	-100~0-10KPa~10MPa	Accuracy:	0.25%, 0.5%
Sensing Element:	Diffused Silicon Pressure Sensor	Connection Type:	Thread
H.S Code:	9026209090	OEM:	OEM Or ODM
Warranty:	24 Months	Temperature Drift:	0.5%f.s
Operate Temperature Range:	-30-80℃
Highlight:	Precise Measurement Industrial Pressure Sensor , Durable Industrial Pressure Sensor , Compact Industrial Pressure Sensor

Product Description

BP157 Isolation Membrane Oil-filled Pressure Transmitter

Introduction:

BP157 utilizes the silicon pressure-resistant isolation membrane oil-filled core as the signal measuring element,The signal processing circuit is located inside a stainless steel housing,converting the sensor signal into a standard output signal. The product has

undergone rigorous testing and aging screening of components, semi-finished products, and finished products to ensure stable and reliable performance.

All welded design, compact products, especially suitable for installation in small Spaces, containers on the measurement of liquid pressure, well received by users

Product Features:

Compact and robust design
Anti-electromagnetic interference.
Full welded sealed

Robust Construction

Ease of Integration

Applications:

Compatible with 316L stainless steel, non-corrosive gases and liquids

Petrochemical and other industrial field
Air compressor, vacuum equipment
Hydraulic and pneumatic control systems

Performance Parameters:

Measurement Range	-100KPa~0kPa~10kPa…10MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload Pressure	≤ 1.5 times of the rated range
Accuracy @ 25℃	±0.25% (Typ.) , ±0.5% (Max.)
Repeatability& Hysteresis	0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability	±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Temperature error -Zero	±0.02%F.S/℃(≤100KPa) ±0.01%F.S/℃(＞100KPa)
Temperature error -Span	±0.02%F.S/℃(≤100KPa) ±0.01%F.S/℃(＞100KPa)
Compensation Temperature	0-50℃(<35KPa), 0-70℃(standard ) -20~80(customizable)
Operating Temperature	-20℃~80℃
Storage Temperature	-40℃~120℃
Housing Material	304 SS
Diaphragm Material	316L SS
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
Sealing material	Fluoro rubber or full weld seal
Weigh	~0.20kg

Output Signal	Supply Voltage	Output Type
4～20mA	12～30VDC	2/3/4 wire
0～10/20mA		3 wire
0/1～5V
0/1～10V
0.5～4.5V	5VDC

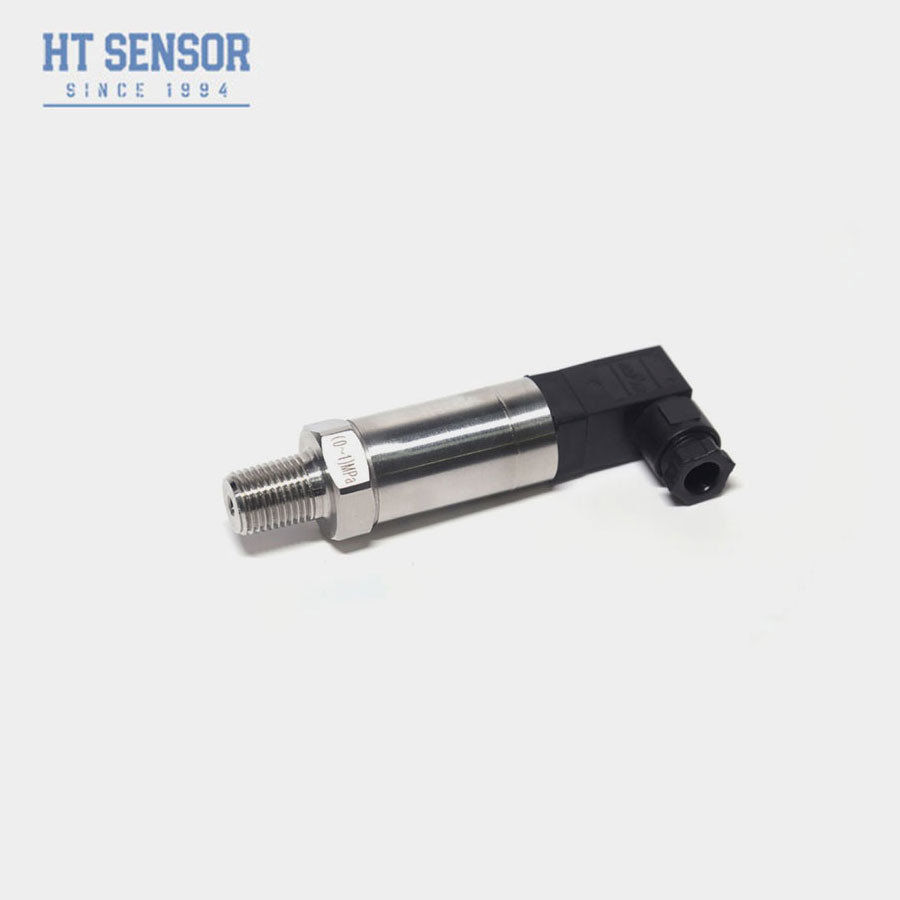

Compact And Durable BP157 Industrial Pressure Sensor For Precise Measurement 0

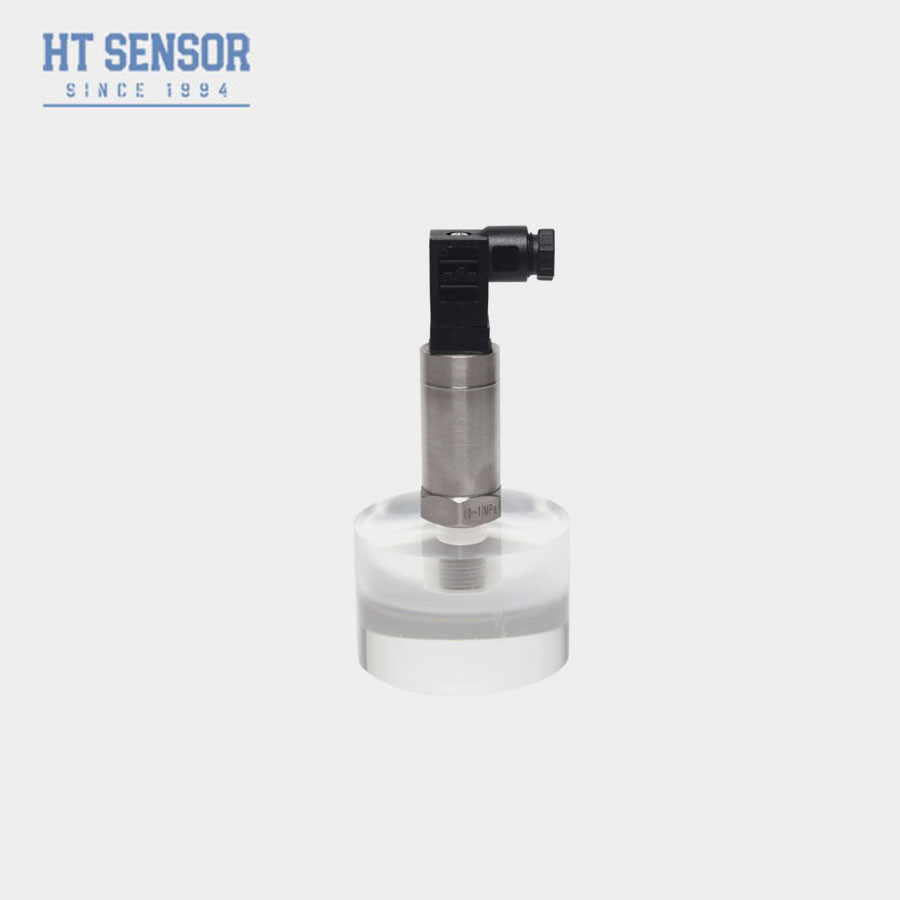

Compact And Durable BP157 Industrial Pressure Sensor For Precise Measurement 1

Compact And Durable BP157 Industrial Pressure Sensor For Precise Measurement 2

Compact And Durable BP157 Industrial Pressure Sensor For Precise Measurement 3

Tag:

Place of Origin:	China
Brand Name:	HT sensor
Certification:	ISO9001, RoHs, CE
Model Number:	BP157

Minimum Order Quantity:	1
Price:	USD20.00-USD30.00
Packaging Details:	carton
