Industrial Pressure Transmitter With International Electrical Connector For Heat Pumps A-10
Product Details
| Model NO.: | BP158TC | Range: | 0~5bar ~50bar |
|---|---|---|---|
| Output: | 4-20mA | Long-Term Stability: | +-0.2%F.S/Year(Typ.) |
| Housing Material: | 304 Stainless Steel | Sensor: | Ceramic Sensor |
| Measuring Medium: | Gas .liquid | Accuracy Grade: | 0.5% |
| Connector: | Special DIN | Customization: | OEM And ODM |
| Highlight |
International Electrical Connector Industrial Pressure Transmitter,A-10 Industrial Pressure Transmitter,Heat Pumps Industrial Pressure Transmitter |
||
Product Description
Industrial Pressure Transmitter With International Electrical Connector For Heat Pumps A-10

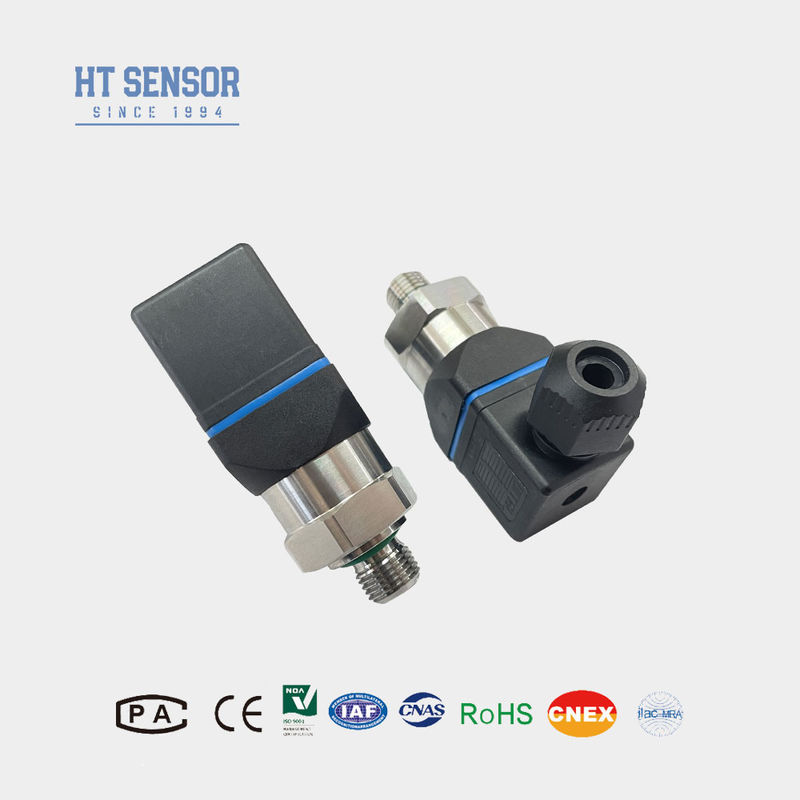

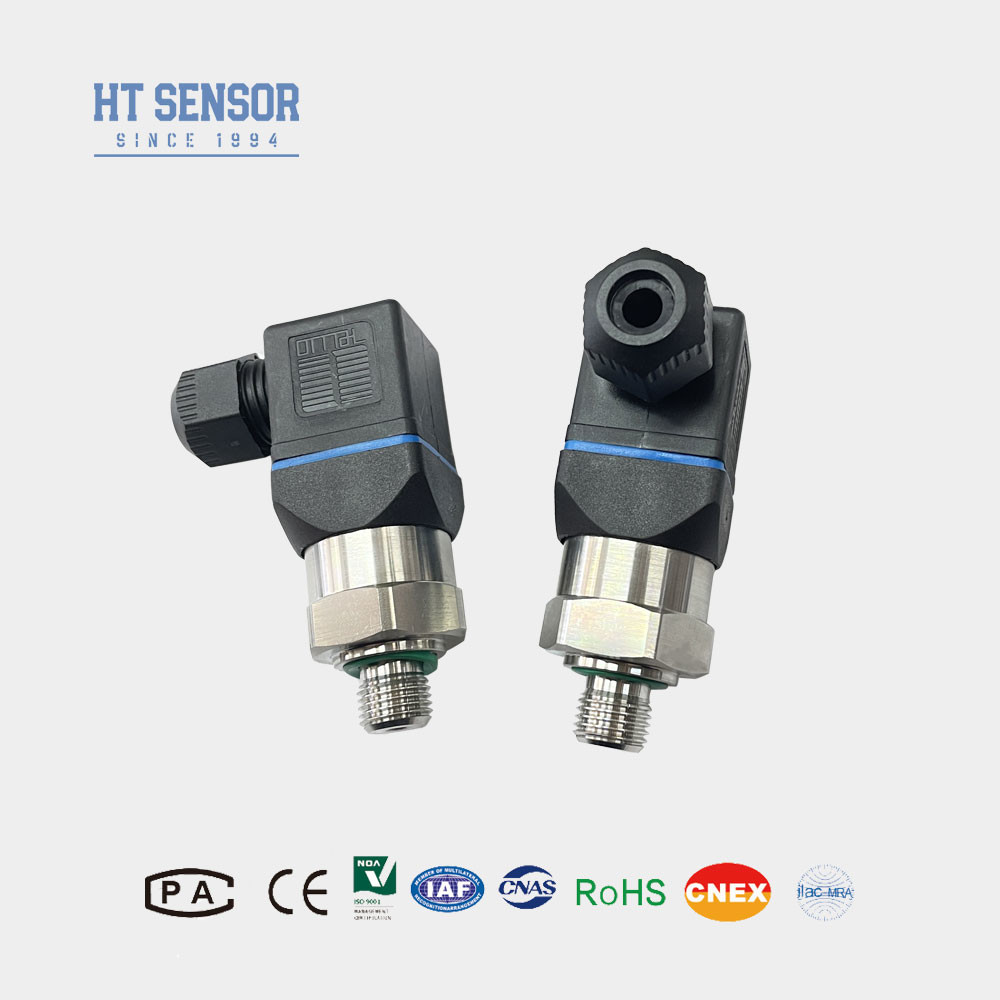

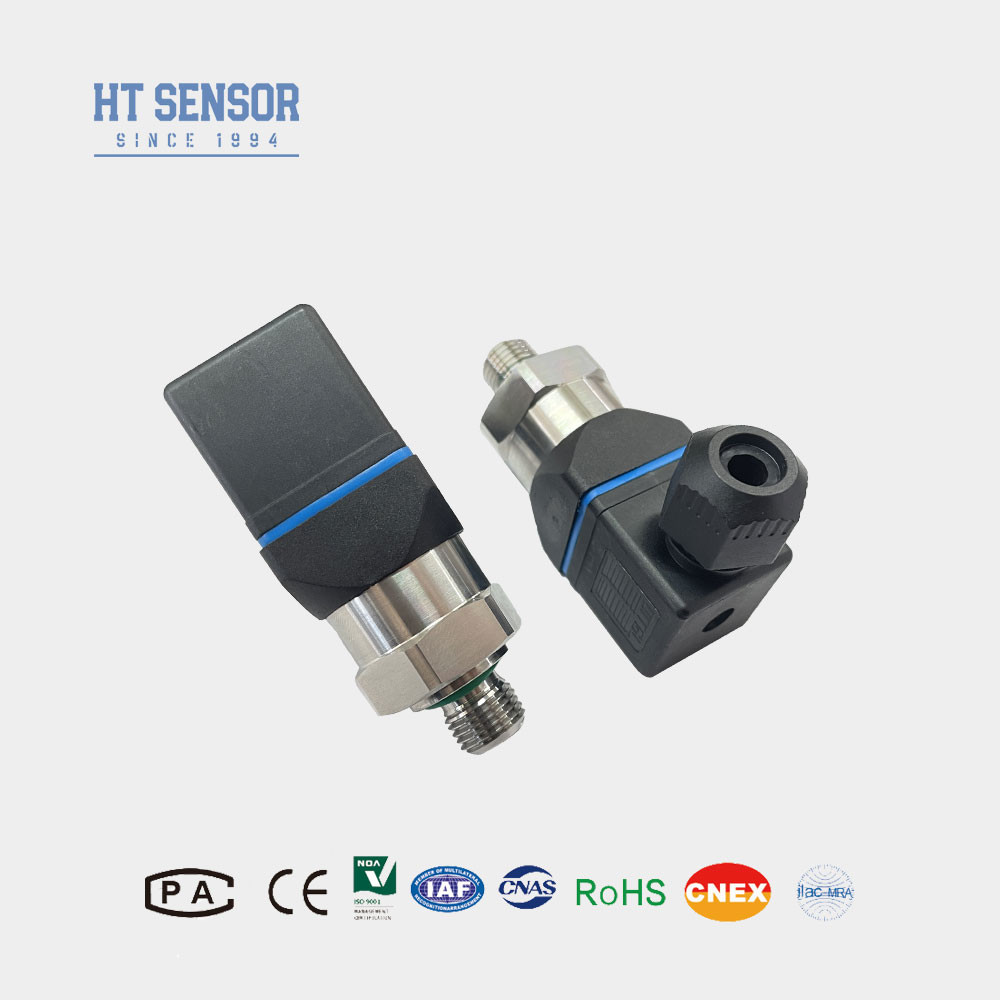

BP158TC Pressure Transmitter
Introduction of mini DIN industrial pressure sensor:
The BP158TC special DIN Industrial pressure Sensor transmitter uses a ceramic sensor as the signal measuring element. The signal processing circuit is located in the stainless steel housing and converts the sensor signal to the standard output signal. Special DIN industrial pressure transmitters are widely used in air conditioning, refrigeration, heat pumps and other systems. Industry standard 4~20mA signal output, and the use of international standard electrical connector pressure interface. The product can control and ensure that the system operates under safe and stable conditions.
Product Features of mini DIN industrial pressure sensor:
1. Wide measuring range, stainless steel structure.
2. Compact and lightweight design
3. High precision, all stainless steel structure.
| Performance Parameters of mini DIN industrial pressure sensor: | |
| Measurement Range | 0kPa ~ 500kPa…5MPa |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Selection Examples of mini DIN pressure transmitter sensor |
| Ordering tips |
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
FAQ:
Q1:Are you manufactrade company?
A1:We are manufactrader with more than 29 years of experience.
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
