4-20mA Signal Output Industrial Pressure Sensor With International Standard Connector
Product Details
| Model NO.: | BP158TC | Range: | 0~5bar ~50bar |
|---|---|---|---|
| Output: | 4-20mA | Long-Term Stability: | +-0.2%F.S/Year(Typ.) |
| Housing Material: | Stainless Steel | Sensor: | Ceramic Sensor |
| Measuring Medium: | Gas .liquid | Accuracy Grade: | 0.5% |
| Connector: | Special DIN | Customization: | OEM / ODM |
| Highlight |
International Standard Connector Industrial Pressure Sensor,Industrial Pressure Sensor |
||
Product Description

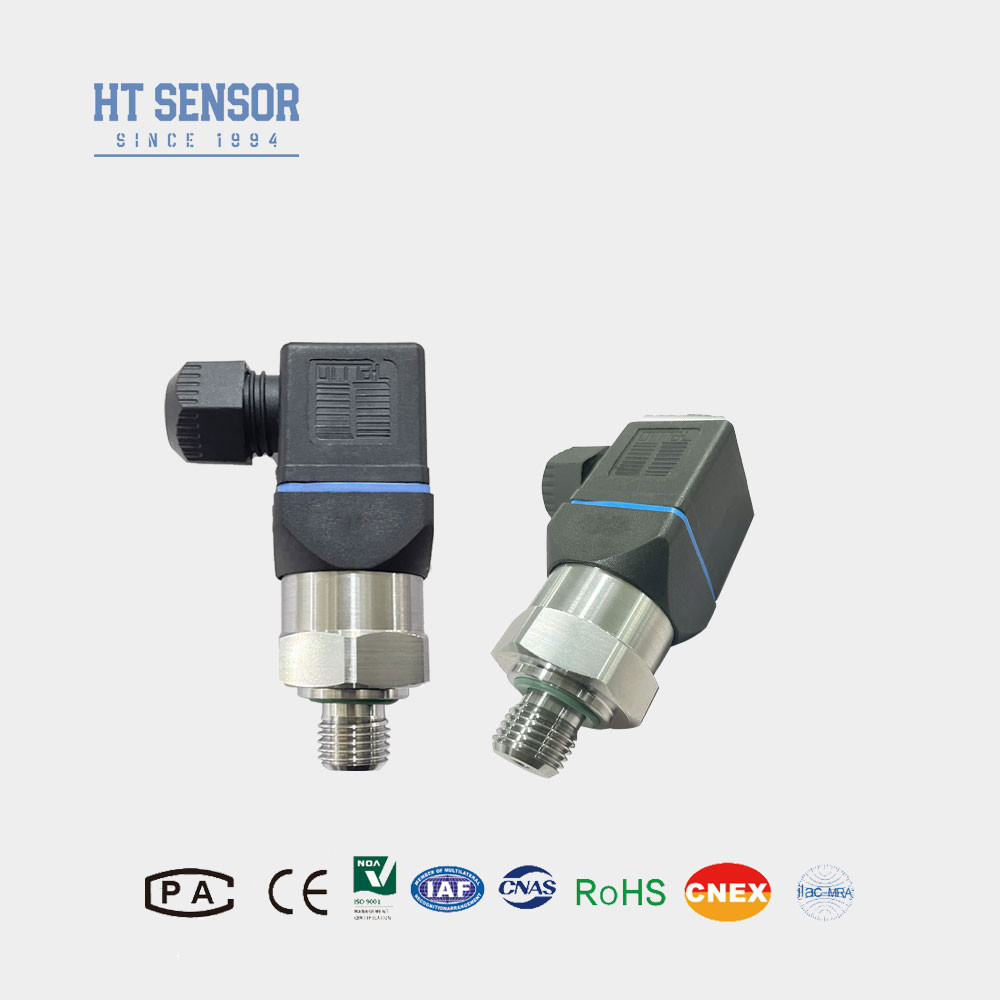

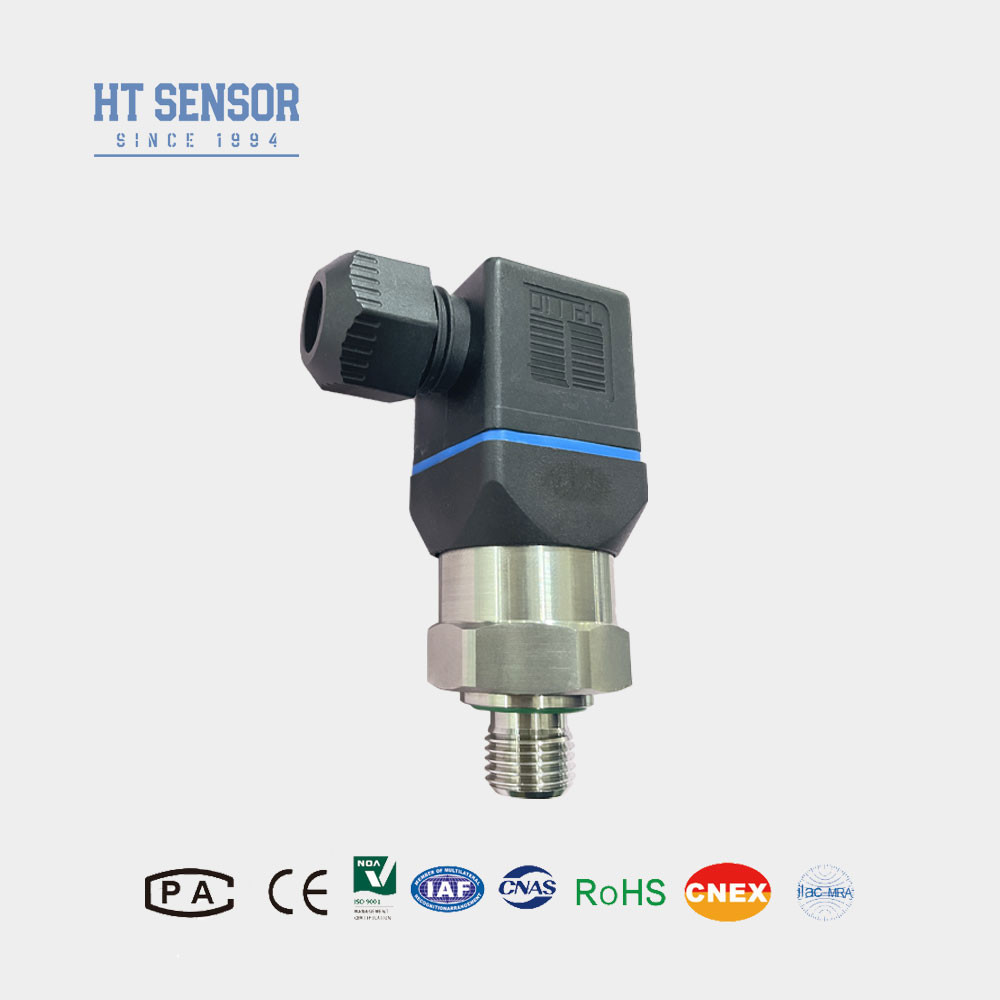

4-20mA Signal Output Industrial Pressure Sensor with International Standard Connector
BP158TC Pressure Transmitter
Introduction of DIN industrial pressure sensor:
BP158TC DIN pressure sensor transmitter using ceramic sensors as a signal measuring element.The signal processing circuit is located inside the stainless steel housing and converts the sensor signal into a standard output signal.Industrial standard 4~20mA signal output, special DIN industrial pressure transmitter, and use international standard electrical connector pressure interface.The product can control and ensure the system to operate under safe and stable conditions.
Product Features of DIN industrial pressure sensor:
1. Wide measuring range, stainless steel structure.
2. Compact and lightweight design
3. High precision, all stainless steel structure.
| Performance Parameters of DIN industrial pressure sensor: | |
| Measurement Range | 0kPa ~ 500kPa…5MPa |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Selection Examples of mini DIN pressure transmitter sensor |
| Ordering tips |
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: Our pressure sensor transmitters are characterized by high precision, durability, and excellent performance, with the option for customization.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs through our OEM and ODM services.
3. Q: What is your production capacity?
A: Our manufacturing facilities have the capability to produce up to 30,000 pressure sensor transmitters per month, ensuring that we can fulfill large-scale orders. However, it is advisable to contact our sales team in advance for smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: Standard models typically have a delivery period of 5~8 working days, while customized products may vary.
5. Q: How are the products priced? Any discounts?
A: We offer competitive pricing with discounts available for bulk orders or long-term partnerships.
6. Q: What is the warranty of your products? And after-sales service?
A: Our products come with a 24-month warranty from shipment date, and our after-sales service ensures prompt responses within 24 hours along with remote instruction support via PC network.
