Customizable Pressure Sensing Solutions Industrial Pressure Sensor With Display Pressure Transmitter Sensor
Product Details
| Model NO.: | BP93420-III-3051 | Power: | 12-32VDC |
|---|---|---|---|
| Output: | 4-20mA Can With HART Or RS485 | Weight: | 1.3kg |
| Pressure Type: | Gauge , Absolute , Sealed Pressure | HS Code: | 9026201090 |
| Structure Type: | Industrial Pressure Sensor | Measuring Medium: | Liquid, Air ,Beverage Glue And So On |
| Accuracy Grade: | 0.5%F.S 0.25%F.S | Pressure Range: | -100kpa...0kpa ~10kpa...40MPa |
| Highlight |
industrial pressure sensor with display,customizable pressure transmitter sensor,pressure sensing solutions with warranty |
||
Product Description
Customizable Pressure Sensing Solutions Industrial Pressure Sensor With Display Pressure Transmitter Sensor

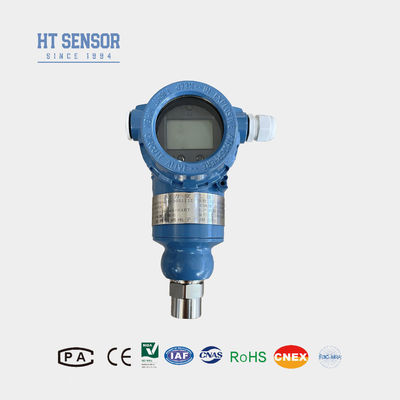

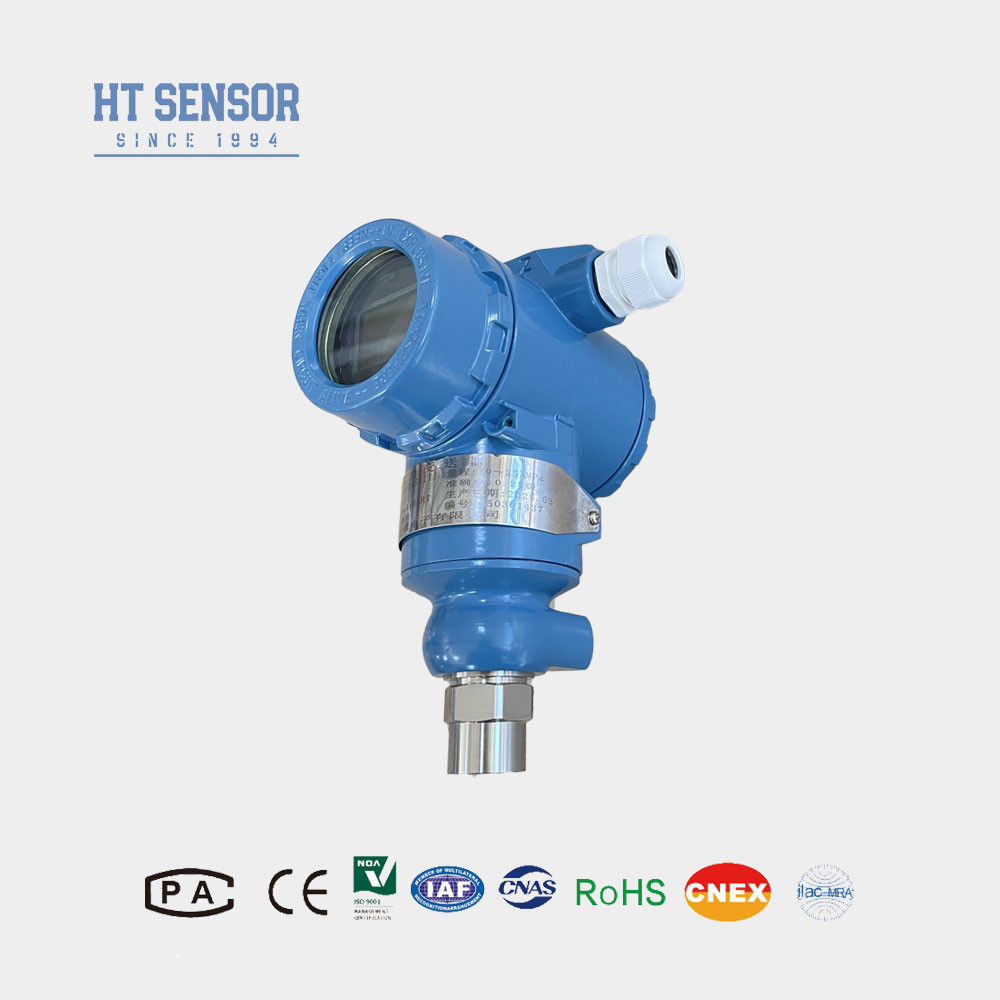

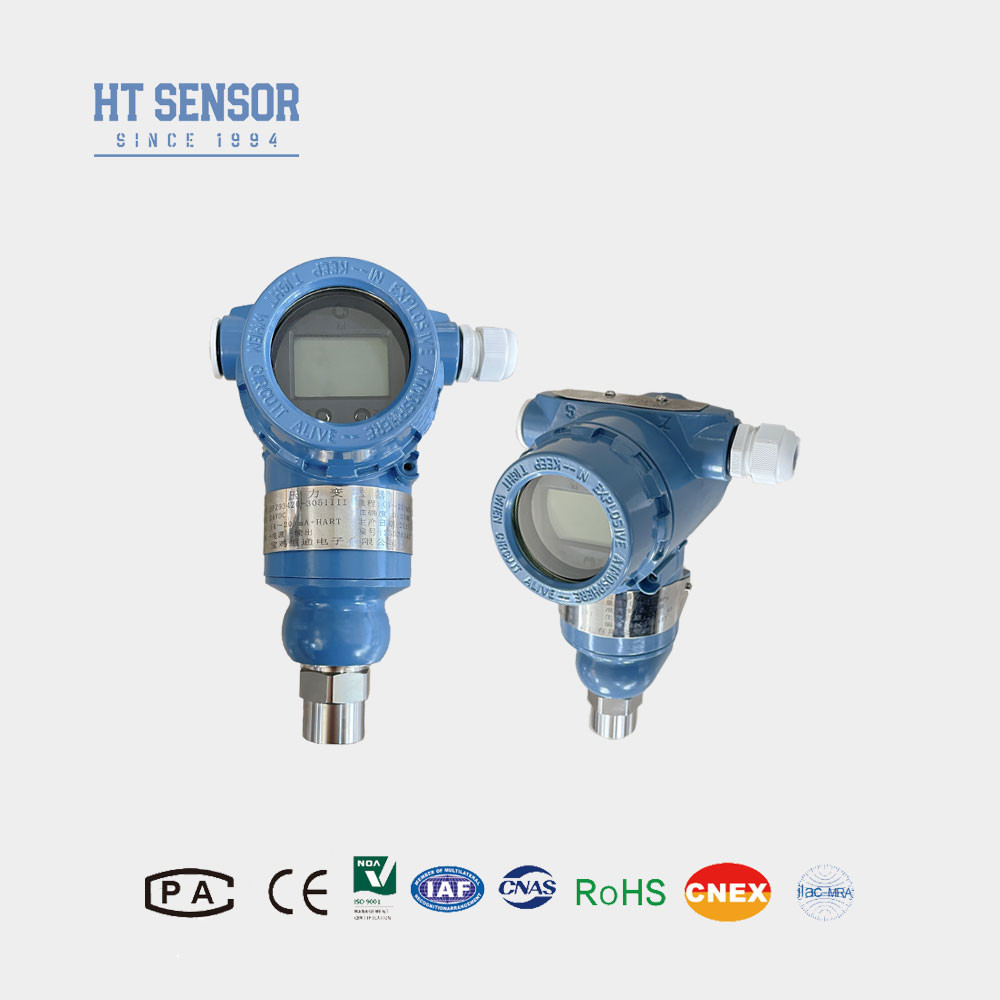

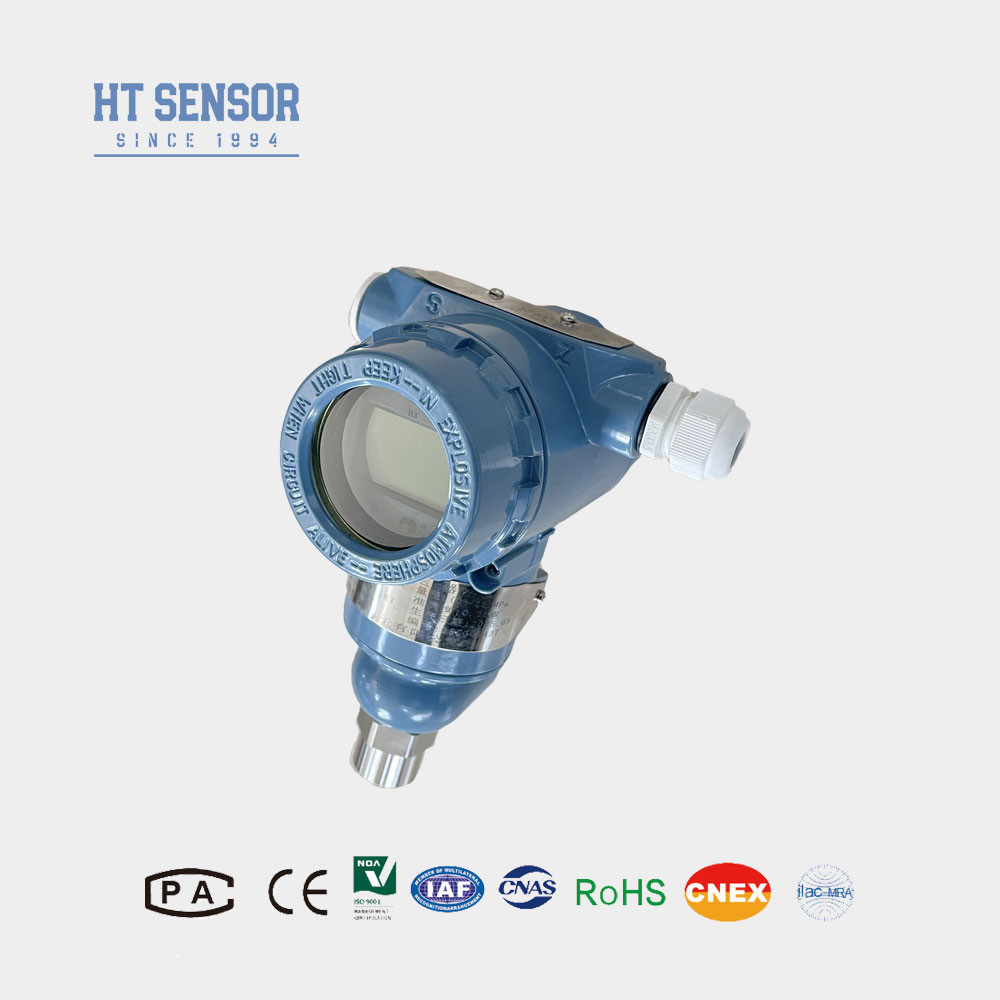

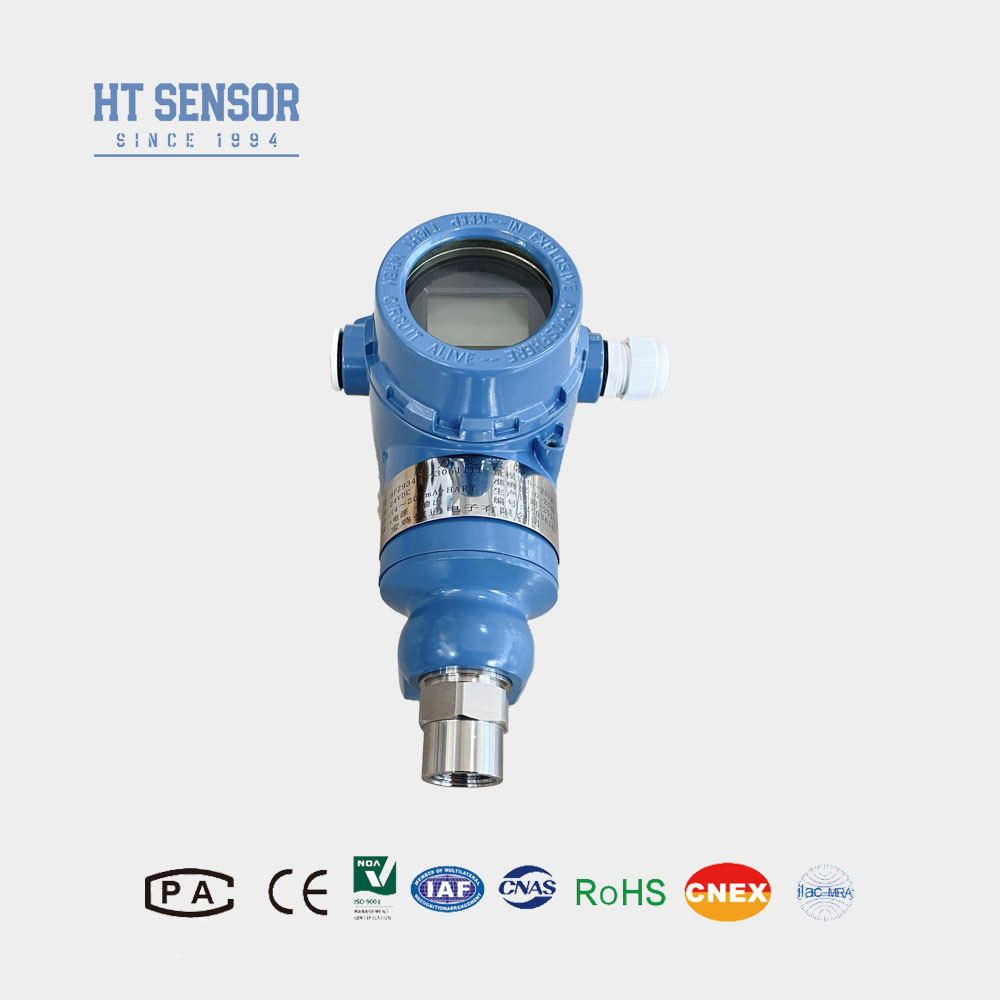

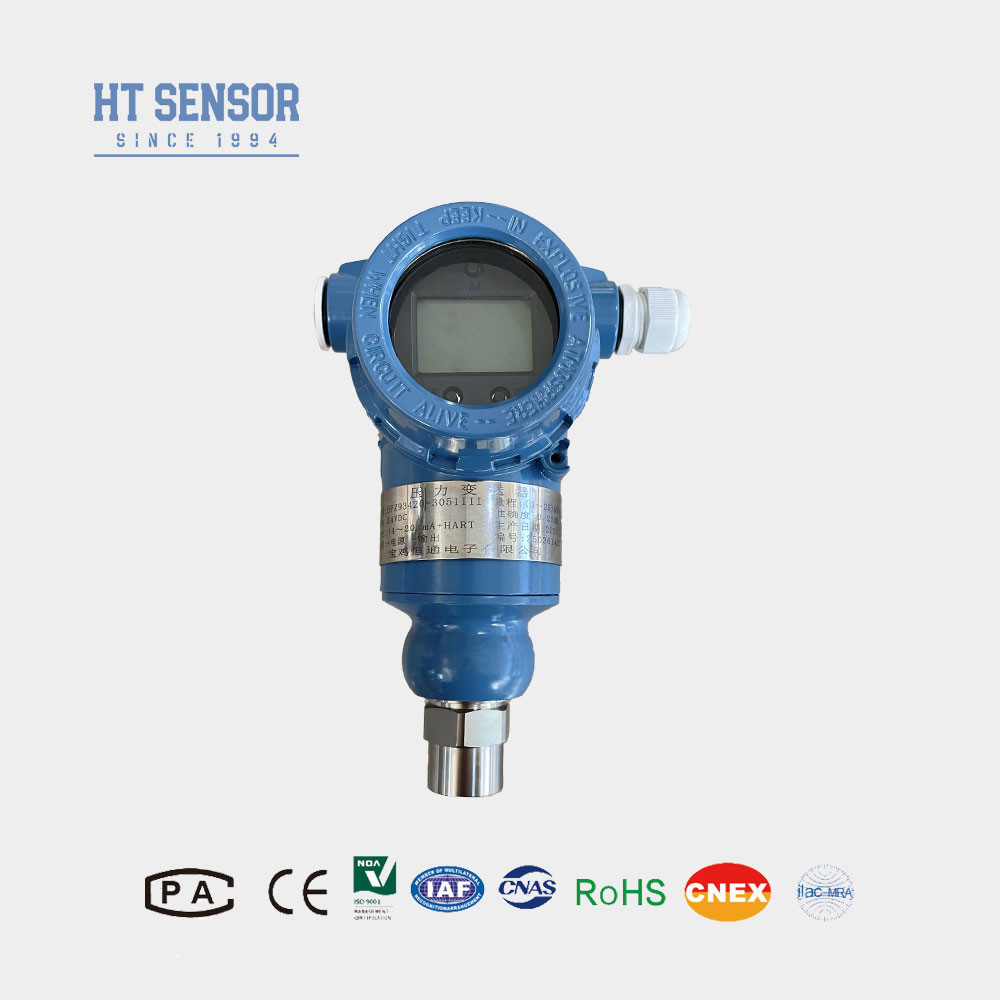

BP93420-III-3051 Industrial Pressure Sensor
Introduction of Industrial Pressure Sensor transducer:
The pressure sensor transmitter is a high-precision industrial instrument designed to measure liquid, gas, or steam pressure in real time and convert it into standard electrical signals (such as 4-20mA, 0-10V, HART, RS485, etc.) for remote transmission and automated control. Widely used in oil & gas, chemical processing, water treatment, HVAC, smart manufacturing, pharmaceuticals, and energy industries.
Key Features of Industrial Pressure Sensor
✅ High Accuracy Measurement
Advanced sensing technology ensures precision up to ±0.1% FS for reliable data.
✅ Wide Measuring Range
Supports -0.1~100MPa (customizable) to meet diverse pressure monitoring needs.
✅ Strong Anti-Interference
Built-in EMC protection for stable performance in harsh industrial environments.
✅ Multiple Output Options
Compatible with 4-20mA, 0-5/10V, HART, RS485, and more for seamless PLC/DCS integration.
✅ Robust & Durable Design
316L stainless steel/ceramic diaphragm with IP65/IP67 protection, resistant to corrosion and shock.
✅ Wide Temperature Range
Operates reliably from -20°C to 85°C (some models support -40°C to 125°C).
✅ Smart Functions
Features zero/span calibration, self-diagnostics, and optional LCD display.
Typical Applications of Industrial Pressure Sensor
