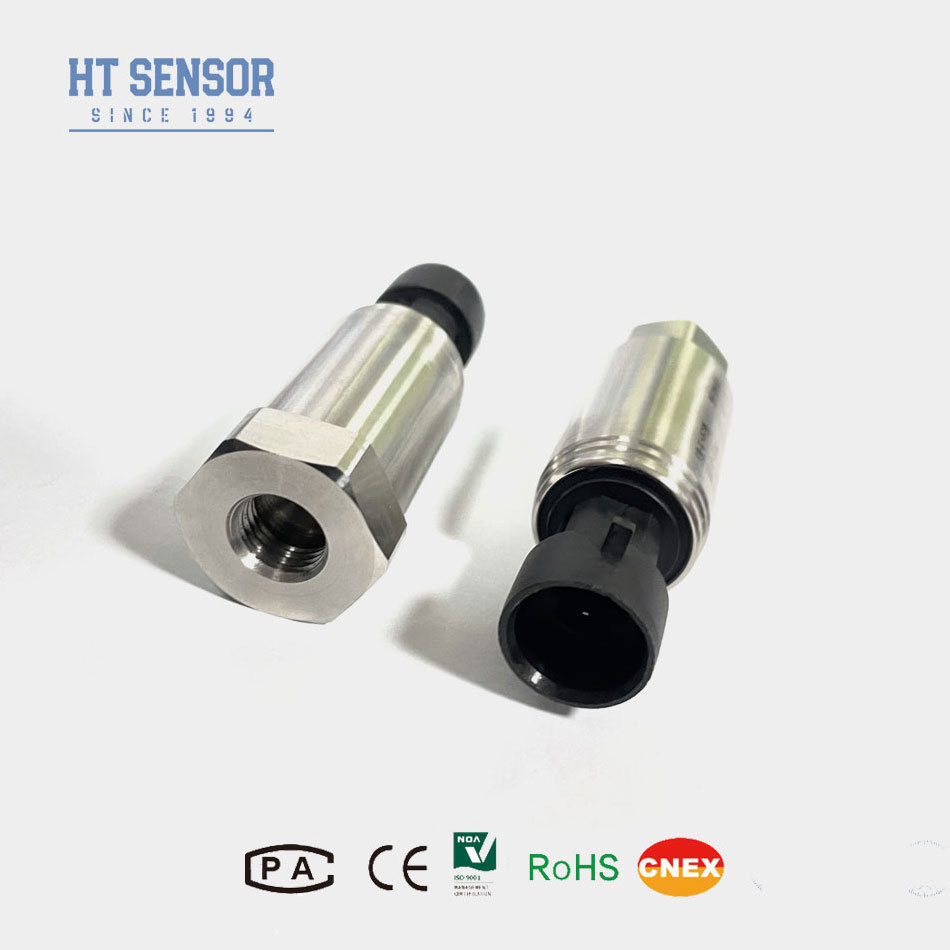

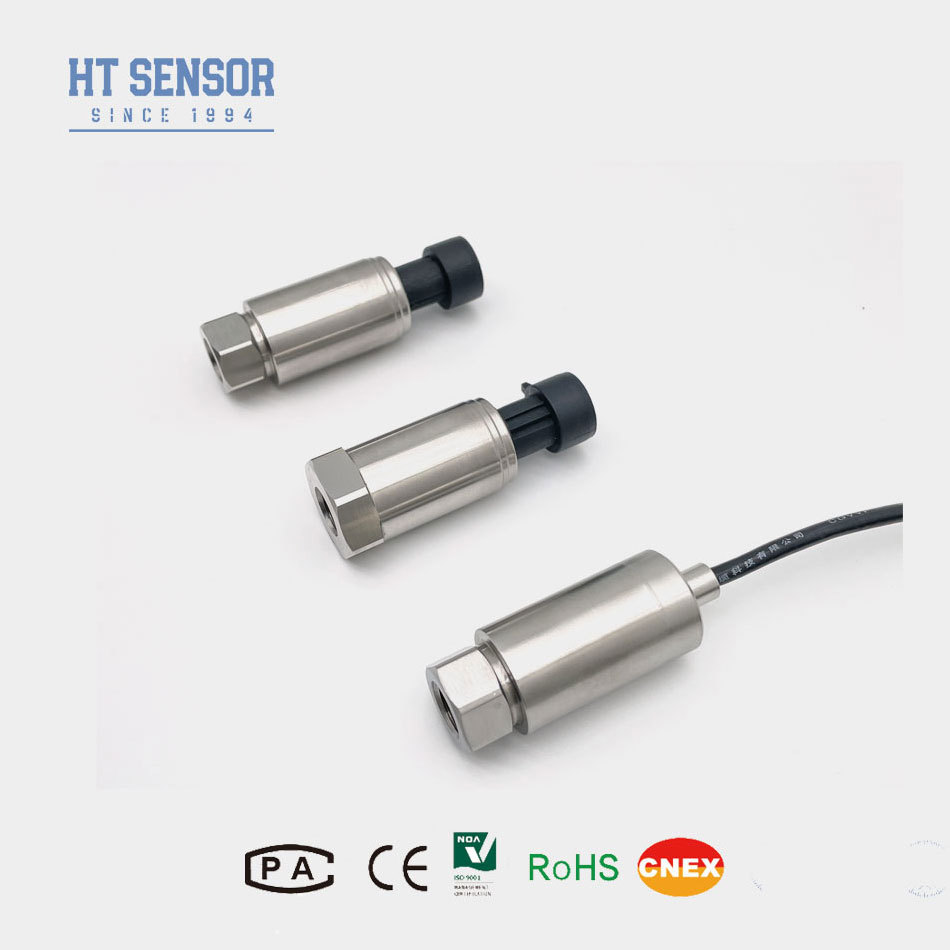

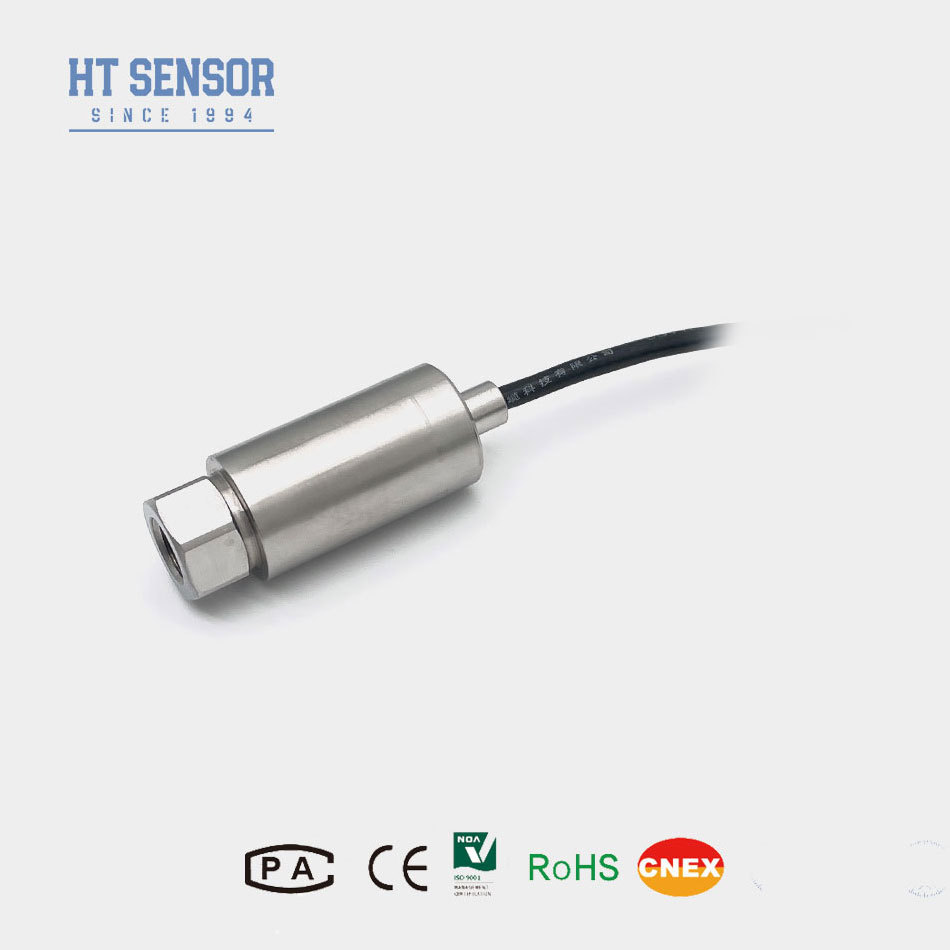

BP155 4-20mA Pressure Transmitter 0-5MPa IP65 Industrial Sensor
Product Details
| Model NO.: | BP155 | Measuring Medium: | Gas |
|---|---|---|---|
| Accuracy Grade: | 0.2G | Pressure Range: | 0kpa~10kpa...5MPa |
| IP Rating: | IP65 | Compensation Temp.: | 0-70ºC |
| Long-Term Stability: | 0.1f.S/Year(Type.) | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Vibration: | 10g, 55Hz ~2kHz | Housing Material: | 304,316L |
| Diaphragm Material: | 316L | Insulation Resistance: | 100MΩ 100VDC |
| Explosion-proof Rating: | Ex Db IIC T6 Gb | O-Ring Seal: | Fluoro Rubber |
| Weight: | ~0.05kg | ||
| Highlight |
4-20mA pressure transmitter 0-5MPa,industrial pressure sensor IP65,pressure transmitter with warranty |
||
Product Description
The BP155 series pressure transmitter utilizes the HT series silicon pressure-resistant isolation membrane oil-filled core as the signal measuring element. The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. The product has undergone rigorous testing and aging screening to ensure stable and reliable performance.
- Wide measuring range with stainless steel structure
- IP65 protection rating
- Zero and full-scale adjustable
- High precision with all stainless steel construction
- Multiple pressure interface options
- Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
- Marine and aviation industries
- Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Parameter | Specification |
|---|---|
| Measurement Range | 0kPa ~ 10kPa...5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Operating Temperature | -20ºC~80ºC |
| Housing Material | 304, 316L Stainless Steel |
| Protection Rating | IP65 |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC |
- Ensure medium compatibility with product contact parts
- Explosion-proof models don't include digital display heads
- Minimum 20VDC required for transmitters with LCD/LED display
- Recommended lightning protection and proper grounding
- Default cable length: 1.5m (polyethylene material)
| Code | Option |
|---|---|
| BP15X | Analog Pressure Transmitter |
| 5,6,7,8 | Outline Construction Options |
| D1,D2,D3 | Power Supply Options |
| S1-S7 | Output Signal Options |
| J1-J5 | Pressure Connection Options |
| G,A,S | Pressure Type Options |
High precision, durability, and excellent performance. Customization available.
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
Our facilities can produce up to 30,000 units monthly. Contact our sales team for large orders.
5-8 working days for standard models. Customized products may vary.
24-month warranty with 24-hour response time for technical support.
