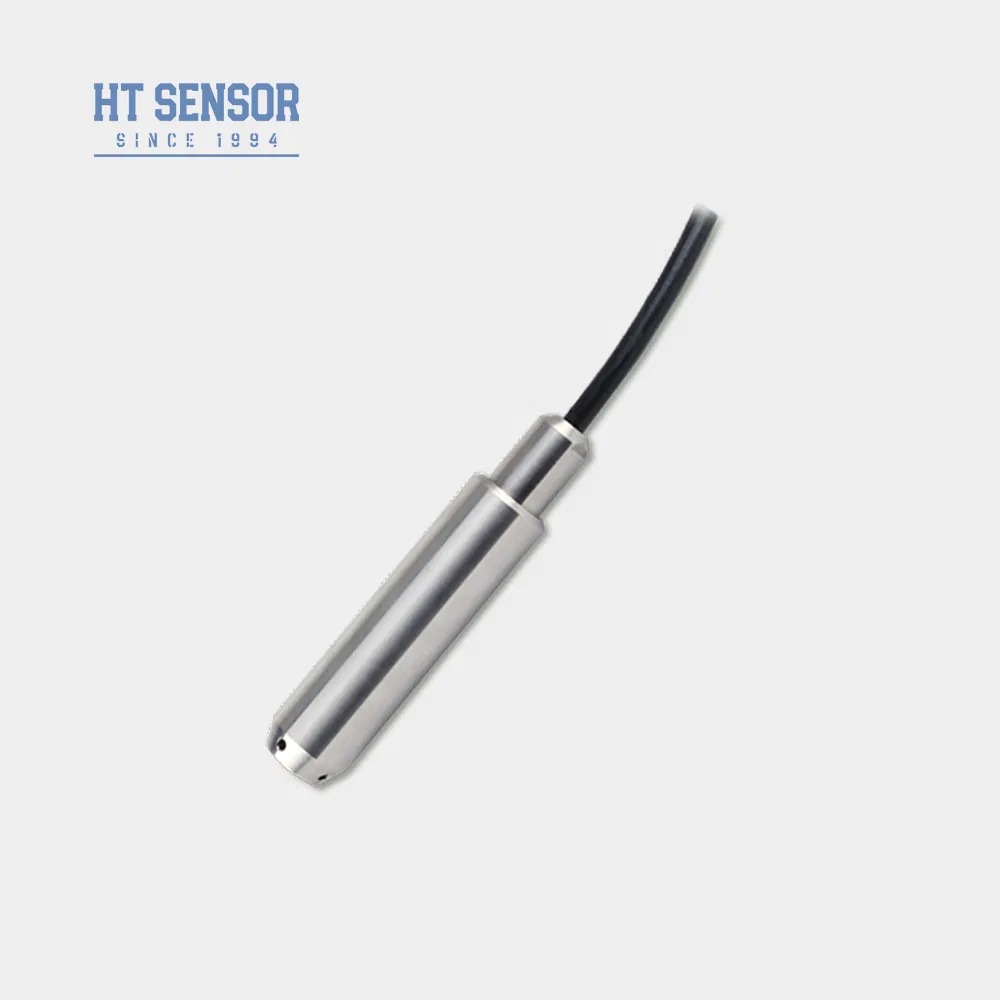

4-20mA Submersible Water Level Sensor Transmitter IP68 0.25% Accuracy
Product Details
| Output Signal: | 4-20mA Or RS485 | IP Rating: | IP68 |
|---|---|---|---|
| Net Weight: | 0.3kg | Diaphragm Material: | 316L Stainless Steel |
| Accuracy: | 0.25%, 0.5% | Measurement Range: | 0~10m…400m |
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure | Overload Capacity: | ≤ 2X Rated Range |
| Repeatability: | ±0.03% (Typ.) ±0.05%FS (Max.) | Long-Term Stability: | ±0.2%F.S/year (Max.) |
| Operating Temperature: | -20~80ºC | Storage Temperature: | -30~100ºC |
| Housing Material: | 1Cr18Ni9Ti | Insulation Resistance: | >=100MΩ@100VDC |
| Explosion-proof Rating: | ExiaIICT6 | ||
| Highlight |
4-20mA submersible water level sensor,IP68 water level transmitter,high accuracy water level sensor |
||
Product Description
The BH93420-I water level sensor utilizes HT series diffused silicon isolation oil-filled core as its signal measuring element. Featuring a full stainless steel housing and compact one-piece structure, this transmitter offers excellent waterproof performance with its completely sealed stainless steel sensing part.
- Full stainless steel housing for diverse testing environments
- Immersion-type probe measurement for easy installation
- Multiple output signal options available
- Explosion-proof certification: ExiaIICT6
- High protection rating: IP68
- PE or PU cable options
- Compatible with 316LSS and non-corrosive liquids
- Water level monitoring in sewage systems, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
- Fuel level measurement in diesel and fuel tanks
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -20~80ºC |
| Protection Rating | IP67, IP68 |
| Explosion-proof Rating | ExiaIICT6 |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Parameter | Options |
|---|---|
| Power Supply | D1: 24VDC | D2: 5VDC | D3: Other |
| Output Signal | S1: 4~20mADC | S5: 0~20mADC | S2: 1~5VDC | S6: 0~10VDC | S3: 0~5VDC | S7: 0.5~4.5VDC | S4: 0~10mADC | S8: RS485 |
| Pressure Type | G: Gauge Pressure | A: Absolute Pressure | S: Sealed Reference Pressure |
| Material | 01: 304 Stainless Steel | 02: 316L Stainless Steel |
| Cable Material | C1: PE | C2: PU |
