Detail Information

Model NO.:	BP156	Measuring Medium:	Liquid
Accuracy Grade:	0.2G	Pressure Range:	0kpa~10kpa...5MPa
IP Rating:	IP65	Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material:	316L	Compensation Temperature:	-10ºC~70ºC
Diaphragm Material:	316L	Operating Temperature:	-20ºC~80ºC
Storage Temperature:	-40ºC~120ºC	Insulation Resistance:	100MΩ 100VDC
Explosion-proof Rating:	Ex Db IIC T6 Gb	Weight:	~0.05kg
Supply Voltage:	12~30VDC, 5VDC
Highlight:	BP156 pressure transmitter IP65 , industrial pressure sensor 0.2G accuracy , liquid oil water pressure transmitter

Product Description

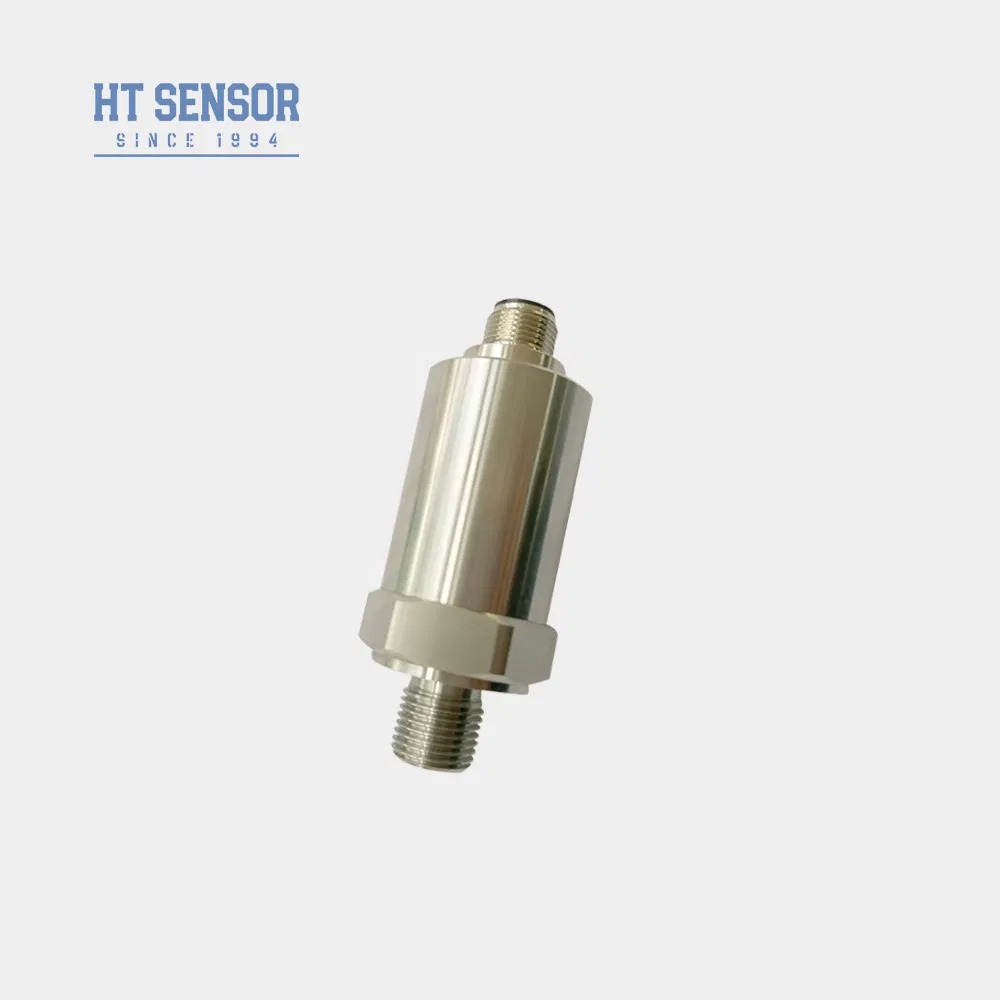

BP156 Pressure Transmitter

The BP156 pressure transmitter utilizes the HT series silicon pressure-resistant isolation membrane oil-filled core as the signal measuring element. The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. The product has undergone rigorous testing and aging screening to ensure stable and reliable performance.

Product Features

Wide measuring range with stainless steel structure and diverse pressure interface forms
IP65 protection rating stainless steel construction
Adjustable zero and full-scale settings
High precision with all stainless steel structure

Applications

Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
Marine and aviation industry applications
Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
Hydraulic and pneumatic control systems

Performance Parameters

Measurement Range	0kPa ~ 10kPa…5MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Repeatability & Hysteresis	0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability	±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70ºC(≤10mpa,customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.05kg

Output Signal Specifications

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V 0/1~10V 0.5~4.5V	5VDC

Ordering Information

Ordering Tips

Ensure the measured medium is compatible with the product's contact parts
Explosion-proof type products do not include digital display heads
For transmitters with LCD/LED display, power supply should not be lower than 20VDC
Install lightning protection devices and ensure proper grounding for reliable operation
Fluoro rubber O-ring rated for -20ºC to 250ºC; choose EPDM for temperatures below -20ºC
Default cable length is 1.5m (polyethylene material); specify alternatives when ordering
Notify us of special requirements (vibration, impact, EMI/RFI) in your order

Order Guide

BP15X	Analog Pressure Transmitter
Outline Construction: 5 - Packard plug \| 6 - Sealed Direct Output Cable 1.5 meters 7 - Mini Hirschmann Connector \| 8 - Large Hirschmann Connector
Measurement Range: 0kPa ~ 10kPa…5MPa (0-X)Kpa or MPa (X indicates actual measuring range)
Power Supply: D1 - 24VDC \| D2 - 5VDC \| D3 - Other
Output Signal: S1 - 4~20mADC \| S2 - 1~5VDC \| S3 - 0~5VDC \| S4 - 0~10mADC S5 - 0~20mADC \| S6 - 0~10VDC \| S7 - 0.5~4.5VDC
Pressure Connection: J1 - M20×1.5 \| J2 - G1/2 \| J3 - G1/4 \| J4 - 7/16-20UNF \| J5 - Others(¢50.4 Flange)
Electrical Connection: B1 - Hirschmann \| B2 - PG7 \| B3 - Cable Sealed Outlet 1.5 meters \| B4 - Other
Pressure Type: G - Gauge Pressure \| A - Absolute Pressure \| S - Sealed Reference Pressure

Frequently Asked Questions

Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.

Q: What is your production capacity?

A: Our facilities can produce up to 30,000 units monthly. Contact our sales team in advance for large orders.

Q: What's the typical delivery period?

A: 5-8 working days for standard models. Customized products may vary.

Q: How are the products priced? Any discounts?

A: Competitive pricing with discounts for bulk orders or long-term partners.

Q: What is the warranty and after-sales service?

A: 24-month warranty with 24-hour response time for after-sales support, including remote assistance.

Tag:

Certification:	CE, RoHS, ISO9001

Minimum Order Quantity:	1
Price:	18

BP15X	Analog Pressure Transmitter
Outline Construction: 5 - Packard plug \| 6 - Sealed Direct Output Cable 1.5 meters 7 - Mini Hirschmann Connector \| 8 - Large Hirschmann Connector
Measurement Range: 0kPa ~ 10kPa…5MPa (0-X)Kpa or MPa (X indicates actual measuring range)
Power Supply: D1 - 24VDC \| D2 - 5VDC \| D3 - Other
Output Signal: S1 - 4~20mADC \| S2 - 1~5VDC \| S3 - 0~5VDC \| S4 - 0~10mADC S5 - 0~20mADC \| S6 - 0~10VDC \| S7 - 0.5~4.5VDC
Pressure Connection: J1 - M20×1.5 \| J2 - G1/2 \| J3 - G1/4 \| J4 - 7/16-20UNF \| J5 - Others(¢50.4 Flange)
Electrical Connection: B1 - Hirschmann \| B2 - PG7 \| B3 - Cable Sealed Outlet 1.5 meters \| B4 - Other
Pressure Type: G - Gauge Pressure \| A - Absolute Pressure \| S - Sealed Reference Pressure
