BP93420IC High-Temperature Pressure Sensor 0.5% Accuracy IP65
Product Details
| Model NO.: | BP93420IC | Measuring Medium: | Liquid |
|---|---|---|---|
| Accuracy Grade: | 0.5% | Pressure Range: | -100kpa...0kpa ~10kpa...100MPa |
| IP Rating: | IP65 | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Housing Material: | 316L | Weight: | ~0.4kg |
| Overload: | ≤ 1.5 Times Of The Rated Range | Accuracy @ 25ºC: | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability: | 0.1%FS | Long-Term Stability: | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Operating Temperature: | -20ºC~150ºC | Output Signal: | 4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V, RS485 |
| Supply Voltage: | 12~30VDC, 5VDC, 3.6~30V / Battery | ||
| Highlight |
High-Temperature Pressure Sensor IP65,Industrial Pressure Sensor 0.5% Accuracy,Pressure Sensor with High-Temperature Resistance |
||
Product Description

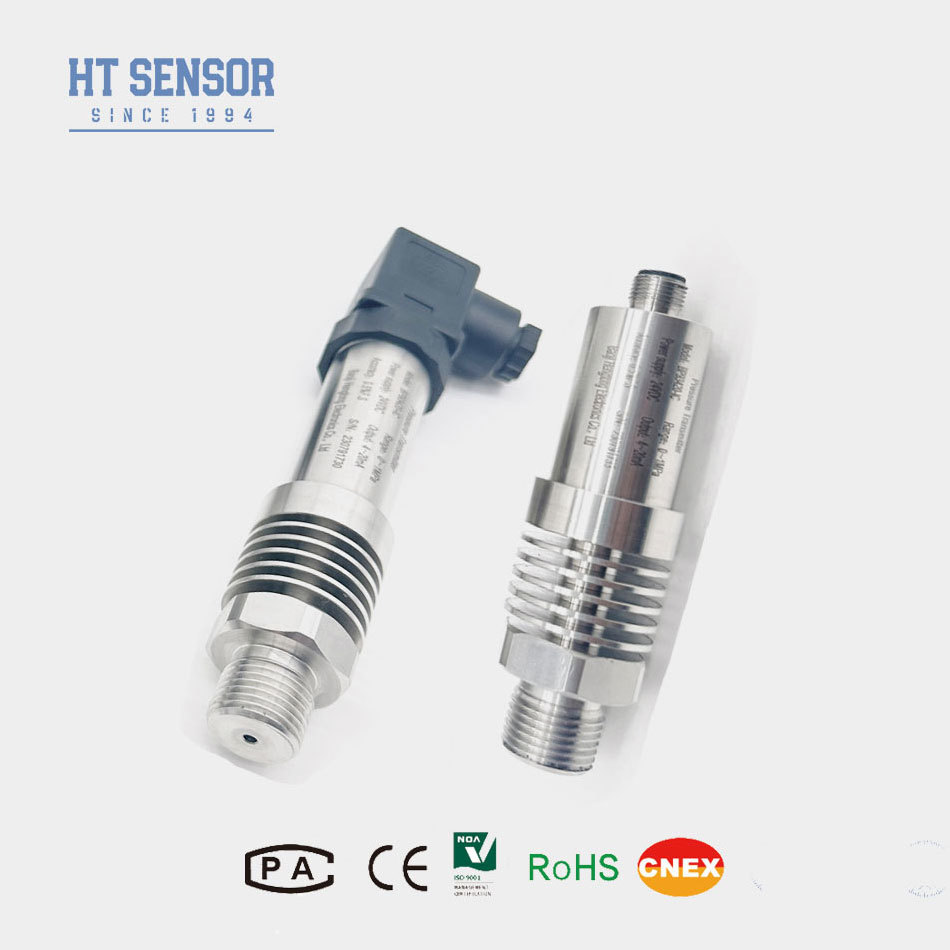

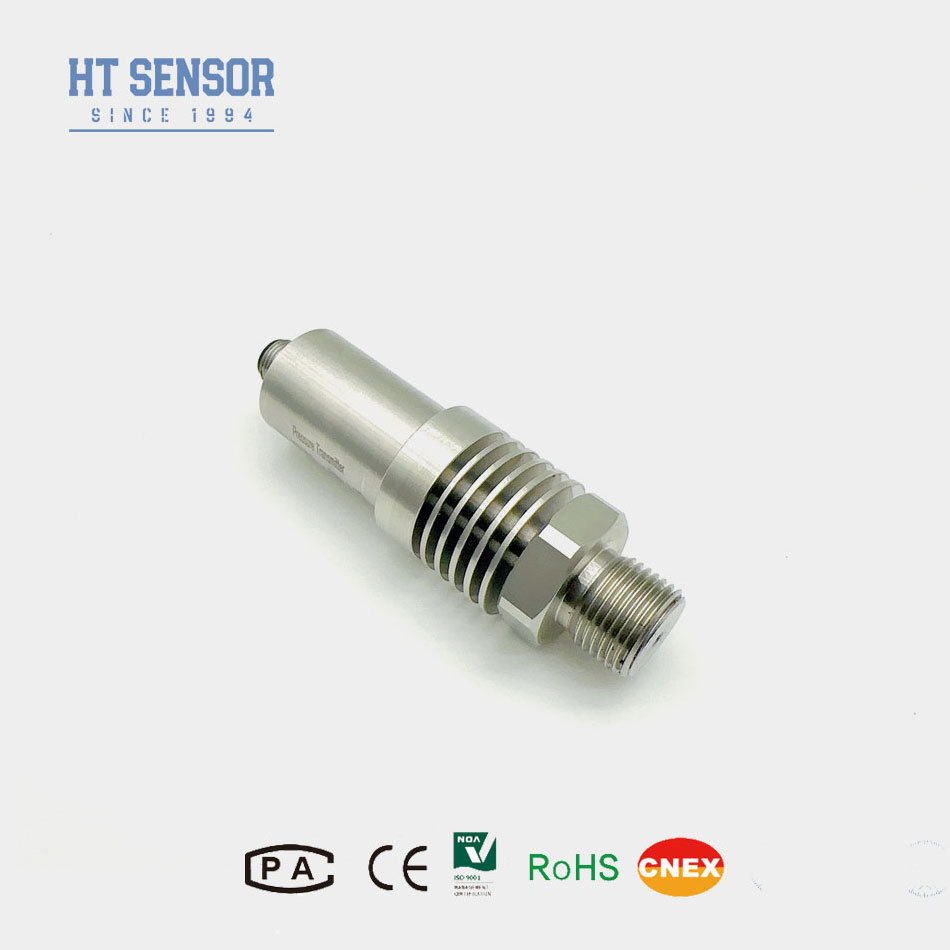

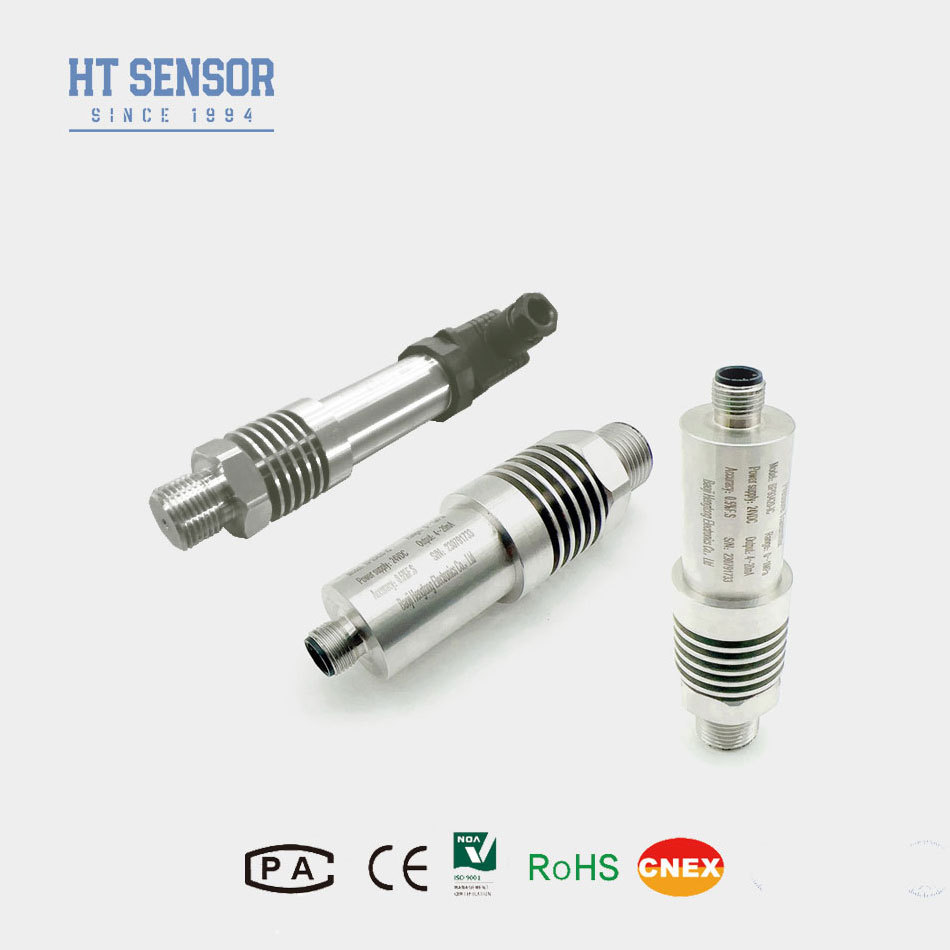

The BP93420-IC is a high-temperature pressure transmitter featuring an advanced HT series silicon pressure-resistance isolation oil-filled core. Its specialized heat dissipation structure makes it ideal for demanding high-temperature environments, providing accurate and reliable pressure measurements in industrial processes with temperature fluctuations.
- Wide measuring range with stainless steel construction
- IP65 protection rating
- Adjustable zero and full-scale settings
- High precision measurement with all stainless steel structure
- Pressure measurement of non-corrosive gases and liquids (316L stainless steel)
- Marine and aviation industries
- Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Measurement Range | -100kPa...0kPa ~ 10kPa...100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25°C | ±0.25% (Typical) ±0.5% (Maximum) |
| Operating Temperature | -20°C~150°C |
| Housing Material | 304, 316L Stainless Steel |
| Protection Rating | IP65 |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
- Ensure medium compatibility with product contact parts
- Explosion-proof models exclude digital display heads
- LCD/LED display models require ≥20VDC power supply
- Install lightning protection devices and ensure proper grounding
- Default cable length: 1.5m (polyethylene material)
| Code | Outline Construction |
|---|---|
| IB | General Pressure Transmitter |
| IC | High-temperature Pressure Transmitter |
| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter |
- Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available. - Q: Can I customize special specifications?
A: Yes, we provide OEM and ODM services with engineer support. - Q: What is your production capacity?
A: Up to 30,000 units/month. Contact sales for large orders. - Q: What's the typical delivery period?
A: 5-8 working days for standard models.
