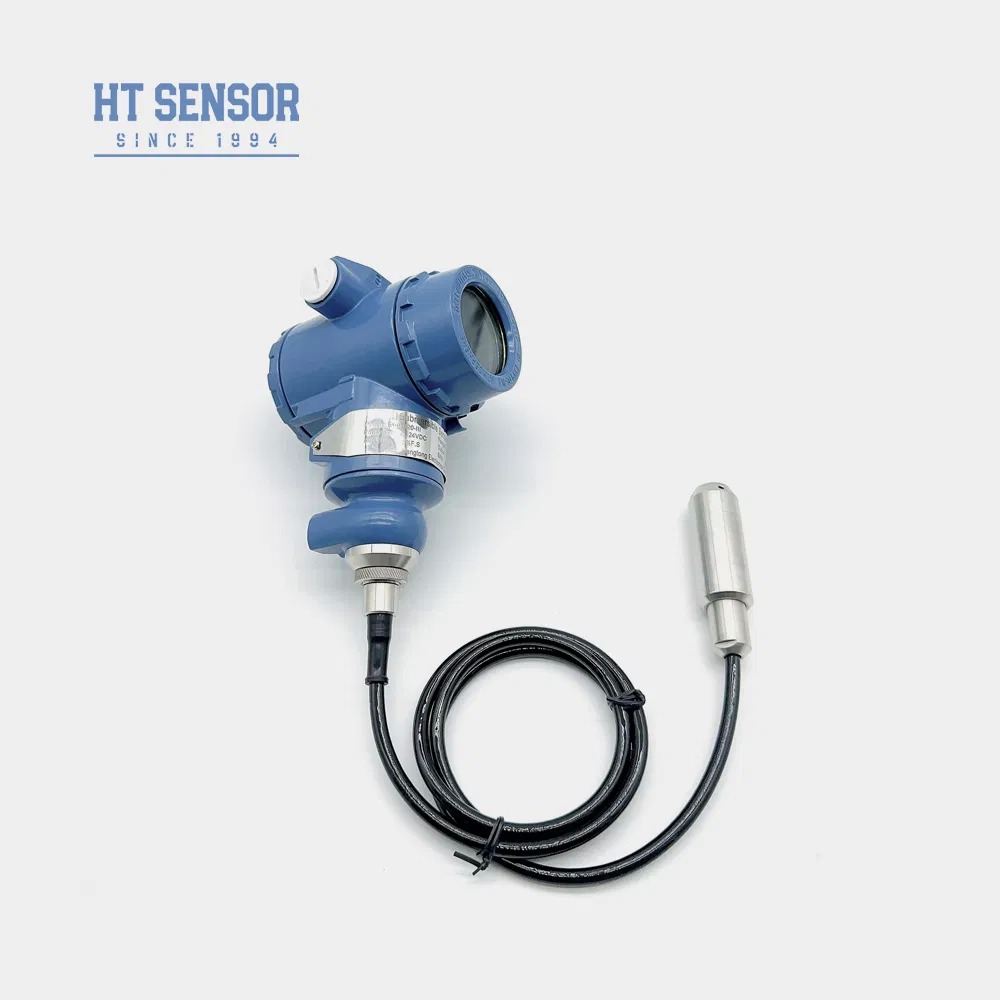

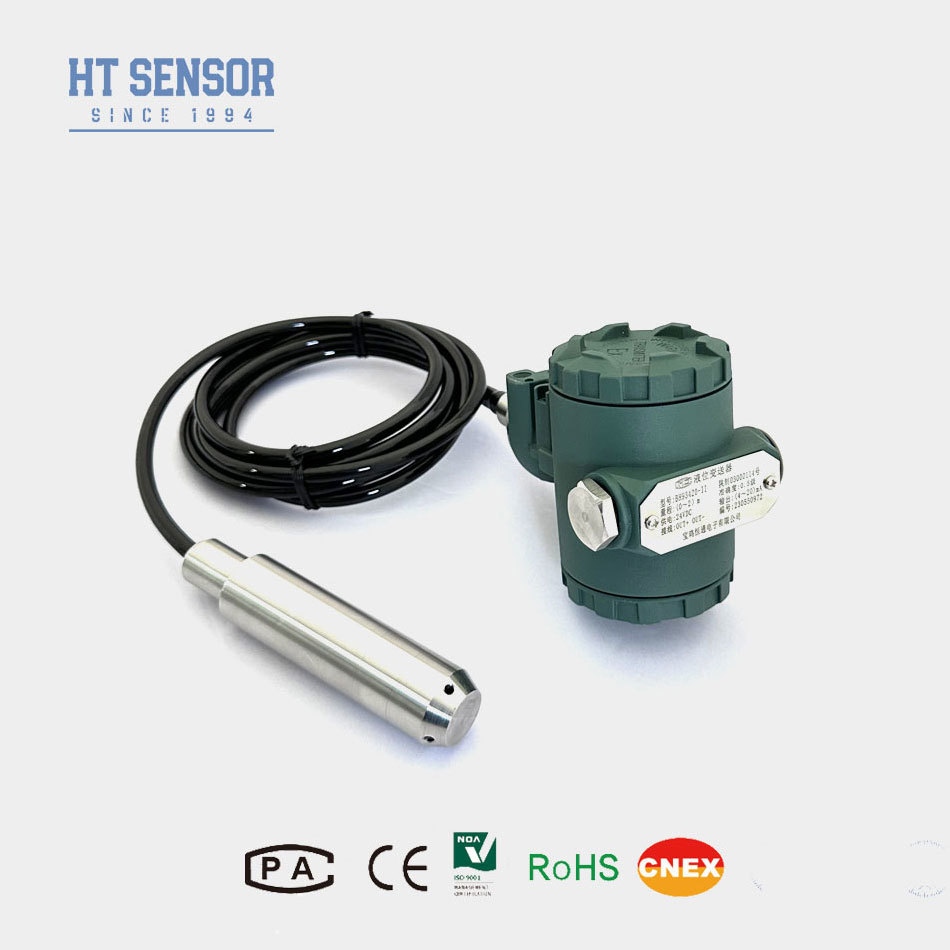

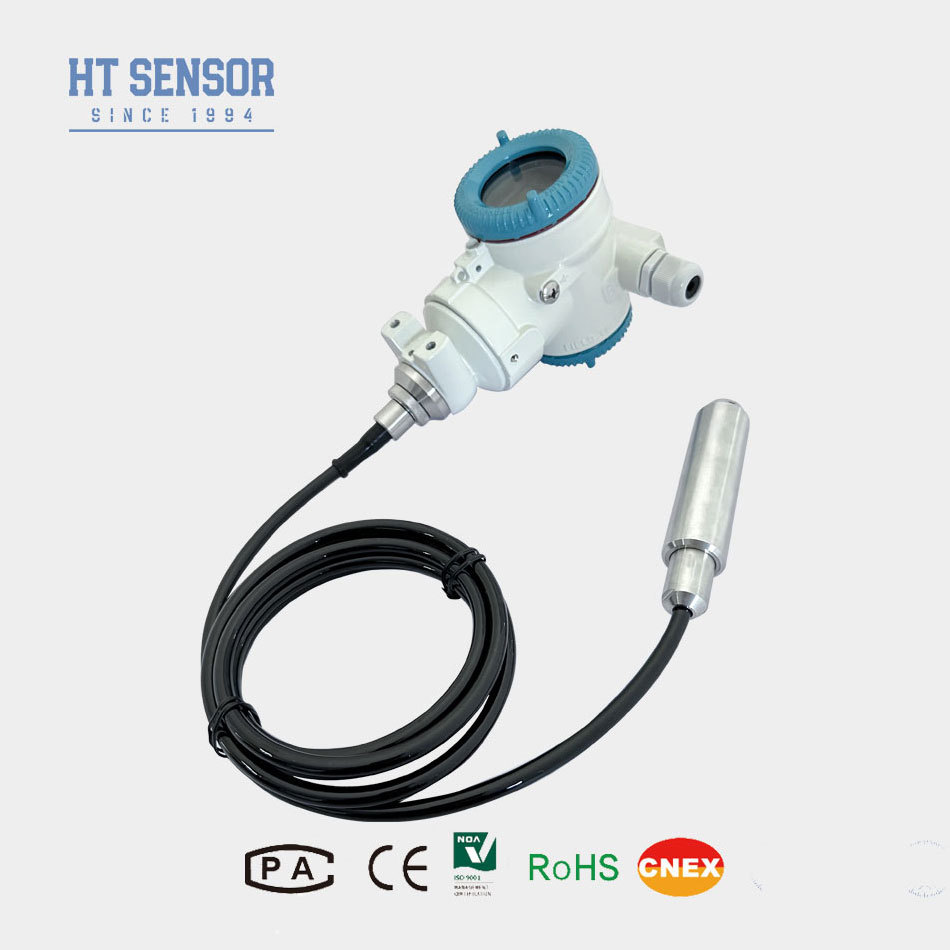

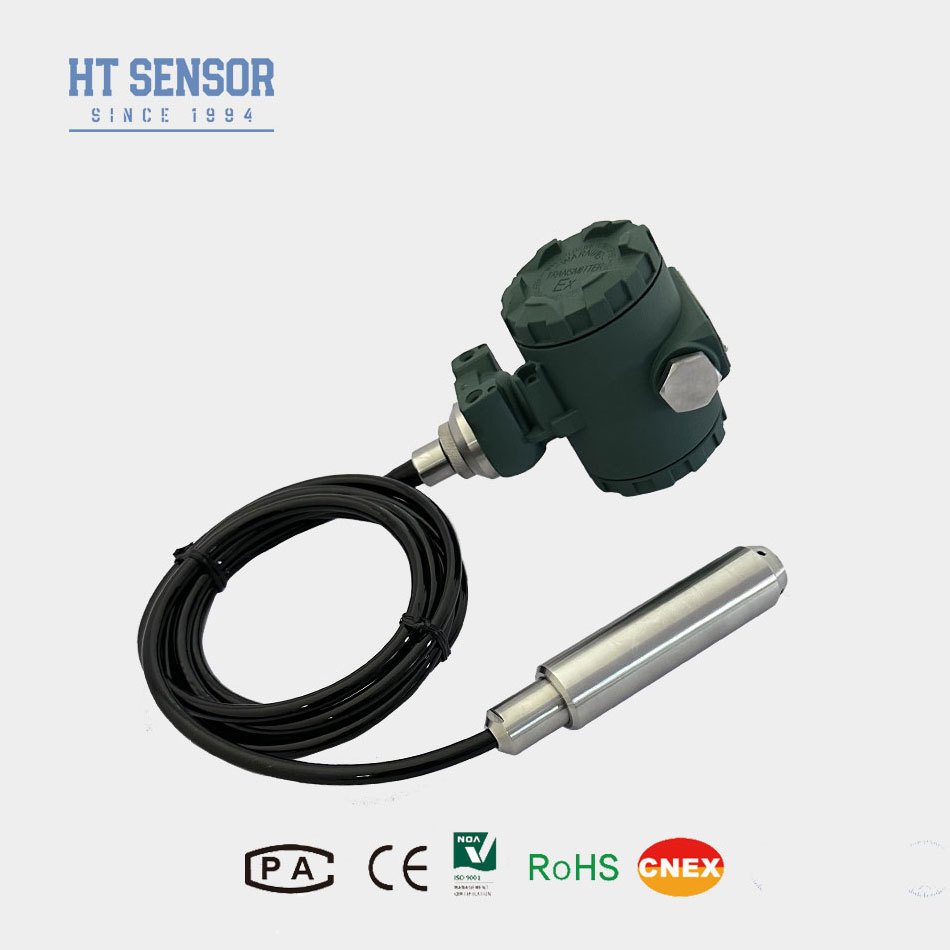

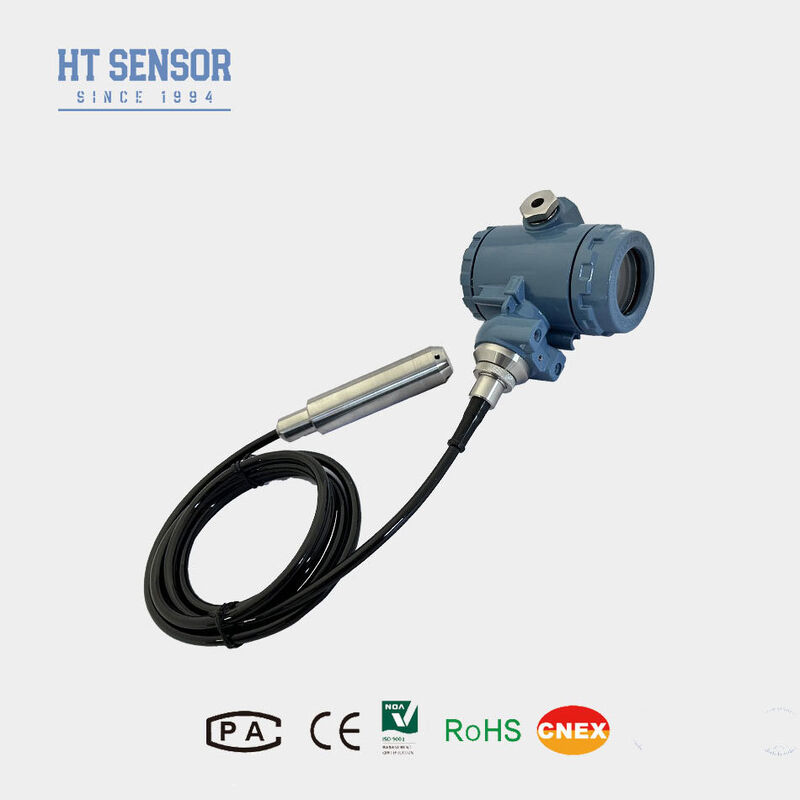

BH93420-II 4-20mA Water Level Transmitter with 0.5% Accuracy
Product Details
| Model NO.: | BH93420-II | Output Signal: | 4-20mA Or RS485 |
|---|---|---|---|
| IP Rating: | IP68 | Net Weight: | 0.3kg |
| Diaphragm Material: | 316L Stainless Steel | Accuracy: | 0.5%F.S |
| Measurement Range: | 0~10m…400m | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload: | ≤ 2 X Of The Rated Range | Operating Temperature: | -20~80ºC |
| Storage Temperature: | -30~100ºC | Housing Material: | Cast Aluminum, 1Cr18Ni9Ti |
| Insulation Resistance: | >=100MΩ@100VDC | Explosion-proof Rating: | ExiaIICT6 |
| Weight: | ~1.1Kg (without Cable) | ||
| Highlight |
4-20mA water level transmitter,high accuracy water level sensor,0.5% accuracy level transmitter |
||
Product Description
The BH93420-II water level transmitter utilizes a high-precision diffused silicon piezoresistive pressure sensor for accurate liquid level measurement. The static pressure measurement produces a millivolt signal proportional to liquid height, converted into a standard output signal through amplification circuitry.
- Split-type design for easy on-site wiring and calibration
- Available with LED or LCD display options
- Explosion-proof rating: ExiaIICT6
- High protection rating: IP68
- Multiple cable material options: PE, PU, PTFE
- Compatible with 316L stainless steel and non-corrosive liquids
- Water level monitoring in sewage, industrial/municipal water systems, tanks, wells, rivers, seawater, and lakes
- Fuel level measurement in diesel and fuel tanks
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25ºC | ±0.5% (Typ.) ±0.1% (Max.) |
| Operating Temperature | -20~80ºC |
| Housing Material | Cast aluminum, 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Protection Rating | IP68 |
| Output Signal | 4~20mA (15~30VDC) or RS485 |
| Option | Code | Description |
|---|---|---|
| Model | BH93420-II/III | Liquid level transmitter with 2088 housing |
| Power Supply | D1 | 24VDC |
| Output Signal | S1/S2 | 4~20mADC or RS485 |
| Housing | B4/B5 | 2088 industrial housing (with/without display) |
| Pressure Type | G/A/S | Gauge/Absolute/Sealed Reference Pressure |
| Cable Material | C1/C2/C3 | PE/PU/PTFE |
