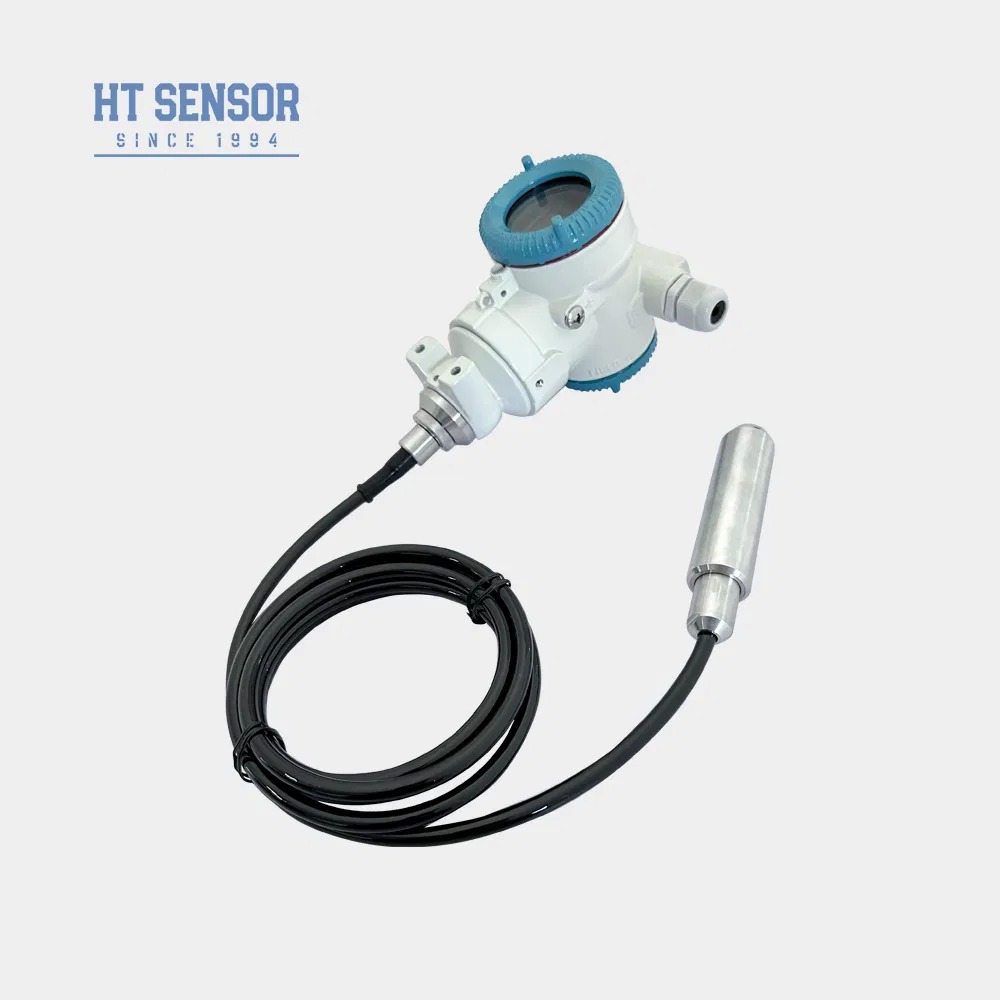

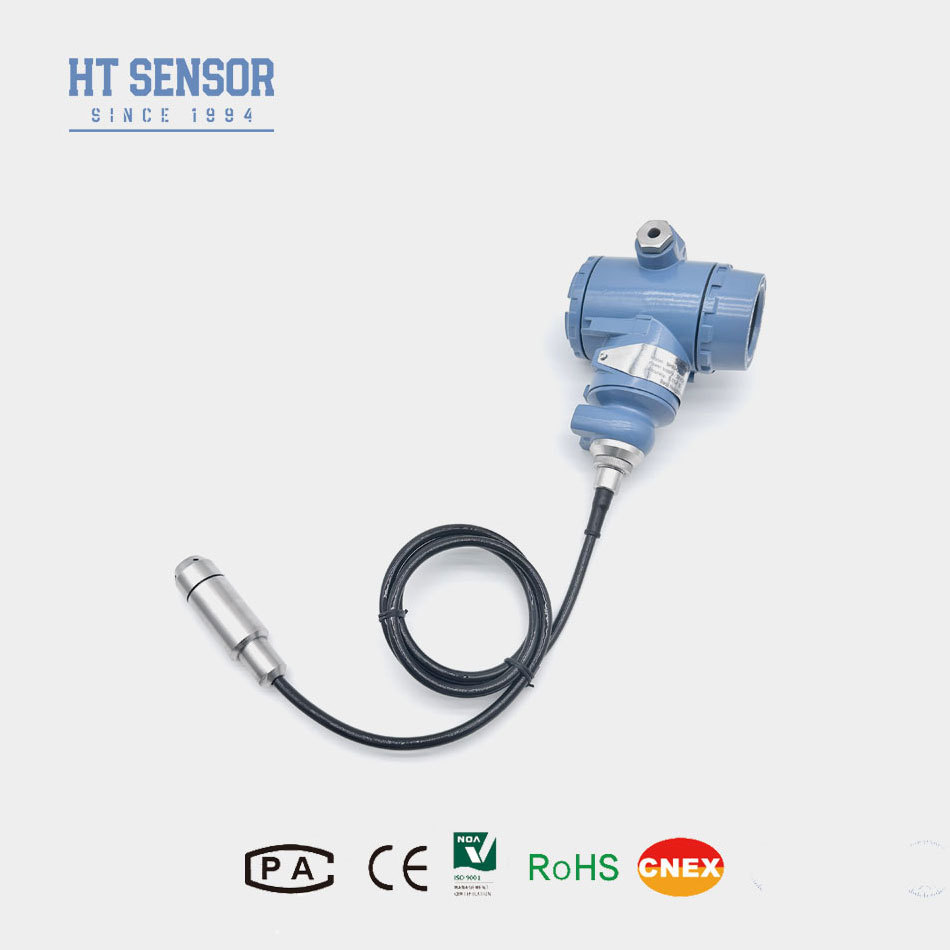

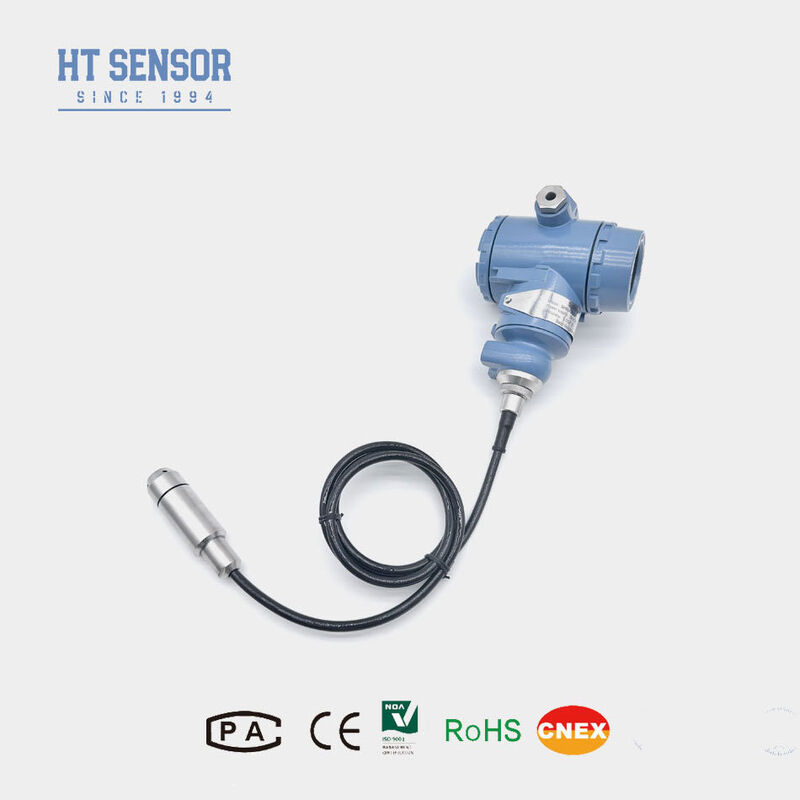

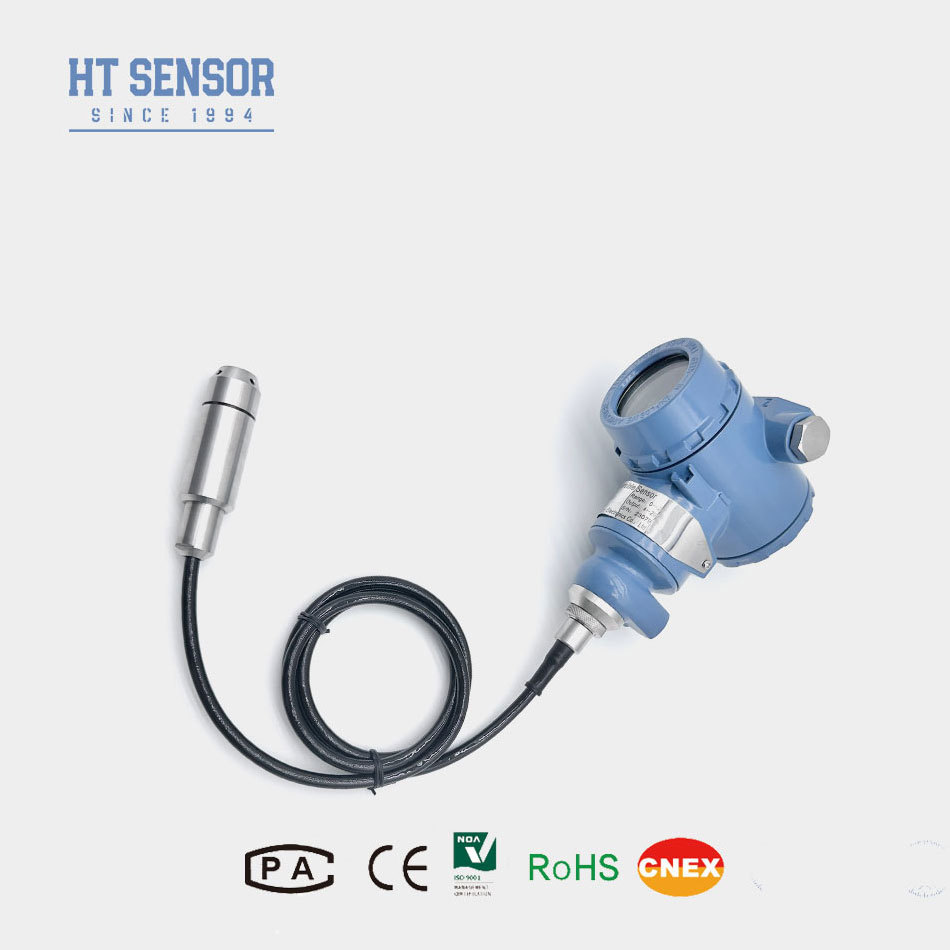

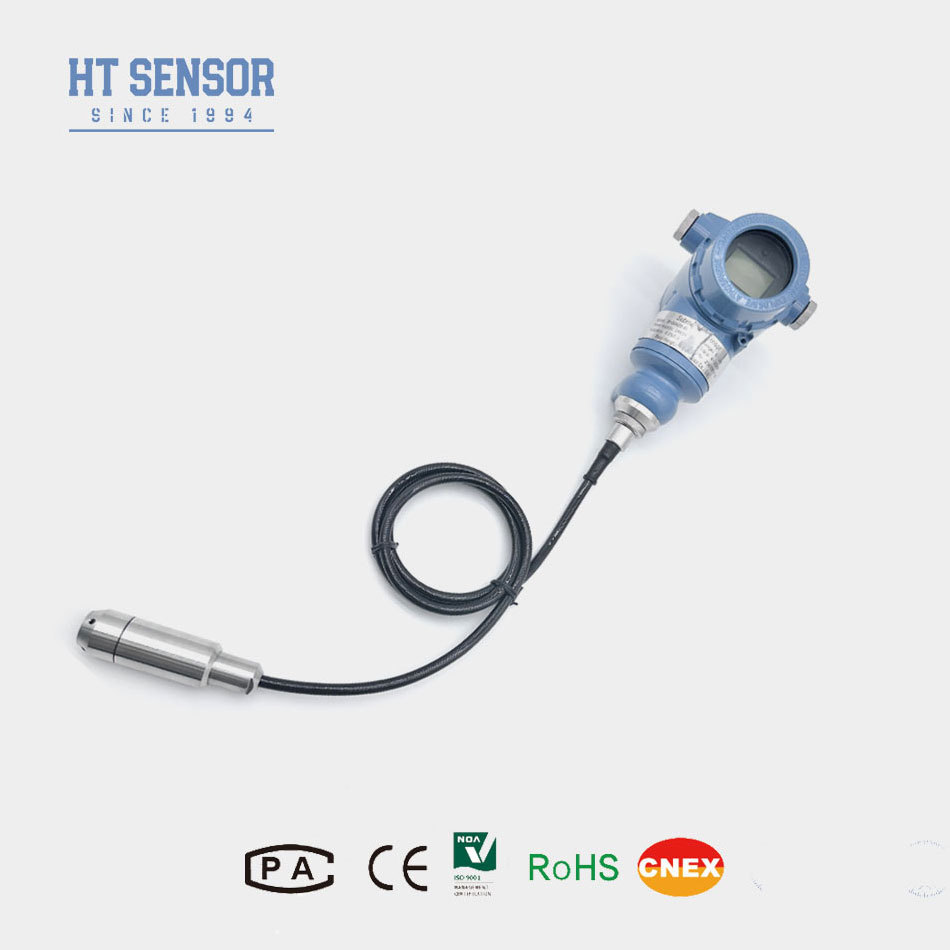

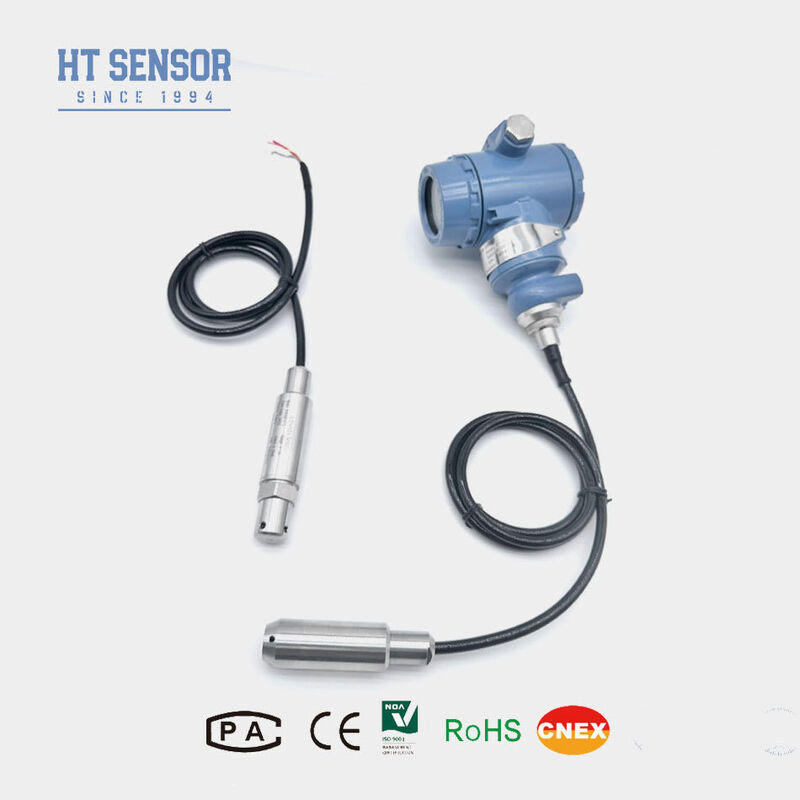

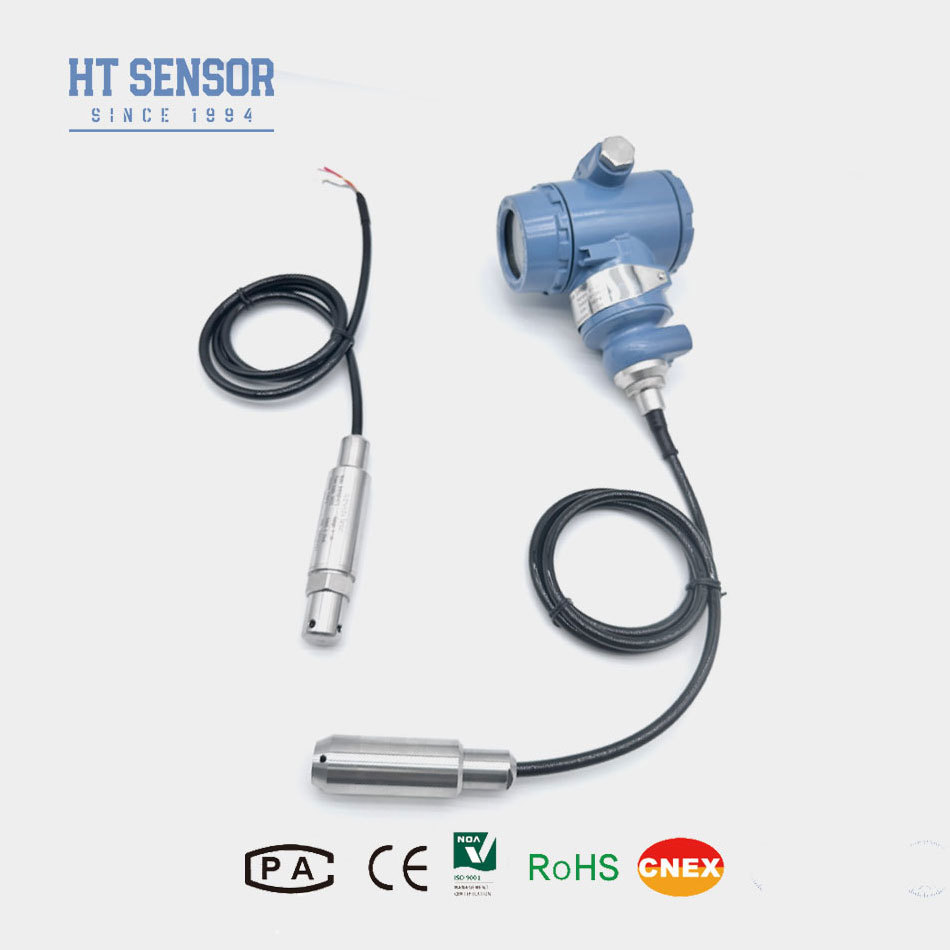

BH93420-III Water Level Transmitter 0.25% Accuracy IP68
Product Details
| Model NO.: | BH93420-III | Output Signal: | Analog Type |
|---|---|---|---|
| Probe Type: | Probe Type | IP Rating: | IP68 |
| Net Weight: | 0.3kg | Diaphragm Material: | 316L Stainless Steel |
| Accuracy: | 0.25%, 0.5% | Cable Material: | PE,PU,PTFE |
| Measurement Range: | 0~10m…400m | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload: | ≤ 2X Rated Range | Operating Temperature: | -20~80ºC |
| Storage Temperature: | -30~100ºC | Housing Material: | Cast Aluminum, 1Cr18Ni9Ti |
| Explosion-proof Rating: | ExiaIICT6 | ||
| Highlight |
IP68 water level transmitter,high accuracy water level sensor,0.25% accuracy level transmitter |
||
Product Description
The BH93420-III water level transmitter features a highly precise Piezoresistive diffused silicon pressure sensor for signal measurement. It measures static pressure (directly related to water level) and converts it into a standard output signal through amplification circuitry, establishing a linear relationship for precise water level measurement.
- Split-type design for easy on-site wiring and calibration
- Integrated LED display
- Explosion-proof rating: ExiaIICT6
- High protection rating: IP68
- Cable options: PE, PU, PTFE
- Compatible with 316L stainless steel and non-corrosive liquids
- Water level monitoring in sewage systems, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
- Diesel, fuel, and oil tank level monitoring
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.5Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 15~30VDC | 2/3/4 wire |
| RS485 Communication Protocol | 4 wire |
- Verify compatibility between measured medium and product components
- Specify the density of the measured medium
- Disclose any strong electromagnetic or radio frequency interference environments
- Install lightning protection devices and ensure proper grounding for reliable operation
A: High precision, durability, and excellent performance. Customization available.
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
A: Our facilities can produce up to 30,000 units monthly. Contact our sales team for large orders.
A: 5-8 working days for standard models. Customized products may vary.
A: Competitive pricing with bulk order and long-term partnership discounts available.
A: 24-month warranty with 24-hour response time for support queries. Remote assistance available.
