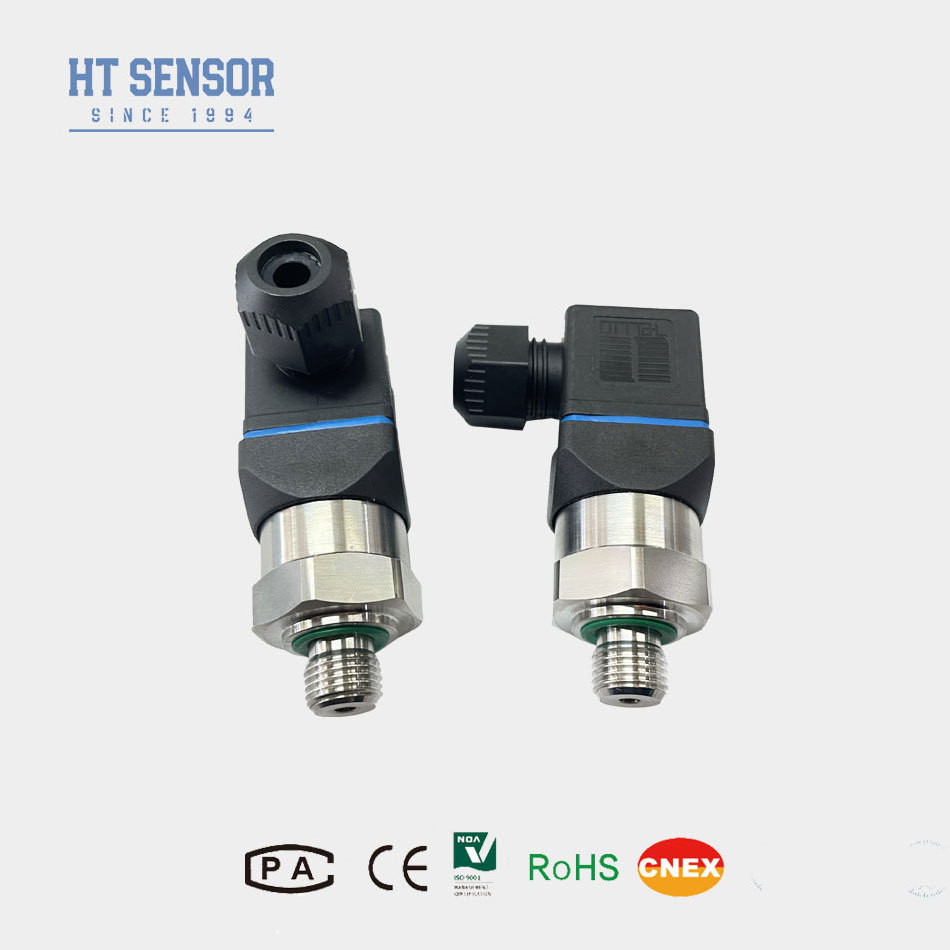

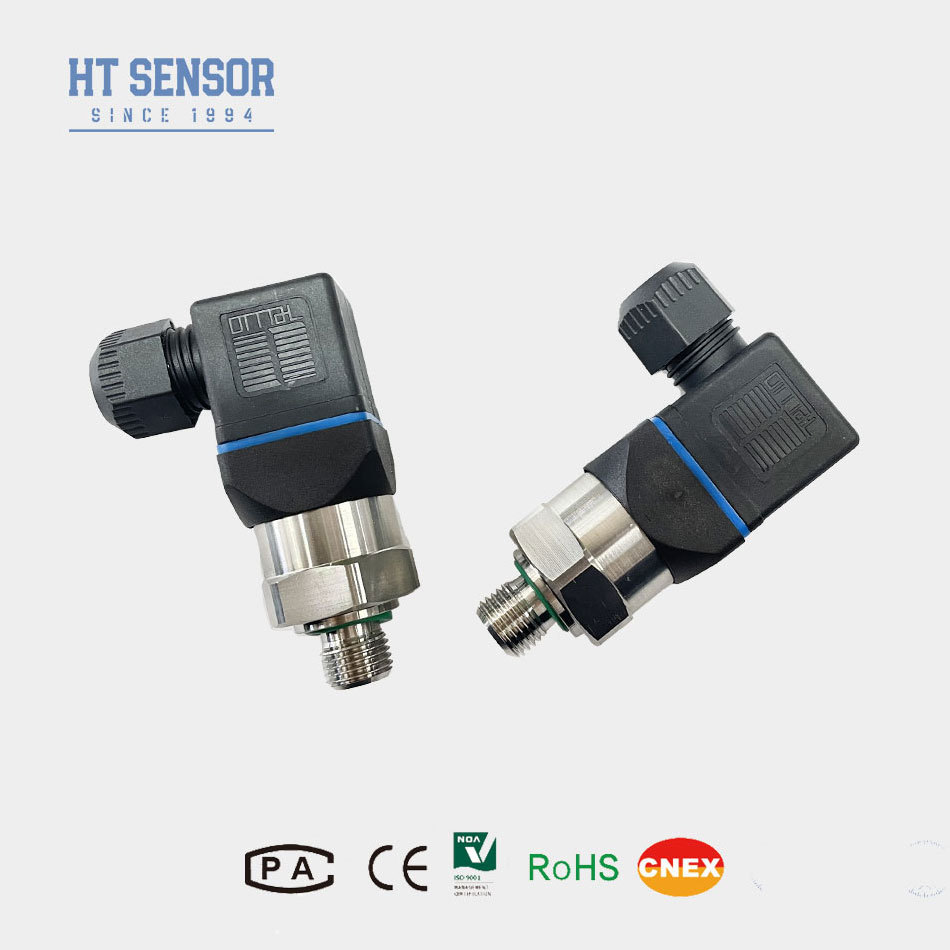

BP170 4-20mA Pressure Transmitter 316L Stainless Steel IP65 0.5% Accuracy
Product Details
| Model NO.: | BP170 | Measuring Medium: | Gas |
|---|---|---|---|
| Accuracy Grade: | 0.5G | Pressure Range: | 0kpa~10kpa...10MPa |
| IP Rating: | IP65 | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Housing Material: | 316L | Weight: | 0.8kg |
| Output Signal: | 4-20mA | Diaphragm Material: | 316L |
| Insulation Resistance: | 100MΩ 100VDC | Explosion-proof Rating: | Ex Db IIC T6 Gb |
| O-Ring Seal: | Fluoro Rubber | Operating Temperature: | -20ºC~80ºC |
| Storage Temperature: | -40ºC~120ºC | ||
| Highlight |
4-20mA pressure transmitter 316L stainless steel,IP65 industrial pressure sensor,high accuracy pressure transmitter 0.5% |
||
Product Description
The BP170 pressure transmitter utilizes the HT series silicon pressure-resistance isolation oil-filled core as the signal measuring element. The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. Rigorous testing and aging screening ensure stable and reliable performance.
- Wide measuring range with stainless steel structure and diverse pressure interface forms
- Compact and lightweight design
- Zero and full-scale adjustable
- High precision, all stainless steel construction
- Adjustable zero and full-scale calibration
- Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
- Marine and aviation industries
- Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Measurement Range | 0kPa ~ 10kPa...10MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability & Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC |
- Ensure medium compatibility with product contact parts
- Explosion-proof models exclude digital display heads
- Models with LCD/LED display require ≥20VDC power supply
- Install lightning protection devices and ensure proper grounding
- For temperatures below -20ºC, specify EPDM O-ring seal
- Default cable: 1.5m polyethylene (other materials available)
- Specify special requirements (vibration, EMI/RFI, etc.) in order
| BP170X | Analog Pressure Transmitter | |
| Code | Outline Construction |
| 5 | Packard plug |
| 6 | Sealed Direct Output Cable 1.5 meters |
| 7 | Mini Hirschmann Connector |
| 8 | Large Hirschmann Connector |
| Measurement Range: 0kPa ~ 10kPa...5MPa | |
| (0-X)Kpa or MPa | X: Actual Measuring Range | |
| Code | Power Supply |
|---|---|
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
|---|---|
| S1 | 4~20mADC |
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
| S7 | 0.5~4.5VDC |
