BH93420-III Water Level Sensor IP68 316L Stainless Steel 0.25% Accuracy
Product Details
| Model NO.: | BH93420-III | Output Signal: | Analog Type |
|---|---|---|---|
| Output Status: | Signal Output | Production Process: | Submersible Type |
| Probe Type: | Probe Type | Output Form: | Pressure Value |
| IP Rating: | IP68 | Net Weight: | 0.6kg |
| Diaphragm Material: | 316L Stainless Steel | Accuracy: | 0.25%,0.3%,0.5% |
| Cable Material: | PE,PU,PTFE | Measurement Range: | 0~10m…400m |
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure | Overload Capacity: | ≤ 2X Rated Range |
| Operating Temperature: | -20~80ºC | ||
| Highlight |
IP68 water level sensor,316L stainless steel water transmitter,high accuracy water level sensor |
||
Product Description

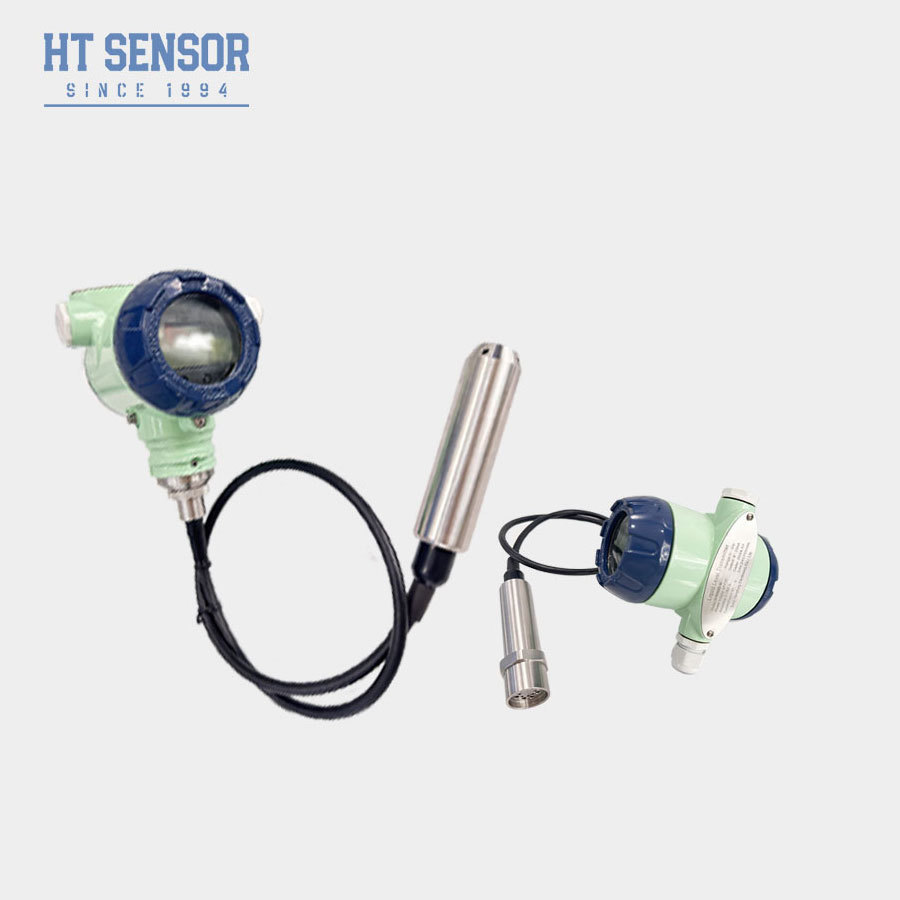

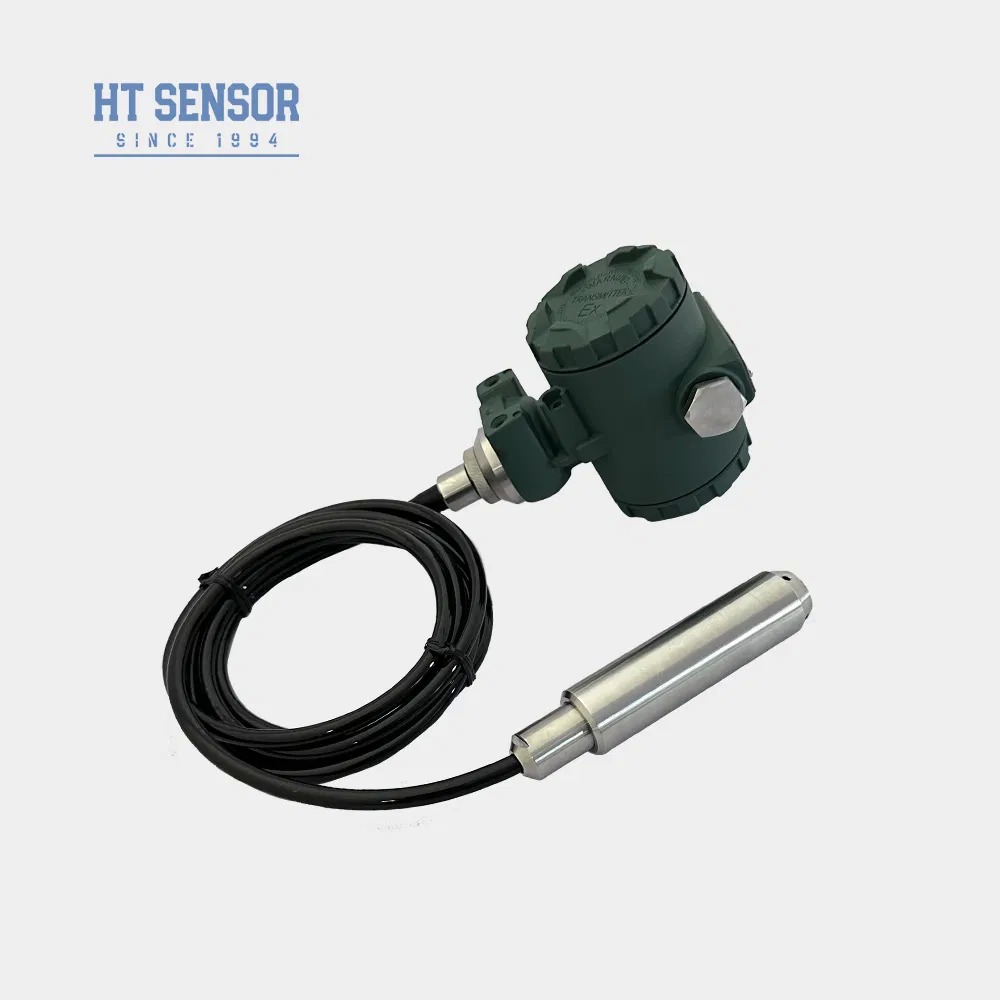

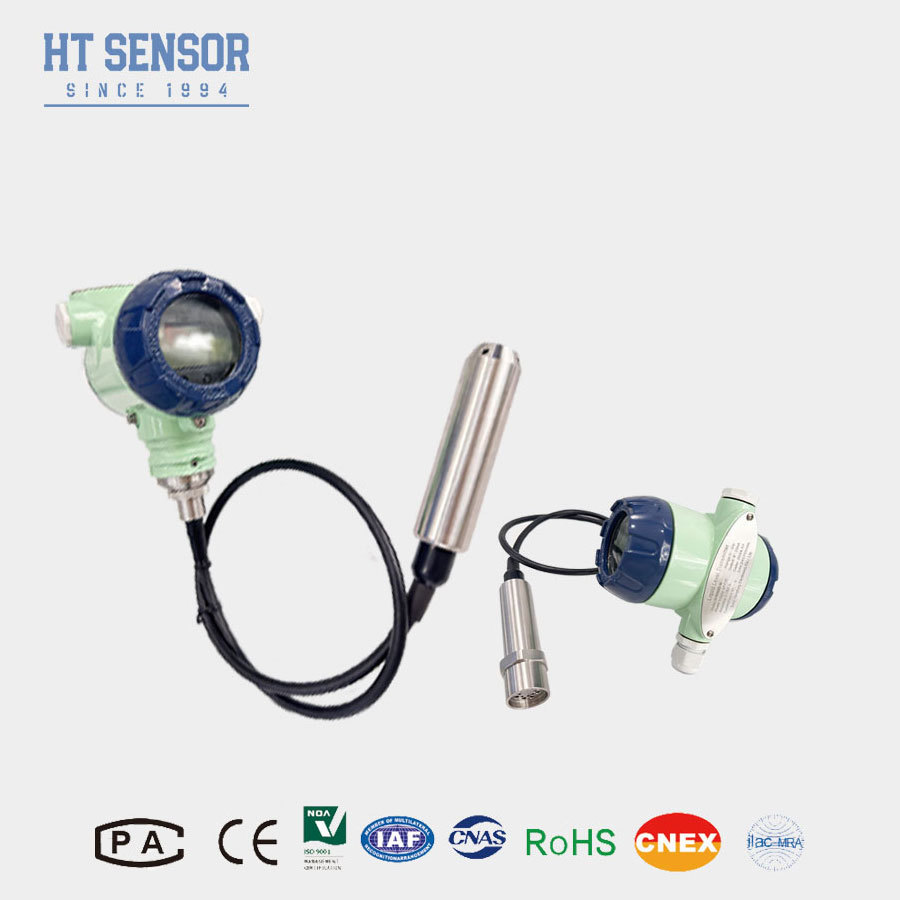

BH93420-III Water Level Transmitter
The BH93420-III water level transmitter features a highly precise piezoresistive diffused silicon pressure sensor as its signal measuring element. It measures static pressure, which directly correlates to water level, and converts it into a standard signal output using amplification circuitry. This establishes a linear relationship between output signal and liquid level, ensuring precise and accurate water level measurement.
- Split-type design for easy on-site wiring and calibration
- LED display for clear readings
- Explosion-proof rating: ExiaIICT6
- High protection rating: IP68
- Cable options: PE, PU, PTFE
- Compatible with 316LSS and non-corrosive liquids
- Water level monitoring in sewage systems, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
- Diesel, fuel, and other oil tank level monitoring
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.5Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 15~30VDC | 2/3/4 wire |
| RS485 Communication Protocol | 4 wire |
- Ensure measured medium compatibility with product components
- Specify measured medium density
- Provide details of strong electromagnetic or radio frequency interference
- Install lightning protection devices and ensure proper grounding for reliable operation
