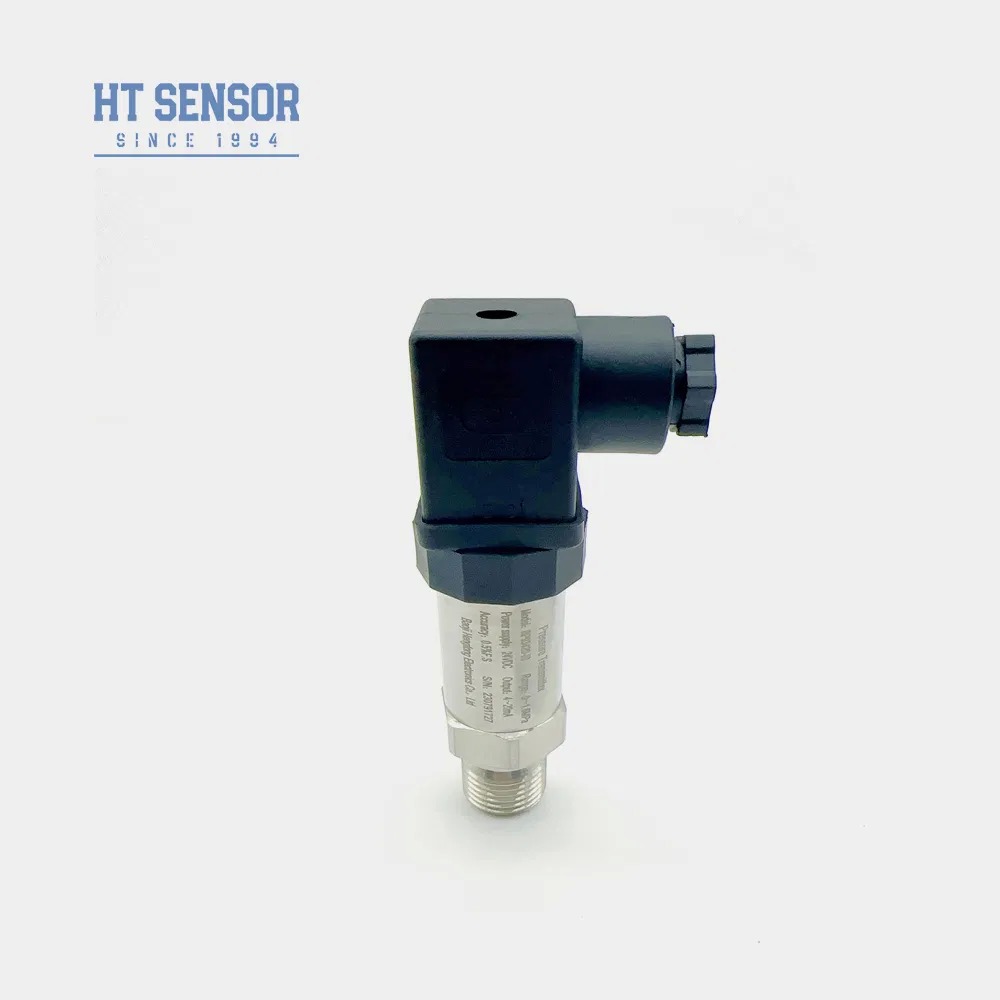

HTsensor BP93420-IB 4-20mA Pressure Transmitter 0.5G Accuracy IP65
Product Details
| Model NO.: | BP93420-IB | Measuring Medium: | Liquid |
|---|---|---|---|
| Accuracy Grade: | 0.5G | Pressure Range: | 0kpa~10kpa...100MPa |
| IP Rating: | IP65 | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Housing Material: | 316L | Long-Term Stability: | +-0.2%F.S/Year(Typ.) |
| Diaphragm Material: | 316L | Operating Temperature: | -20ºC~80ºC |
| Storage Temperature: | -40ºC~120ºC | Output Signal: | 4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V |
| Supply Voltage: | 12~30VDC, 5VDC | Weight: | ~0.15kg |
| Insulation Resistance: | 100MΩ 100VDC | ||
| Highlight |
4-20mA pressure transmitter with IP65,industrial pressure sensor 0.5G accuracy,HTsensor BP93420-IB pressure transmitter |
||
Product Description
- Wide measuring range with stainless steel construction and diverse pressure interface options
- Compact and lightweight design for easy installation
- Adjustable zero and full-scale calibration
- High precision measurement with all stainless steel structure
- Versatile output signal options
- Pressure measurement of non-corrosive gases and liquids (316L stainless steel compatible)
- Marine and aviation industry applications
- Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Measurement Range | -100kPa...0kPa ~ 10kPa...100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Operating Temperature | -20ºC~80ºC |
| Housing Material | 304, 316L Stainless Steel |
| Protection Rating | IP65 |
| Explosion-proof Rating | Ex db IIC T6 Gb |
- Ensure medium compatibility with product contact parts
- Explosion-proof models exclude digital display heads
- Models with LCD/LED display require ≥20VDC power supply
- Install lightning protection devices and ensure proper grounding
- Default cable length: 1.5m (polyethylene material)
- Specify special requirements (vibration, EMI/RFI, etc.) when ordering
| Code | Outline Construction |
|---|---|
| IB | General Pressure Transmitter |
| IX | Display Pressure Transmitter |
| IE | Shock-resistant Aviation Pressure Transmitter |
| Measurement Range: -0.1...0~0.01...100MPa (0-X)Kpa or MPa | |
| Code | Power Supply |
| D1 | 24VDC |
| D2 | 5VDC |
| Code | Output Signal |
| S1 | 4~20mADC |
| S5 | 0~20mADC |
