BH93420-I Water Level Transmitter for Accurate Liquid Level Measurement in Industrial Applications
Product Details
| Model NO.: | BH93420-I | Pressure Range: | Gauge Pressure, Absolute Pressure |
|---|---|---|---|
| Accuracy Grade: | 0.25%,0.5% | IP Rating: | IP68 |
| Net Weight: | 0.3kg | Diaphragm Material: | 316L Stainless Steel |
| Shell Material: | 304S.S Or 316L | Output Signal: | 4-20mA AND SO ON |
| Measurement Range: | 0~10m…400m | Overload Capacity: | ≤ 2X Rated Range |
| Operating Temperature: | -20~80ºC | Storage Temperature: | -30~100ºC |
| Explosion-proof Rating: | ExiaIICT6 | Protection Rating: | IP67, IP68 |
| Cable Material: | Polyethylene, Polyurethane | ||
| Highlight |
HT static pressure level transmitter,water level transmitter with IP68,level transmitter 0.25% accuracy |
||
Product Description

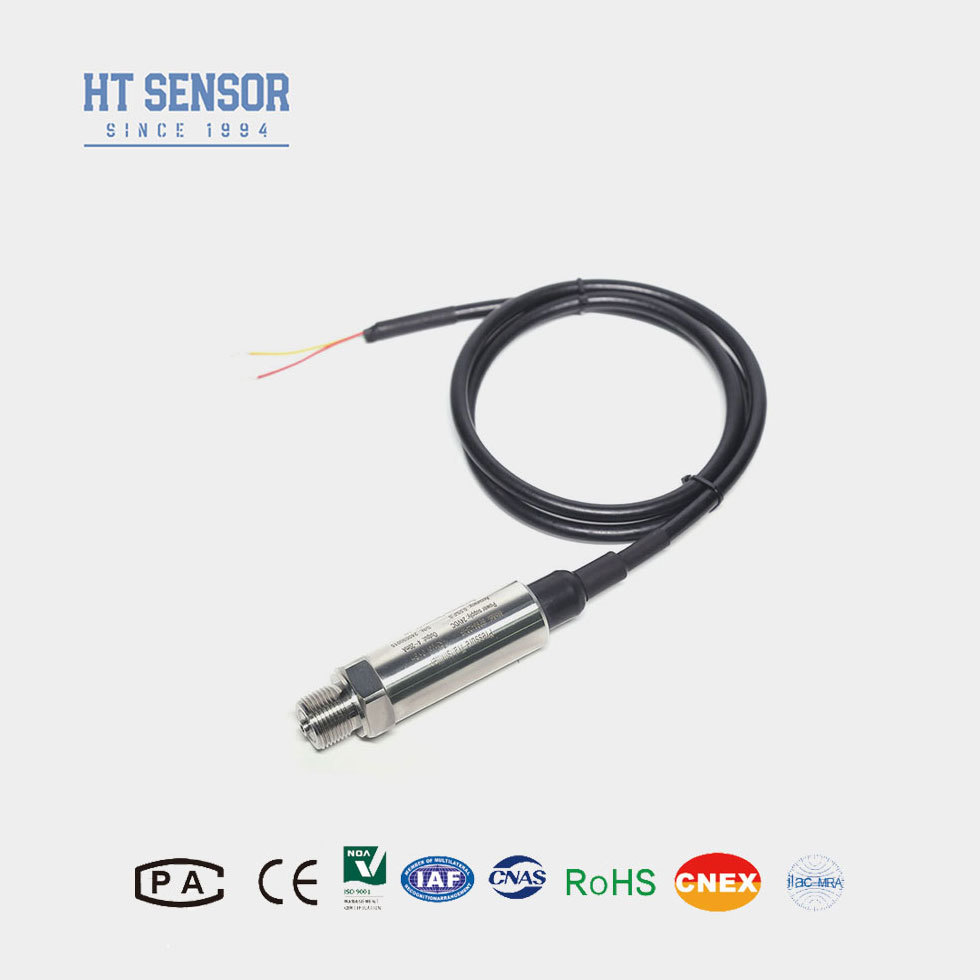

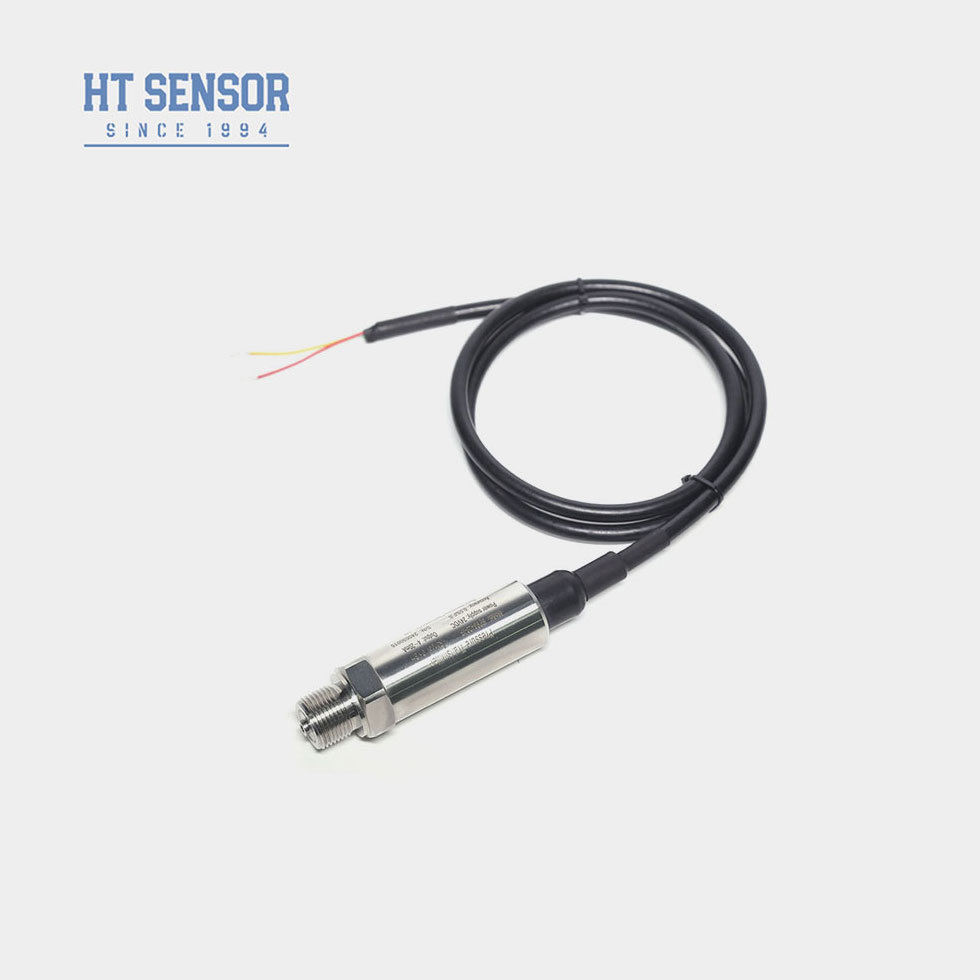

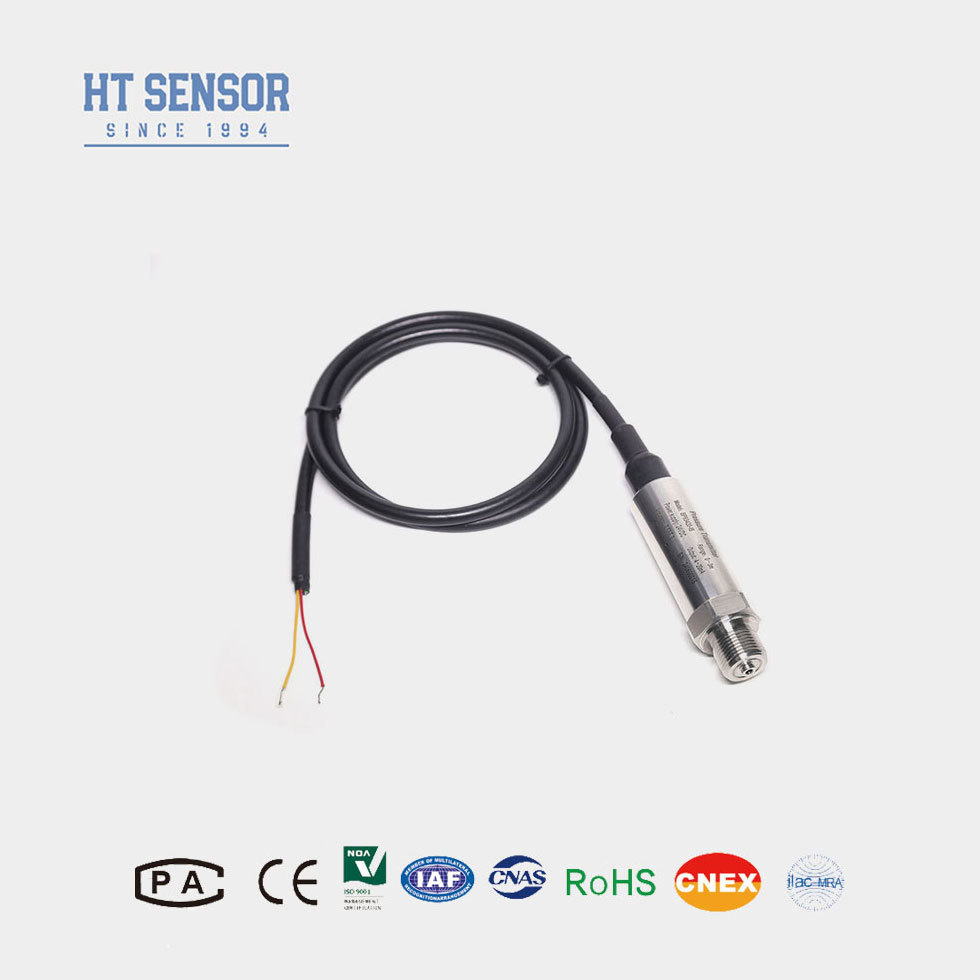

BH93420-I Liquid Level Transmitter utilizes the HT series high-precision piezoresistive diffused silicon pressure sensor. It features a fully welded stainless steel housing with hexagonal and water guide head design, employing waterproof sealing technology to meet various installation requirements and adapt to different application scenarios.
- Fully welded design for safety and reliability
- Dual options for probe insertion and threaded installation
- Rigorously tested for high and low temperature performance
- Explosion-proof marking: ExiaIICT6
- PTFT and PU cable options
- Multiple output signal configurations available
- Compatible with 316L stainless steel and non-corrosive liquids
- Water level monitoring in sewage, industrial/municipal water systems, tanks, wells, rivers, seawater, and lakes
- Fuel level measurement in diesel and fuel tanks
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | 1Cr18Ni9Ti, 316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V | 5VDC | |
| 0/1~10V | ||
| 0.5~4.5V |
- Ensure measured medium compatibility with product components
- Specify the density of the measured medium
- For strong electromagnetic or radio frequency interference environments, provide details
- Install lightning protection devices and ensure proper grounding for reliable operation
| Order Guide | ||||||||
| BH93420 | Code | Outline Construction | ||||||
| I | Pressure Transmitter | |||||||
| Measurement Range | 0～10m…400mH2O | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | 3.6V battery | |||||||
| D4 | other | |||||||
| Code | Output Signal | |||||||
| S1 | 4～20mADC | S5 | 0～20mADC | |||||
| S2 | 1～5VDC | S6 | 0～10VDC | |||||
| S3 | 0～5VDC | S7 | 0.5～4.5VDC | |||||
| S4 | 0～10mADC | S8 | RS485 | |||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
| Code | Housing Material | |||||||
| 01 | 304 Stainless Steel | |||||||
| 02 | 316L Stainless Steel | |||||||
| Code | Cable Material | |||||||
| C1 | PE | |||||||
| C2 | PU | |||||||
