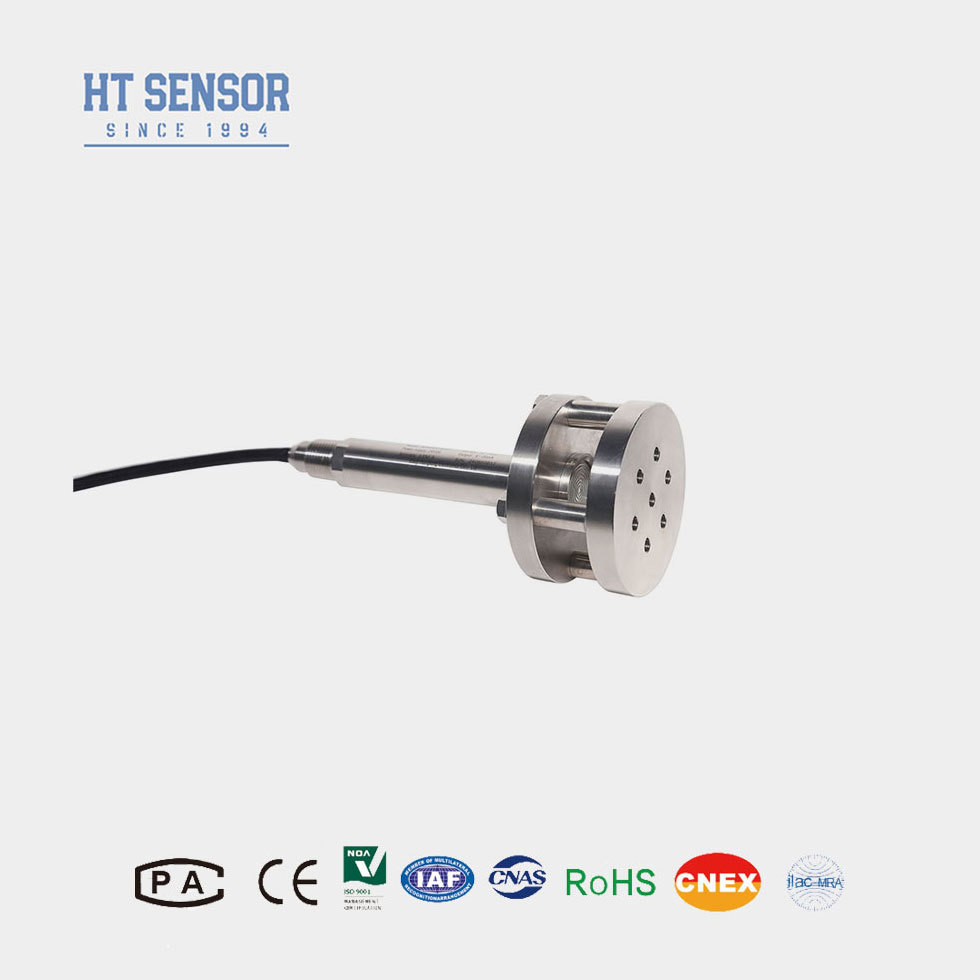

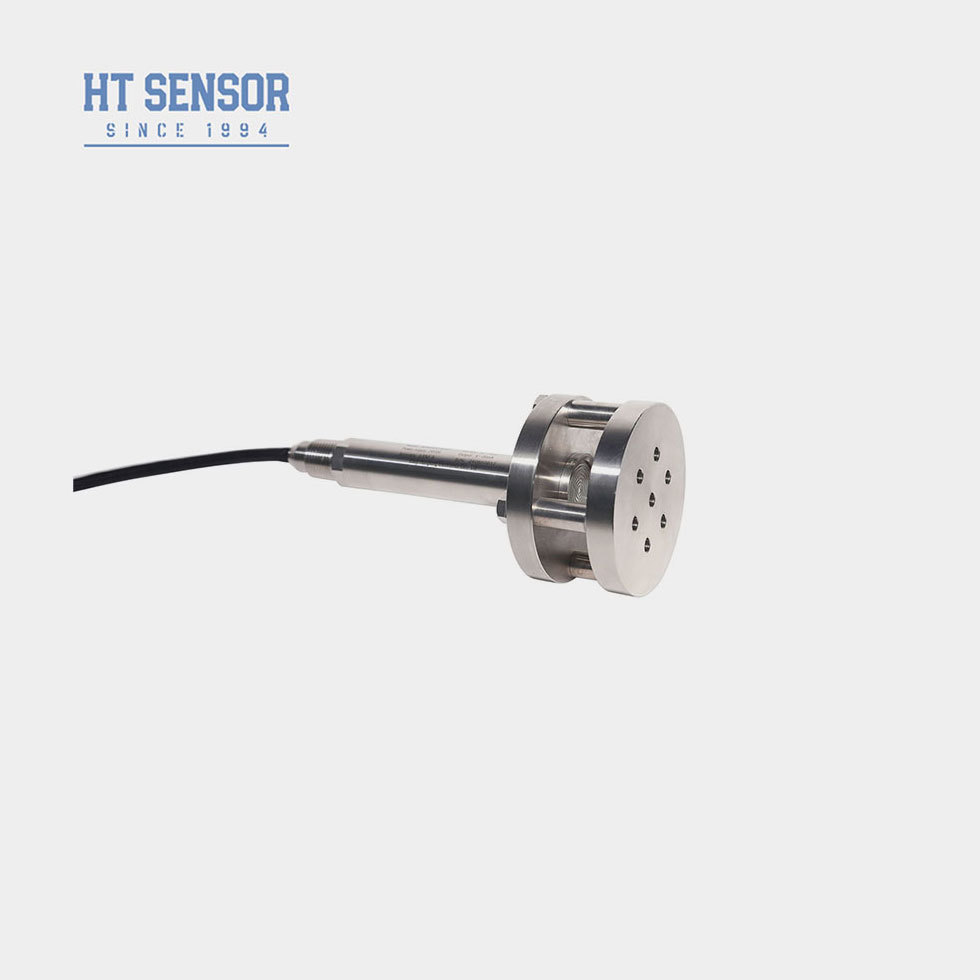

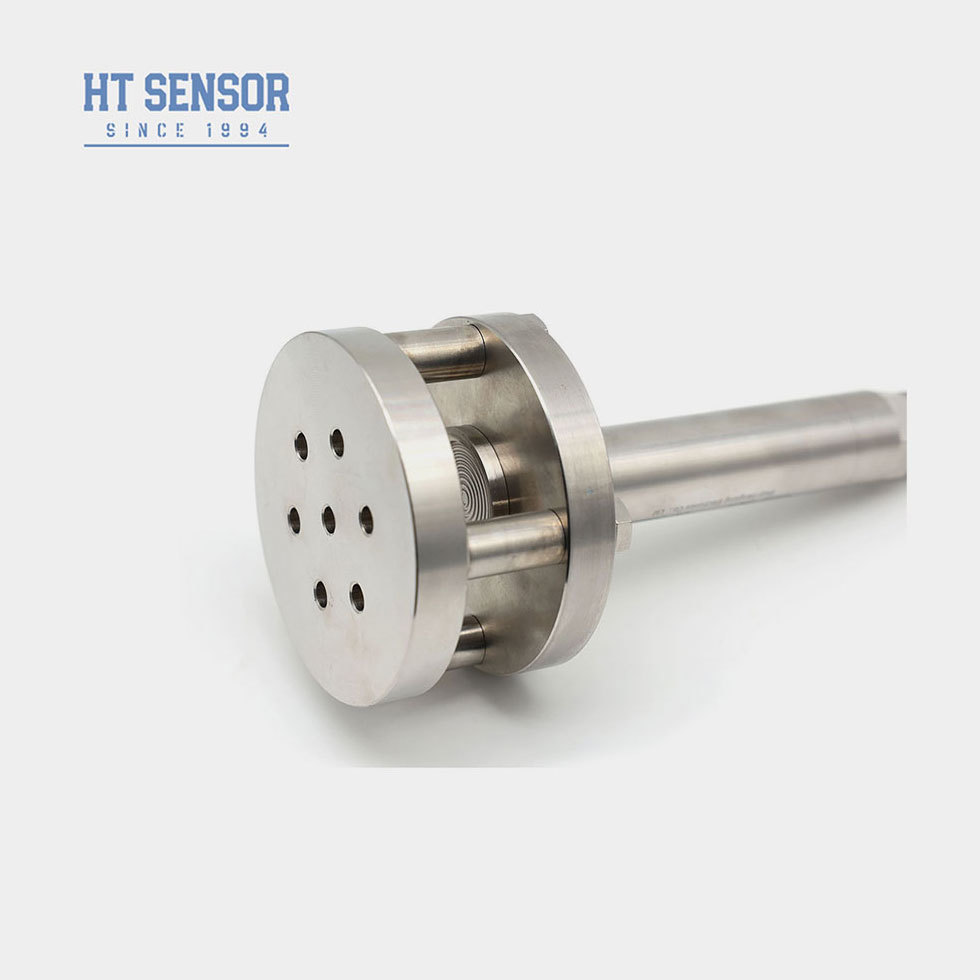

Water Level Transmitter for Liquid Level Measurement with Robust Design and Full 316L Stainless Steel Construction
Product Details
| Model NO.: | BH93420-WS | Pressure Range: | Gauge Pressure, Absolute Pressure |
|---|---|---|---|
| Accuracy Grade: | 0.2%,0.5% | IP Rating: | IP68 |
| Net Weight: | 2.1kg | Diaphragm Material: | 316L Stainless Steel |
| Housing Material: | 316L Stainless Steel | Stability: | ±0.1%F.S/Year(Typ.) |
| Measurement Range: | 0~10m…400m | Overload: | ≤ 2X Rated Range |
| Accuracy @ 25ºC: | ±0.25% (Typ.) ±0.5% (Max.) | Repeatability: | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Operating Temperature: | -20~100ºC | Explosion-proof Rating: | ExiaIICT6 |
| Output Signal: | 4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V | ||
| Highlight |
316L stainless steel water level sensor,IP68 sewage level transmitter,high accuracy water level sensor |
||
Product Description
- Specially designed for harsh industrial environments
- Explosion-proof certification: ExiaIICT6
- High protection rating: IP68
- Full 316L stainless steel construction for superior corrosion resistance
- High precision measurement with excellent stability
- Compatible with 316L stainless steel and non-corrosive liquids
- Oil level monitoring in diesel tanks, fuel tanks, and other fuel containers
- Level measurement in polluted liquids including:
- Sludge tanks and clarifiers
- Digesters and alum tanks
- Chemical storage tanks
- Sewage pits and water reservoirs
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -20~100ºC |
| Housing Material | 316L Stainless Steel |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
- Ensure measured medium compatibility with product materials
- Specify the density of the measured medium
- For strong electromagnetic/RF interference environments, provide details
- Install lightning protection devices and ensure proper grounding
| Code | Option |
|---|---|
| D1 | 24VDC Power Supply |
| D2 | 5VDC Power Supply |
| S1 | 4~20mADC Output |
| S2 | 1~5VDC Output |
| G | Gauge Pressure Type |
| A | Absolute Pressure Type |
| C1 | PE Cable Material |
- Q: What are the key features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance with customization options available. - Q: Can you customize special specifications?
A: Yes, our engineers can tailor products to meet specific requirements with OEM and ODM services. - Q: What is your production capacity?
A: Up to 30,000 units monthly. Contact sales for large order planning. - Q: What's the typical delivery time?
A: 5-8 working days for standard models; varies for custom products. - Q: What warranty and after-sales support do you provide?
A: 24-month warranty with 24-hour response time for support inquiries.
