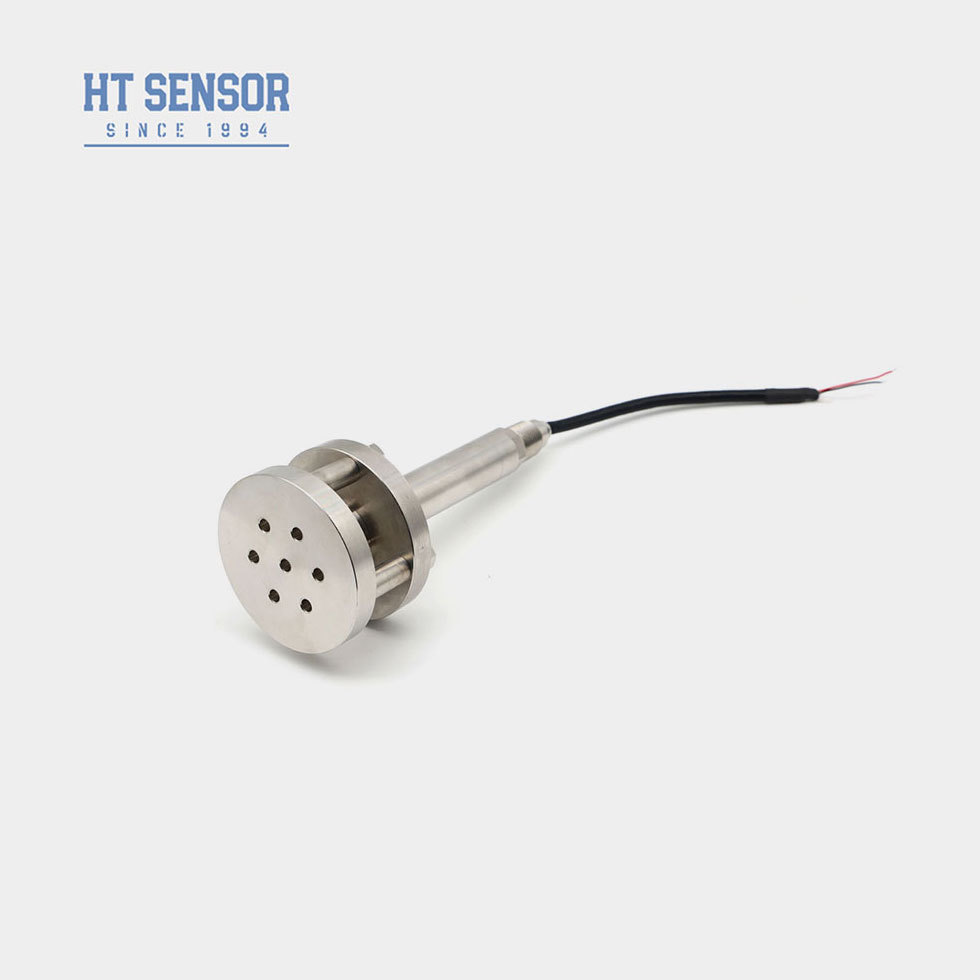

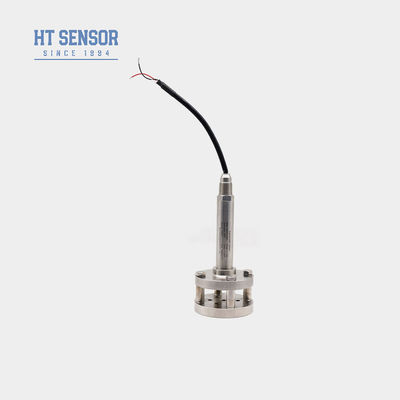

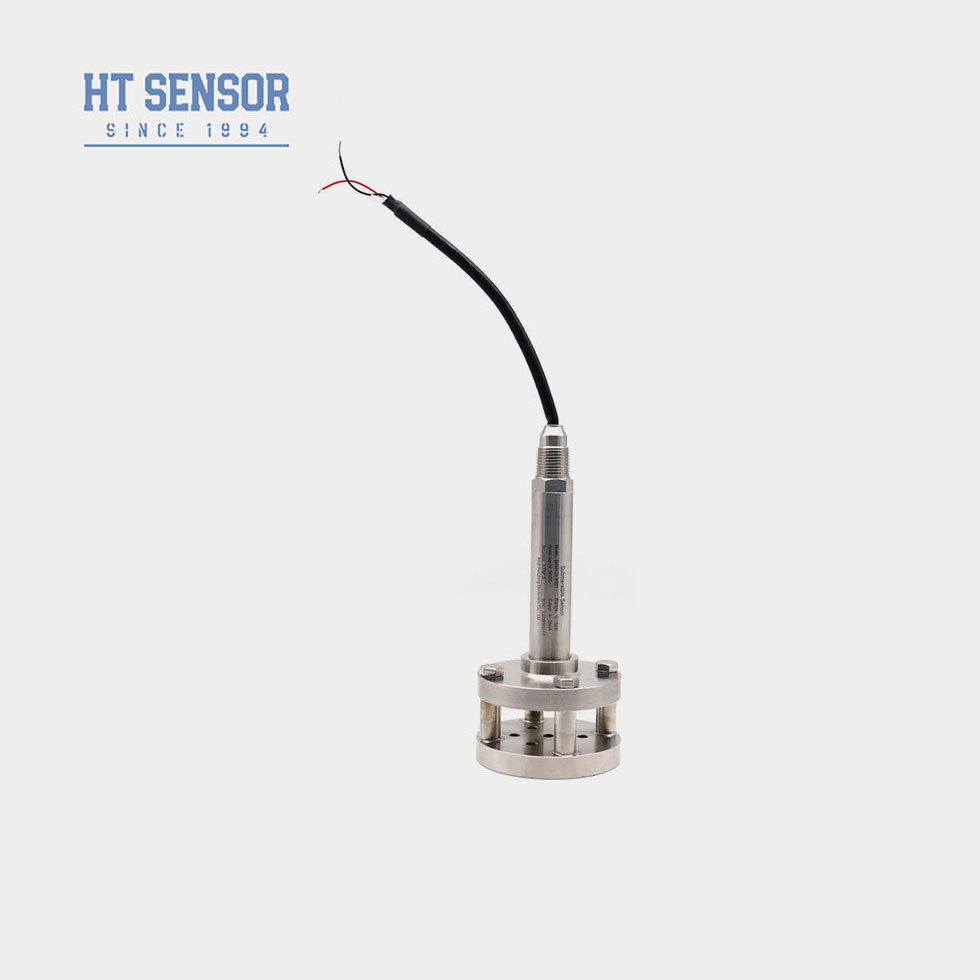

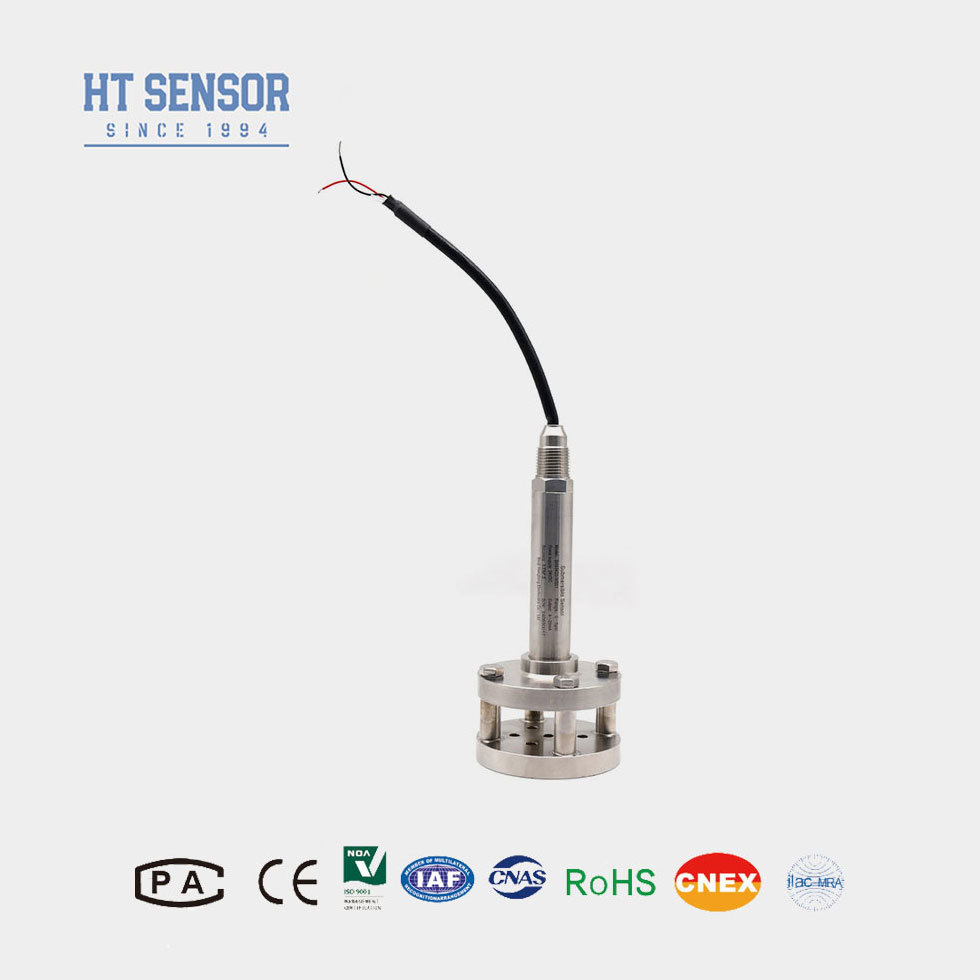

4-20mA Sewage Level Sensor IP68 316L Stainless Steel 0.5% Accuracy
Product Details
| Model NO.: | BH983420-WS | Pressure Range: | Gauge Pressure, Absolute Pressure |
|---|---|---|---|
| Accuracy Grade: | 0.2%,0.5% | IP Rating: | IP68 |
| Net Weight: | 2.1kg | Diaphragm Material: | 316L Stainless Steel |
| Housing Material: | 316L Stainless Steel | Stability: | ±0.1%F.S/Year(Typ.) |
| Measurement Range: | 0-10m | Overload Capacity: | ≤ 2X Rated Range |
| Operating Temperature: | -20~100ºC | Storage Temperature: | -30~100ºC |
| Insulation Resistance: | >=100MΩ@100VDC | Explosion-proof Rating: | ExiaIICT6 |
| Output Signal: | 4-20mA | Operating Temp: | -20~80℃ |
| Material: | 304SST,316SST | Cable: | PTFE |
| Type: | Silicon Piezoresistive Type | Customized: | Non-Customized |
| Full Scale Drift: | ±1.5%F.Sr(Typ.) ±2%F.S (Max.) | Display: | LCD |
| Process Pressure: | -0.02-0.1MPa | Structure Design: | Flange Type |
| Customization: | OEM/ODM | Model: | 1 |
| Cable Length: | 5M | Hs Code: | 90261000 |
| Highlight |
4-20mA sewage level sensor,IP68 water level transmitter,316L stainless steel level sensor |
||
Product Description
The BH-WS Sewage Level Sensor is a high-performance liquid level transmitter designed for demanding industrial applications. Utilizing a precision piezoresistive silicon pressure sensor with full 316L stainless steel construction, this robust device delivers reliable measurements in contaminated liquid environments.
- Engineered for harsh industrial environments
- Explosion-proof certification: ExiaIICT6
- High protection rating: IP68
- Full 316L stainless steel construction for superior corrosion resistance
- Exceptional measurement accuracy and long-term stability
- Compatible with 316L stainless steel and non-corrosive liquids
- Fuel level monitoring in diesel tanks, fuel storage containers
- Liquid level measurement in polluted environments including:
- Sludge tanks and clarifiers
- Digesters and chemical storage tanks
- Sewage pits and water reservoirs
- Alum tanks and lime slurry systems
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload Capacity | ≤ 2X rated range |
| Accuracy @ 25°C | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -20~100°C |
| Housing Material | 316L Stainless Steel |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| Weight | ~2.1Kg (without cable) |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC |
Please ensure compatibility with your measured medium and specify density when ordering.
- For strong electromagnetic interference environments, please provide details
- Recommended to install lightning protection devices and ensure proper grounding
| Code | Description |
|---|---|
| BH-WS | Pressure Transmitter |
| D1 | 24VDC Power Supply |
| S1 | 4~20mADC Output |
| G | Gauge Pressure Type |
| C1 | PE Cable Material |
