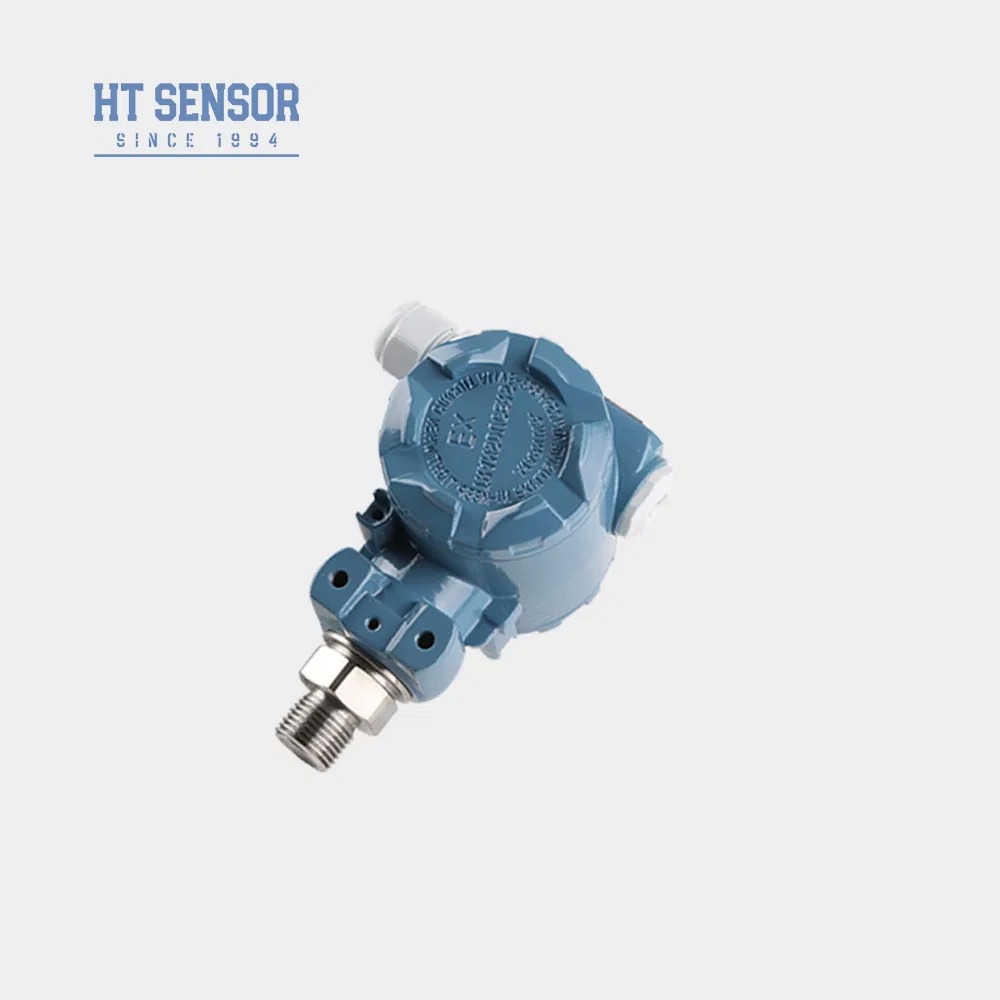

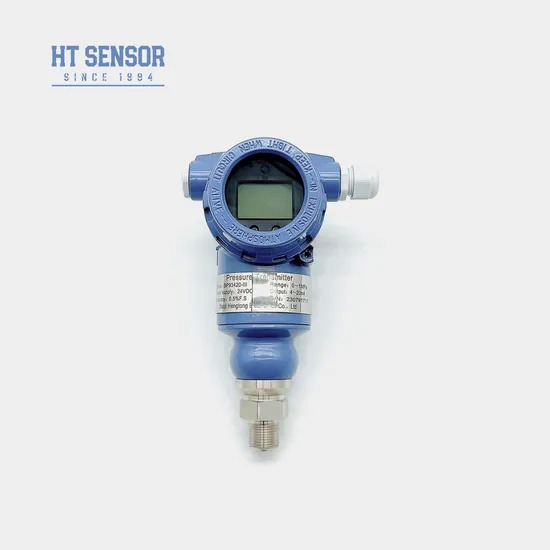

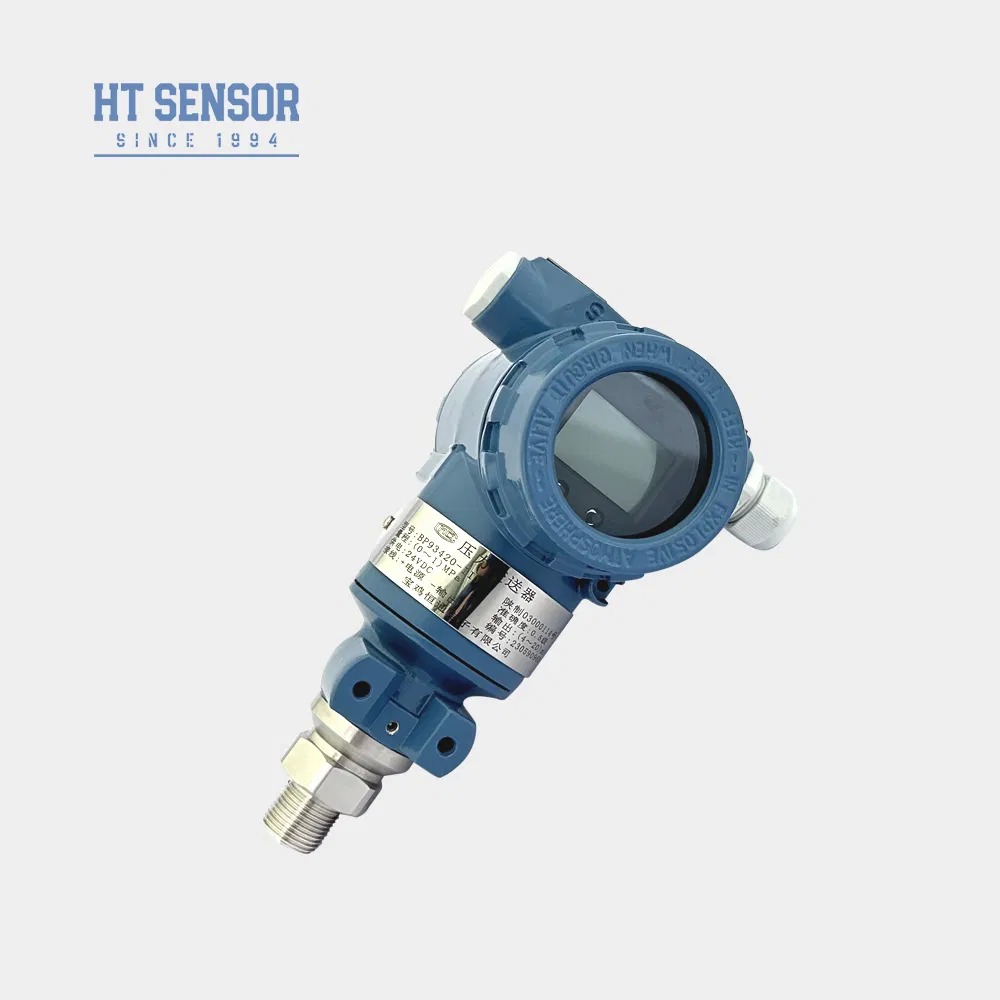

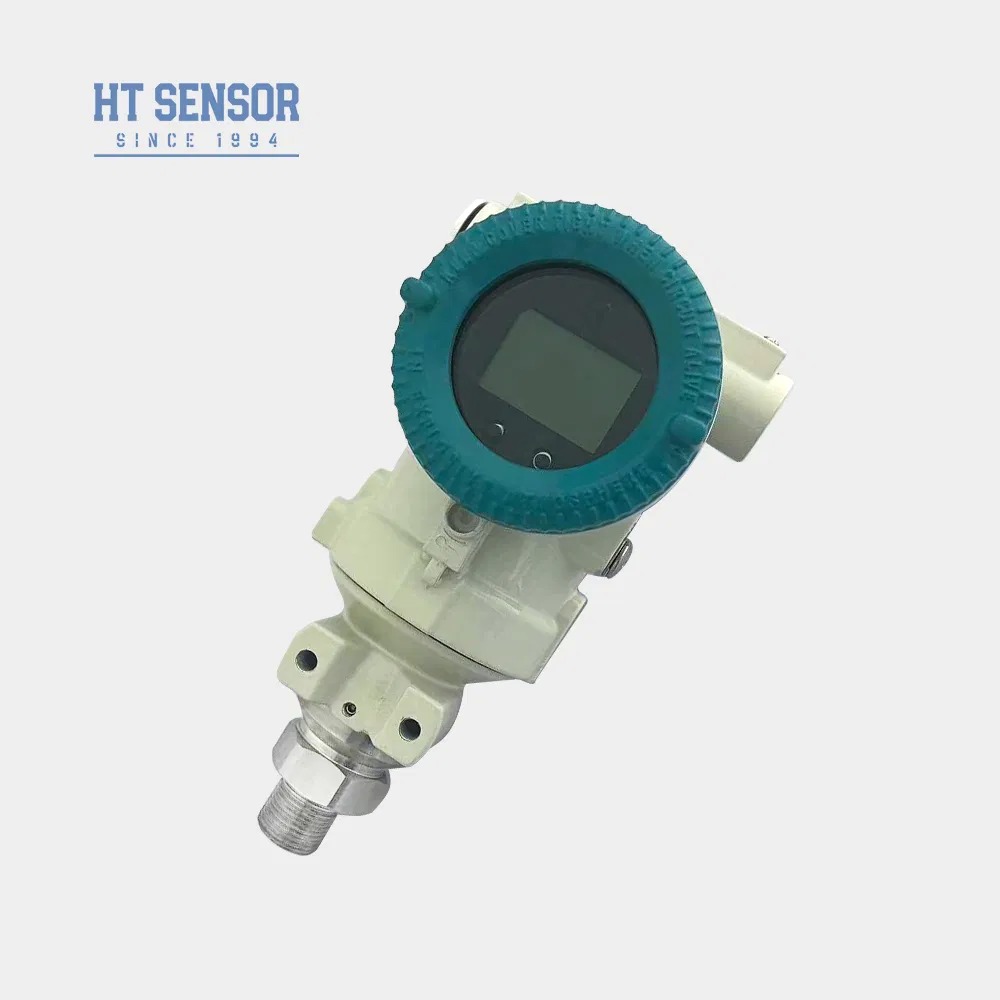

BP93420-III 4-20mA Pressure Transmitter 0.5% Accuracy IP65
Product Details
| Model NO.: | BP93420-III | Measuring Medium: | Liquid |
|---|---|---|---|
| Accuracy Grade: | 0.5% | Pressure Range: | -100kpa...0kpa ~10kpa...100MPa |
| IP Rating: | IP65 | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Housing Material: | 316L | Frequency Response: | 2.4kHz |
| Weight: | ~1.2kg | Overload: | ≤ 1.5 Times Of The Rated Range |
| Repeatability: | ≤±0.1%FS | Hysteresis: | ≤±0.1%FS |
| Long-Term Stability: | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) | Operating Temperature: | -20ºC~80ºC |
| Storage Temperature: | -40ºC~120ºC | ||
| Highlight |
4-20mA pressure transmitter IP65,industrial pressure sensor 0.5% accuracy,pressure transmitter with warranty |
||
Product Description
- Wide measuring range with multiple pressure interface options (IP65 protection)
- Adjustable output signals with display capability
- Precision zero point and full scale adjustment
- High-performance diffused silicon piezoresistive pressure sensor core
- Pressure measurement of non-corrosive gases/liquids in 316L stainless steel systems
- Petroleum, chemical, metallurgical, power generation, and hydrological applications
- Harsh outdoor industrial environments requiring robust pressure control
- Hydraulic and pneumatic control systems
| Parameter | Specification |
|---|---|
| Measurement Range | -100kPa...0kPa ~10kPa...100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload Capacity | ≤1.5× rated range |
| Accuracy @25°C | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.1%F.S/Year (Typical) ±0.2%F.S/Year (Maximum) |
| Operating Temperature | -20°C~80°C |
| Housing Material | Cast aluminum |
| Diaphragm Material | 316L stainless steel |
| Protection Rating | IP65 |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC | |
| RS485 Communication | 3.6~30V/Battery | 4 wire |
- Verify medium compatibility with product contact materials
- Explosion-proof models exclude digital display heads
- Minimum 20VDC power supply required for LCD/LED display models
- Recommended installation of lightning protection devices with proper grounding
- Fluoro rubber O-ring rated for -20°C to 250°C (EPDM required below -20°C)
- Standard 1.5m polyethylene cable (alternative materials available on request)
- Specify special conditions (vibration, EMI/RFI, etc.) when ordering
| Code | Configuration Option |
|---|---|
| IB/IX | General/Display Pressure Transmitter |
| IE | Shock-resistant Aviation Pressure Transmitter |
| IIC/III | Industrial General/Display Pressure Transmitter |
| D1/D2/D3 | 24VDC/5VDC/Other Power Supply |
| S1-S7 | Output Signal Options (4-20mA to 0.5-4.5V) |
| J1-J5 | Pressure Connection Types (M20×1.5 to Custom) |
