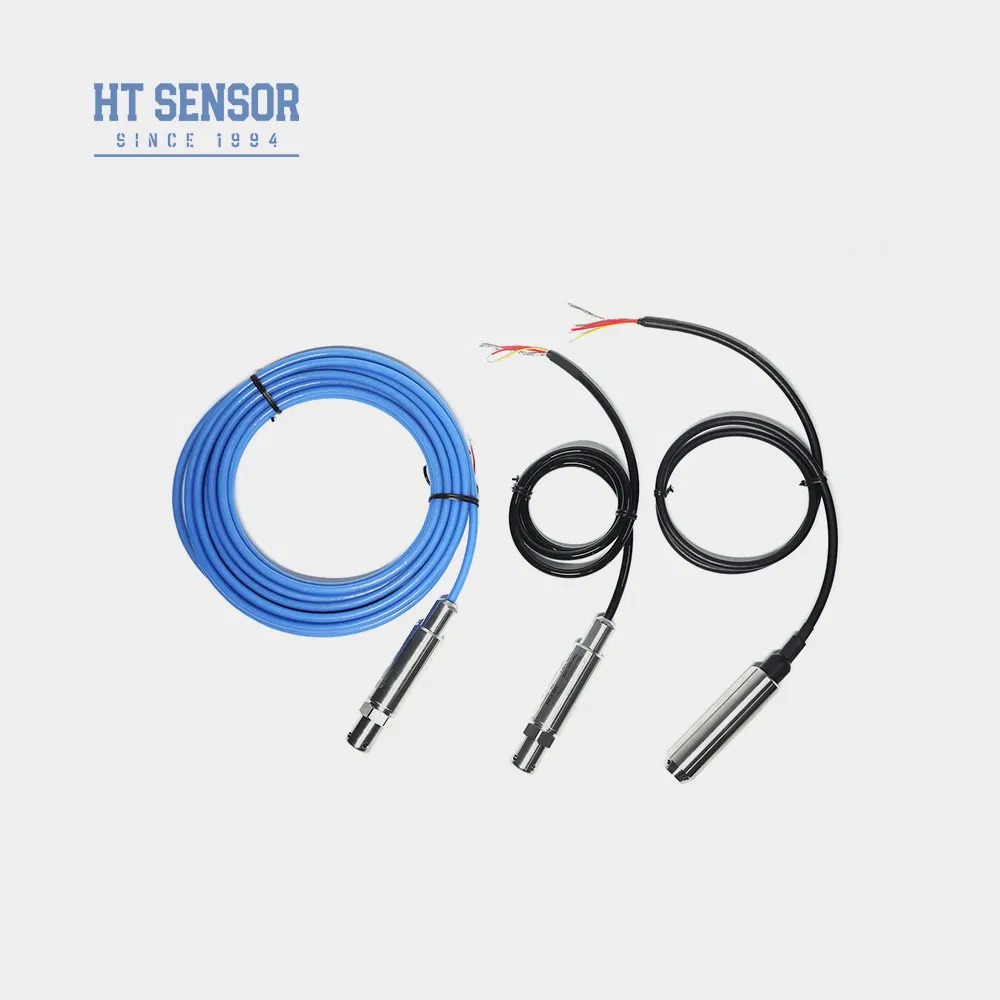

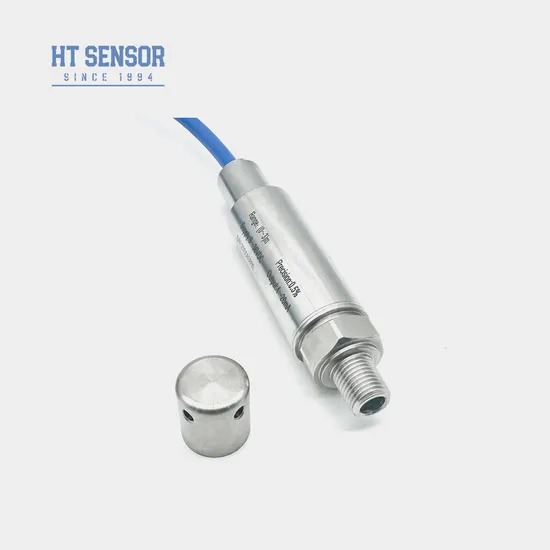

BH93420-IT Submersible Level Transmitter 0-400mH2O IP68 Stainless Steel
Product Details
| Pressure Range: | 0-1m-400 MH2O | Accuracy Grade: | 0.25%,0.5% |
|---|---|---|---|
| IP Rating: | IP68 | Net Weight: | 0.3kg |
| Diaphragm Material: | 316L Stainless Steel | Cable Material: | PE,PU,PTFE |
| Housing Material: | Stainless Steel | Measurement Range: | 0~10m…400m |
| Overload Capacity: | ≤ 2 X Of Rated Range | Repeatability: | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability: | ±0.2%F.S/year (Max.) | Operating Temperature: | -20~80ºC |
| Storage Temperature: | -30~100ºC | Insulation Resistance: | >=100MΩ@100VDC |
| Explosion-proof Rating: | ExiaIICT6 | ||
| Highlight |
submersible level transmitter 0-400mH2O,IP68 water level transmitter,stainless steel level transmitter |
||
Product Description
The BH93420-I Submersible liquid level transmitter uses HT series diffused silicon isolation oil-filled core as its signal measuring element. Designed with a full stainless steel housing and compact one-piece structure, this transmitter features excellent waterproof performance with its completely sealed stainless steel sensing part.
- Full stainless steel housing for various testing environments
- Immersion-type probe measurement for easy installation
- Multiple output signal options available
- Explosion-proof marking: ExiaIICT6
- High protection rate: IP68
- PE or PU cable options
- Compatible with 316LSS and non-corrosive liquids
- Water level monitoring in sewage, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
- Fuel level measurement in diesel and fuel tanks
| Measurement Range | 0~10m...400m |
|---|---|
| Overload | ≤ 2 X of rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Point Temperature Drift | ±1.5%F.S(Typ.) ±2%F.S (Max.) |
| Full Scale Temperature Drift | ±1.5%F.Sr(Typ.) ±2%F.S (Max.) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V | 5VDC | |
| 0/1~10V | ||
| 0.5~4.5V | ||
| RS485 Communication Protocol |
- Ensure the measured medium is compatible with product components
- Specify the density of the measured medium
- For strong electromagnetic/RF interference environments, provide details
- Install lightning protection devices and ensure proper grounding for reliable operation
| Code | Option |
|---|---|
| BH93420 | Pressure Transmitter |
| Measurement Range | 0~10m...400m |
| D1 | 24VDC Power Supply |
| D2 | 5VDC Power Supply |
| D3 | Other Power Supply |
| S1 | 4~20mADC Output |
| S2 | 1~5VDC Output |
| S3 | 0~5VDC Output |
| S4 | 0~10mADC Output |
| S5 | 0~20mADC Output |
| S6 | 0~10VDC Output |
| S7 | 0.5~4.5VDC Output |
| S8 | RS485 Output |
| G | Gauge Pressure Type |
| A | Absolute Pressure Type |
| S | Sealed Reference Pressure Type |
| 01 | 304 Stainless Steel Material |
| 02 | 316L Stainless Steel Material |
| C1 | PE Cable Material |
| C2 | PU Cable Material |
High precision, durability, and excellent performance. Customization available.
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for production and delivery scheduling.
5~8 working days for standard models. Customized products may vary.
Competitive pricing with discounts for bulk orders or long-term partners.
24-month warranty after shipment. Our after-sales team responds within 24 hours, with remote PC network support always available.
