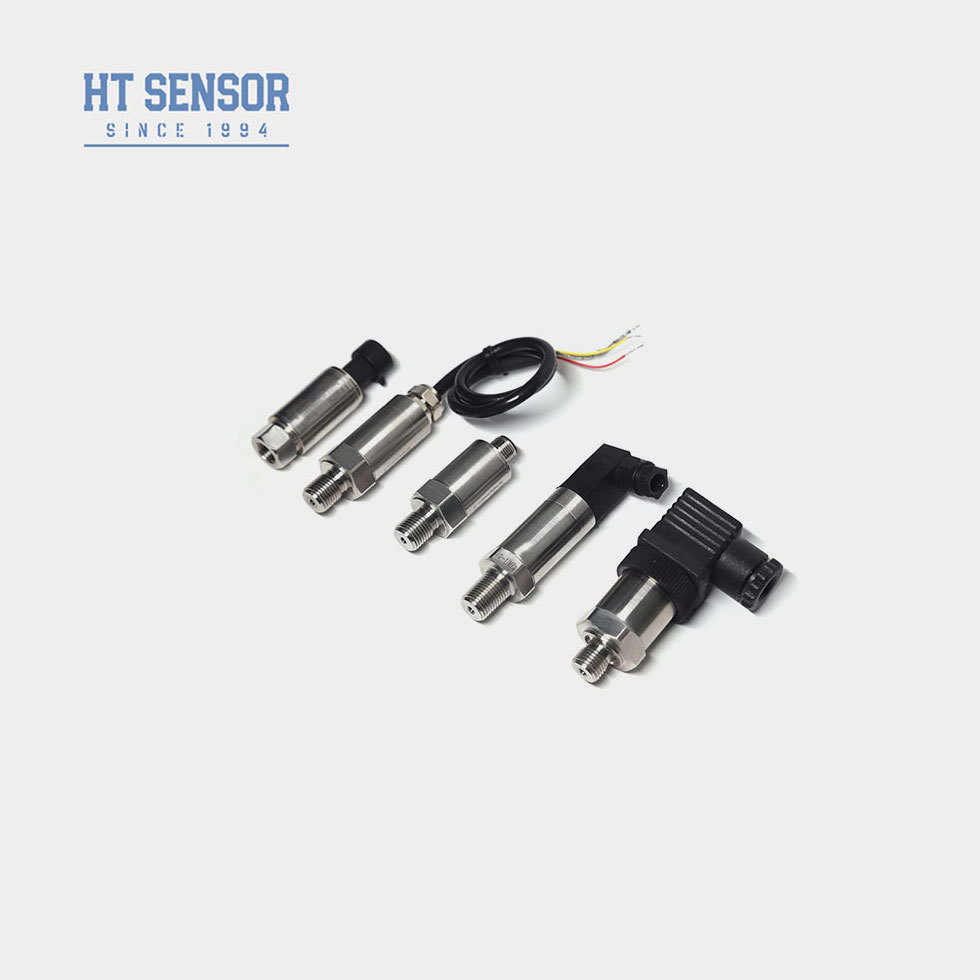

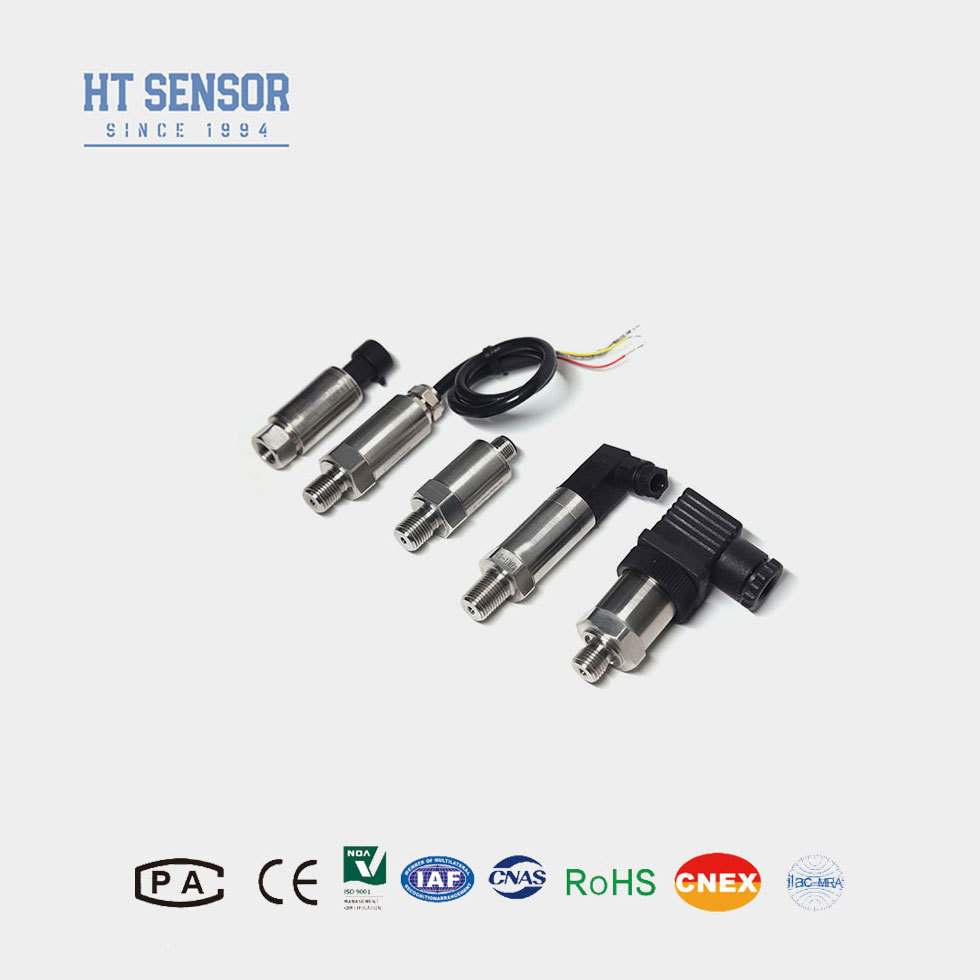

Name: 19. Hengtong BP155 The Perfect Industrial Pressure Sensor for Air Compressors and Refrigeration Equipment
Brand: Baoji Hengtong Electronics Co., LTD
SKU: BP155
Price: 15 USD
Availability: InStock

Detail Information

Model NO.:	BP155	Measuring Medium:	Gas
Accuracy Grade:	0.2G	Pressure Range:	0kpa~10kpa...5MPa
IP Rating:	IP65	Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material:	316L	Long-Term Stability:	0.1%F.S/Year
Diaphragm Material:	316L	Operating Temperature:	-20ºC~80ºC
Storage Temperature:	-40ºC~120ºC	Vibration Resistance:	10g,55Hz ~ 2kHz
Insulation Resistance:	100MΩ 100VDC	Explosion-proof Rating:	Ex Db IIC T6 Gb
Frequency Response:	2.4Khz
Highlight:	316L stainless steel pressure sensor , industrial pressure sensor 0-5MPa , IP65 waterproof pressure sensor

Product Description

BP155 Piezerosistive Pressure Sensor Transmitter

Product Introduction

The BP155 pressure transmitter is a cost-effective solution specifically designed for air compressors and refrigeration equipment. Incorporating advanced technology with our proprietary high-performance transmitter circuit, this compact device offers exceptional moisture resistance and electromagnetic interference protection. Rigorous testing and aging processes ensure stable, reliable performance in demanding environments.

Key Features

Wide measuring range with stainless steel construction
Multiple pressure interface configurations available
Compact, lightweight design for easy installation
Adjustable zero and full-scale calibration
High precision measurement with all-stainless steel structure

Industrial Applications

Pressure measurement of non-corrosive gases and liquids (316L stainless steel compatible)
Marine and aviation industry applications
Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
Hydraulic and pneumatic control systems

Performance Specifications

Parameter	Specification
Measurement Range	0kPa ~ 10kPa…5MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload Capacity	≤ 1.5 times of rated range
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Long-Term Stability	±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Operating Temperature	-20ºC~80ºC
Housing Material	304, 316L Stainless Steel
Protection Rating	IP65
Explosion-proof Rating	Ex db IIC T6 Gb

Electrical Specifications

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V, 0/1~10V, 0.5~4.5V	5VDC

Ordering Information

Important considerations when placing your order:

Verify medium compatibility with product contact materials
Explosion-proof models exclude digital display heads
LCD/LED display models require ≥20VDC power supply
Recommended installation of lightning protection and proper grounding
Fluoro rubber O-ring rated for -20ºC to 250ºC (EPDM required below -20ºC)
Standard 1.5m polyethylene cable (other materials available on request)
Specify special requirements (vibration, EMI/RFI, etc.) when ordering

Product Selection Guide

Code	Option
BP15X	Analog Pressure Transmitter
5/6/7/8	Connection Type (Plug, Cable, or Connector)
(0-X)Kpa/MPa	Custom Measurement Range
D1/D2/D3	Power Supply Selection
S1-S7	Output Signal Configuration
J1-J5	Pressure Connection Type
G/A/S	Pressure Measurement Type

Frequently Asked Questions

Q: What are the key features of your pressure sensor transmitters?

A: Our transmitters offer high precision, durable construction, and excellent performance in demanding conditions. Custom configurations are available.

Q: Do you support custom specifications?

A: Yes, our engineering team provides OEM/ODM services to meet specific application requirements.

Q: What is your production capacity?

A: Our facility can produce 30,000 units monthly. Contact sales for large order coordination.

Q: What is the standard delivery time?

A: 5-8 working days for standard models. Custom products may vary.

Q: What warranty and support do you provide?

A: 24-month warranty with 24-hour response time. Remote technical support available.

Tag:

Place of Origin:	CN
Brand Name:	HT
Certification:	CE, RoHS
Model Number:	BP155

Minimum Order Quantity:	1
Price:	15
