- Compact and Durable Industrial Pressure Sensor in the Air Compressor and Refrigeration Industry
Product Details
| Model NO.: | BP155 | Measuring Medium: | Gas |
|---|---|---|---|
| Accuracy Grade: | 0.2G | Pressure Range: | 0kpa~10kpa...5MPa |
| IP Rating: | IP65 | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Housing Material: | 316L | Long-Term Stability: | 0.1%F.S/Year |
| Overload: | ≤ 1.5 Times Of The Rated Range | Accuracy @ 25ºC: | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability & Hysteresis: | 0.02%F.S(Typ.) 0.05%F.S(Max.) | Zero Point Temperature Drift: | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift: | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) | Frequency Response: | 2.4Khz |
| Operating Temperature: | -20ºC~80ºC | ||
| Highlight |
industrial pressure sensor 316L stainless,IP65 industrial pressure sensor,0.2G accuracy pressure sensor |
||
Product Description

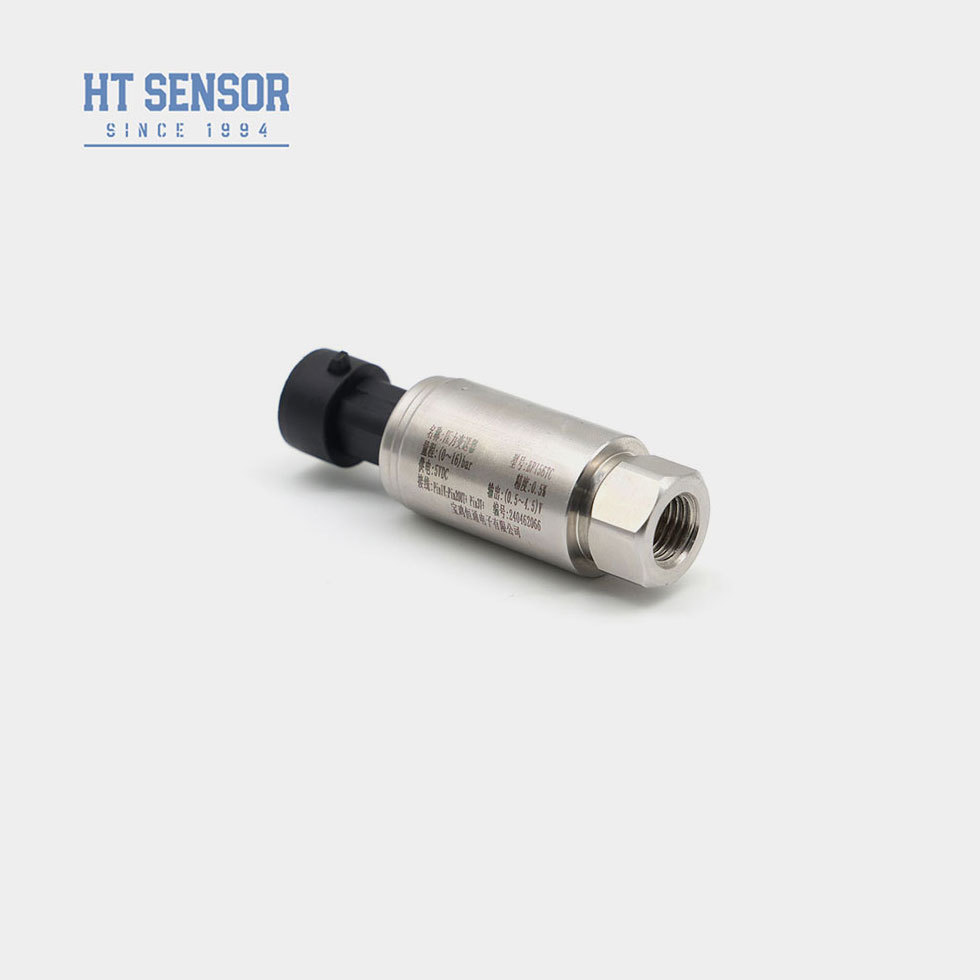

The BP155 pressure transmitter is a cost-effective solution specifically designed for air compressors and refrigeration equipment. This high-performance product features our proprietary transmitter circuit technology, offering compact size, superior moisture resistance, and excellent electromagnetic interference protection.
- Wide measuring range with stainless steel construction
- Multiple pressure interface options available
- Compact and lightweight design
- Adjustable zero and full-scale settings
- High precision measurement with all stainless steel structure
- Pressure measurement of non-corrosive gases and liquids (316L stainless steel)
- Marine and aviation industry applications
- Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Measurement Range | 0kPa ~ 10kPa...5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25°C | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Operating Temperature | -20°C~80°C |
| Housing Material | 304, 316L Stainless Steel |
| Protection Rating | IP65 |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC |
- Ensure medium compatibility with product contact parts
- Explosion-proof models exclude digital display heads
- Minimum 20VDC required for transmitters with LCD/LED displays
- Recommended installation of lightning protection devices
- Default cable length: 1.5m (multiple material options available)
| Code | Option |
|---|---|
| BP15X | Analog Pressure Transmitter |
| 5,6,7,8 | Outline Construction Options |
| D1,D2,D3 | Power Supply Options |
| S1-S7 | Output Signal Options |
| J1-J5 | Pressure Connection Options |
| G,A,S | Pressure Type Options |
