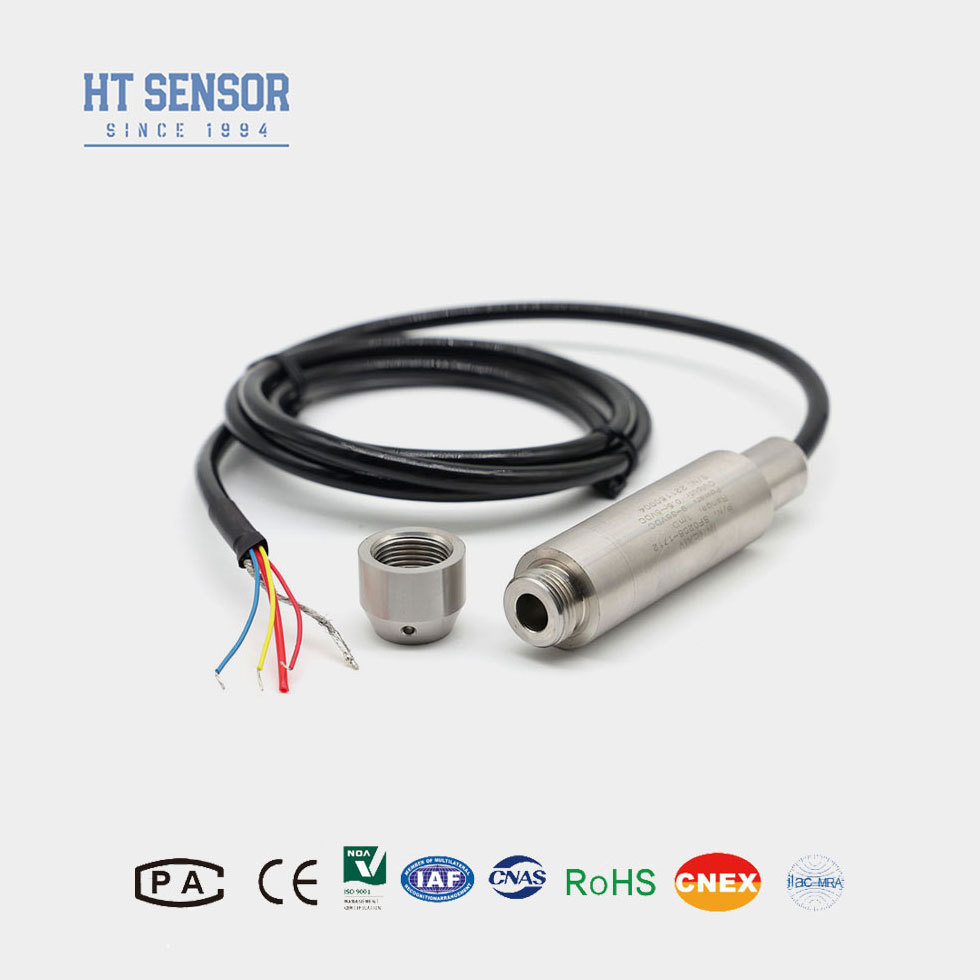

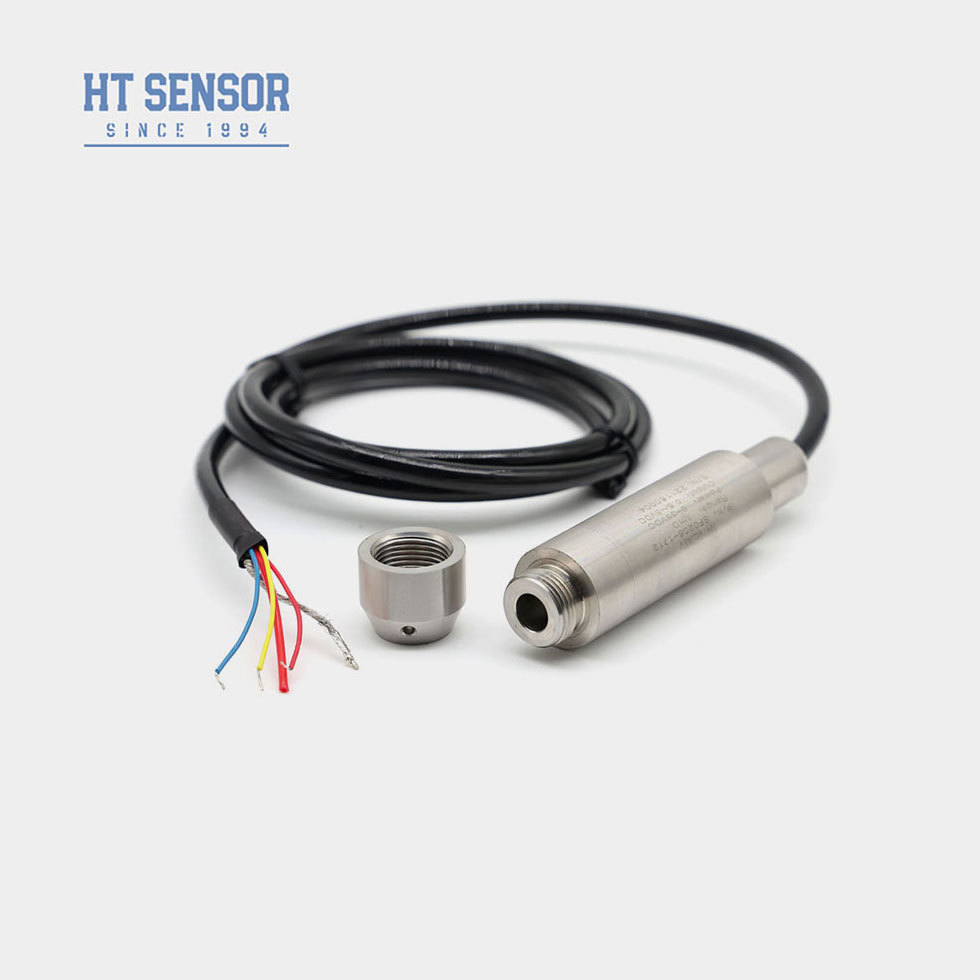

Submersible Water Level Transmitter with HT Series Piezoresistive Isolation Oil-Filled Core for Accurate Level Measurement
Product Details
| Pressure Range: | 0-1m-400 MH2O | Accuracy Grade: | 0.25%,0.5% |
|---|---|---|---|
| IP Rating: | IP68 | Net Weight: | 0.3kg |
| Diaphragm Material: | 316L Stainless Steel | Housing Material: | 304S.S |
| Output Signal: | 4-20mA | Power Supply: | 24VDC |
| Measurement Range: | 0~10m…400m | Overload Capacity: | ≤ 2X Rated Range |
| Repeatability: | ±0.03% (Typ.) ±0.05%FS (Max.) | Operating Temperature: | -20~80ºC |
| Storage Temperature: | -30~100ºC | Insulation Resistance: | >=100MΩ@100VDC |
| Explosion-proof Rating: | ExiaIICT6 | ||
| Highlight |
IP68 water level transmitter,400mH2O water level sensor,4-20mA output level transmitter |
||
Product Description
- Full stainless steel housing, suitable for various testing environments
- Immersion-type probe measurement for easy installation
- Diverse output signal options
- Explosion-proof marking: ExiaIICT6
- High protection rate: IP68
- PE or PU cable options
- Compatible with 316LSS and non-corrosive liquids
- Monitoring water levels in sewage, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
- Measuring fuel levels in diesel and fuel tanks
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V | 5VDC | |
| 0/1~10V | ||
| 0.5~4.5V | ||
| RS485 Communication Protocol |
- Ensure the measured medium is compatible with product components
- Specify the density of the measured medium
- For strong electromagnetic/RF interference environments, provide details
- Install lightning protection devices and ensure proper grounding
| Code | Description |
|---|---|
| BH93420 | Pressure Transmitter |
| I | Measurement Range: 0~10m...400m |
| D1 | Power Supply: 24VDC |
| D2 | Power Supply: 5VDC |
| D3 | Power Supply: Other |
| S1 | Output Signal: 4~20mADC |
| S2 | Output Signal: 1~5VDC |
| S3 | Output Signal: 0~5VDC |
| S4 | Output Signal: 0~10mADC |
| S5 | Output Signal: 0~20mADC |
| S6 | Output Signal: 0~10VDC |
| S7 | Output Signal: 0.5~4.5VDC |
| S8 | Output Signal: RS485 |
| G | Pressure Type: Gauge Pressure |
| A | Pressure Type: Absolute Pressure |
| S | Pressure Type: Sealed Reference Pressure |
| 01 | Material: 304 Stainless Steel |
| 02 | Material: 316L Stainless Steel |
| C1 | Cable Material: PE |
| C2 | Cable Material: PU |
