BH93420-I IP68 Water Level Transmitter 0-400mH2O 24VDC
Product Details
| Pressure Range: | 0-1m-400 MH2O | Accuracy Grade: | 0.25%,0.5% |
|---|---|---|---|
| IP Rating: | IP68 | Net Weight: | 0.3kg |
| Diaphragm Material: | 316L Stainless Steel | Housing Material: | 304S.S |
| Output Signal: | 4-20mA | Power Supply: | 24VDC |
| Measurement Range: | 0~10m…400m H2O | Overload Capacity: | ≤ 2X Rated Range |
| Repeatability: | ±0.03% (Typ.) ±0.05%FS (Max.) | Long-Term Stability: | ±0.2%F.S/year (Max.) |
| Operating Temperature: | -20~80ºC | Storage Temperature: | -30~100ºC |
| Insulation Resistance: | >=100MΩ@100VDC | ||
| Highlight |
IP68 water level transmitter,0-400mH2O water level sensor,24VDC water level transmitter |
||
Product Description

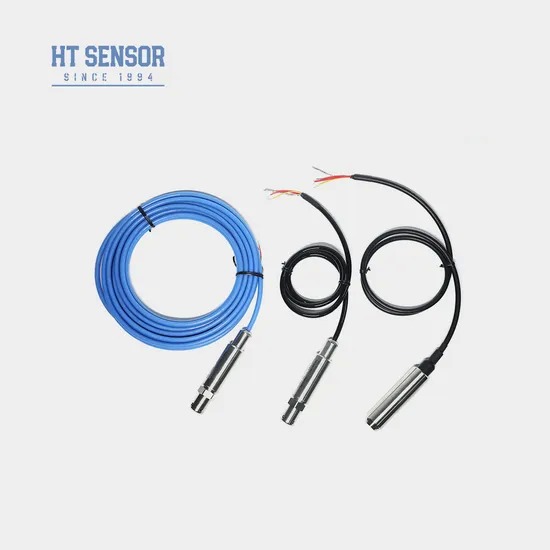

The BH93420-I is a submersible liquid level transmitter that uses HT series piezoresistive isolation oil-filled core as its signal measuring element. Designed with a full stainless steel housing and compact one-piece structure, this transmitter offers excellent waterproof performance with its completely sealed stainless steel sensing part.
- Full stainless steel housing for various testing environments
- Immersion-type probe measurement for easy installation
- Multiple output signal options available
- Explosion-proof marking: ExiaIICT6
- High protection rate: IP68
- PE or PU cable options
- Compatible with 316LSS and non-corrosive liquids
- Water level monitoring in sewage, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
- Fuel level measurement in diesel and fuel tanks
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400m H2O |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Operating Temperature | -20~80ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC | |
| RS485 | Communication Protocol |
- Ensure measured medium compatibility with product components
- Specify the density of measured medium
- For strong electromagnetic/RF interference environments, provide details
- Install lightning protection devices and ensure proper grounding
| Component | Code | Option |
|---|---|---|
| Measurement Range | 0~10m...400m H2O | |
| Power Supply | D1 | 24VDC |
| Output Signal | S1-S8 | Various options including 4~20mADC, 0~10VDC, RS485 |
| Pressure Type | G/A/S | Gauge/Absolute/Sealed Reference |
| Material | 01/02 | 304/316L Stainless Steel |
| Cable Material | C1/C2 | PE/PU |
High precision, durability, and excellent performance. Customization available.
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
We can produce up to 30,000 units monthly. Contact our sales team for large orders.
5-8 working days for standard models. Customized products may vary.
