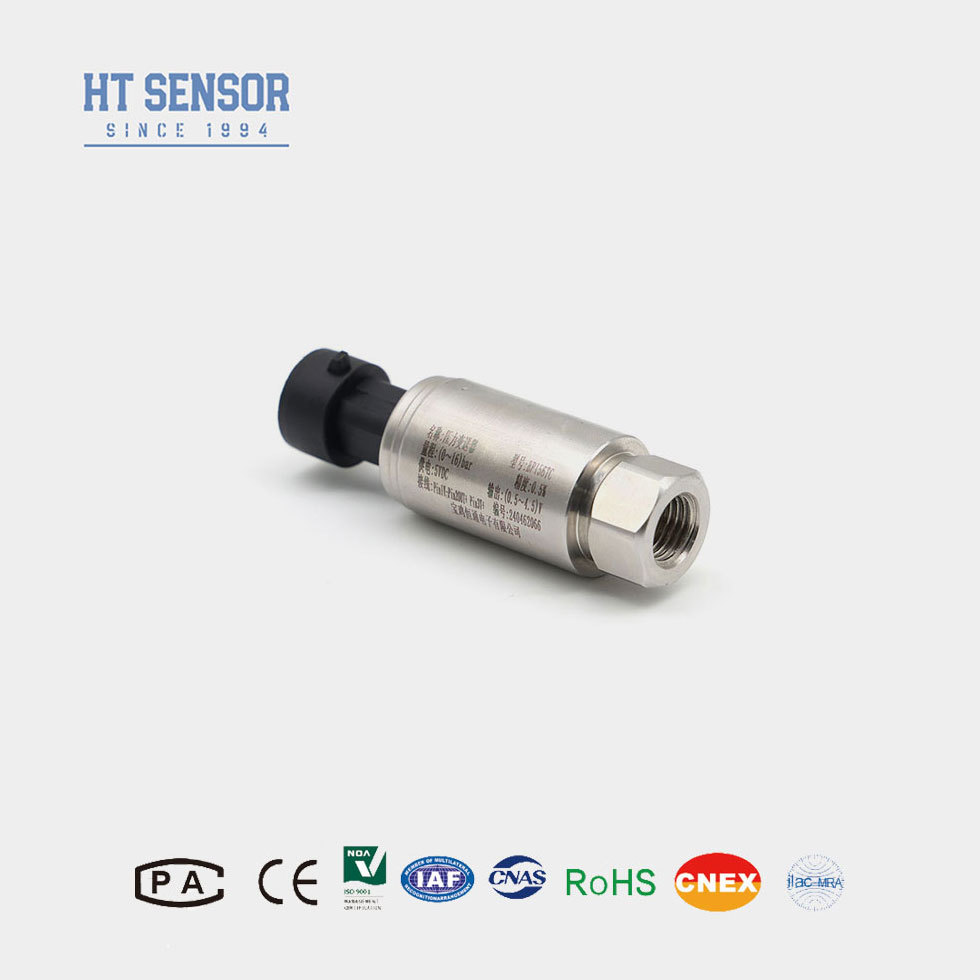

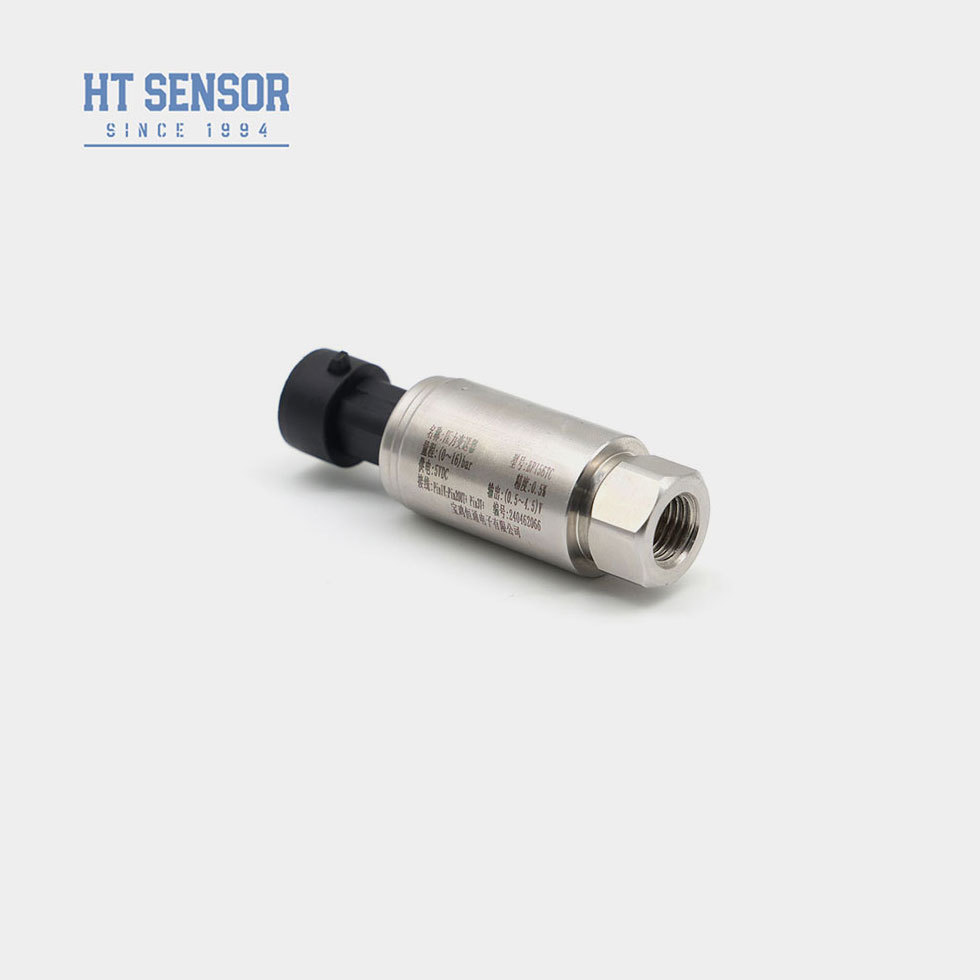

BP155 Air Water Gas Measurement Sensor Industrial Pressure Sensor for Air Compressors and Refrigeration Equipment Direct
Product Details
| Model NO.: | BP155 | Measuring Medium: | Gas |
|---|---|---|---|
| Accuracy Grade: | 0.2G | Pressure Range: | 0kpa~10kpa...5MPa |
| IP Rating: | IP65 | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Housing Material: | 316L | Long-Term Stability: | 0.1%F.S/Year |
| Measurement Range: | 0kPa ~ 10kPa…20MPa | Overload: | ≤ 1.5 Times Of The Rated Range |
| Accuracy @ 25ºC: | ±0.25% (Typical) ±0.5% (Maximum) | Repeatability& Hysteresis: | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Zero Point Temperature Drift: | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) | Full Scale Temperature Drift: | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response: | 2.4Khz | ||
| Highlight |
BP155 gas pressure transmitter,IP65 industrial pressure sensor,0.2G accuracy pressure transmitter |
||
Product Description
The BP155 Pressure Transmitter is a cost-effective solution specifically designed for air compressors and refrigeration equipment. Incorporating advanced technology and our proprietary high-performance transmitter circuit, this transmitter features a compact design with superior moisture resistance and excellent anti-electromagnetic interference capabilities. Rigorous testing and aging selection processes ensure stable and reliable performance.
- Wide measuring range with stainless steel construction
- Multiple pressure interface options available
- Compact and lightweight design for easy installation
- Adjustable zero and full-scale settings
- High precision measurement with all stainless steel structure
- Pressure measurement of non-corrosive gases and liquids (316L stainless steel)
- Marine and aviation industry applications
- Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Parameter | Specification |
|---|---|
| Measurement Range | 0kPa ~ 10kPa...20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload Capacity | ≤ 1.5 times of rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Operating Temperature | -20ºC~80ºC |
| Housing Material | 304, 316L Stainless Steel |
| Protection Rating | IP65 |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC |
- Ensure medium compatibility with product contact parts
- Explosion-proof models exclude digital display heads
- Minimum 20VDC required for transmitters with LCD/LED displays
- Recommended installation of lightning protection devices
- Default cable length: 1.5m (polyethylene material)
- Special requirements must be specified during ordering
| Feature | Options |
|---|---|
| Outline Construction | 5: Packard plug, 6: Sealed Direct Output Cable, 7: Mini Hirschmann, 8: Large Hirschmann |
| Measurement Range | 0kPa ~ 10kPa...5MPa (customizable) |
| Power Supply | D1: 24VDC, D2: 5VDC, D3: Other |
| Output Signal | S1: 4~20mADC, S2: 1~5VDC, S3: 0~5VDC, etc. |
| Pressure Connection | J1: M20×1.5, J2: G1/2, J3: G1/4, etc. |
A: High precision, durability, and excellent performance. Customization available.
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
A: Our facilities can produce up to 30,000 units monthly. Contact our sales team for large orders.
A: 5-8 working days for standard models. Custom products may vary.
A: Competitive pricing with bulk order discounts available.
A: 24-month warranty with 24-hour response time for technical support.
