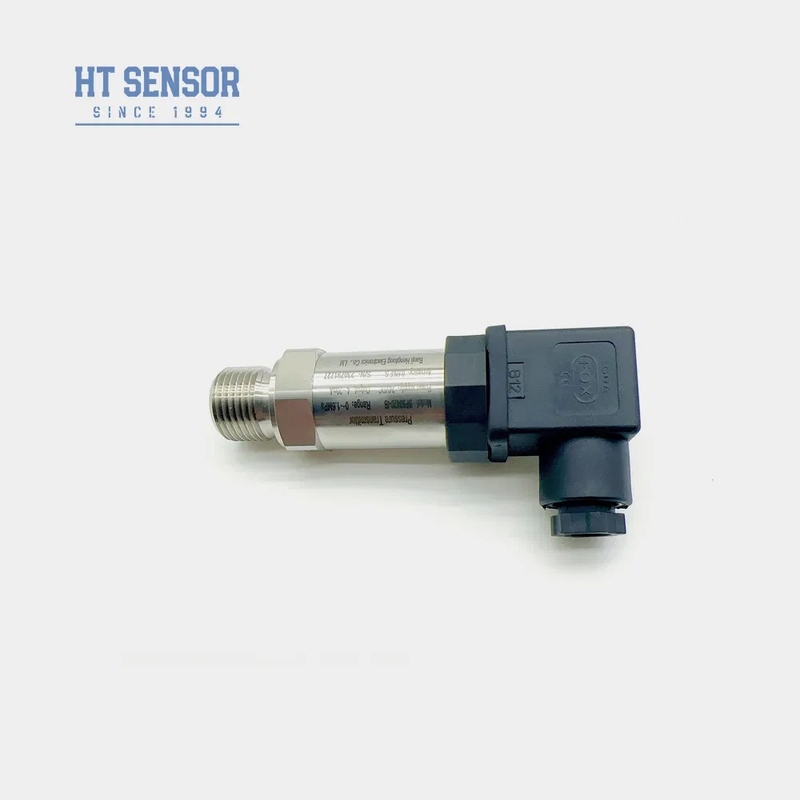

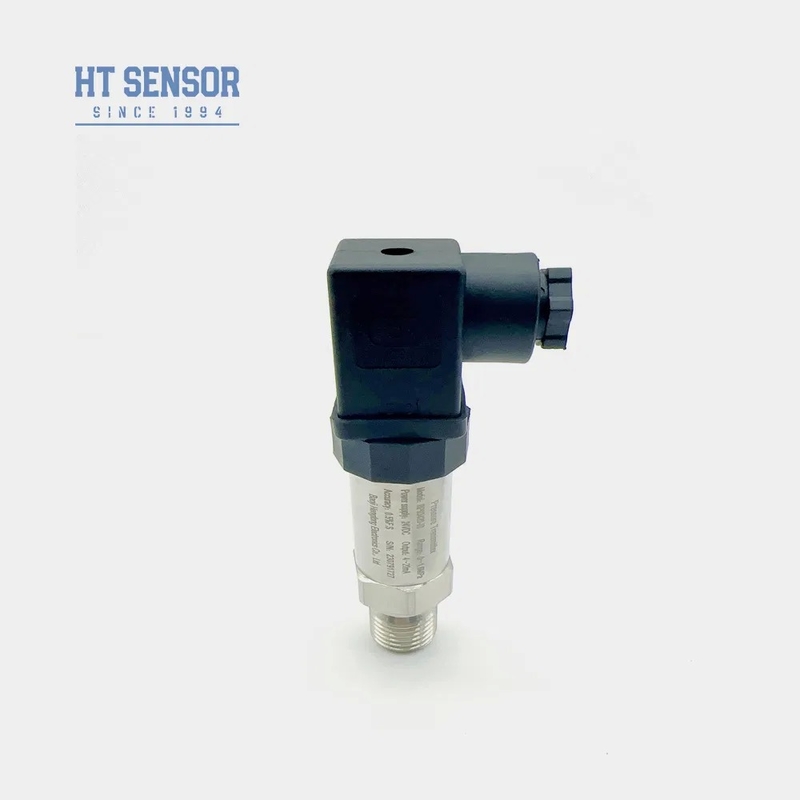

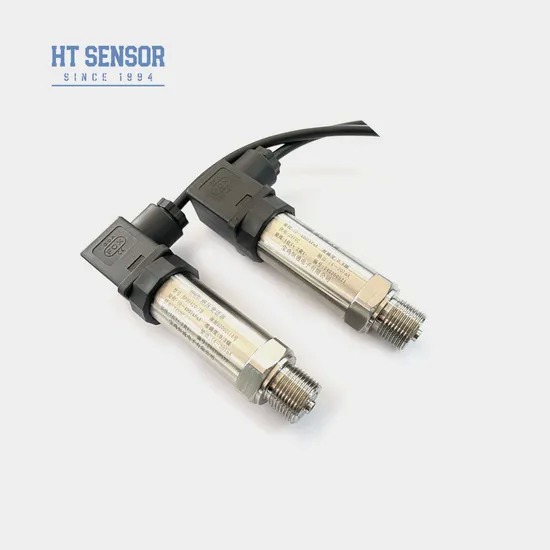

HT 4-20mA Pressure Transmitter 0.5G Accuracy IP65 for Liquid Measurement
Product Details
| Model NO.: | BP93420-IB | Measuring Medium: | Liquid |
|---|---|---|---|
| Accuracy Grade: | 0.5G | Pressure Range: | 0kpa~10kpa...100MPa |
| IP Rating: | IP65 | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Housing Material: | 316L | Long-Term Stability: | +-0.2%F.S/Year(Typ.) |
| Diaphragm Material: | 316L | Operating Temperature: | -20ºC~80ºC |
| Storage Temperature: | -40ºC~120ºC | Vibration Resistance: | 10g,55Hz ~ 2kHz |
| Insulation Resistance: | 100MΩ 100VDC | Explosion-proof Rating: | Ex Db IIC T6 Gb |
| Weight: | ~0.15kg | ||
| Highlight |
4-20mA pressure transmitter for liquid,IP65 industrial pressure sensor,0.5G accuracy pressure transmitter |
||
Product Description
The BP93420IB pressure transmitter utilizes HT series diffusion silicon isolation oil-filled core technology for signal measurement. Housed in stainless steel, it converts sensor signals into standard output signals. Rigorous testing and aging screening ensure stable, reliable performance.
- Wide measuring range with stainless steel construction
- Compact, lightweight design with multiple pressure interface options
- Adjustable zero and full-scale settings
- High precision with all-stainless steel structure
- Pressure measurement of non-corrosive gases/liquids (316L stainless steel compatible)
- Marine and aviation industry applications
- Industrial processes: petroleum, chemical, metallurgy, power generation, hydrology
- Hydraulic and pneumatic control systems
| Measurement Range | -100kPa...0kPa ~ 10kPa...100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload Capacity | ≤ 1.5 times rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Operating Temperature | -20ºC~80ºC |
| Housing Material | 304, 316L Stainless Steel |
| Protection Rating | IP65 |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC |
- Verify medium compatibility with product contact parts
- Explosion-proof models exclude digital display heads
- LCD/LED display models require ≥20VDC power supply
- Install lightning protection and ensure proper grounding
- Default 1.5m polyethylene cable (other materials available)
| Code | Configuration Option |
|---|---|
| IB | General Pressure Transmitter |
| IX | Display Pressure Transmitter |
| D1 | 24VDC Power Supply |
| S1 | 4~20mADC Output |
| J1 | M20×1.5 Pressure Connection |
| G | Gauge Pressure Type |
Our transmitters offer high precision (±0.25% typical), durable stainless steel construction, and customizable configurations for various industrial applications.
Yes, our engineering team provides OEM/ODM services to meet specific application requirements.
We can produce 30,000 units monthly. Contact our sales team for large order planning.
