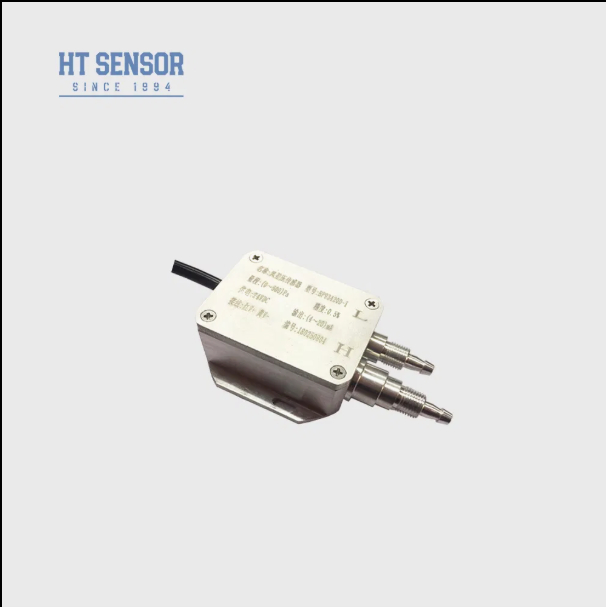

Hengtong IP65 Differential Pressure Sensor 500PA~200kpa 24VDC for Air Wind Pressure Transmitter
Product Details
| Water Proof: | IP65,IP66,IP67,IP68 Optional | Measuring Medium: | Gas Or Liquid |
|---|---|---|---|
| Mounting Type: | Direct Or Remote | Transmitter Type: | Capacitive Pressure Transmitter |
| Type: | Electronic | Port Size: | 1/4 NPT |
| Contact: | Φ 6 Pagoda Mouth H59 Copper | Quality: | High Quality |
| Warranty: | 2 Years | Transport Package: | Standard Export Packing With Carton |
| Electrical Connection: | M20*1.5 | Wetted Materials: | Stainless Steel |
| Capillary: | Yes | Customization: | OEM |
| Secondary Variable: | Static Pressure | ||
| Highlight |
IP65 Differential Pressure Sensor,500PA~200kpa Pressure Transmitter,24VDC Differential Pressure Transmitter |
||
Product Description
The BP93420D-I differential pressure transmitter utilizes the piezoresistive effect of semiconductor silicon material to convert differential pressure into an electrical signal. Designed for measuring small differential pressures of non-corrosive dry gases, it's ideal for applications in boiler air supply, underground ventilation, and cleanroom pressure monitoring.
| Model Number | BP93420D-I |
|---|---|
| Measuring Medium | Gas |
| Accuracy Grade | 1.0G |
| Pressure Range | 500PA~200kpa |
| IP Rating | IP65 |
| Power Supply | 24VDC |
| Output Signal | 4-20mA /0-10VDC |
| Housing Material | Aluminium alloy |
| Connection | φ6 air nozzle |
- Available in aluminum or plastic casing options
- Lightweight design for easy installation
- Rigorously tested for wide temperature range operation (-20ºC to 80ºC)
- High accuracy (±0.5% typical)
- IP65 protection rating for durability
- Boiler air supply systems
- Mining industry ventilation
- Power generation facilities
- Brewing industry process control
- Cleanroom pressure monitoring
| Measurement Range | 0-500Pa to 0-200KPa (multiple ranges available) |
|---|---|
| Pressure Type | Differential Pressure |
| Static Pressure | 2 times of rated range |
| Overload Capacity | ≤ 1.5 times of rated range |
| Accuracy @ 25ºC | ±0.5% (Typical) / ±1% (Maximum) |
| Temperature Drift | ±2.5%F.S/ºC (Typical) / ±3%F.S/ºC (Maximum) |
| Operating Temperature | -20ºC to 80ºC |
| Storage Temperature | -40ºC to 100ºC |
| Package Size | 14.20cm × 5.50cm × 8.00cm |
|---|---|
| Gross Weight | 0.250kg |
| Transport Package | Carton |
