Detail Information

Measurement Types:	Differential Pressure&Static Pressure	Accuracy:	±0.1% Of Span
Ambient Temperature:	- 40-85 ℃	Weight:	0.5 Kg
Overload Pressure:	300%FS	Operate Temperature:	-20~150℃
Pressure Type:	Differential Pressure	Electrical Connector:	Terminal Block, Cable
Working Temperature:	-10~70℃	Relative Humidity:	5~98%RH
Pressure Port:	G1/4, G1/2 1/4NPT, 1/2NPT And Others	Supply Voltage:	24(V)
Turndown Ratio:	100:1	Model No:	HT3351
Housing Material:	Aluminum
Highlight:	High Accuracy Differential Pressure Transmitter , Wide Temperature Range Pressure Transmitter , 300% Overload Pressure Transmitter

Product Description

Baoji Hengtong Diffused Silicon Differential Water Pressure Transmitter

BP93420DII Differential Pressure Transmitter

The BP93420DII differential pressure transmitter utilizes a piezoresistive diffused silicon sensor. When differential pressure acts on the sensor's diaphragms, the Wheatstone bridge output provides accurate linear measurement. Ideal for gas and liquid differential pressure measurement in petroleum, chemical, power, and hydrology industries.

Product Features

Stainless steel construction for durability and easy installation
Rigorous temperature compensation and aging screening ensure stable performance
Flexible electrical interface options: plug-in or direct wiring

Applications

Differential pressure measurement for gases/liquids in pipelines (petroleum, chemical, power, hydrology)
Industrial process monitoring in petroleum, chemical, metallurgy, power generation
Pipeline and furnace chamber pressure measurement

Performance Parameters

Measurement Range	0-10KPa...~2MPa
Pressure Type	Differential Pressure
Accuracy @ 25°C	±0.25% (Typical) ±0.5% (Maximum)
Operating Temperature	-30°C~80°C
Housing Material	304, 316L stainless steel
Protection Rating	IP65

Output Signal Specifications

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V, 0.5~4.5V	5VDC

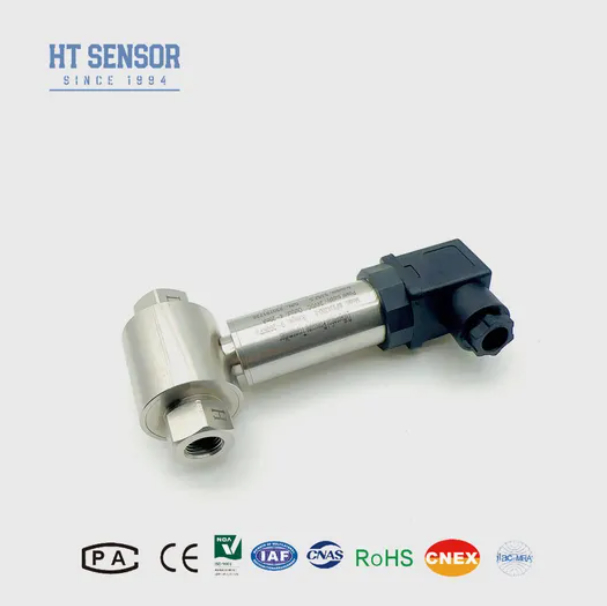

Product Images

Ordering Information

Verify medium compatibility with product materials before selection
Recommended installation with three-valve manifold for pressure regulation
Position pressure interfaces horizontally for optimal performance
Specify special requirements (vibration, EMI/RFI protection) when ordering
