316L Stainless Steel Pressure Sensor With Compensated Oil-filled Sensor Pressure Transducer Cell
Product Details
| Model NO.: | HT15V | Output Signal Type: | Analog Type |
|---|---|---|---|
| Material: | Stainless Steel | Wiring Type: | Four-Wire |
| Measuring Medium: | Gas And Liquid | Customized: | Customized |
| Keywords: | Mini Sensor | Supply: | 5-10VDC |
| Output: | Mv Sigal | Transport Package: | Carton |
| Specification: | 15mm | Origin: | China |
| Highlight |
316L stainless steel pressure transducer,oil-filled compensated pressure sensor,pressure transmitter sensor with warranty |
||
Product Description

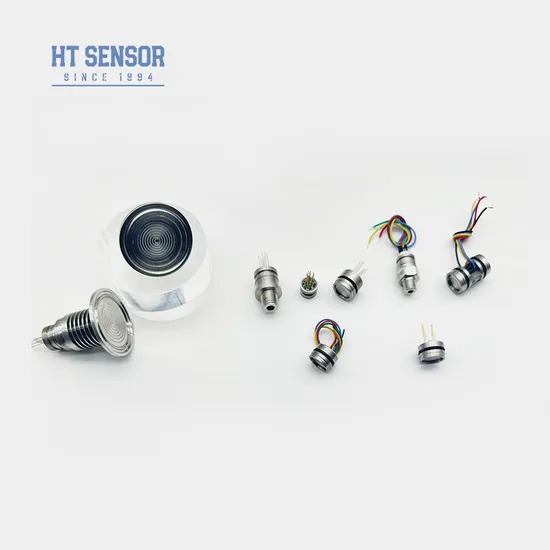

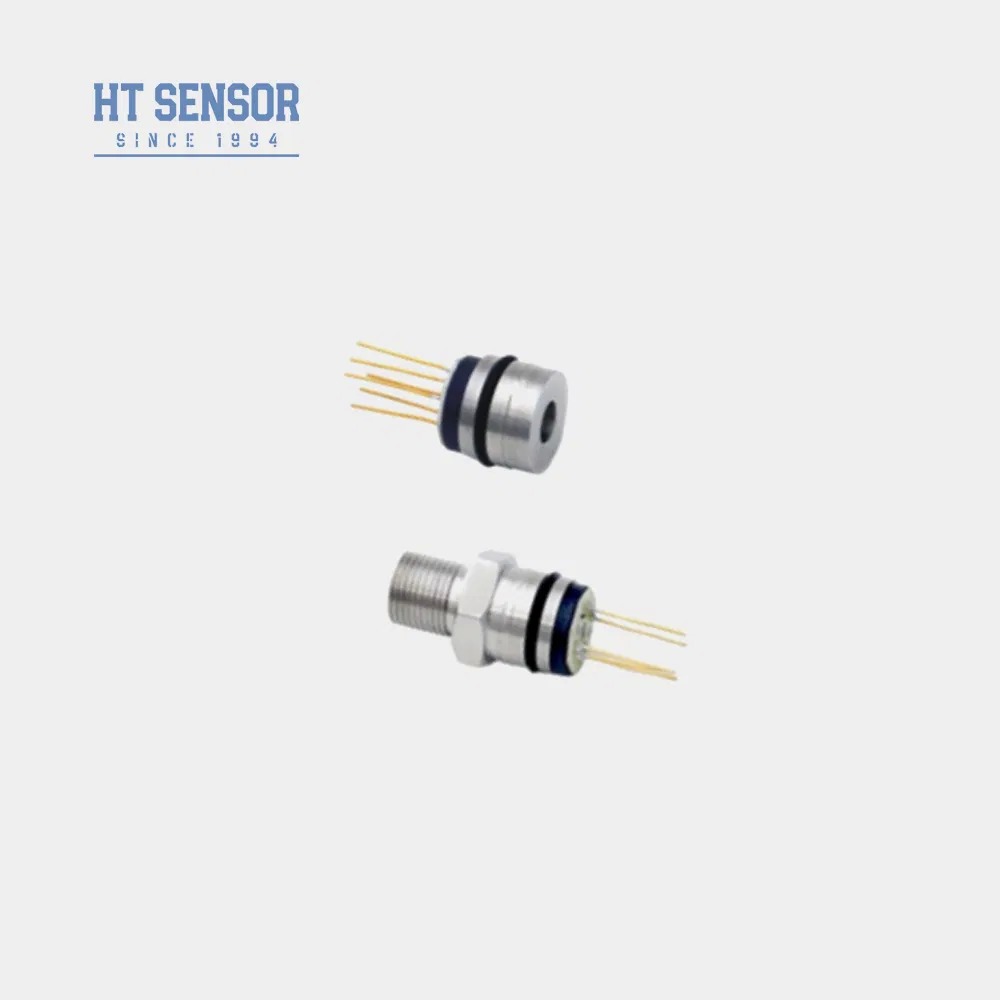

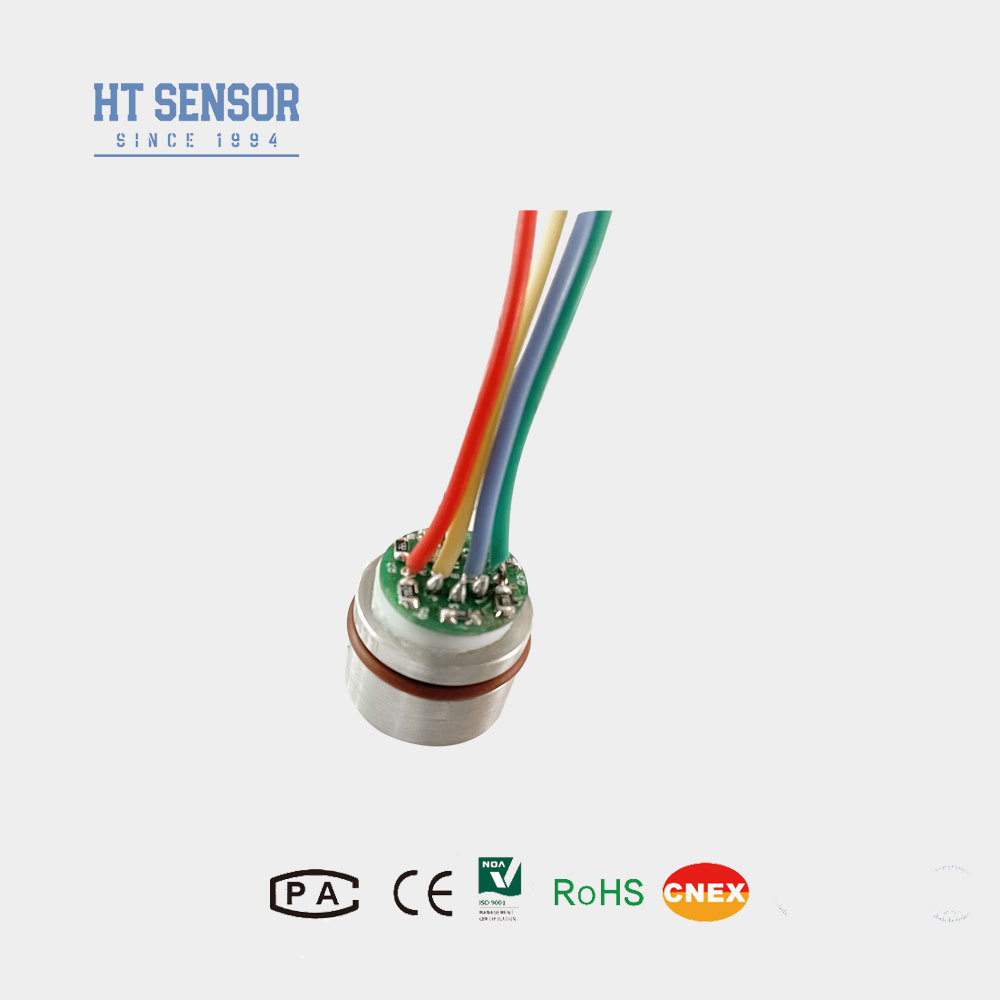

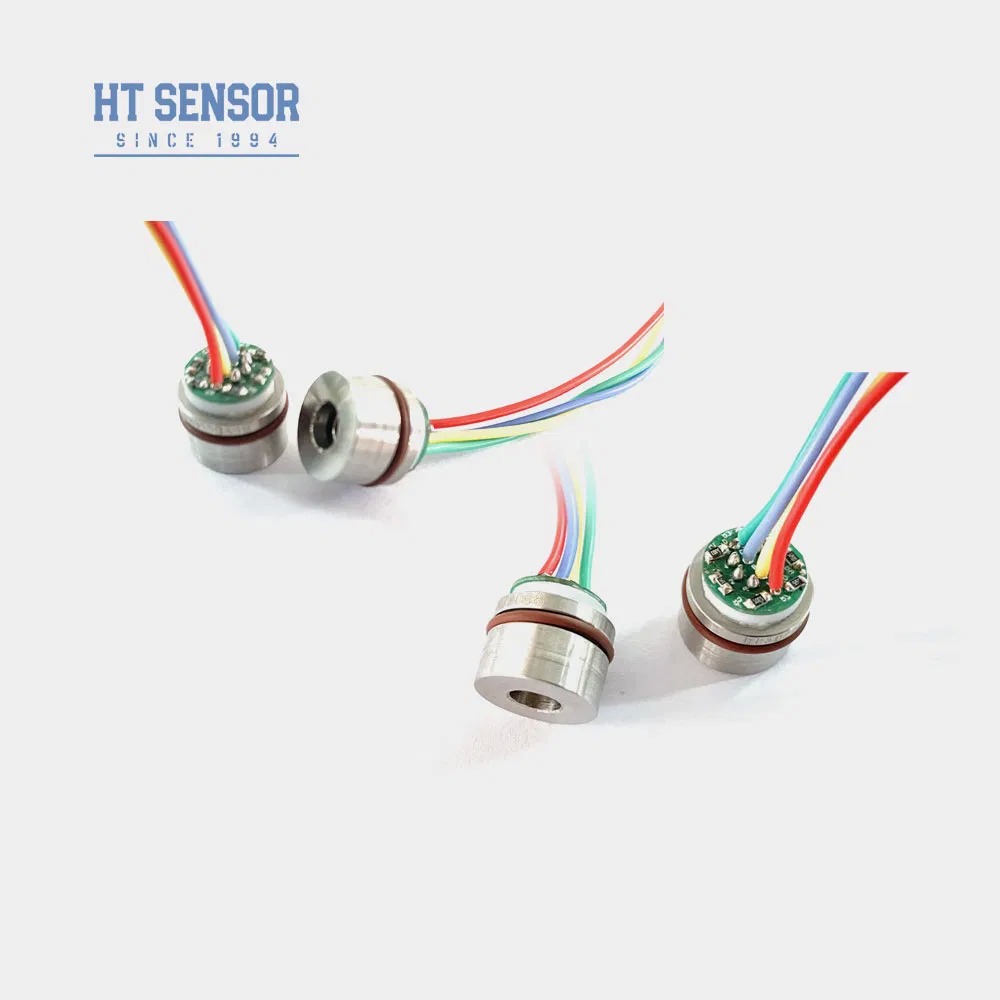

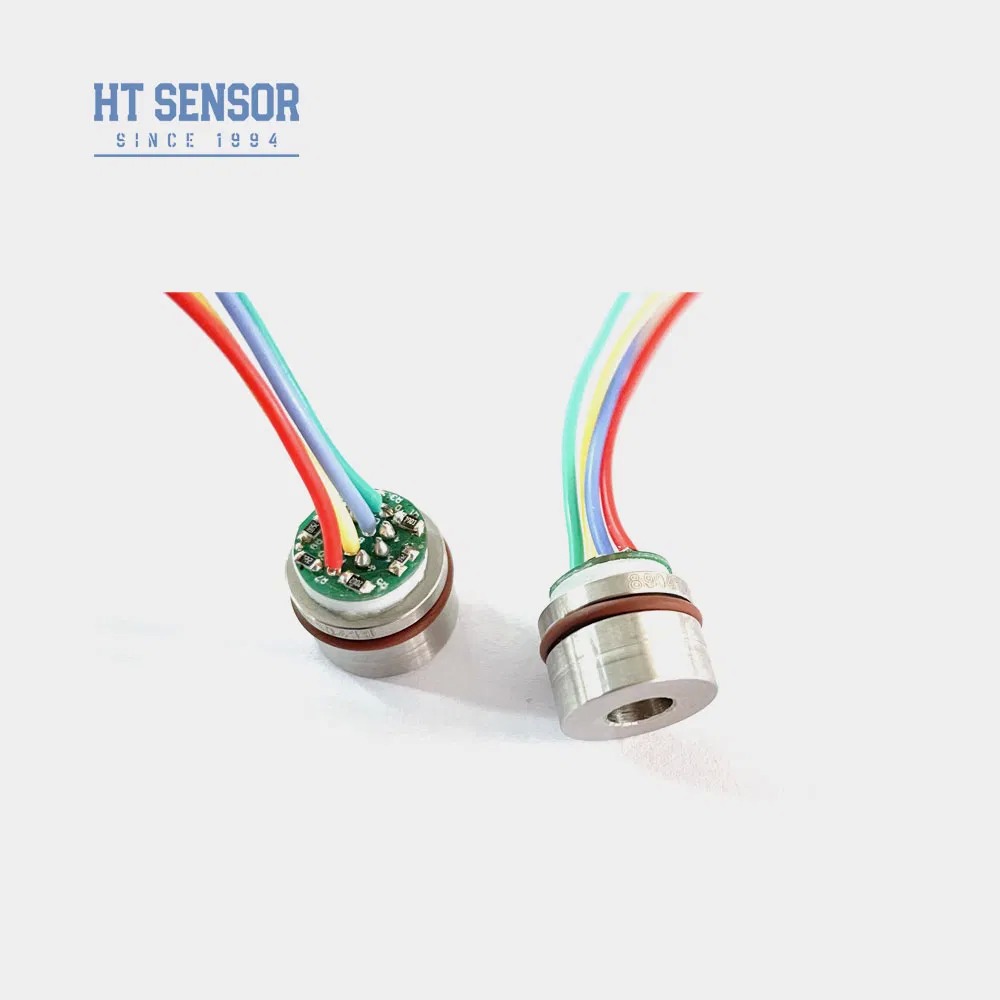

316L stainless steel with compensated oil-filled sensor pressure transducer
Introduction:
HT15V is a silicon piezoresistive pressure sensor that integrates a highly stable diffused silicon sensing core. Utilizing the piezoresistive effect of diffused silicon, it provides accurate pressure measurement for both liquids and gases. This sensor is widely used in a variety of applications, such as air compressors and refrigeration systems.
Product Features:
- Utilizes advanced technology and is encapsulated in a 316L stainless steel housing
- Wide measuring range 0~350KPa~60MpaS
- High reliability and excellent stability
- Constant voltage supply
- Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
- Compact design, ideal for applications with limited space
- Used in process control systems for monitoring and controlling pressure
- Commonly used in refrigeration systems and air compressors for pressure measurement
- Power Supply: ≤10VDC
- Common Mode Voltage Output: 50% of the input (typical)
- Input Impedance:4KΩ~20KΩ
- Output Impedance:2.5KΩ~6KΩ
- Electrical Connection:100mm high-temperature wire,ribbon cable
| Performance Parameters: | |||||
|---|---|---|---|---|---|
| Measurement Range | Gauge(G) | 350KPa,1000KPa,2000Kpa | |||
| Absolute(A) | 350KPaA,700KPaA,1000KPaA,2000KPaA | ||||
| Sealed(S) | 3500KPaS,7MPaS,10MPaS | ||||
| Typ | Max | Unit | |||
| NonLinearity | ±0.15 | ±0.3 | %F.S | ||
| Repeatability | 0.05 | 0.1 | %F.S | ||
| Hysteresis | 0.05 | 0.1 | %F.S | ||
| Zero Offset Output | 0±1 | 0±2 | mV | ||
| Full Scale Output | 100±1 | 100±2 | mV | ||
| Zero Offset Temp. Drift | ±0.8 | ±2 | %F.S | ||
| Full Scale Temp. Drift | ±0.8 | ±2 | %F.S | ||
| Compensated Temp. | 0~70 | ºC | |||
| Operating Temperature | -20~80 | ºC | |||
| Storage Temperature | -40~125 | ºC | |||
| Allowable Overload | Take the smaller value between 3 times the full scale or 80MPa | ||||
| Burst Pressure | 5X the full scale | ||||
| Long-term Stability | 0.2 % | F.S/Year | |||
| Diaphragm Material | 316L | ||||
| Insulation Resistance | ≥200MΩ 100VDC | ||||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | ||||
| Shock | 100g,11ms | ||||
| Response Time | ≤1ms | ||||
| O-ring Seal | Nitrile rubber or Fluoro rubber | ||||
| Filling Medium | Silicon Oil | ||||
| Weight | ~20g | ||||
| The parameters are tested under the following conditions: 10V @25ºC | |||||
| Outline Construction | |
| Dimension | |
| Electrical connection and compensation |
|
| Selection Examples |
| Ordering tips |
1. During assembly, ensure proper fit between the core and transmitter housing to meet all sealing specifications.
2. When installing the housing, maintain vertical alignment and apply even pressure to prevent jamming or damage to the compensation plate.
3. If the medium being measured is incompatible with the core diaphragm or housing material (316L), please specify this clearly when placing the order.
4. Do not press on the sensor diaphragm with hands or sharp objects, as deformation or puncture may damage internal components.
5. Keep the pressure port of the gauge core vented to the atmosphere, and prevent moisture, steam, or corrosive media from entering the negative pressure chamber.
6. In case of any changes to pin wiring, always refer to the actual label on the chip for correct connections.
| Q&A |
.
.
