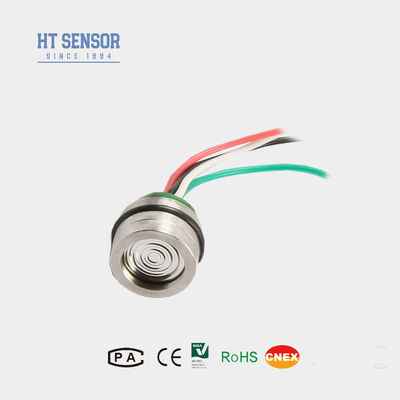

Name: Stainless Steel Micro Small Pressure Sensor High Accuracy Pressure Load Cell Pressure Transducer Sensor
Brand: Baoji Hengtong Electronics Co., LTD
SKU: HT15V
Price: 20 USD
Availability: InStock

Detail Information

Model NO.:	HT15V	For:	Diffused Silicon Pressure Transmitter
Material:	Stainless Steel	Wiring Type:	Four-Wire
Measuring Medium:	Gas And Liquid	Customized:	Customized
Supply:	5-10VDC	Wire:	13mm Silicone Wire
Output:	Mv Sigal	Transport Package:	Carton
Dia:	15mm	Trademark:	HengTong
Origin:	China	HS Code:	9026209090
Highlight:	stainless steel pressure sensor , high accuracy load cell , micro pressure transducer

Product Description

Stainless Steel Micro Small Pressure Sensor High Accuracy Pressure Load Cell Pressure Transducer Sensor

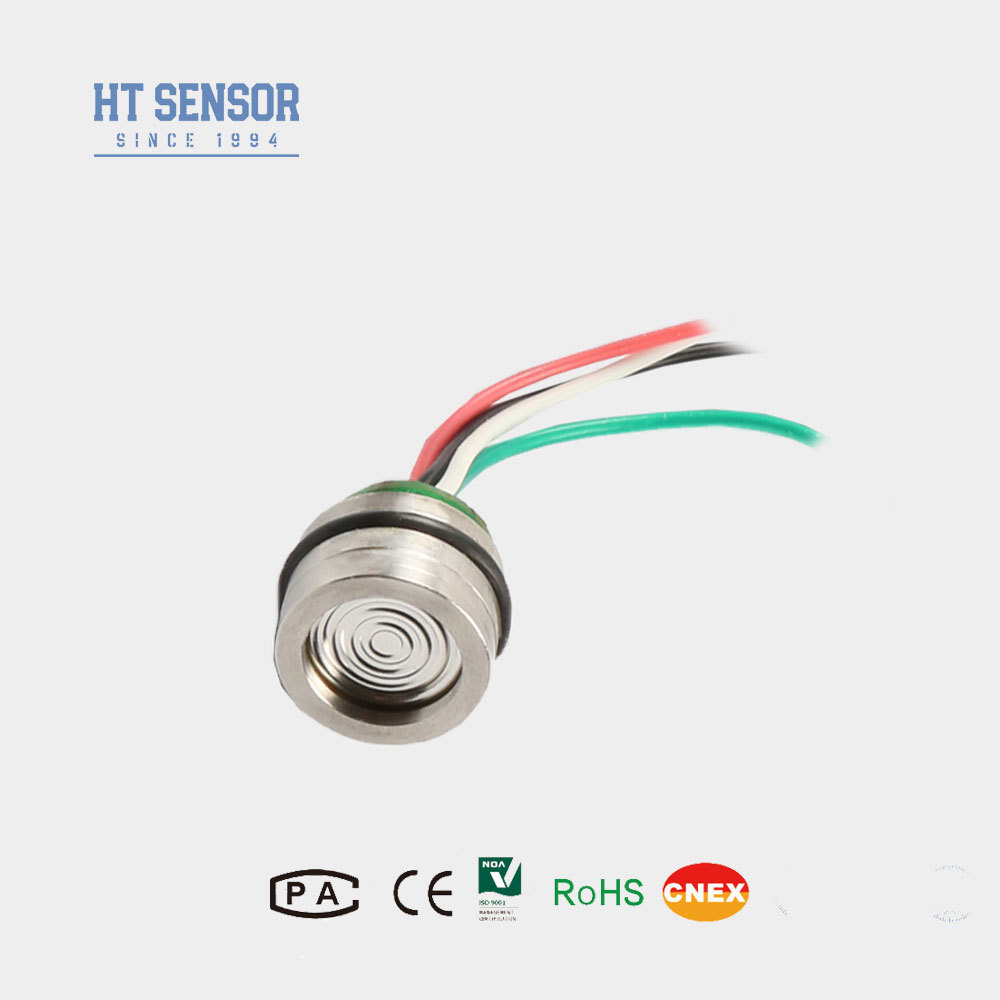

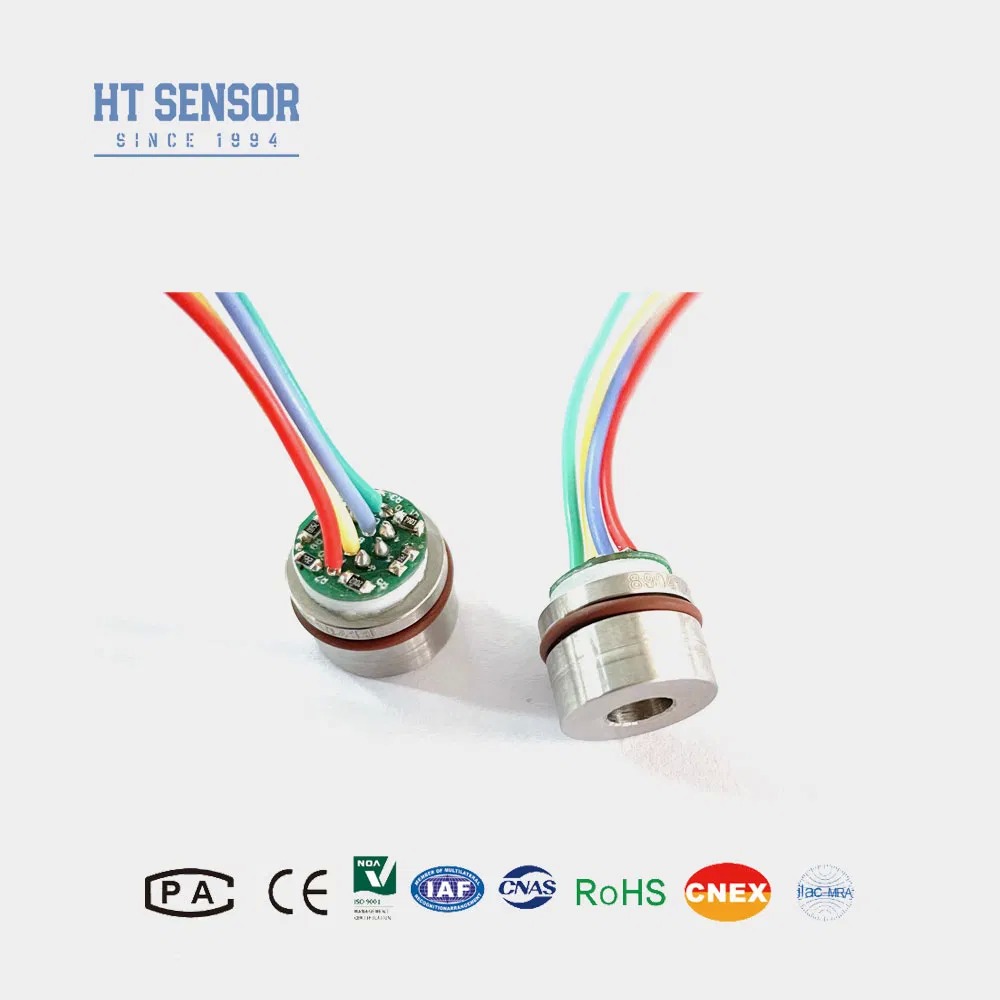

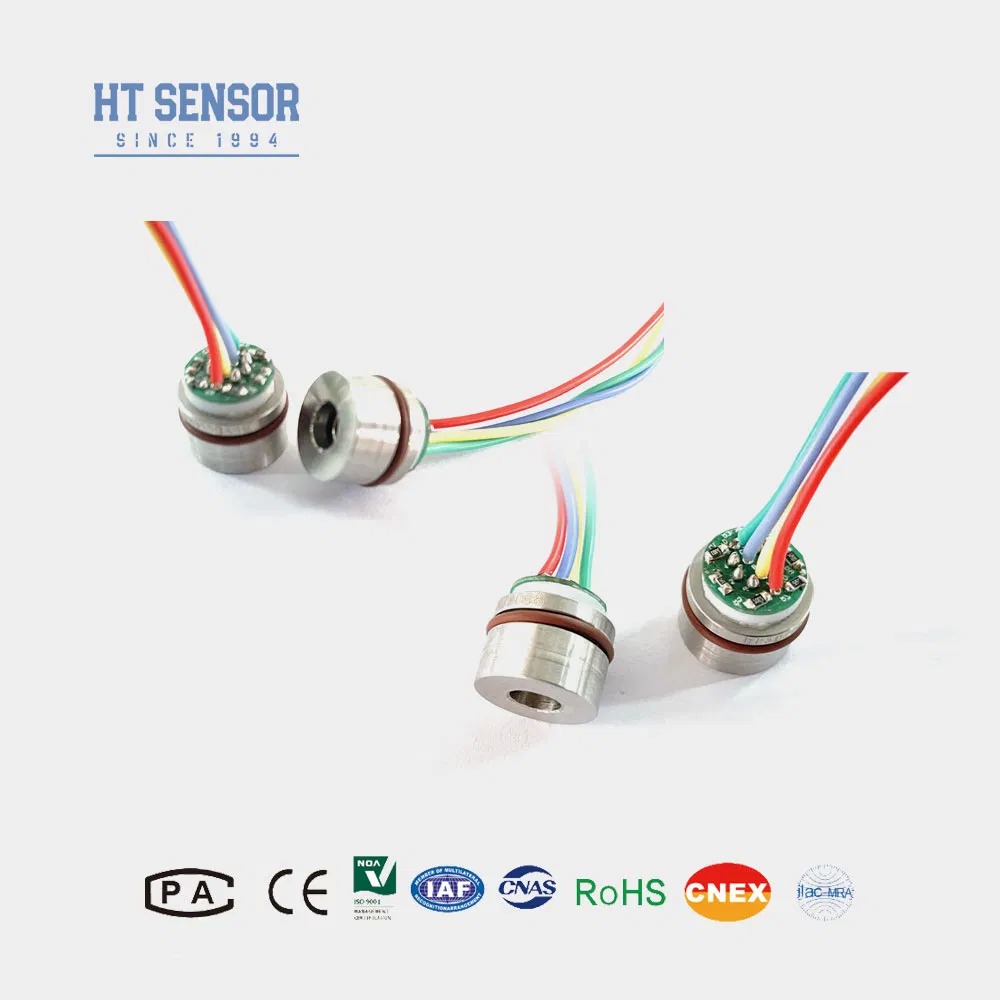

HT15V Silicon Piezoresistive Pressure Sensor

Introduction:
HT15V is a silicon piezoresistive pressure sensor featuring a highly stable diffused silicon element core. It employs the piezoresistive effect of diffused silicon for precise measurement of both liquid and gas pressures. This sensor finds extensive usage in various applications, including air compressors and refrigeration systems .

Product Features:

Utilizes advanced technology and is encapsulated in a 316L stainless steel housing
Wide measuring range 0~350KPa~60MpaS
High reliability and excellent stability
Constant voltage supply

Applications:

Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
Compact design, ideal for applications with limited space
Used in process control systems for monitoring and controlling pressure
Commonly used in refrigeration systems and air compressors for pressure measurement

Electrical performance:

Power Supply: ≤10VDC
Common Mode Voltage Output: 50% of the input (typical)
Input Impedance:4KΩ~20KΩ
Output Impedance:2.5KΩ~6KΩ
Electrical Connection:100mm high-temperature wire,ribbon cable

Performance Parameters:
Measurement Range	Gauge(G)	350KPa,1000KPa,2000Kpa
	Absolute(A)	350KPaA,700KPaA,1000KPaA,2000KPaA
	Sealed(S)	3500KPaS,7MPaS,10MPaS,20MPa
	Typ		Max	Unit
NonLinearity	±0.15		±0.3	%F.S
Repeatability	0.05		0.1	%F.S
Hysteresis	0.05		0.1	%F.S
Zero Offset Output	0±1		0±2	mV
Full Scale Output	100±1		100±2	mV
Zero Offset Temp. Drift	±0.8		±2	%F.S
Full Scale Temp. Drift	±0.8		±2	%F.S
Compensated Temp.	0~70			ºC
Operating Temperature	-20~80			ºC
Storage Temperature	-40~125			ºC
Allowable Overload	Take the smaller value between 3 times the full scale or 80MPa
Burst Pressure	5X the full scale
Long-term Stability	0.2 %			F.S/Year
Diaphragm Material	316L
Insulation Resistance	≥200MΩ 100VDC
Vibration	No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock	100g,11ms
O-ring Seal	Nitrile rubber or Fluoro rubber
Filling Medium	Silicon Oil
Weight	~20g
The parameters are tested under the following conditions: 10V @25ºC

Outline Construction
Dimension

Electrical connection and compensation

Selection Examples

Ordering tips

1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
required air tightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.

Q&A

1. Q: What are the key features of your pressure sensor transmitters?
A: Our transmitters are characterized by high precision, long-term durability, and reliable performance. Customization options are available to meet specific application requirements.

2. Q: Can I request special specifications?
A: Yes, we support both OEM and ODM services. Our engineering team can tailor solutions based on your technical and operational needs.

3. Q: What is your monthly production capacity?
A: We have the capacity to produce up to 30,000 units per month, which enables us to support large-volume orders. To ensure optimal scheduling, we recommend coordinating with our sales team in advance.

4. Q: What is the typical delivery lead time?
A: Standard models are typically delivered within 5–8 working days. Lead times for customized products may vary depending on specifications.

5. Q: What is your pricing structure? Are volume discounts available?
A: We offer competitive pricing with attractive discounts for bulk purchases and long-term partnership agreements.

6. Q: What are your warranty and after-sales support policies?
A: All products come with a 24-month warranty from the date of shipment. Our after-sales team guarantees a response within 24 hours and provides remote assistance via PC-based connectivity when needed.
