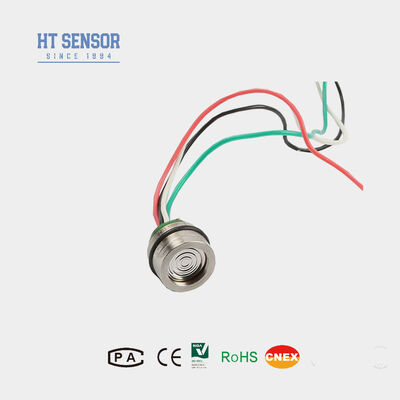

HT Sensor 10VDC Power HT15V Silicon Pressure Sensor Level Sensor Cell
Product Details
| Model NO.: | HT15V | For: | Diffused Silicon Pressure Transmitter |
|---|---|---|---|
| Material: | Stainless Steel | Wiring Type: | Four-Wire |
| Measuring Medium: | Gas And Liquid | IP Rating: | IP65 |
| Customized: | Customized | Keywords: | Mini Sensor |
| Supply: | 5-10VDC | Wire: | 13mm Silicone Wire |
| Output: | Mv Sigal | Transport Package: | Carton |
| Specification: | 15mm | Trademark: | HengTong |
| Origin: | China | HS Code: | 9026209090 |
| Highlight |
HT15V silicon pressure sensor,10VDC power level sensor,HT pressure transmitter sensor |
||
Product Description

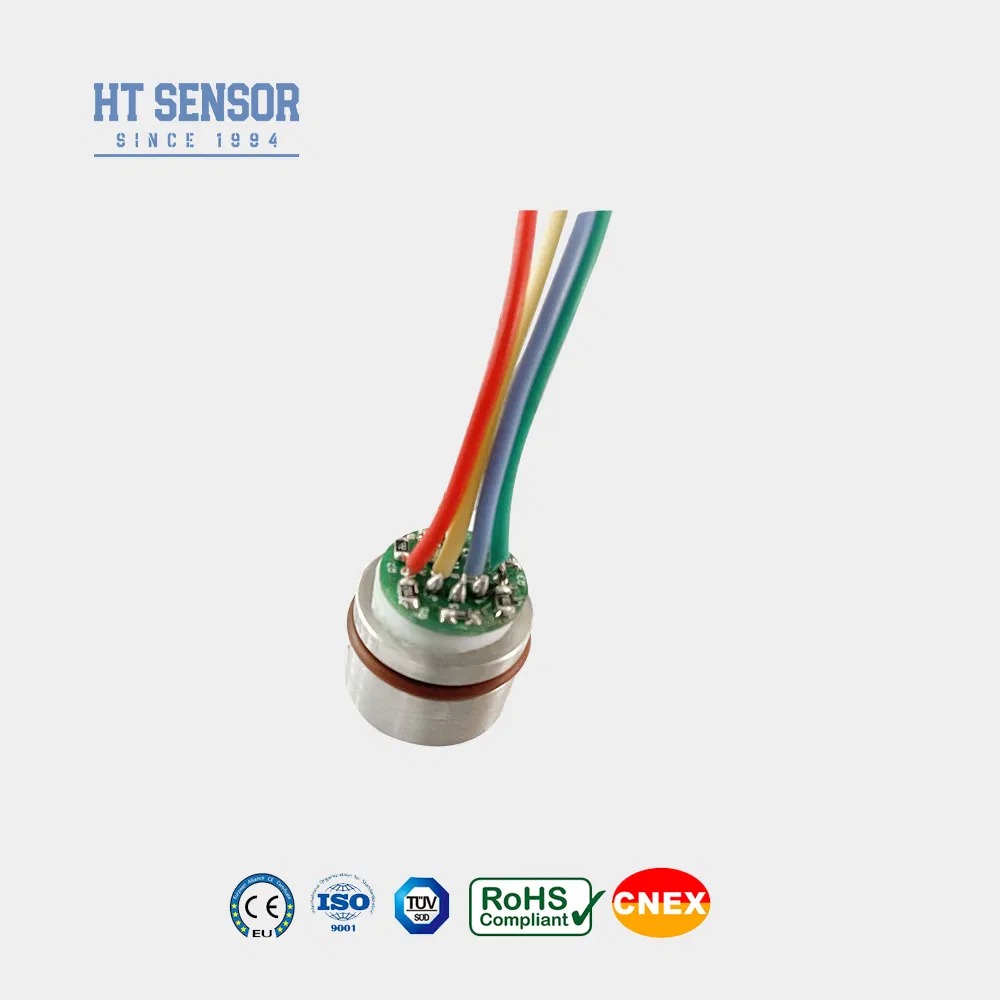

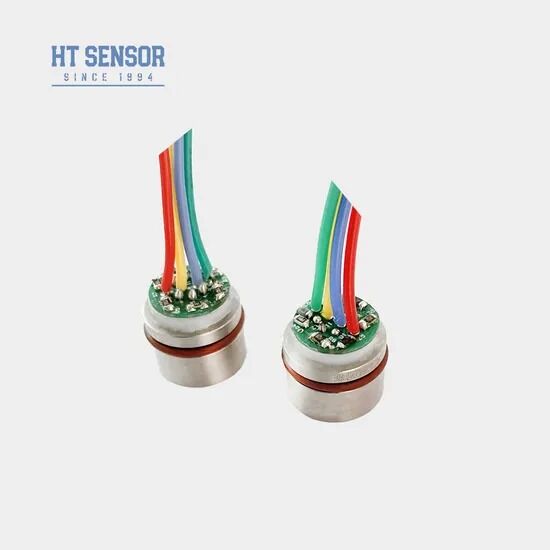

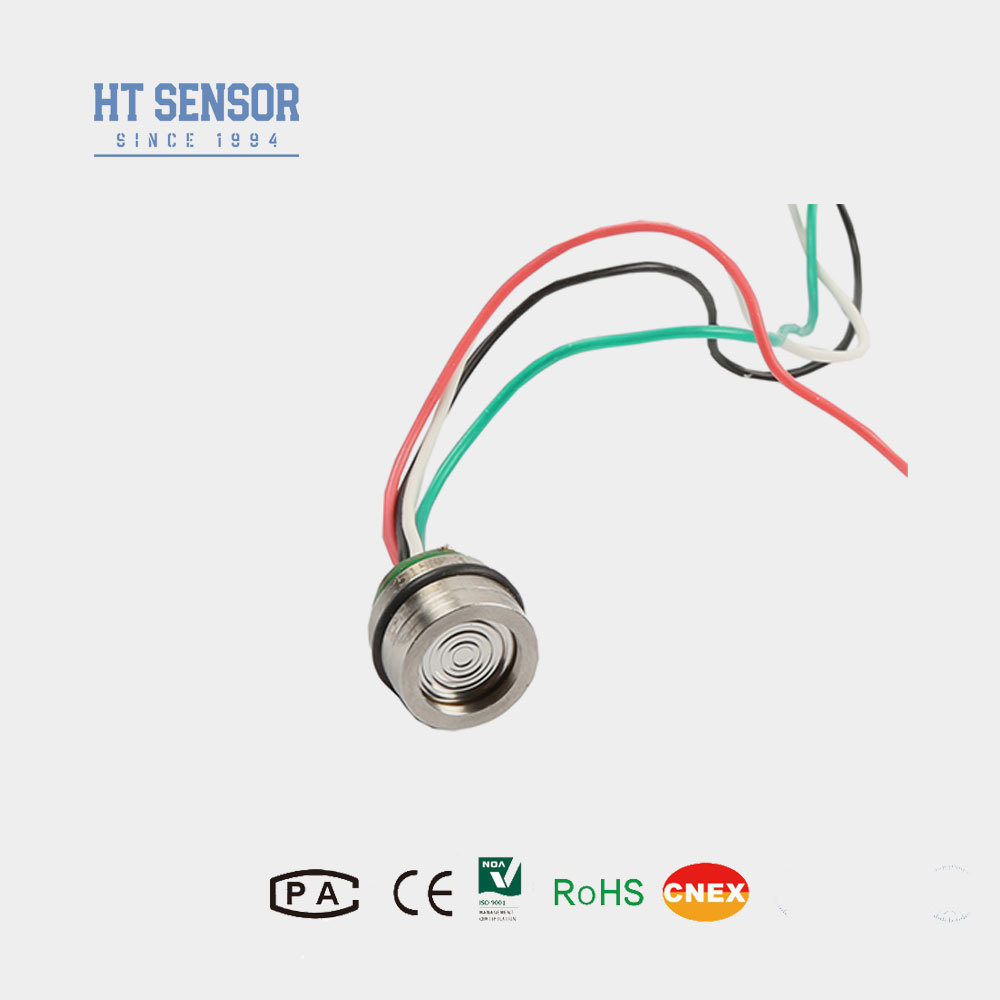

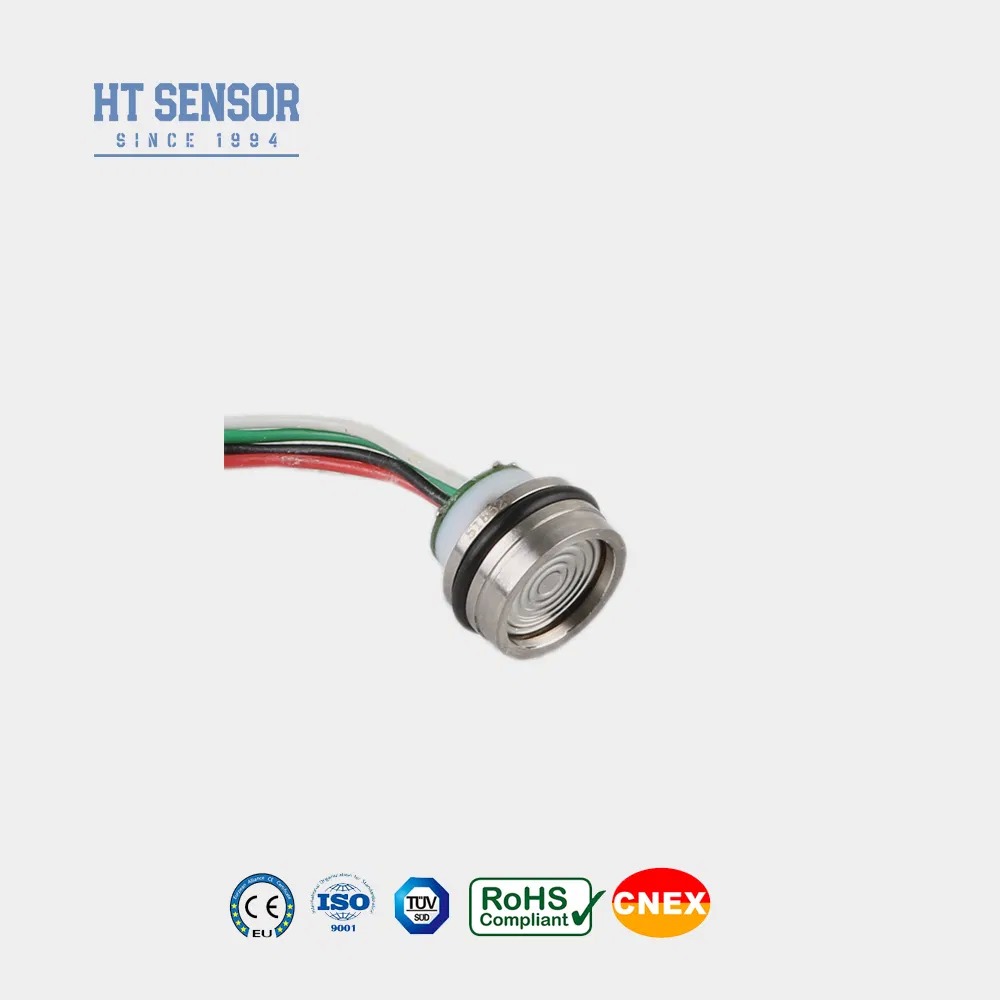

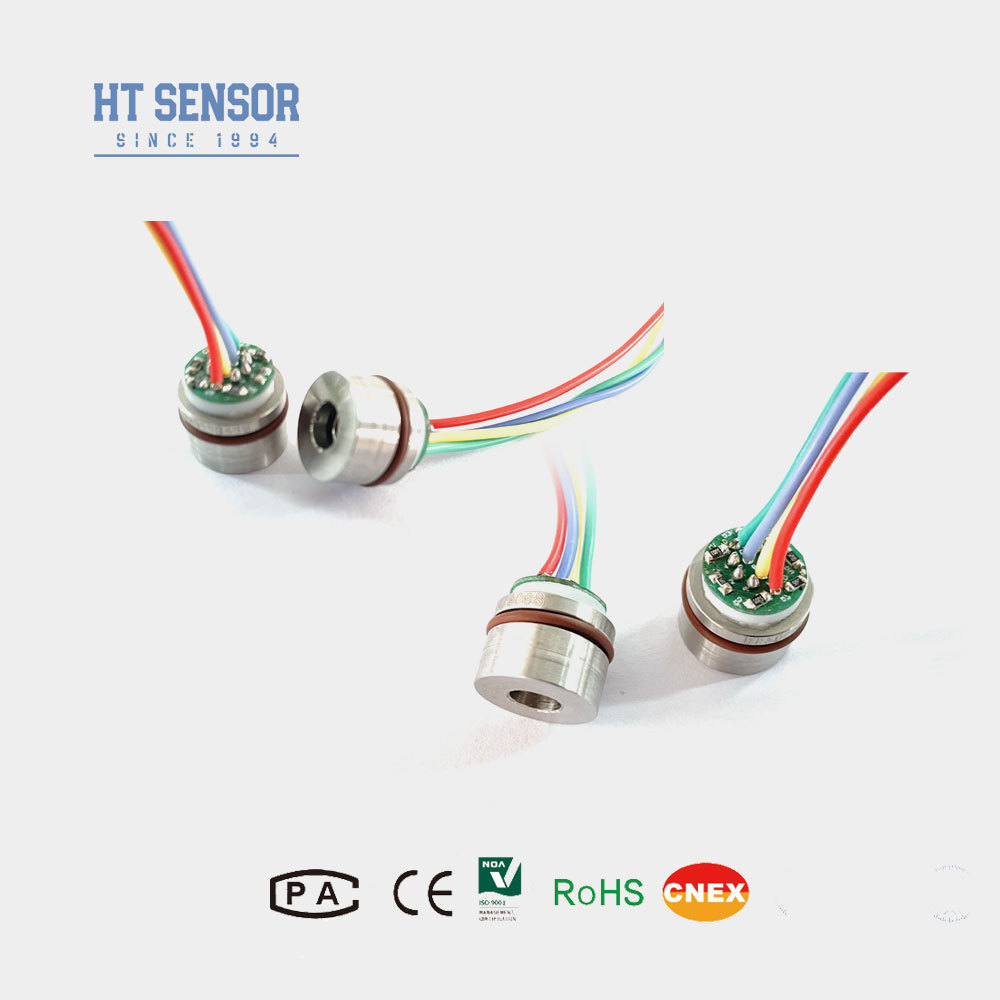

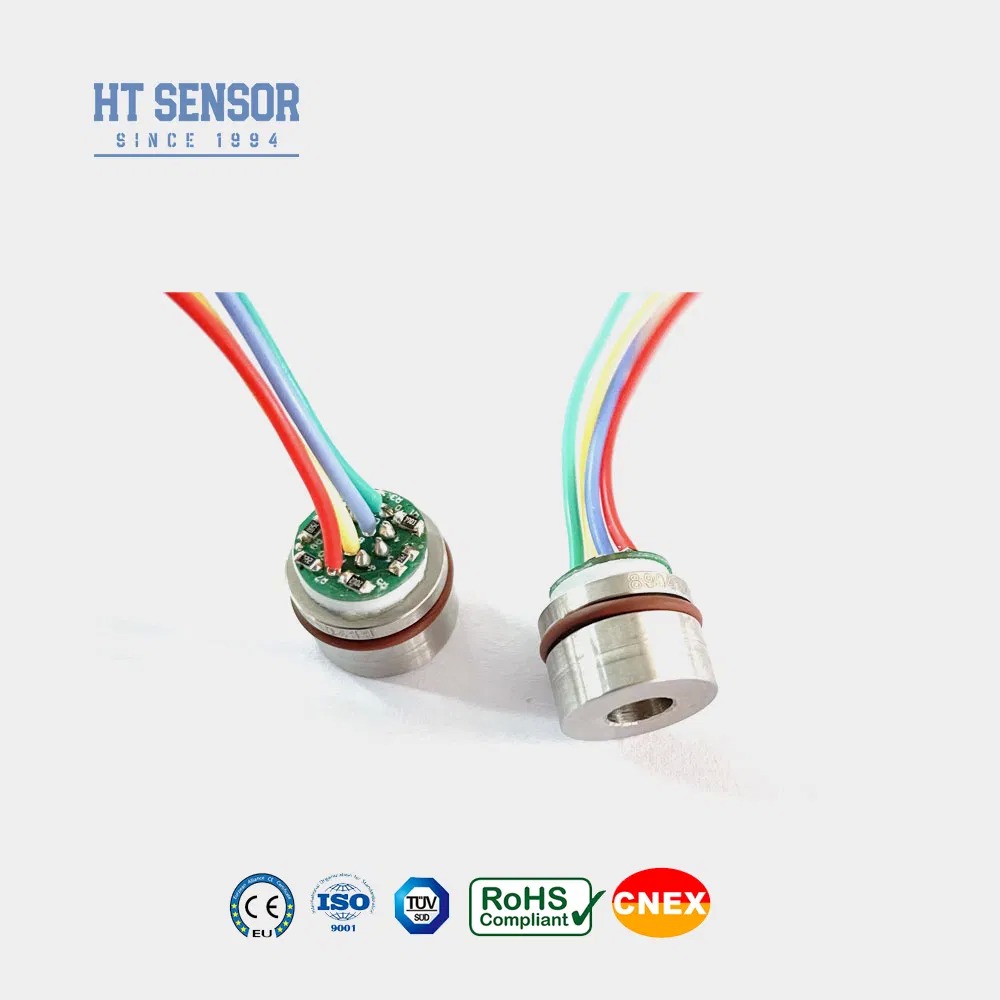

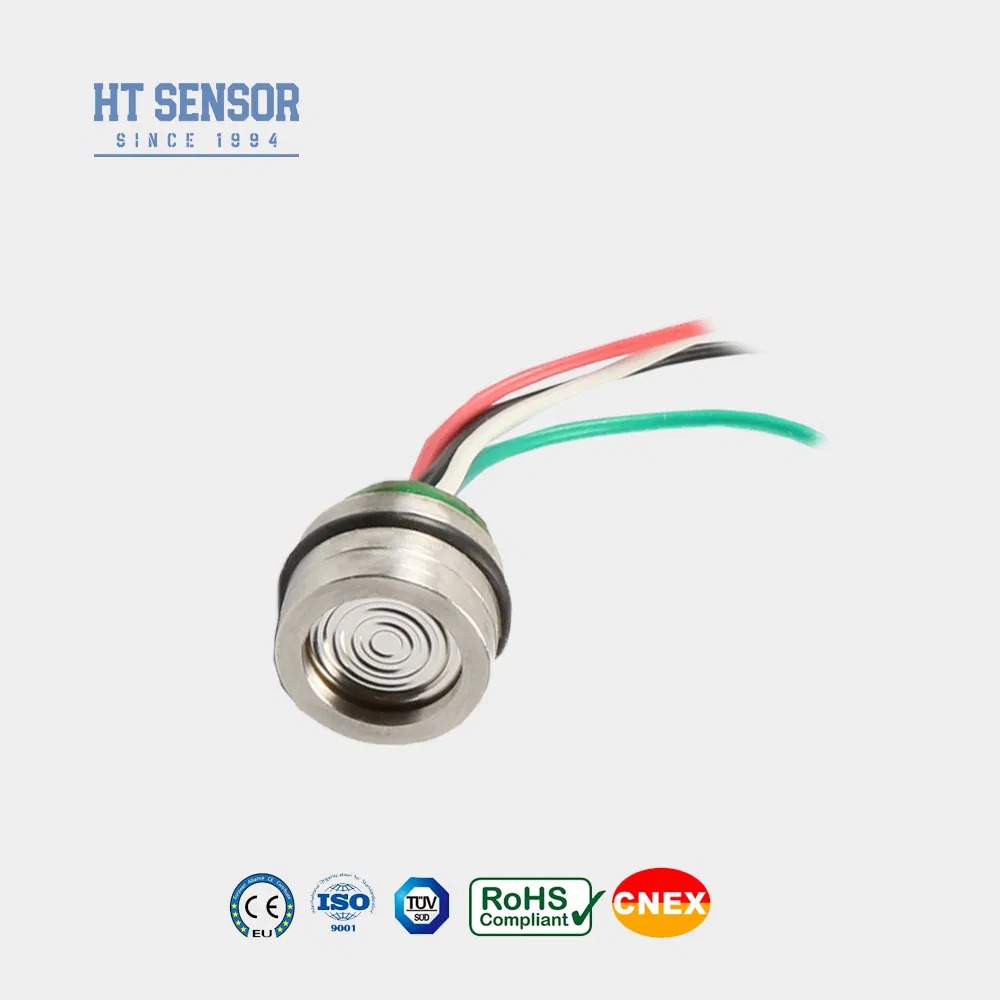

HT15V Silicon Piezoresistive Pressure Sensor
Introduction:
HT15V is a silicon piezoresistive pressure sensor featuring a highly stable diffused silicon element core. It employs the piezoresistive effect of diffused silicon for precise measurement of both liquid and gas pressures. This sensor finds extensive usage in various applications, including air compressors and refrigeration systems .
Product Features:
- Utilizes advanced technology and is encapsulated in a 316L stainless steel housing
- Wide measuring range 0~300KPa~40MpaS
- High reliability and excellent stability
- 5-10VDC Constant voltage supply 10MV/V output
- Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility..
- Compact design, ideal for applications with limited space .
- Used in process control systems for monitoring and controlling pressure .
- Commonly used in refrigeration systems and air compressors for pressure measurement.
- Power Supply: ≤10VDC
- Common Mode Voltage Output: 50% of the input (typical)
- Input Impedance:4KΩ~20KΩ
- Output Impedance:2.5KΩ~6KΩ
- Electrical Connection:100mm high-temperature wire,ribbon cable
| Performance Parameters: | |||||
|---|---|---|---|---|---|
| Measurement Range | Gauge(G) | 300kpa,350KPa,1000KPa,2000Kpa | |||
| Absolute(A) | 350KPaA,700KPaA,1000KPaA,2000KPaA | ||||
| Sealed(S) | 3500KPaS,7MPaS,10MPaS,20MPa,30MPa | ||||
| Typ | Max | Unit | |||
| NonLinearity | ±0.15 | ±0.3 | %F.S | ||
| Repeatability | 0.05 | 0.1 | %F.S | ||
| Hysteresis | 0.05 | 0.1 | %F.S | ||
| Zero Offset Output | 0±1 | 0±2 | mV | ||
| Full Scale Output | 100±1 | 100±2 | mV | ||
| Zero Offset Temp. Drift | ±0.8 | ±2 | %F.S | ||
| Full Scale Temp. Drift | ±0.8 | ±2 | %F.S | ||
| Compensated Temp. | 0~70 | ºC | |||
| Operating Temperature | -20~80 | ºC | |||
| Storage Temperature | -40~125 | ºC | |||
| Allowable Overload | Take the smaller value between 3 times the full scale or 80MPa | ||||
| Burst Pressure | 5X the full scale | ||||
| Long-term Stability | 0.2 % | F.S/Year | |||
| Diaphragm Material | 316L | ||||
| Insulation Resistance | ≥200MΩ 100VDC | ||||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | ||||
| Shock | 100g,11ms | ||||
| O-ring Seal | Nitrile rubber or Fluoro rubber | ||||
| Filling Medium | Silicon Oil | ||||
| Weight | ~20g | ||||
| The parameters are tested under the following conditions: 10V @25ºC | |||||
| Outline Construction | |
| Dimension | |
| Electrical connection and compensation |
|
| Selection Examples |
| Ordering tips |
- During installation, ensure proper clearance between the core and the transmitter housing to meet the specified airtightness requirements.
- When assembling the housing, maintain vertical alignment and apply pressure evenly to prevent binding or damage to the compensation plate.
- Ensure that the measured medium is compatible with the core diaphragm and housing material (316L stainless steel).
- Do not press the sensor diaphragm with hands or sharp objects, as deformation or puncture may cause internal damage to the core.
- Keep the pressure port of the gauge pressure core open to the atmosphere and prevent moisture, vapor, or corrosive media from entering the negative pressure chamber.
- If modifications to the pin wiring are required, always refer to the label attached to the actual core for correct connections.
