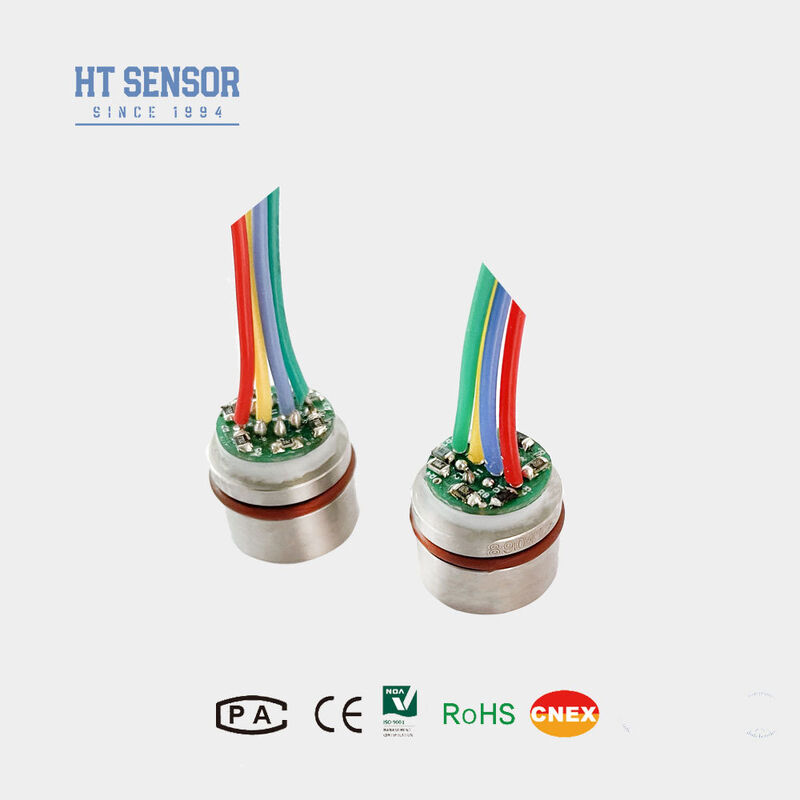

5VDC 10mv/V Compact Diffused Silicon Pressure Sensor Core 15mm Mini Sensor Silicon Pressure Sensor
Product Details
| Model NO.: | HT15V | For: | Diffused Silicon Pressure Sensor |
|---|---|---|---|
| Output Signal Type: | Analog Type | Material: | Stainless Steel |
| Wiring Type: | Four-Wire | Measuring Medium: | Gas And Liquid |
| Customized: | Customized | Keywords: | Mini Sensor |
| Supply: | 5-10VDC | Output: | Mv Sigal |
| Transport Package: | Carton | Specification: | 15mm |
| Origin: | China | HS Code: | 9026209090 |
| Highlight |
5VDC compact pressure sensor,diffused silicon pressure sensor core,15mm mini pressure transmitter |
||
Product Description

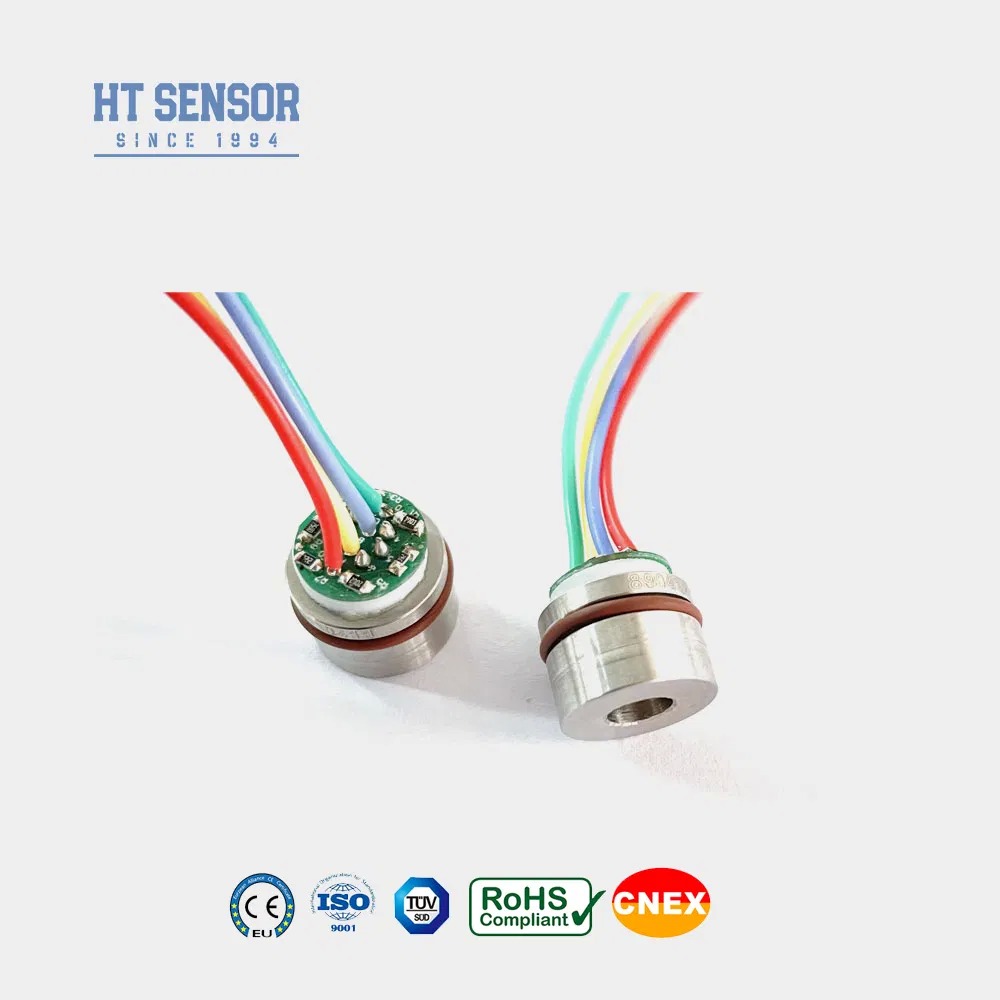

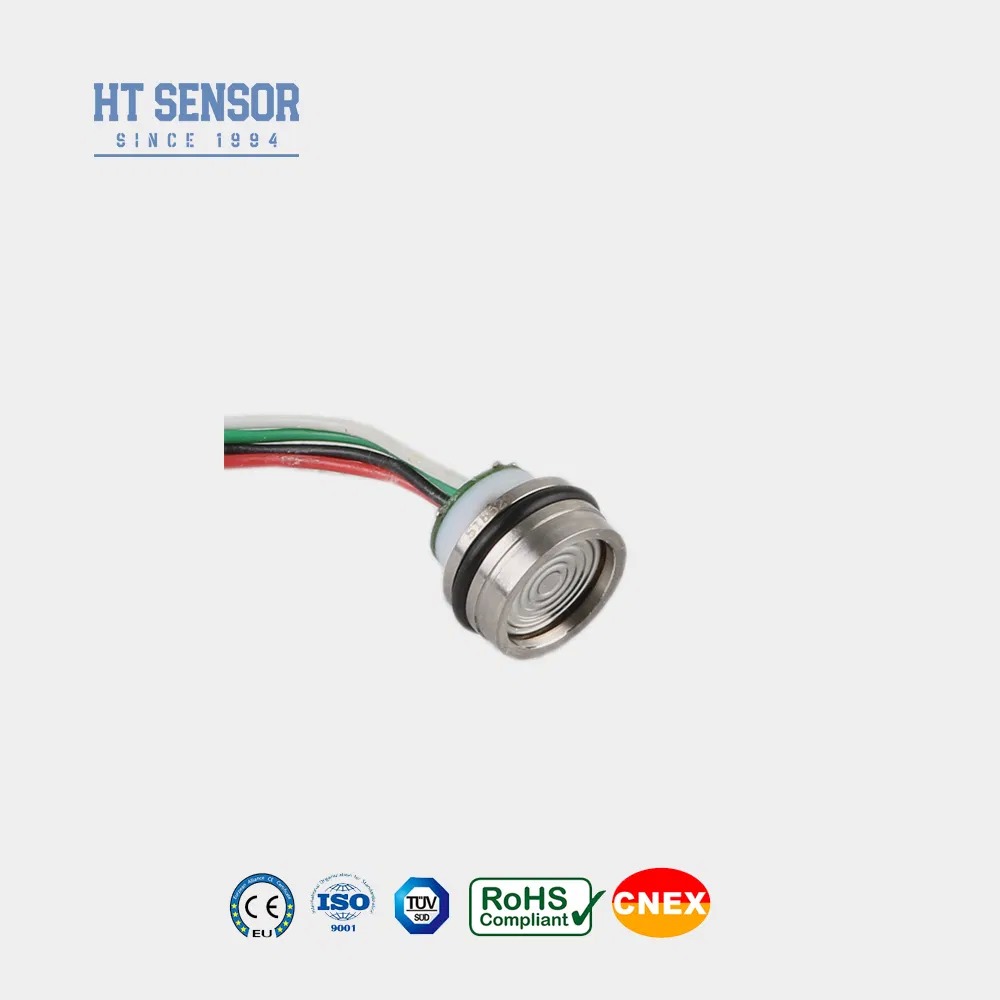

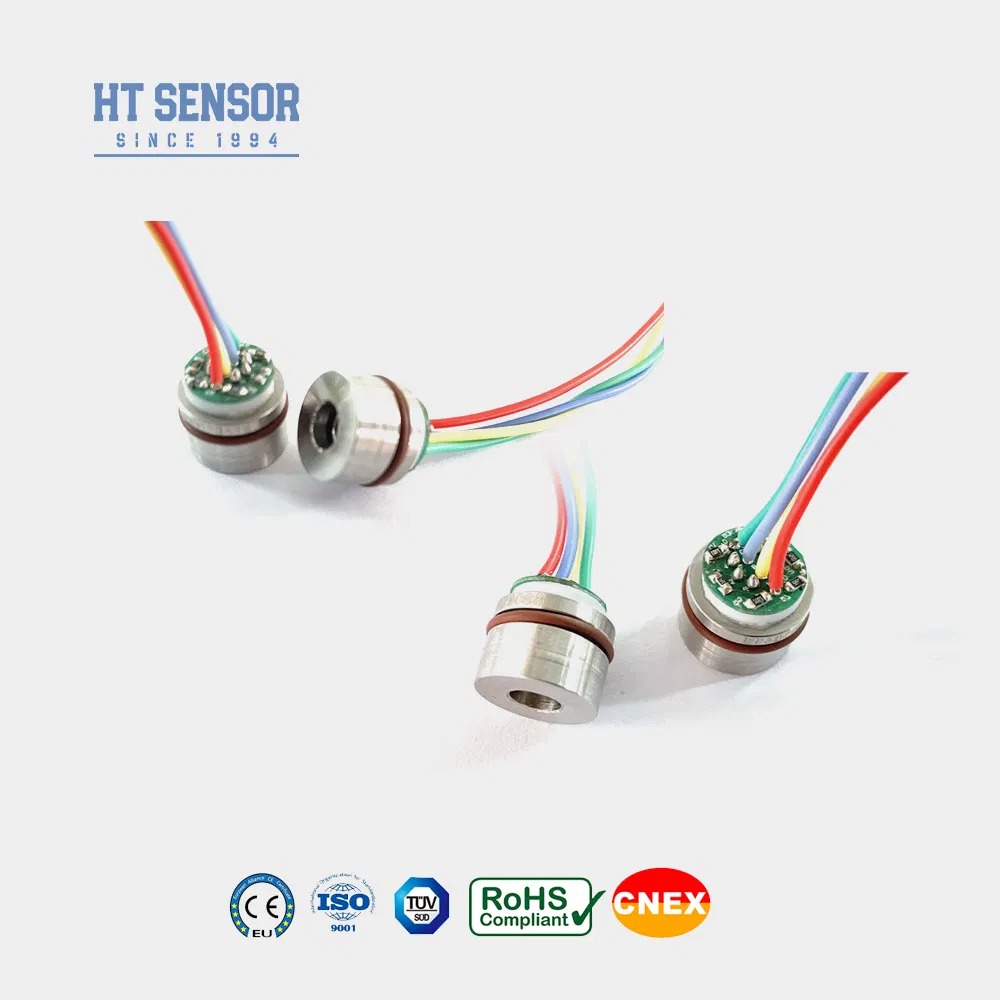

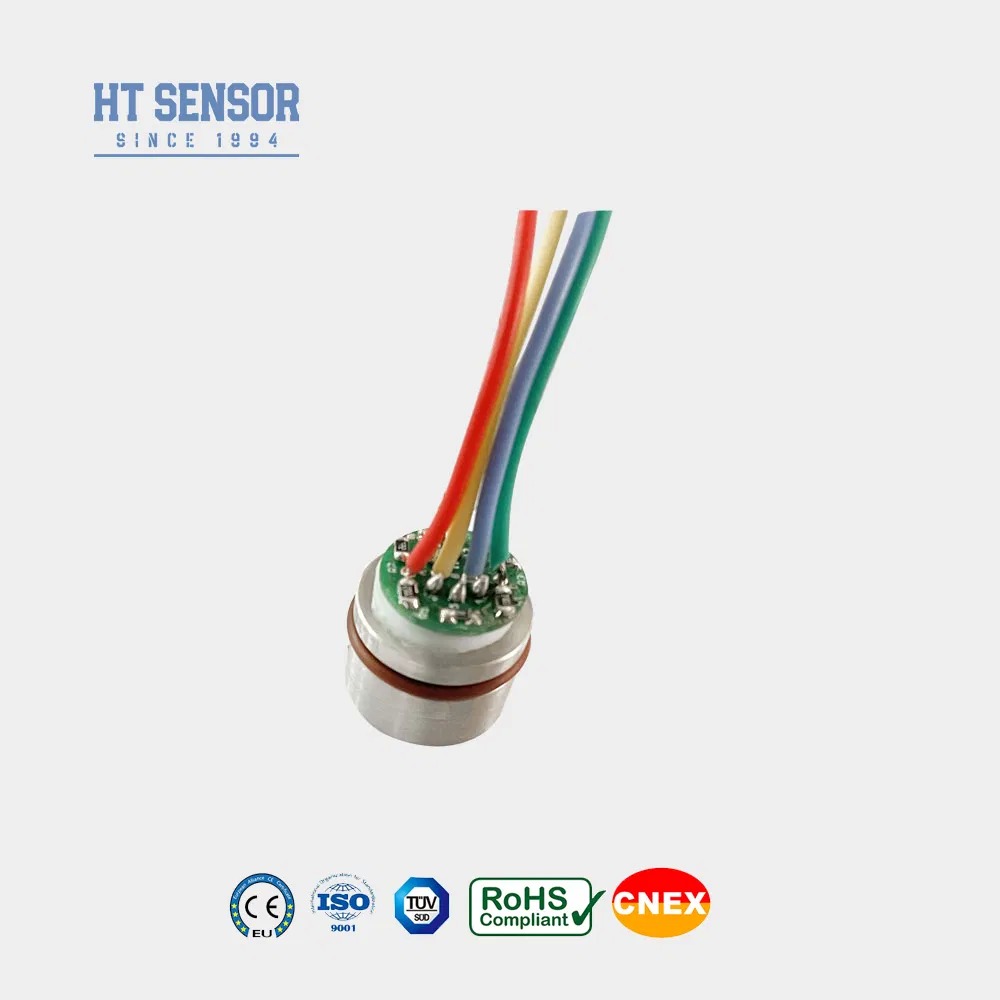

HT15V Silicon Piezoresistive Pressure Sensor
Introduction:
HT15V is a silicon strain gauge pressure sensor, with its core component being a highly stable diffused silicon element. This sensor utilizes the piezoresistive effect of the diffused silicon to accurately measure the pressure of liquids and gases. It converts the pressure signal into a measurable voltage signal. This sensor is widely used in various fields, such as air compressors and refrigeration systems.
Product Features:
- Utilizes advanced technology and is encapsulated in a 316L stainless steel housing
- Wide measuring range 0~350KPa~60MpaS
- High reliability and excellent stability
- Constant voltage supply
- Suitable for measuring non-corrosive gases and liquid pressures compatible with 316L stainless steel.
- Its compact design makes it ideal for space-constrained applications, while its reliability supports pressure monitoring and control in process systems.
- This product is also commonly used for pressure measurement in refrigeration systems and air compressors.
- Power Supply: ≤10VDC.
- Common Mode Voltage Output: 50% of the input (typical).
- Input Impedance:4KΩ~20KΩ.
- Output Impedance:2.5KΩ~6KΩ.
- Electrical Connection:100mm high-temperature wire,ribbon cable.
| Performance Parameters: | |||||
|---|---|---|---|---|---|
| Measurement Range | Gauge(G) | 350KPa,1000KPa,2000Kpa | |||
| Absolute(A) | 350KPaA,700KPaA,1000KPaA,2000KPaA | ||||
| Sealed(S) | 3500KPaS,7MPaS,10MPaS | ||||
| Typ | Max | Unit | |||
| NonLinearity | ±0.15 | ±0.3 | %F.S | ||
| Repeatability | 0.05 | 0.1 | %F.S | ||
| Hysteresis | 0.05 | 0.1 | %F.S | ||
| Zero Offset Output | 0±1 | 0±2 | mV | ||
| Full Scale Output | 100±1 | 100±2 | mV | ||
| Zero Offset Temp. Drift | ±0.8 | ±2 | %F.S | ||
| Full Scale Temp. Drift | ±0.8 | ±2 | %F.S | ||
| Compensated Temp. | 0~70 | ºC | |||
| Operating Temperature | -20~80 | ºC | |||
| Storage Temperature | -40~125 | ºC | |||
| Allowable Overload | Take the smaller value between 3 times the full scale or 80MPa | ||||
| Burst Pressure | 5X the full scale | ||||
| Long-term Stability | 0.2 % | F.S/Year | |||
| Diaphragm Material | 316L | ||||
| Insulation Resistance | ≥200MΩ 100VDC | ||||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | ||||
| Shock | 100g,11ms | ||||
| O-ring Seal | Nitrile rubber or Fluoro rubber | ||||
| Filling Medium | Silicon Oil | ||||
| Weight | ~20g | ||||
| The parameters are tested under the following conditions: 10V @25ºC | |||||
| Outline Construction | |
| Dimension | |
| Electrical connection and compensation |
|---|
|
| Selection Examples |
| Ordering tips |
- During installation, ensure proper clearance between the core and the transmitter housing to meet the specified airtightness requirements.
- When assembling the housing, maintain vertical alignment and apply pressure evenly to prevent binding or damage to the compensation plate.
- Ensure that the measured medium is compatible with the core diaphragm and housing material (316L stainless steel).
- Do not press the sensor diaphragm with hands or sharp objects, as deformation or puncture may cause internal damage to the core.
- Keep the pressure port of the gauge pressure core open to the atmosphere and prevent moisture, vapor, or corrosive media from entering the negative pressure chamber.
- If modifications to the pin wiring are required, always refer to the label attached to the actual core for correct connections.
| Q&A |
.
.
