Model NO.:	HT19F	Output Signal:	Analog Type
Material:	Stainless Steel	Wiring Type:	Four-Wire
Measuring Medium:	Gas And Liquid	IP Rating:	IP65
Power:	1.5mA	Range:	0-10kpa~60Mpa
Output:	Mv	Specification:	19mm
Input Impedance:	3KΩ~6KΩ	Output Impedance:	2.5KΩ~6KΩ
Operating Temperature:	-20~80 ºC	Storage Temperature:	-40~125 ºC
Weight:	28g
Highlight:	low cost water pressure sensor , industrial diffusion silicon sensor , water sensor cell with warranty

Product Description

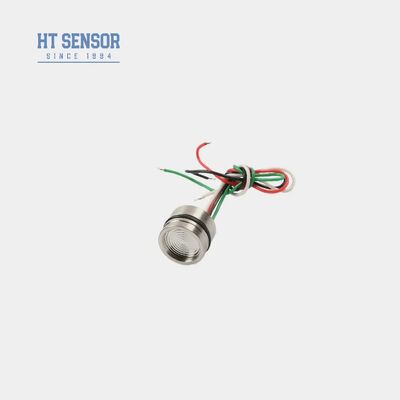

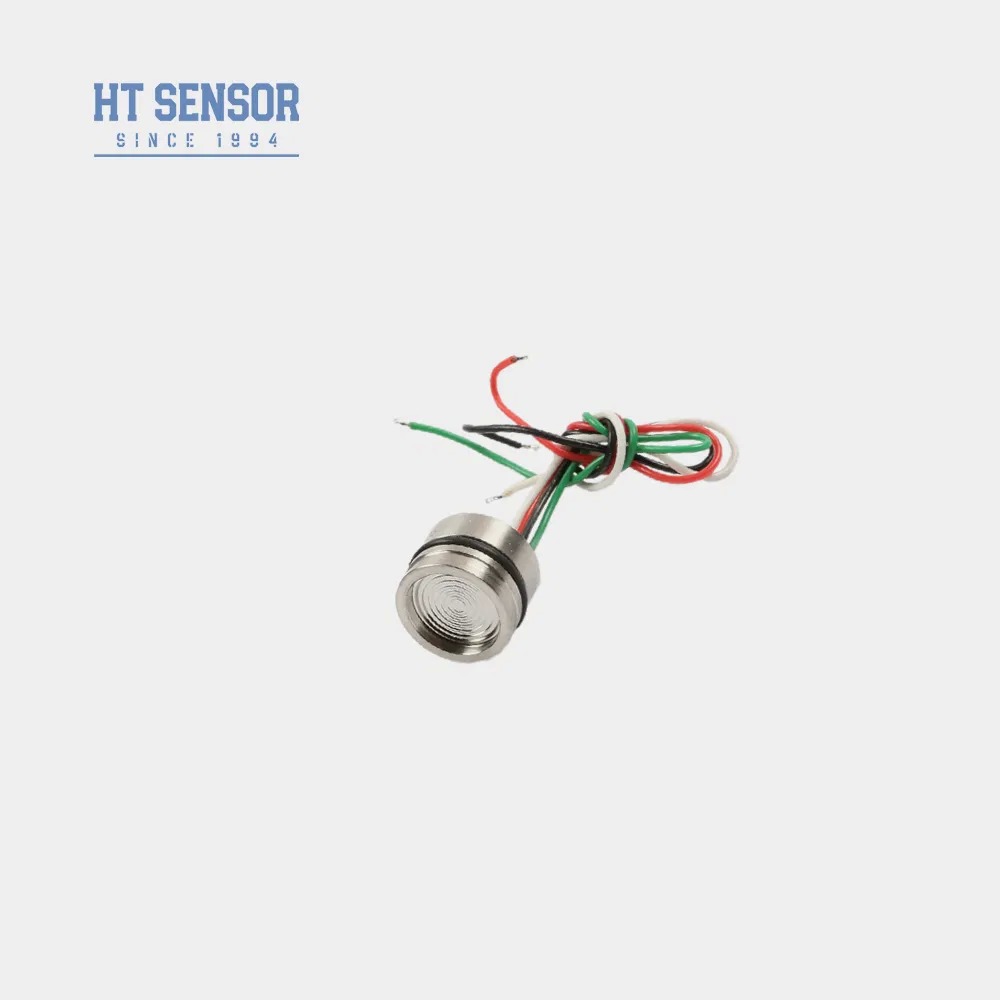

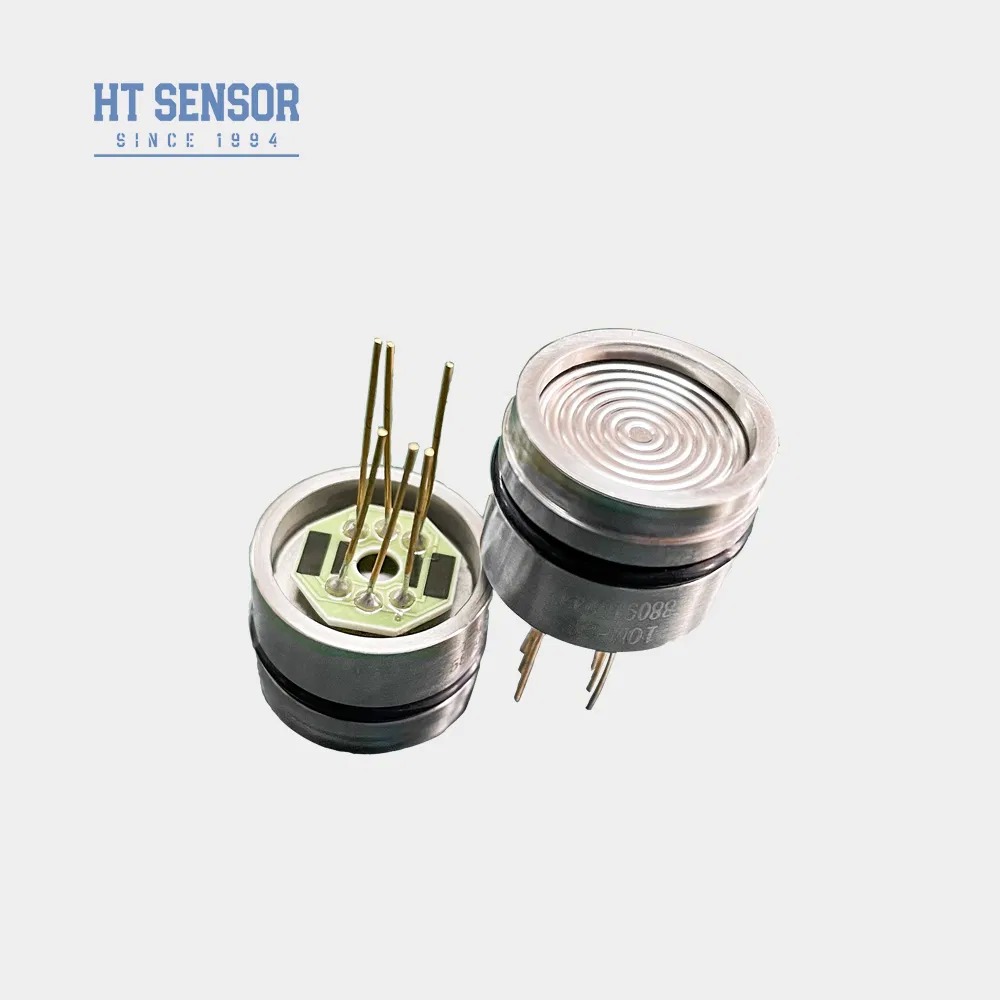

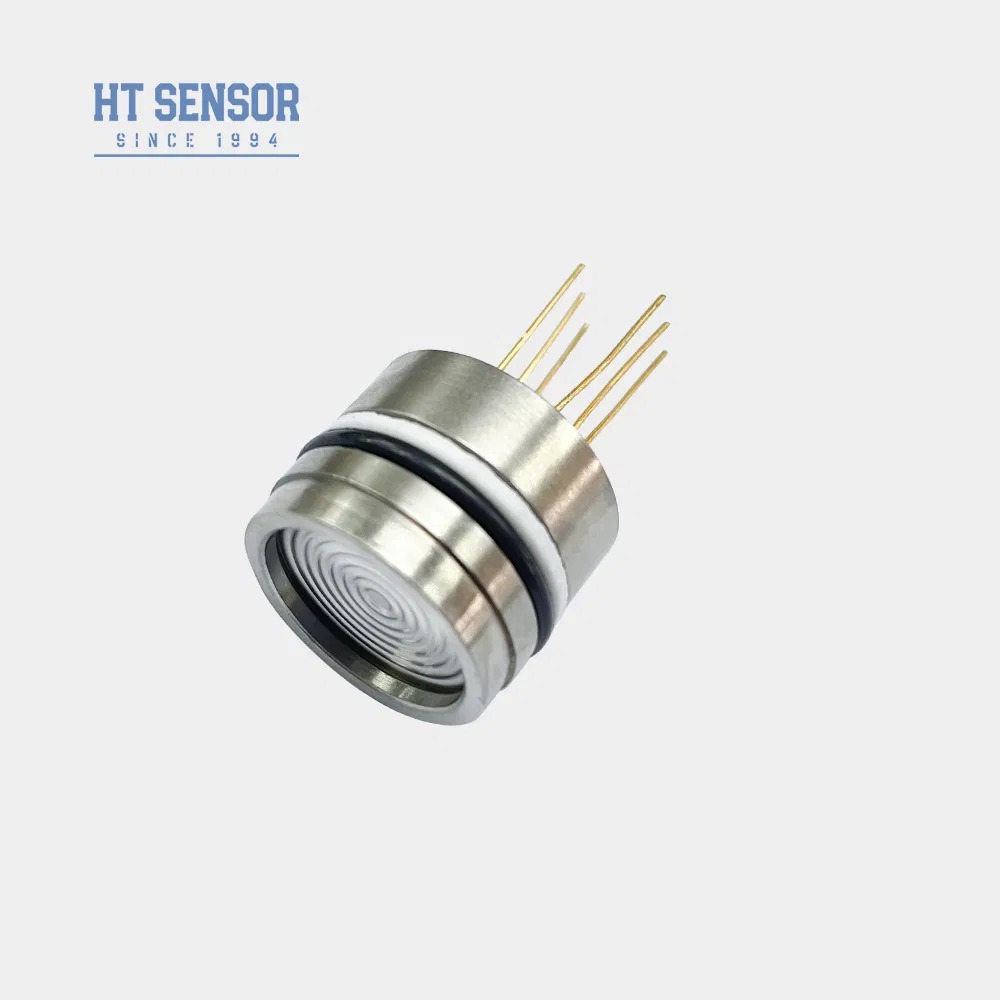

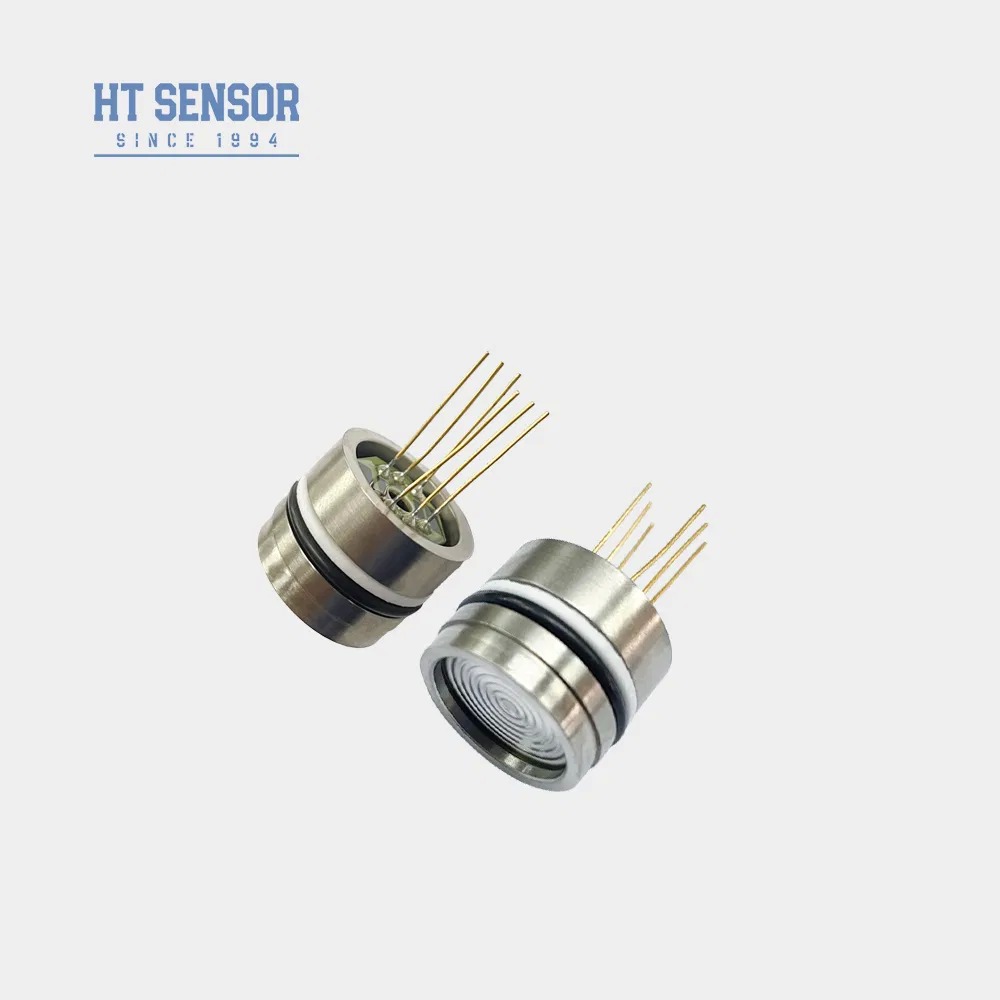

HT19F Industrial Diffusion Silicon Pressure Sensor

The HT19F silicon piezoresistive pressure sensor features a highly stable diffused silicon element core that accurately measures liquid and gas pressure. Pressure is transmitted through an isolation diaphragm and silicon oil to the silicon diaphragm, making it ideal for air compressors and refrigeration systems.

Product Features

Advanced technology with 316L stainless steel housing
Premium diaphragm materials including titanium and Hastelloy
Thick-film circuits for temperature compensation and zero-point correction
Exceptional reliability, repeatability, and stability

Applications

Measurement of non-corrosive gas and liquid pressure compatible with 316L stainless steel
Industrial process sites: petroleum, chemical, metallurgy, power, and hydrology
Marine and aviation industries
Hydraulic and pneumatic control systems
Process control applications

Electrical Performance

Power Supply: ≤2mA DC (Typical 1.5mA DC)

Input Impedance: 3KΩ~6KΩ

Output Impedance: 2.5KΩ~6KΩ

Electrical Connection: Gold-plated Kovar pins or 100mm high-temperature wires

Performance Parameters

Parameter	Typ	Max	Unit
Nonlinearity	±0.15	±0.3	%F.S
Repeatability	0.05	0.1	%F.S
Hysteresis	0.05	0.1	%F.S
Zero Output	0±1	0±2	mV
Span Output (≤20KPa)	50±10	50±30	mV
Span Output (≥35kPa)	100±10	100±30	mV
Temperature Error-Zero (≤20KPa)	±1	±2	%F.S
Temperature Error-Zero (≥35kPa)	±0.5	±1	%F.S
Temperature Error-Span (≤20KPa)	±1	±2	%F.S
Temperature Error-Span (≥35kPa)	±0.5	±1	%F.S
Compensated Temp. (≤20KPa)	0~50	-	ºC
Compensated Temp. (≥35kPa)	0~70	-	ºC
Operating Temperature	-20~80	-	ºC
Storage Temperature	-40~125	-	ºC
Long-term Stability	0.2	-	%F.S/Year
Insulation Resistance	≥200MΩ 100VDC	-	-
Response Time	≤1ms	-	-

Additional Specifications

Allowable Overload: Take the smaller value between 3 times the full scale or 120MPa

Burst Pressure: 5X the full scale

Diaphragm Material: 316L

Vibration: No change under conditions of 10gRMS, 20Hz to 2000Hz

Shock: 100g, 11ms

O-ring Seal: Nitrile ring or Fluoro ring

Filling Medium: Silicon Oil

Weight: about 28g

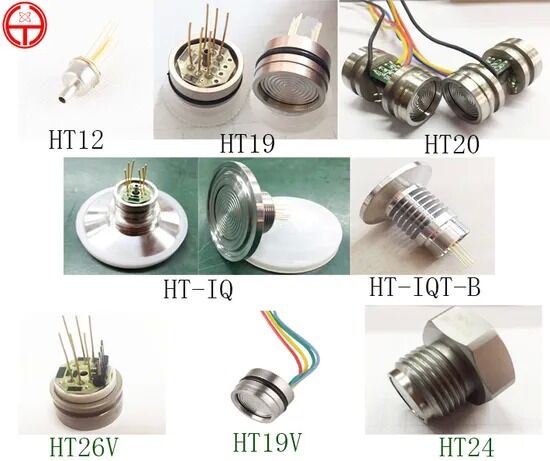

Outline Construction

Electrical Connection and Compensation

Selection Examples

Ordering Guidelines

1. Ensure proper fit between core size and transmitter housing for required airtightness

2. Maintain vertical alignment and apply even pressure during housing assembly

3. Specify special requirements if measured medium is incompatible with 316L materials

4. Avoid contact with sensor diaphragm using hands or sharp objects

5. Keep gauge pressure port open to atmosphere and prevent contamination

6. Refer to actual core label for pin lead configurations
