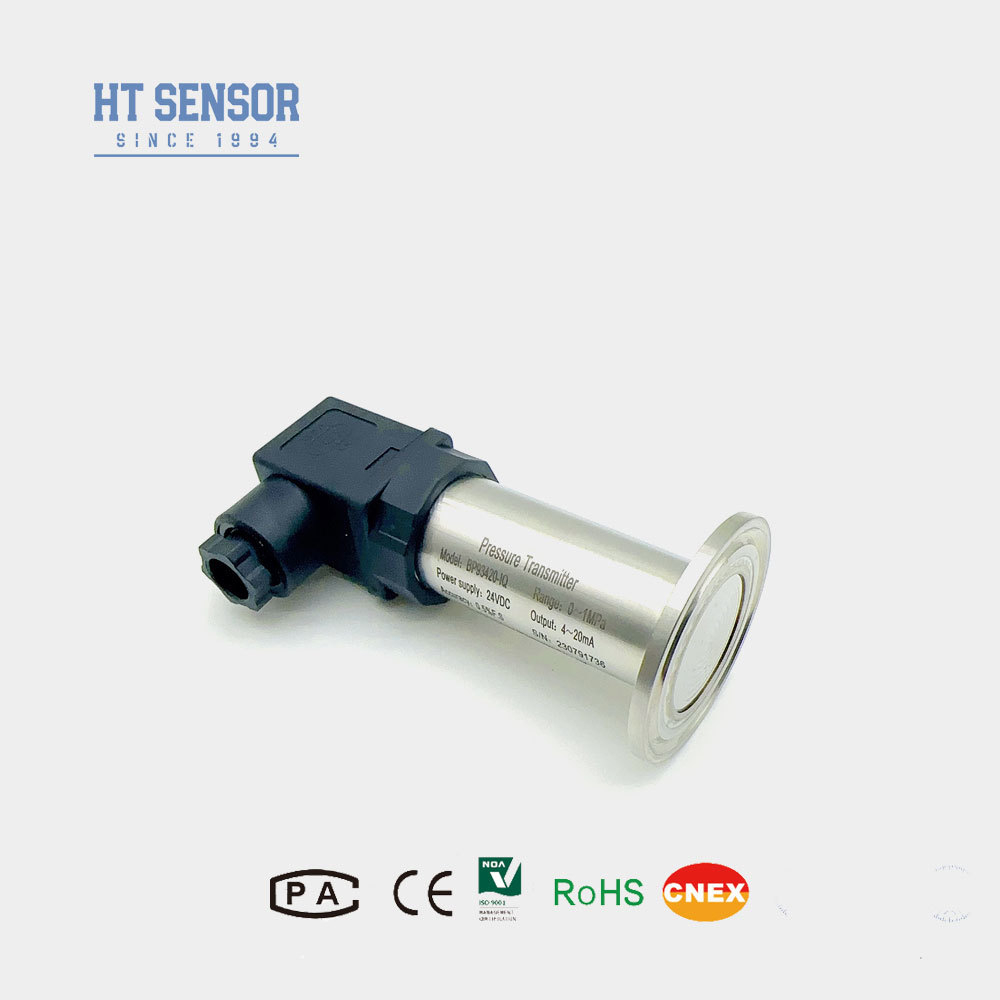

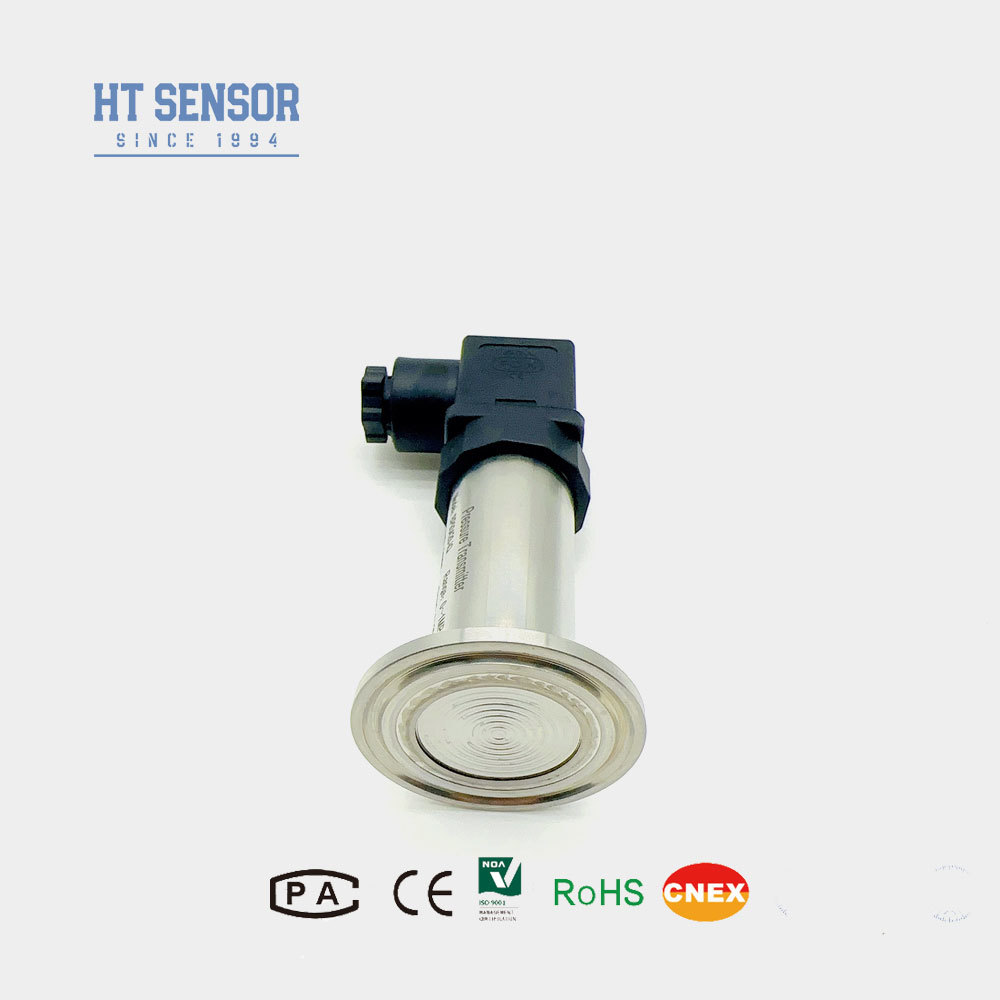

3.5MPa High Accuracy BP93420-IQ Flush Diaphragm Pressure Transmitter for Beverage Flush Diaphragm Pressure Sensor
Product Details
| Model NO.: | BP93420-IQ | Measuring Medium: | Gas And Liquid |
|---|---|---|---|
| Accuracy Grade: | 0.5% | Pressure Range: | -100kpa...0kpa ~35kpa...3.5MPa |
| IP Rating: | IP65 | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Housing Material: | 316L | Overload Capacity: | ≤ 1.5 Times Of The Rated Range |
| Repeatability: | ≤0.1%FS | Long-Term Stability: | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Operating Temperature: | -20ºC~80ºC | Diaphragm Material: | 316L |
| Insulation Resistance: | 100MΩ 100VDC | Weight: | ~0.2kg |
| Highlight |
3.5MPa flush diaphragm pressure transmitter,high accuracy beverage pressure sensor,silicon pressure transmitter with warranty |
||
Product Description
3.5MPa High Accuracy BP93420-IQ Flush Diaphragm Pressure Transmitter for Beverage Flush Diaphragm Pressure Sensor
- Wide measurement range with various pressure interface options
- Diverse output signal options
- Adjustable zero and full-scale calibration
- High accuracy with multiple sterile process connections
- Measuring non-corrosive gases and liquids with 316L compatibility
- Medical, biopharmaceutical, and food hygiene industries for sterile processing
- Paper and chemical industries, sewage level, and beverage can pressure measurements
- Hydraulic and pneumatic control systems
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa |
|---|---|
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ≤0.1%FS |
| Hysteresis | ≤0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| Weight | ~0.2kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC |
- Ensure medium compatibility with product contact parts
- Explosion-proof type products do not include digital display heads
- Transmitters with LCD/LED display require power supply ≥20VDC
- Install lightning protection devices and ensure proper grounding
- For temperatures below -20ºC, select EPDM O-ring seal
- Default cable length: 1.5m (polyethylene material)
- Specify special requirements: vibration, impact, electromagnetic interference
| Code | Outline Construction |
|---|---|
| IB | General Pressure Transmitter |
| IX | Display Pressure Transmitter |
| IE | Shock-resistant Aviation Pressure Transmitter |
| IIC/III | Industrial General/ Display Pressure Transmitter |
| IF | Moisture-proof Pressure Transmitter |
| IIE/IIIE | General/Display Pressure Transmitter |
| IN | Air Conditioning Dedicated Pressure Transmitter |
| IC | High-temperature Pressure Transmitter |
| IQ1/IQ2 | Large Diaphragm /High-temperature Pressure Transmitter |
(0-X)Kpa or MPa | X: Indicates the Actual Measuring Range
| Code | Power Supply |
|---|---|
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
|---|---|
| S1 | 4~20mADC |
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
| S7 | 0.5~4.5VDC |
| Code | Pressure Connection |
|---|---|
| J1 | M20×1.5 |
| J2 | G1/2 |
| J3 | G1/4 |
| J4 | 7/16-20UNF |
| J5 | Other |
| Code | Electrical Connection |
|---|---|
| B1 | Hirschmann |
| B2 | PG7 Plug |
| B3 | Sealed Cable Output |
| B4 | 2088 Industrial Casing |
| B5 | 2088 Industrial Casing with Display |
| B6 | Other |
| Code | Pressure Type |
|---|---|
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
- What are the features of your pressure sensor transmitters?
- High precision, durability, and excellent performance. Customization available.
- Can I customize special specifications?
- Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
- What is your production capacity?
- Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for scheduling.
- What's the typical delivery period?
- 5-8 working days for standard models. Customized products may vary.
- How are the products priced? Any discounts?
- Competitive pricing with discounts for bulk orders or long-term partners.
- What is the warranty of your products? And after-sales service?
- 24-month warranty after shipment. After-sales responds within 24 hours with remote PC network support available.
Product Highlights
BP93420-IQ flush diaphragm pressure transmitter offers ±0.5% accuracy, 3.5MPa range, and IP65 protection. Features 316L construction for beverage, pharmaceutical, and industrial applications. Customizable outputs and configurations available with explosion-proof options.
